Z84C00AD6 datasheet, PDF - EEWORLD Datasheet

Z84C00AD6: Description8-BIT, 4MHz, MICROPROCESSOR, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size904KB，32 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

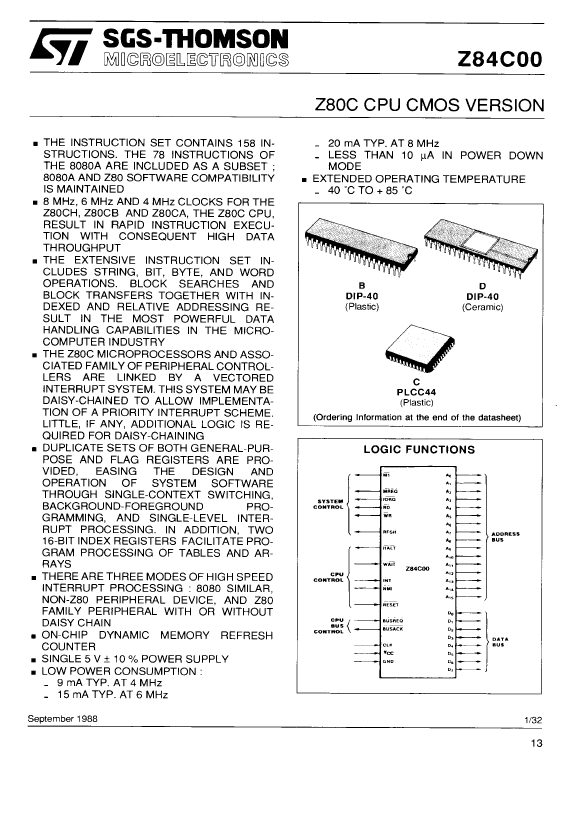

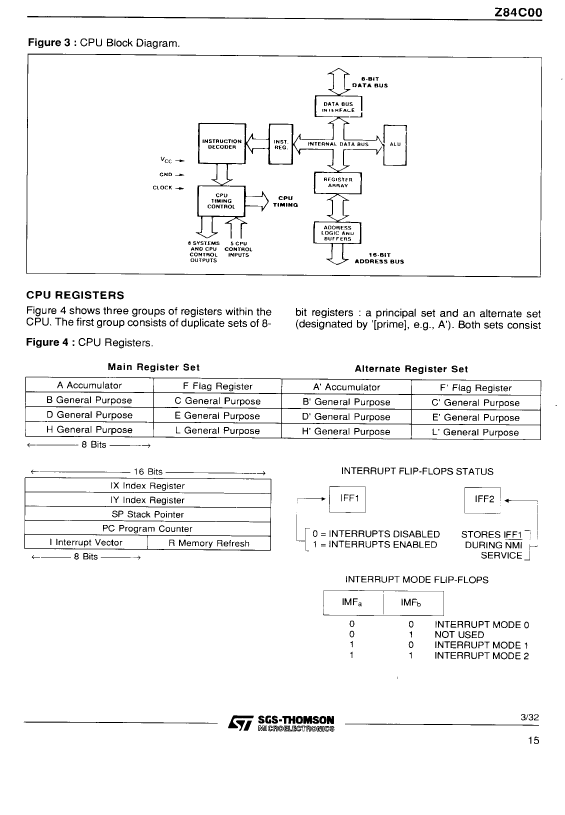

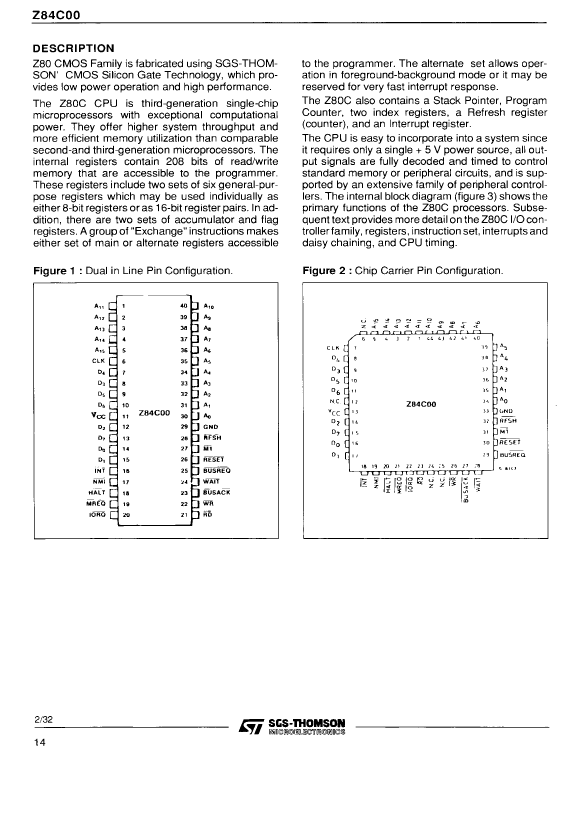

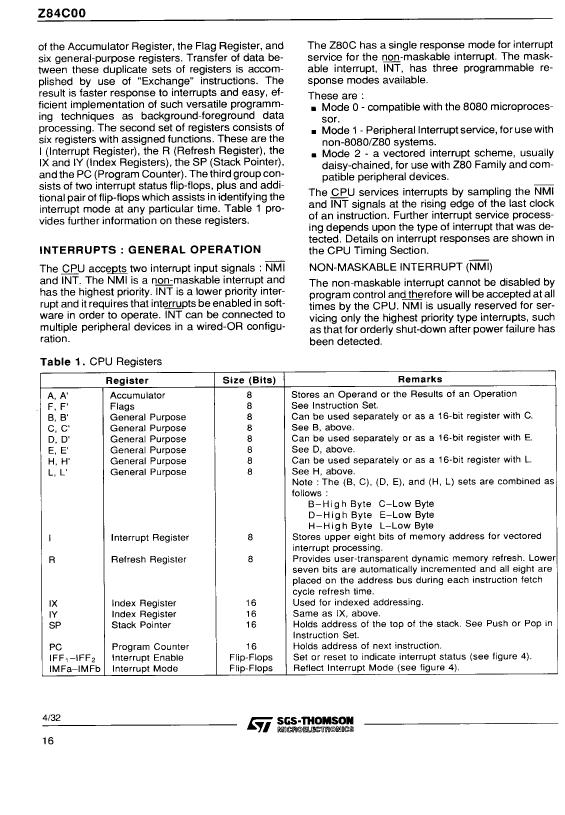

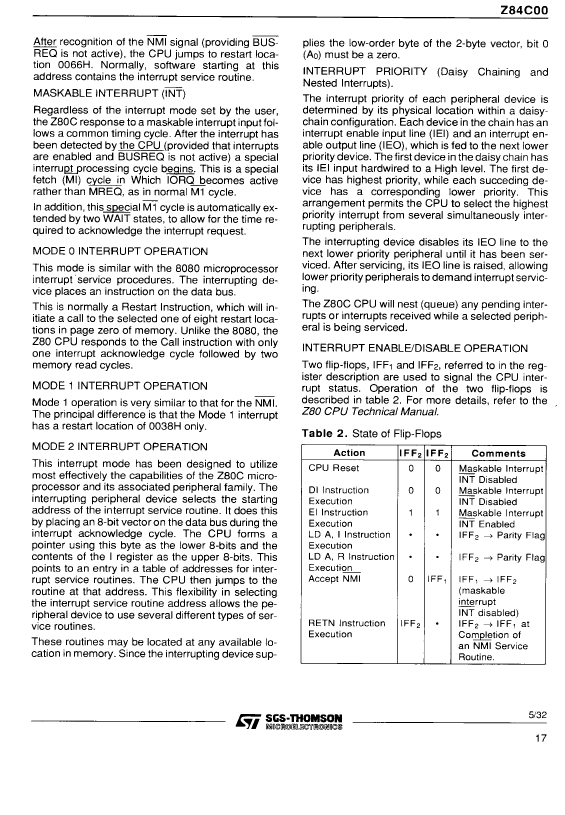

Z84C00AD6 Overview

8-BIT, 4MHz, MICROPROCESSOR, CDIP40, CERAMIC, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	not_compliant
Other features	DRAM REFRESH CONTROLLER
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	4 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	3.6 mm
speed	4 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
