FST16861MTDX

Description
CBT/FST/QS/5C/B SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, MO-153ED, TSSOP-48
Categorylogic    logic
File Size836KB，5 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

FST16861MTDX Online Shopping

Suppliers Part Number Price MOQ In stock
FST16861MTDX - - View Buy Now

FST16861MTDX Overview

CBT/FST/QS/5C/B SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, MO-153ED, TSSOP-48

FST16861MTDX Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRochester Electronics
Parts packaging codeTSSOP
package instruction6.10 MM, MO-153ED, TSSOP-48
Contacts48
Reach Compliance Codeunknown
seriesCBT/FST/QS/5C/B
JESD-30 codeR-PDSO-G48
JESD-609 codee4
length12.5 mm
Logic integrated circuit typeBUS DRIVER
Humidity sensitivity level2
Number of digits10
Number of functions2
Number of ports2
Number of terminals48
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
propagation delay (tpd)0.25 ns
Certification statusCOMMERCIAL
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceNICKEL PALLADIUM GOLD
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
width6.1 mm

FST16861MTDX Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
FST16861 20-Bit Bus Switch
March 2000
Revised June 2005
FST16861
20-Bit Bus Switch
General Description
The Fairchild Switch FST16861 provides 20-bits of high-
speed CMOS TTL-compatible bus switching. The low On
Resistance of the switch allows inputs to be connected to
outputs without adding propagation delay or generating
additional ground bounce noise.
The device is organized as a 10-bit or 20-bit bus switch.
When OE
1
is LOW, the switch is ON and Port 1A is con-
nected to Port 1B. When OE
2
is LOW, Port 2A is connected
to Port 2B. When OE
X
is HIGH, a high impedance state
exists between the A and B Ports.
Features
s
4
:
switch connection between two ports
s
Minimal propagation delay through the switch
s
Low l
CC
s
Zero bounce in flow-through mode
s
Control inputs compatible with TTL level
Ordering Code:
Order Number
FST16861MTD
Package Number
MTD48
Package Description
48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Diagram
Connection Diagram
Truth Table
Inputs
OE
1
L
L
H
H
OE
2
L
H
L
H
Inputs/Outputs
1A, 1B
1A
1A
Z
Z
1B
1B
2A
Z
2A, 2B
2A
Z
2B
2B
Pin Descriptions
Pin Name
OE
1
, OE
2
1A, 2A
1B, 2B
Description
Bus Switch Enables
Bus A
Bus B
© 2005 Fairchild Semiconductor Corporation
DS500318
www.fairchildsemi.com
FST16861
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
) (Note 2)
DC Input Voltage (V
IN
) (Note 3)
DC Input Diode Current (l
IK
) V
IN

0V
DC Output (I
OUT
) Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range (T
STG
)
0.5V to

7.0V
Recommended Operating
Conditions
(Note 4)
Power Supply Operating (V
CC)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Switch Control Input
Switch I/O
Free Air Operating Temperature (T
A
)
0 ns/V to 5 ns/V
0 ns/V to DC
-40
q
C to

85
q
C
4.0V to 5.5V
0V to 5.5V
0V to 5.5V

0.5V to

7.0V

0.5V to

7.0V

50 mA
128 mA
r
100 mA

65
q
C to

150
q
C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
V
S
is the voltage observed/applied at either the A or B Ports across
the switch.
Note 3:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 4:
Unused control inputs must be held HIGH or LOW. They may not
float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
I
I
I
OZ
R
ON
Parameter
Clamp Diode Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
Input Leakage Current
OFF-STATE Leakage Current
Switch On Resistance
(Note 6)
V
CC
(V)
4.5
4.0–5.5
4.0–5.5
5.5
0
5.5
4.5
4.5
4.5
4.0
I
CC
Quiescent Supply Current
Increase in I
CC
per Input
5.0V and T
A
T
A
Min

40
q
C to

85
q
C
Typ
(Note 5)
Max
Units
V
V
0.8
V
I
IN
Conditions

1.2
2.0

18 mA
r
1.0
10
10
4
4
7
11
7
7
12
20
3
2.5
P
A
P
A
P
A
:
:
:
:
P
A
mA
0
d
V
IN
d
5.5V
V
IN
V
IN
V
IN
V
IN
V
IN
V
IN
5.5V
0V, I
IN
0V, I
IN
2.4V, I
IN
2.4V, I
IN
64 mA
30 mA
15 mA
15 mA
0
0
d
A, B
d
V
CC
5.5
5.5

25
q
C
V
CC
or GND, I
OUT
'
I
CC
One Input at 3.4V
Other Inputs at V
CC
or GND
Note 5:
Typical values are at V
CC
Note 6:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On Resistance is determined by the lower of the
voltages on the two (A or B) pins.
www.fairchildsemi.com
2
FST16861
AC Electrical Characteristics
C
L
Symbol
Parameter
V
CC
Min
t
PHL
, t
PLH
t
PZH
, t
PZL
t
PHZ
, t
PLZ
Propagation Delay Bus-to-Bus
(Note 7)
Output Enable Time
Output Disable Time
1.0
1.0
T
A

40
q
C to

85
q
C,
50pF, RU RD 500
:
V
CC
Min
4.0V
Max
0.25
5.3
6.3
ns
ns
ns
V
I
V
I
V
I
6.0
V
I
V
I
OPEN
7V for t
PZL
OPEN for t
PZH
7V for t
PLZ
OPEN for t
PHZ
Figures
1, 2
Figures
1, 2
Figures
1, 2
Units
Conditions
Figure
Number
4.5 – 5.5V
Max
0.25
5.0
Note 7:
This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On
Resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage source (zero output impedance).
Capacitance
Symbol
C
IN
C
I/O
Note 8:
T
A
(Note 8)
Parameter
Typ
3
6
Max
Units
pF
pF
V
CC
Conditions
5.0V, V
IN
0V
0V
Control Pin Input Capacitance
Input/Output Capacitance “OFF State”

25
q
C, f
V
CC
, OE
5.0V, V
IN
1 Mhz, Capacitance is characterized but not tested.

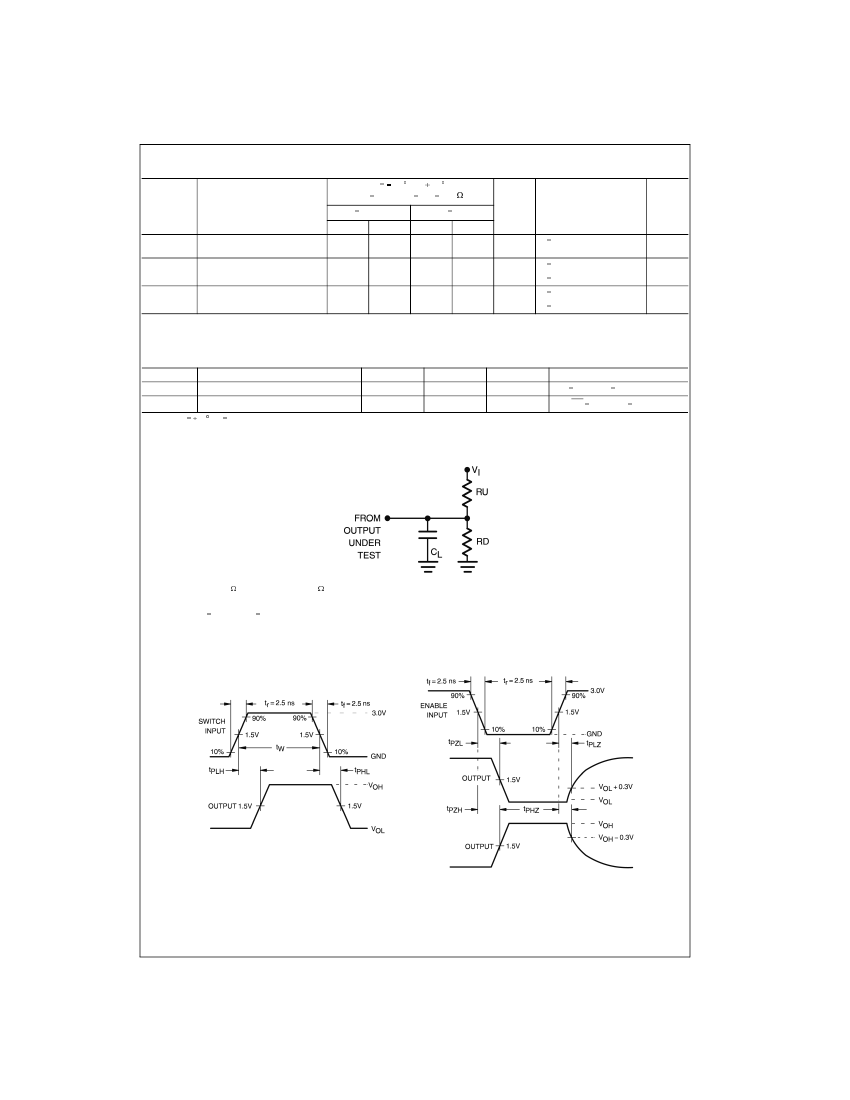

AC Loading and Waveforms
Note:
Input driven by 50
:
source terminated in 50
:
Note:
C
L
includes load and stray capacitance
Note:
Input PRR
1.0 MHz, t
W
500 ns
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST16861 20-Bit Bus Switch
Physical Dimensions
inches (millimeters) unless otherwise noted

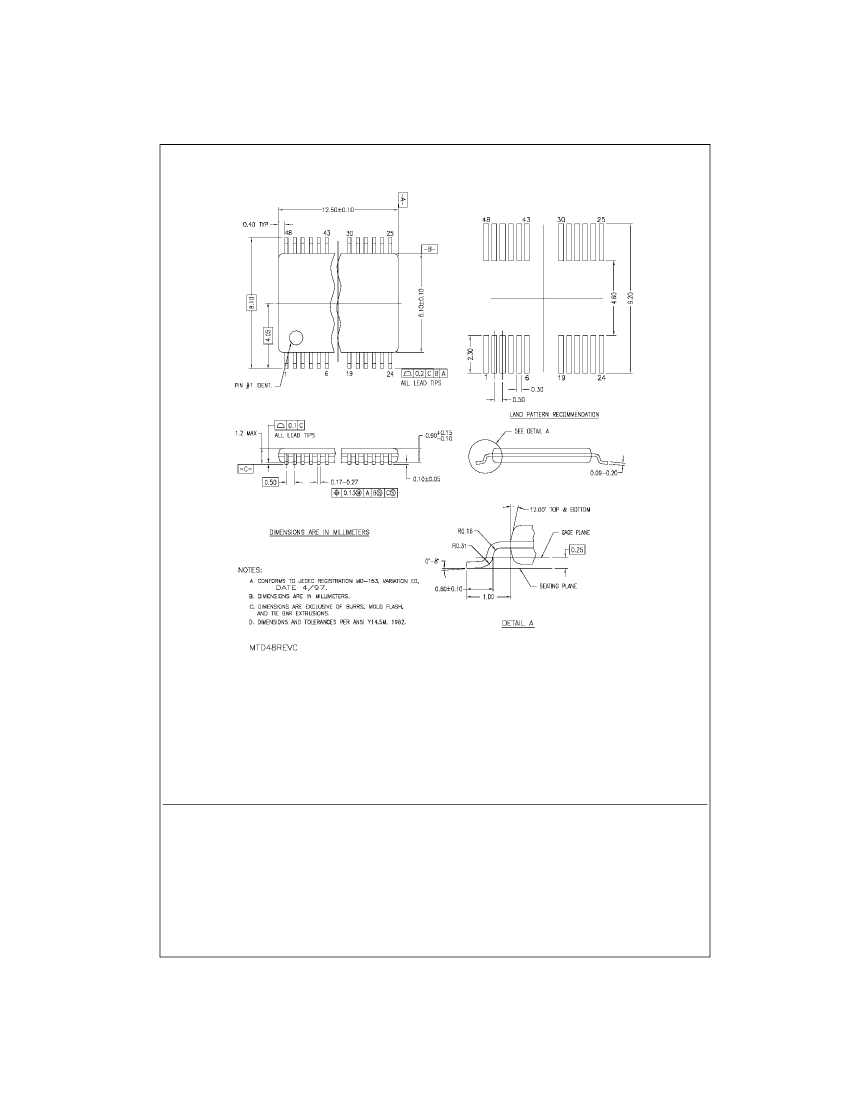

48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide
Package Number MTD48
Technology Description
The Fairchild Switch family derives from and embodies Fairchild’s proven switch technology used for several years in its
74LVX3L384(FST3384) bus switch product.
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
www.fairchildsemi.com
4
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FST16861MTDX Related Products

FST16861MTDX FST16861MTD
Description CBT/FST/QS/5C/B SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, MO-153ED, TSSOP-48 CBT/FST/QS/5C/B SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, MO-153ED, TSSOP-48
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker Rochester Electronics Rochester Electronics
Parts packaging code TSSOP TSSOP
package instruction 6.10 MM, MO-153ED, TSSOP-48 6.10 MM, MO-153ED, TSSOP-48
Contacts 48 48
Reach Compliance Code unknown unknown
series CBT/FST/QS/5C/B CBT/FST/QS/5C/B
JESD-30 code R-PDSO-G48 R-PDSO-G48
JESD-609 code e4 e3
length 12.5 mm 12.5 mm
Logic integrated circuit type BUS DRIVER BUS DRIVER
Humidity sensitivity level 2 2
Number of digits 10 10
Number of functions 2 2
Number of ports 2 2
Number of terminals 48 48
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output characteristics 3-STATE 3-STATE
Output polarity TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP TSSOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) 260 260
propagation delay (tpd) 0.25 ns 0.25 ns
Certification status COMMERCIAL COMMERCIAL
Maximum seat height 1.2 mm 1.2 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4 V 4 V
Nominal supply voltage (Vsup) 4.5 V 4.5 V
surface mount YES YES
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface NICKEL PALLADIUM GOLD MATTE TIN
Terminal form GULL WING GULL WING
Terminal pitch 0.5 mm 0.5 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 30 NOT SPECIFIED
width 6.1 mm 6.1 mm

Recommended Resources

Unboxing photos of the same model as the Prime Minister
[url=https://bbs.eeworld.com.cn/thread-459878-1-1.html]https://bbs.eeworld.com.cn/thread-459878-1-1.html[/url] I have received the "Yang Mei Tu Qi" gift from the forum. Thanks to the forum. {:1_95:} T...
dj狂人 Talking
stm32 driver ov7670
You can take a look...
我不是灰太狼 stm32/stm8
The difference between wireless bridge and microwave transmission
[size=4]1. From the frequency point of view, there are only two frequency bands for wireless bridges, one is 2.4G and the other is 5.8G, while the microwave products we mentioned have more frequency b...
Jacktang RF/Wirelessly
LPC2210 debugging success and would like to share the experience with you
Source: http://www.embedinfo.com/wen-list.asp?id=381I am not the best embedded developer, but I am good. At least I work hard every day. Iused to make things with 51. Although I did not have any major...
zhaojun_xf MCU
12864 LCD display related information
A .c source programBasic application of 128X64 LCD display12864 common user manual12864 source program schematic PCB12864 data and program12864 calendar + thermometer + alarm clock + temperature detec...
cute1996 Electronics Design Contest
Ask for help on the interrupt signal problem in the USB driver of Linux device
Recently, I was looking at the USB device driver under the embedded platform under Linux. After studying the code, I still couldn't find the place to write the interrupt signal. I wonder if the interr...
tyqlark Linux and Android
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 8220LFMAA07SCN4850
  2. 418P683510MD1
  3. T2B793091DLF
  4. MI1100HH-1.500MHZTR
  5. UNR2-T22113.7OHMSC1%3PPM
  6. 231246323283
  7. SF10T6203CTL
  8. EDI8LM32257C15AM
  9. 2SA1774R
  10. SC73P2602SH1
  11. SDV1005S140C0R5YPTF
  12. 0805W8F1071T5E

Popular Articles

Technical ResourceMore

  1. Flash fan burning
  2. dxp2004, software download
  3. Simulation Study on Direct Torque Control of PMSM
  4. How to Optimize ISM Radio Frequency (RF) Systems
  5. Chapter 10 DC Power Supply
  6. PDF Virtual Printer Installation Tutorial
  7. Intelligent Control of Automatic Pouring System
  8. Implementing a 4G Wireless Spherical Detector in an FPGA
  9. BOSE LINK AR1 Home Wireless Audio Receiver User Manual
  10. 51 Schematic diagram and source program for controlling 1602 LCD

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1358  2751  279  2844  2103  28  56  6  58  43
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
