MBR3020CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBR3020CT

MBR3020CT: Description30 A, 20 V, SILICON, RECTIFIER DIODE, TO-3; CategoryDiscrete semiconductor diode; File Size277KB，3 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric Compare View All

MBR3020CT Overview

30 A, 20 V, SILICON, RECTIFIER DIODE, TO-3

MBR3020CT Parametric

Parameter Name	Attribute value
Maker	Digitron
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.76 V
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Maximum non-repetitive peak forward current	400 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	15 A
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	20 V
Maximum reverse current	1000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	PIN/PEG
Terminal location	BOTTOM

Preview

Download Datasheet

View All

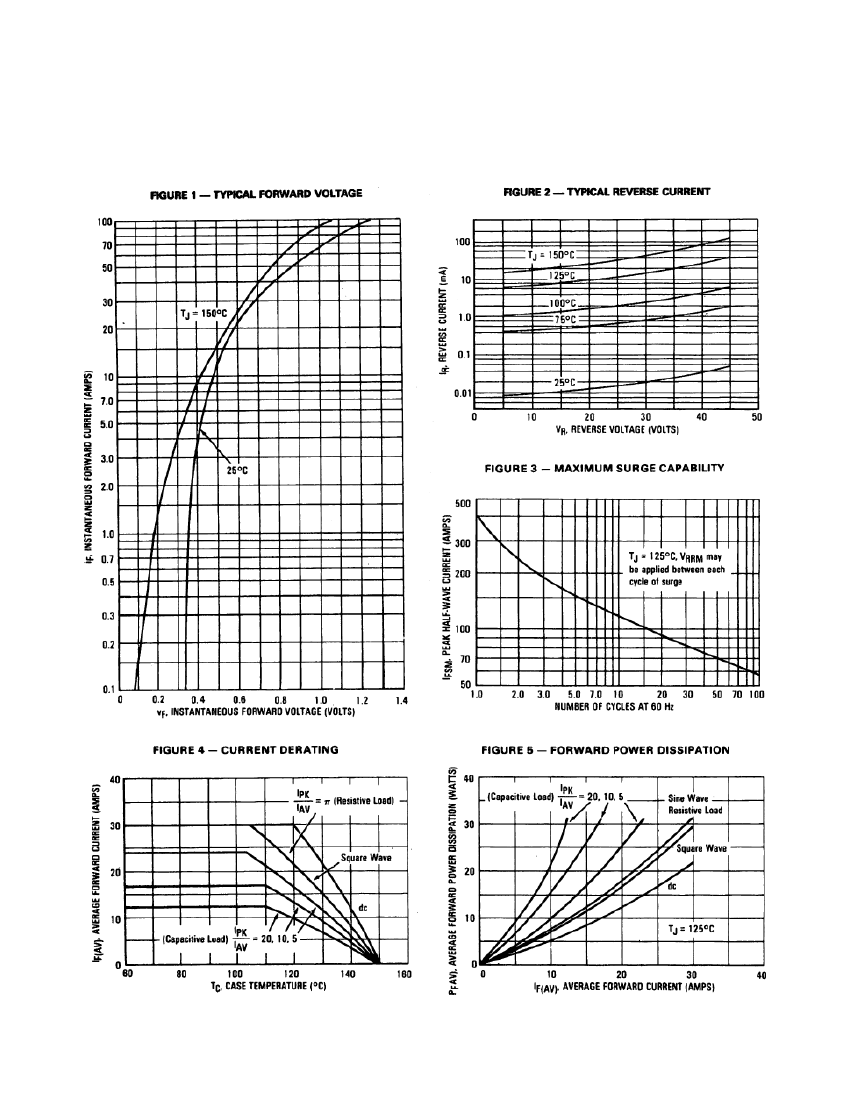

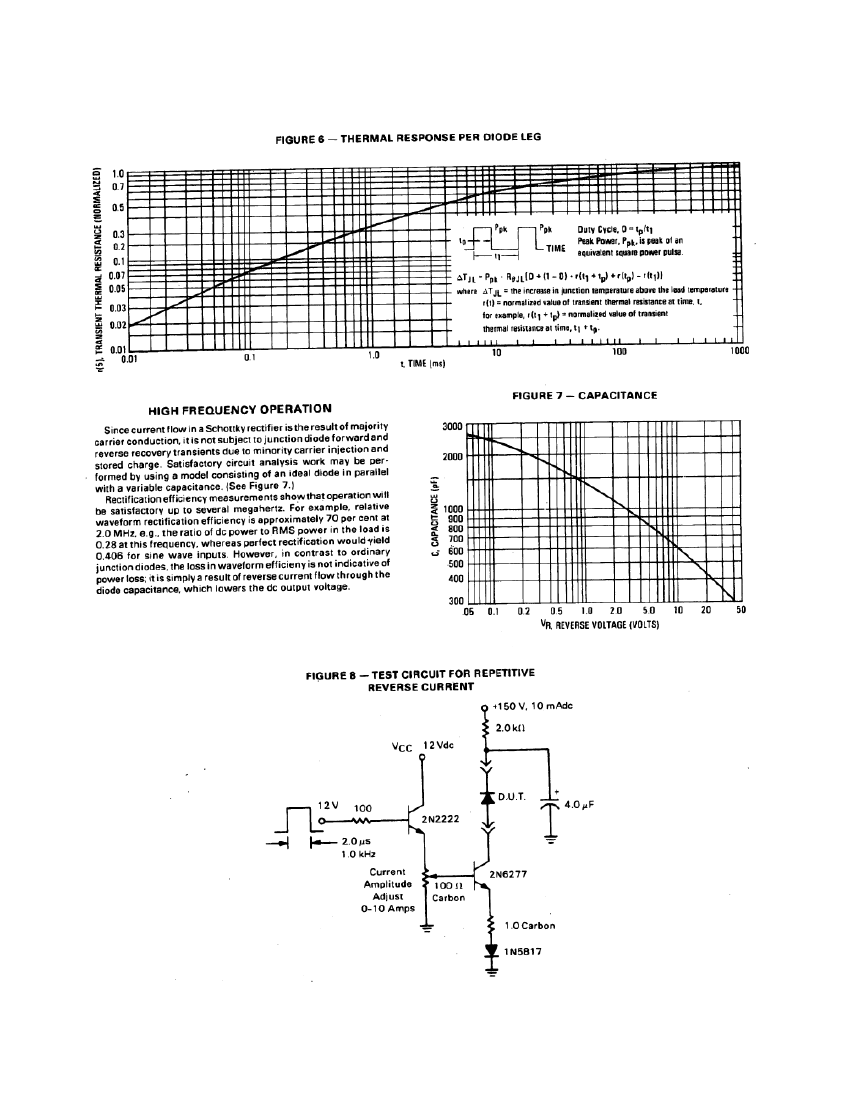

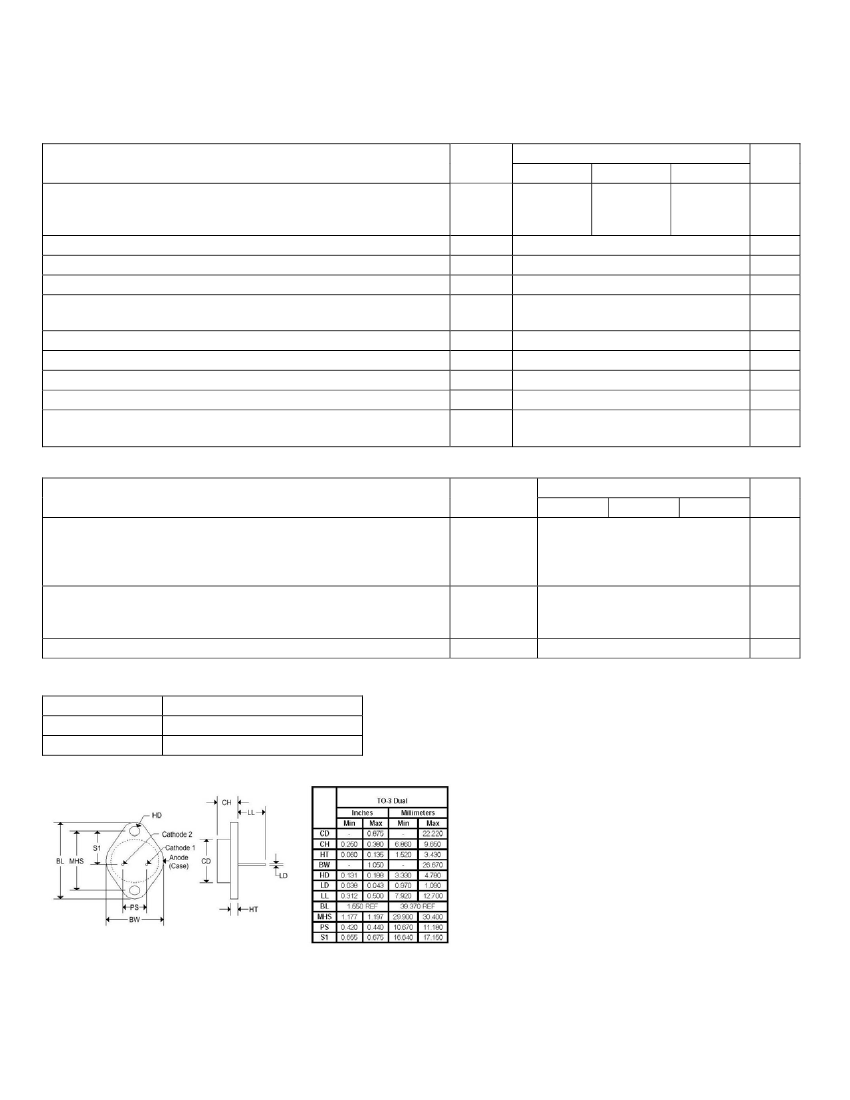

DIGITRON SEMICONDUCTORS

MBR3020CT-MBR3045CT

MAXIMUM RATINGS

Rating

Peak repetitive reverse voltage

Working peak reverse voltage

DC blocking voltage

Average rectified forward current

(Rated V

)

Peak repetitive forward current

(Rated V

, square wave, 20 kHz)

Peak repetitive reverse surge current

(2.0µs, 1.0 kHz)

Non-repetitive peak surge current

(surge applied at rated load conditions, halfwave, single phase, 60Hz)

Operating junction temperature range

Storage junction temperature range

Peak surge junction temperature

(forward current applied)

Voltage rate of change

(Rated V

)

Maximum thermal resistance

Junction to case

Symbol

RRM

RWM

F(AV)

FRM

RRM

FSM

stg

J(pk)

dv/dt

ӨJC

MBR

3020CT

3035CT

30 @ T

= 105°C

400

-65 to +150

-65 to +175

175

1000

1.4

3045CT

Unit

30A SCHOTTKY RECTIFIER

°C

V/µs

°C/W

ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise noted)

Parameter

Maximum instantaneous forward voltage

= 20A, T

= 125°C)

= 30A, T

= 125°C)

= 30A, T

= 25°C)

Maximum instantaneous reverse current

(Rated dc voltage, T

= 125°C)

(Rated dc voltage, T

= 25°C)

Capacitance

Note 1: Pulse test: Pulse width = 300µs, duty cycle

≤

2.0%.

(1)

Symbol

MBR

3020CT

3035CT

0.6

0.72

0.76

1.0

2000

3045CT

Unit

(1)

MECHANICAL CHARACTERISTICS

Case

Marking

Pin out

TO-3 Dual

Alpha-numeric

See below

144 Market Street

Kenilworth NJ 07033 USA

phone +1.908.245-7200

fax +1.908.245-0555

sales@digitroncorp.com

www.digitroncorp.com

Rev. 20121205

MBR3020CT Related Products

	MBR3020CT	MBR3045CT
Description	30 A, 20 V, SILICON, RECTIFIER DIODE, TO-3	15 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AB
Maker	Digitron	Digitron
Reach Compliance Code	unknow	unknow
application	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.76 V	0.76 V
JEDEC-95 code	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2
Maximum non-repetitive peak forward current	400 A	400 A
Number of components	2	2
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	15 A	15 A
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	20 V	45 V
Maximum reverse current	1000 µA	1000 µA
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
