B3150A: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size177KB，3 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/

Download Datasheet Parametric Compare View All

B3150A Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN

B3150A Parametric

Parameter Name	Attribute value
Maker	Weitron Technology
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.87 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	200 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL

B3150A Preview

B320A thru B3200A

Surface Mount Schottky Barrier Rectifiers

REVERSE VOLTAGE

20 TO 200 VOLTS

FORWARD CURRENT

3.0 AMPERE

Features:

* Low profile package

* Ideal for automated placement

* Guard Ring for over voltage protection

* Low forward voltage drop

* Component in accordance to RoHS 2002/95/EC

Mechanical Data

* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

* Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208

* Polarity: Cathode Band

* Weight: 0.062 grams (approximate)

SMA(DO-214AC)

SMA Outline Dimension

B

Unit:mm

A

C

D

J

H

E

G

Dim

A

B

C

D

E

G

H

J

SMA

Min

2.54

3.99

1.25

0.15

4.91

0.10

0.76

1.98

Max

2.79

4.50

1.65

0.31

5.28

0.20

1.52

2.29

WEITRON

http://www.weitron.com.tw

1/3

Rev.C 07-Feb-2012

B320A thru B3200A

Maximum Ratings and Electrical Characteristics

Characteristic

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectified Current @Tc=90 C

Peak Forward Surge Current,

8.3 ms Single Half Sine-Wave

Superimposed on Rated Load (JEDEC Method)

Maximum Instantaneous At 3.0A DC

Maximum DC Reverse Current @Tj=25 C

At Rated DC Blocking Voltage @Tj=100 C

Typical Junction Capacitance (Note 1)

Typical Thermal Resistance

Operating Temperature Range

Storage Temperature Range

VF

IR

CJ

R

θJA

R

θJC

TJ

TSTG

180

100

80

-55 to+125

-55 to+150

0.45

0.50

0.5

10

150

PF

0.70

I FSM

80.0

(Rating 25 C Ambient Temperature Unless Otherwise Specified.)

Symbol

VRRM

VRMS

V DC

I F(AV)

B320A B330A B340A B350A B360A Unit

20

14

20

30

21

30

40

28

40

3.0

50

35

50

60

42

60

Characteristic

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectified Current @Tc=90 C

Peak Forward Surge Current,

8.3 ms Single Half Sine-Wave

Superimposed on Rated Load (JEDEC Method)

Maximum Instantaneous At 3.0A DC

Maximum DC Reverse Current @Tj=25 C

At Rated DC Blocking Voltage @Tj=100 C

Typical Junction Capacitance (Note 1)

Typical Thermal Resistance

Operating Temperature Range

Storage Temperature Range

Symbol

VRRM

VRMS

V DC

I F(AV)

B380A

80

56

80

B3100A

100

70

100

B3150A

150

105

150

3.0

B3200A

200

140

200

Unit

I FSM

VF

IR

CJ

R

θJA

R

θJC

TJ

TSTG

-55 to+125

110

0.85

80

0.87

0.2

5.0

100

80

0.90

80

PF

-55 to+150

NOTES:1.Measured at 1.0MHz applied reverse voltage of 4.0V DC.

WEITRON

http://www.weitron.com.tw

2/3

Rev.

07-Feb-2012

B320A thru B3200A

5

INSTANTANEOUS FORWARD CURRENT (A)

F

AVERAGE FO

ORWARD CURRENT,(A)

100.00

B320A ~ B340A

B350A ~ B360A

B380A ~ B3100A

B3150A

B3200A

4

10.00

3

B320A~B3100A

2

B3150A~B3200A

1

1.00

0.10

TJ=25℃ PULSE

WIDTH 300us 2%

DUTY CYCLE

0

20

40

60

80

100

120

140

160

180

200

0.01

0.2

0.4

0.6

0.8

1.0

FORWARD VOLTAGE (V)

AMBIENT TEMPERATURE(℃)

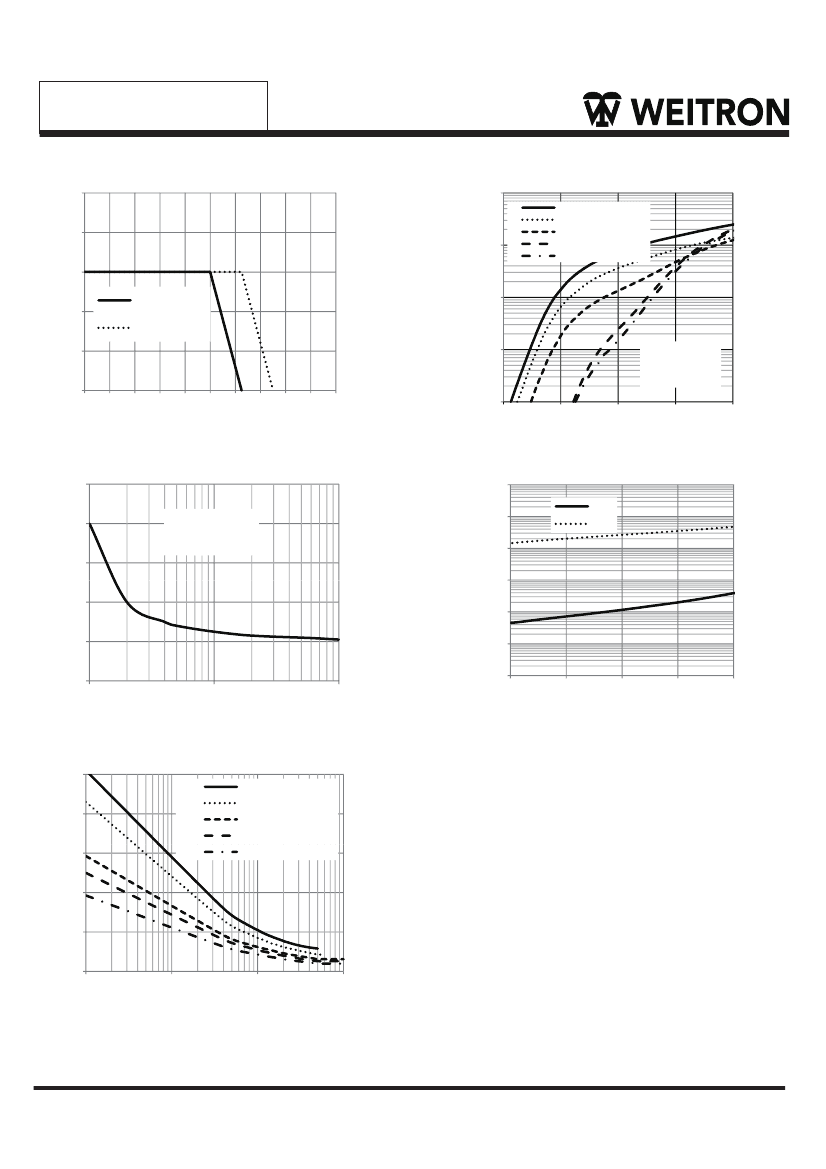

FIG. 1-TYPICAL FORWARD CURRENT DERATING CURVE

FIG. 2-TYPICAL FORWARD CHARACTERISTICS

PF

100

PEAK FORWARD SURGE CURRENT (A)

GE

REVERSE LEAKAG CURRENT (mA)

100

25℃

10

100℃

80

TJ=25℃ 8.3ms Single

Half Sine Wave

JEDEC method

1

60

0.1

01

40

0.01

20

0.001

0

1

10

NUMBER OF CYCLES AT 60Hz

0.0001

100

20

40

60

80

100

PERCENTAGE RATED PEAK REVERSE VOLTAGE (%)

FIG. 3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT

FIG. 4-TYPICAL REVERSE CHARACTERISTICS

500

B320A~B340A

400

E

JUNCTION CAPACITANCE (pF)

B350A~B360A

B380A~B3100A

B3150A

300

B3200A

200

100

0

1

10

100

REVERSE VOLTAGE (V)

FIG. 5-TYPICAL JUNCTION CAPACITANCE

WEITRON

http://www.weitron.com.tw

3/3

Rev.C 07-Feb-2012

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

B3150A Related Products

	B3150A	B3200A
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
Maker	Weitron Technology	Weitron Technology
package instruction	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.87 V	0.9 V
JEDEC-95 code	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	80 A	80 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	150 V	200 V
Maximum reverse current	200 µA	200 µA
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	C BEND
Terminal location	DUAL	DUAL
