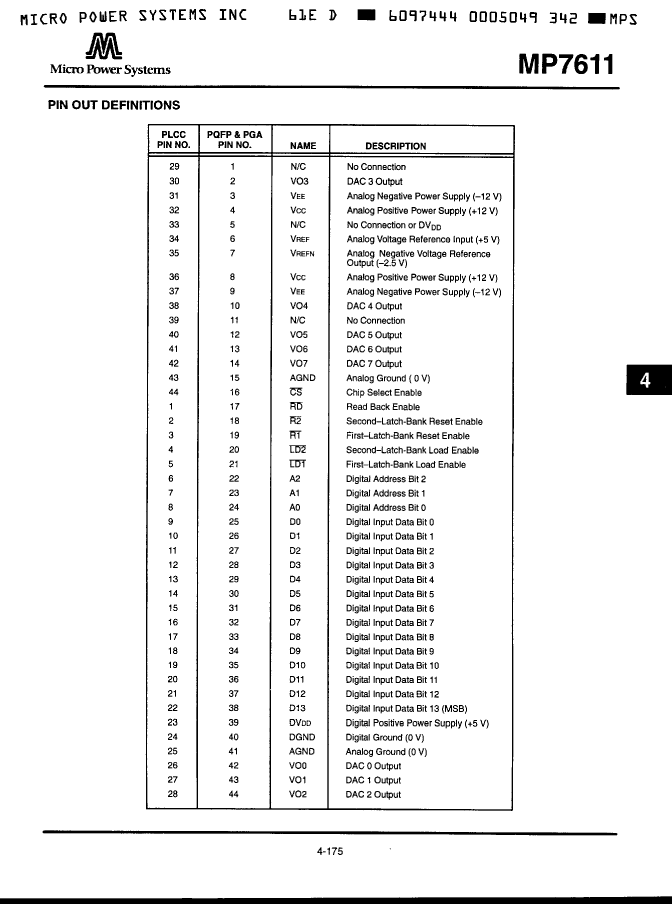

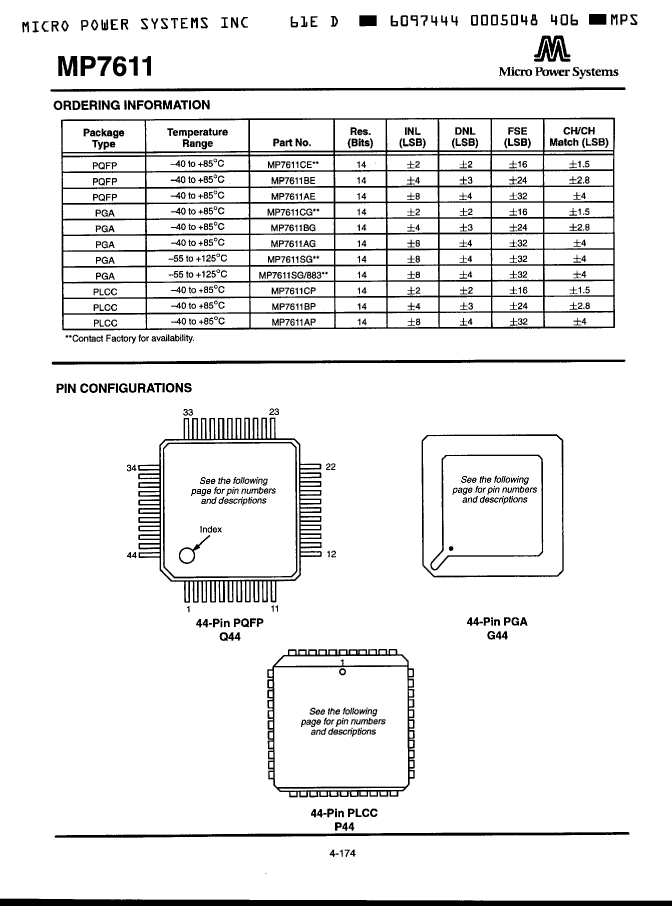

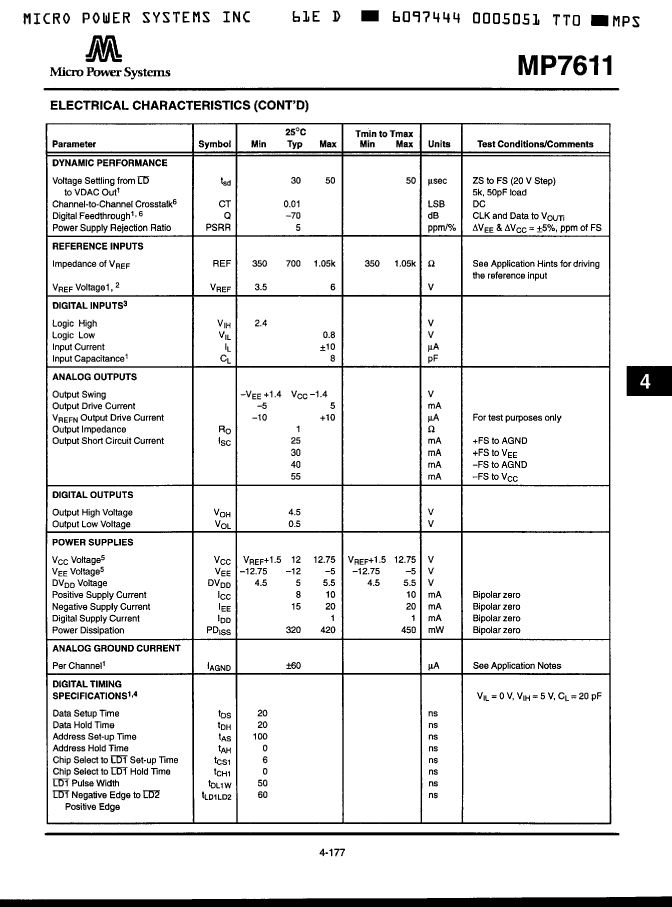

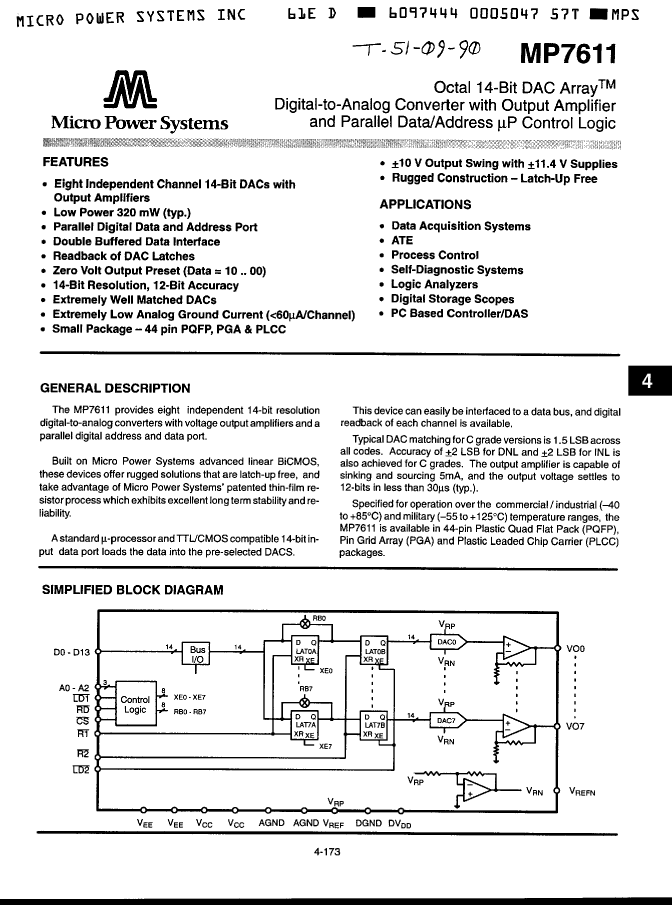

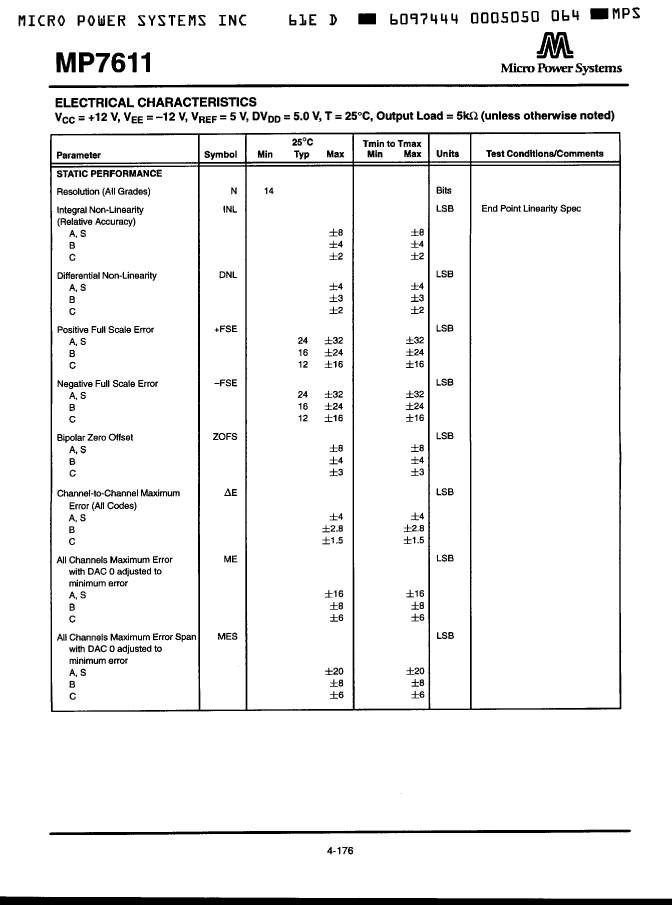

MP7611AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP7611AP

MP7611AP: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,; CategoryAnalog mixed-signal IC converter; File Size551KB，12 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

MP7611AP Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,

MP7611AP Parametric

Parameter Name	Attribute value
Maker	Micro Power Systems
package instruction	,
Reach Compliance Code	unknown
Maximum analog output voltage	10.6 V
Minimum analog output voltage	-10.6 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-PQCC-J44
Maximum linear error (EL)	4.883%
Nominal negative supply voltage	-12 V
Number of digits	14
Number of functions	1
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum stabilization time	50 µs
Nominal settling time (tstl)	30 µs
Maximum slew rate	20 mA
Nominal supply voltage	12 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD

Preview

Download Datasheet

View All

MP7611AP Related Products

	MP7611AP	MP7611SG/883	MP7611BG	MP7611CP	MP7611BE	MP7611CG
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQCC44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time, PQFP44,	D/A Converter, 1 Func, Parallel, Word Input Loading, 30us Settling Time,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
Maximum analog output voltage	10.6 V	10.6 V	10.6 V	10.6 V	10.6 V	10.6 V
Minimum analog output voltage	-10.6 V	-10.6 V	-10.6 V	-10.6 V	-10.6 V	-10.6 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-PQCC-J44	S-XPGA-P44	S-XPGA-P44	S-PQCC-J44	S-PQFP-G44	S-XPGA-P44
Maximum linear error (EL)	4.883%	4.883%	2.441%	1.221%	2.441%	1.221%
Nominal negative supply voltage	-12 V	-12 V	-12 V	-12 V	-12 V	-12 V
Number of digits	14	14	14	14	14	14
Number of functions	1	1	1	1	1	1
Number of terminals	44	44	44	44	44	44
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	GRID ARRAY	GRID ARRAY	CHIP CARRIER	FLATPACK	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs
Nominal settling time (tstl)	30 µs	30 µs	30 µs	30 µs	30 µs	30 µs
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	YES	NO	NO	YES	YES	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	PIN/PEG	PIN/PEG	J BEND	GULL WING	PIN/PEG
Terminal location	QUAD	PERPENDICULAR	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR
Maker	Micro Power Systems	-	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
