KSZ8051MNLU

Description
DATACOM, ETHERNET TRANSCEIVER, QCC32
CategoryWireless rf/communication    Telecom circuit
File Size1MB,65 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Environmental Compliance
Download Datasheet Parametric View All

KSZ8051MNLU Online Shopping

Suppliers Part Number Price MOQ In stock
KSZ8051MNLU - - View Buy Now

KSZ8051MNLU Overview

DATACOM, ETHERNET TRANSCEIVER, QCC32

KSZ8051MNLU Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMicrochip
package instructionQFN-32
Reach Compliance Codecompliant
data rate100000 Mbps
JESD-30 codeS-XQCC-N32
JESD-609 codee4
length5 mm
Humidity sensitivity level2
Number of functions1
Number of terminals32
Transceiver quantity1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
encapsulated codeHVQCCN
Encapsulate equivalent codeLCC32,.2SQ,20
Package shapeSQUARE
Package formCHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)260
Filter levelTS 16949
Maximum seat height1 mm
Nominal supply voltage3.3 V
surface mountYES
Telecom integrated circuit typesETHERNET TRANSCEIVER
Temperature levelINDUSTRIAL
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationQUAD
Maximum time at peak reflow temperature40
width5 mm

KSZ8051MNLU Preview

KSZ8051MNLU/KSZ8051RNLU
10Base-T/100Base-TX
Physical Layer Transceiver
Data Sheet Rev. 1.0
General Description
The KSZ8051 is an AEC-Q100 standard qualified single-
supply 10Base-T/100Base-TX Ethernet physical-layer
transceiver for transmission and reception of data over
standard CAT-5 unshielded twisted pair (UTP) cable for
automotive applications.
The KSZ8051 is a highly-integrated PHY solution. It reduces
board cost and simplifies board layout by using on-chip
termination resistors for the differential pairs and by
integrating a low-noise regulator to supply the 1.2V core.
The KSZ8051MNLU offers the Media Independent Interface
(MII) and the KSZ8051RNLU offers the Reduced Media
Independent Interface (RMII) for direct connection with
MII/RMII-compliant Ethernet MAC processors and switches.
A 25MHz crystal is used to generate all required clocks,
including the 50MHz RMII reference clock output for the
KSZ8051RNLU.
The KSZ8051 provides diagnostic features to facilitate
system bring-up and debugging in production testing and
in product deployment. Parametric NAND tree support
enables fault detection between KSZ8051 I/Os and the
®
board. Micrel LinkMD TDR-based cable diagnostics
identify faulty copper cabling.
The KSZ8051MNLU and KSZ8051RNLU are available in
32-pin, lead-free QFN packages (see “Ordering
Information”).
Data sheets and support documentation are available on
Micrel’s web site at:
www.micrel.com.
Features
Single-chip 10Base-T/100Base-TX IEEE 802.3
compliant Ethernet transceiver
AEC-Q100 qualified for automotive applications
MII interface support (KSZ8051MNLU)
RMII v1.2 Interface support with a 50MHz reference
clock output to MAC, and an option to input a 50MHz
reference clock (KSZ8051RNLU)
Back-to-back mode support for a 100Mbps copper
repeater
MDC/MDIO management interface for PHY register
configuration
Programmable interrupt output
LED outputs for link, activity, and speed status indication
On-chip termination resistors for the differential pairs
Baseline wander correction
HP Auto MDI/MDI-X to reliably detect and correct
straight-through and crossover cable connections with
disable and enable option
Auto-negotiation to automatically select the highest link-
up speed (10/100Mbps) and duplex (half/full)
Power-down and power-saving modes
LinkMD TDR-based cable diagnostics to identify faulty
copper cabling
Parametric NAND Tree support for fault detection
between chip I/Os and the board

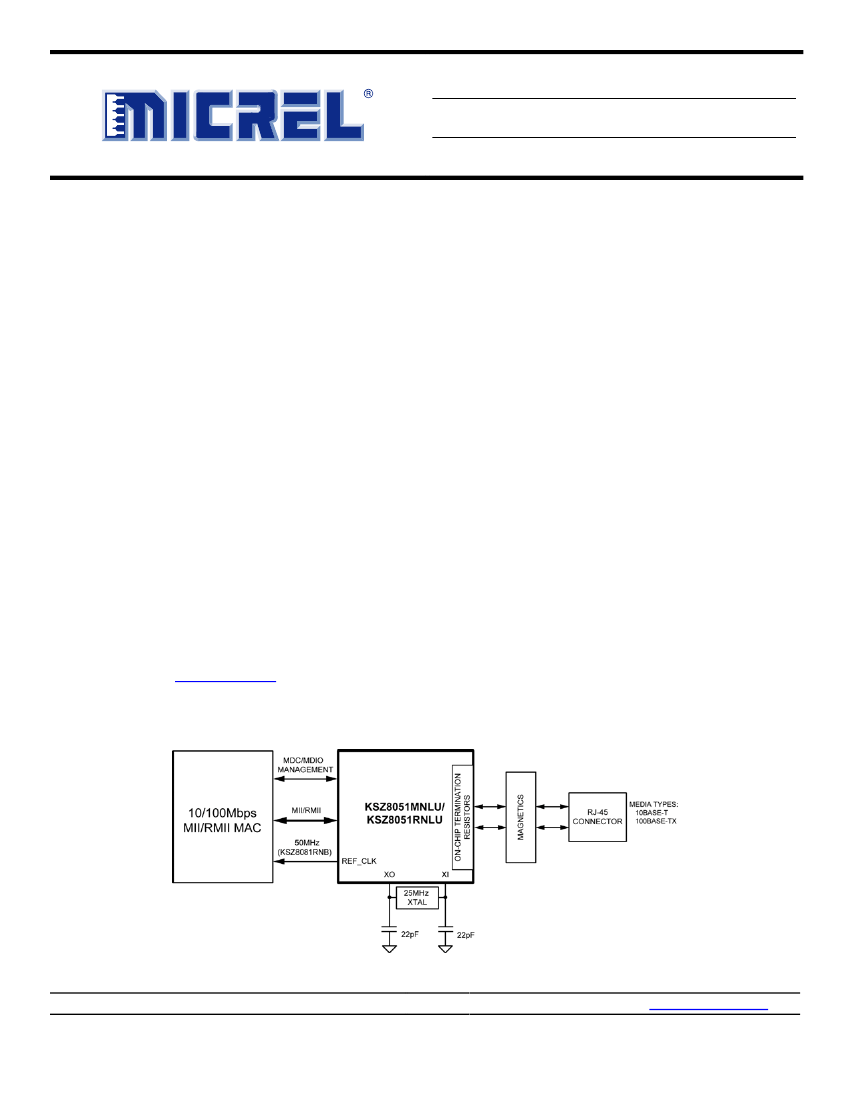

Functional Diagram
LinkMD is a registered trademark of Micrel, Inc.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (
408
) 944-0800 • fax + 1 (408) 474-1000 •
http://www.micrel.com
February, 17 2013
Revision 1.0
Micrel, Inc.
KSZ8051MNLU/KSZ8051RNLU
Features (Continued)
Loopback modes for diagnostics
Single 3.3V power supply with VDD I/O options for
1.8V, 2.5V, or 3.3V
Built-in 1.2V regulator for core
32-pin (5mm x 5mm) QFN package
Applications
Automotive (throughout vehicle)
Ordering Information
Part Number
KSZ8051MNLU
KSZ8051RNLU
Note:
1.
Contact factory for lead time.
(1)
(1)
Temperature
Range
−40°C
to 85°C
−40°C
to 85°C
Package
32-Pin QFN
32-Pin QFN
Lead
Finish
Pb-Free
Pb-Free
Wire
Bonding
Description
MII, Automotive Qualified Device
RMII, Automotive Qualified Device
February 17, 2013
2
Revision 1.0
Micrel, Inc.
KSZ8051MNLU/KSZ8051RNLU
Revision History
Revision
0.1
0.2
1.0
Date
7/6/12
7/9/12
2/17/13
Summary of Changes
Initial Release
Added AEC-Q100 qualified to General Description and Features on page 1.
General upgrade to align to KSZ8081 DS. Loopback details added.
February 17, 2013
3
Revision 1.0
Micrel, Inc.
KSZ8051MNLU/KSZ8051RNLU
Contents
General Description ................................................................................................................................................................ 1
Features .................................................................................................................................................................................. 1
Functional Diagram ................................................................................................................................................................. 1
Features (Continued) .............................................................................................................................................................. 2
Applications ............................................................................................................................................................................. 2
Ordering Information ............................................................................................................................................................... 2
Revision History ...................................................................................................................................................................... 3
Contents .................................................................................................................................................................................. 4
List of Figures .......................................................................................................................................................................... 6
List of Tables ........................................................................................................................................................................... 7
Pin Configuration– KSZ8051MNLU ........................................................................................................................................ 8
Pin Description– KSZ8051MNLU ............................................................................................................................................ 9
Strapping Options – KSZ8051MNLU .................................................................................................................................... 12
Pin Configuration – KSZ8051RNLU ...................................................................................................................................... 13
Pin Description– KSZ8051RNLU .......................................................................................................................................... 14
Strapping Options – KSZ8051RNLU .................................................................................................................................... 17
Functional Description: 10Base-T/100Base-TX Transceiver ................................................................................................ 18
100Base-TX Transmit.......................................................................................................................................................................... 18
100Base-TX Receive........................................................................................................................................................................... 18
Scrambler/De-Scrambler (100Base-TX Only)...................................................................................................................................... 18
10Base-T Transmit .............................................................................................................................................................................. 18
10Base-T Receive ............................................................................................................................................................................... 19
SQE and Jabber Function (10Base-T Only) ........................................................................................................................................ 19
PLL Clock Synthesizer ........................................................................................................................................................................ 19
Auto-Negotiation .................................................................................................................................................................................. 19
MII Interface (KSZ8051MNLU only) ...................................................................................................................................... 20
MII Signal Definition............................................................................................................................................................................. 20
MII Signal Diagram .............................................................................................................................................................................. 22
RMII Data Interface (KSZ8051RNLU only) ........................................................................................................................... 23
RMII – 25MHz Clock Mode .................................................................................................................................................................. 23
RMII – 50MHz Clock Mode .................................................................................................................................................................. 23
RMII Signal Definition .......................................................................................................................................................................... 23
RMII Signal Diagram ........................................................................................................................................................................... 25
Back-to-Back Mode – 100Mbps Copper Repeater ............................................................................................................... 26
MII Back-to-Back Mode (KSZ8051MNLU only) ................................................................................................................................... 26
RMII Back-to-Back Mode (KSZ8051RNLU only) ................................................................................................................................. 27
MII Management (MIIM) Interface ......................................................................................................................................... 27
Interrupt (INTRP) ................................................................................................................................................................... 28
HP Auto MDI/MDI-X .............................................................................................................................................................. 28
Straight Cable ...................................................................................................................................................................................... 28
February 17, 2013
4
Revision 1.0
Micrel, Inc.
KSZ8051MNLU/KSZ8051RNLU
Crossover Cable .................................................................................................................................................................................. 29
Loopback Mode ..................................................................................................................................................................... 30
Local (Digital) Loopback ...................................................................................................................................................................... 30
Remote (Analog) Loopback ................................................................................................................................................................. 30
LinkMD Cable Diagnostic .................................................................................................................................................... 31
NAND Tree Support .............................................................................................................................................................. 31
NAND Tree I/O Testing ....................................................................................................................................................................... 33
®
Power Management .............................................................................................................................................................. 34
Power-Saving Mode ............................................................................................................................................................................ 34
Energy-Detect Power-Down Mode ...................................................................................................................................................... 34
Power-Down Mode .............................................................................................................................................................................. 34
Slow-Oscillator Mode........................................................................................................................................................................... 34
Reference Circuit for Power and Ground Connections ......................................................................................................... 35
Typical Current/Power Consumption .................................................................................................................................... 36
Transceiver (3.3V), Digital I/Os (3.3V) ................................................................................................................................................. 36
Transceiver (3.3V), Digital I/Os (2.5V) ................................................................................................................................................. 36
Transceiver (3.3V), Digital I/Os (1.8V) ................................................................................................................................................. 37
Register Map ......................................................................................................................................................................... 38
Register Description .............................................................................................................................................................. 39
Absolute Maximum Ratings ................................................................................................................................................ 48
Operating Ratings
(2)
(1)
.............................................................................................................................................................. 48
(3)
Electrical Characteristics .................................................................................................................................................... 48
Timing Diagrams ................................................................................................................................................................... 50
MII SQE Timing (10Base-T) ................................................................................................................................................................ 50
MII Transmit Timing (10Base-T) .......................................................................................................................................................... 51
MII Receive Timing (10Base-T) ........................................................................................................................................................... 52
MII Transmit Timing (100Base-TX) ...................................................................................................................................................... 53
MII Receive Timing (100Base-TX)....................................................................................................................................................... 54
RMII Timing ......................................................................................................................................................................................... 55
Auto-Negotiation Timing ...................................................................................................................................................................... 56
MDC/MDIO Timing .............................................................................................................................................................................. 57
Power-Up/Reset Timing ...................................................................................................................................................................... 58
Reset Circuit .......................................................................................................................................................................... 59
Reference Circuits – LED Strap-In Pins ................................................................................................................................ 60
Reference Clock – Connection and Selection ...................................................................................................................... 61
Magnetics – Connection and Selection ................................................................................................................................. 62
Recommended Land Pattern ................................................................................................................................................ 64
Package Information
(1)
.......................................................................................................................................................... 65
February 17, 2013
5
Revision 1.0

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 999  1195  702  326  1679  21  25  15  7  34
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
