PC120TG4: DescriptionSingle Color LED, High Efficiency Green, Diffused Green, T-1, 3mm, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size316KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my; Environmental Compliance

Download Datasheet Parametric Compare View All

PC120TG4 Overview

Single Color LED, High Efficiency Green, Diffused Green, T-1, 3mm, 2 PIN

PC120TG4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	LEDtronics
package instruction	2 PIN
Reach Compliance Code	unknown
color	HIGH EFFICIENCY GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	DIFFUSED GREEN
Nominal luminous intensity	18.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	7.37 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	45 deg

Preview

Download Datasheet

View All

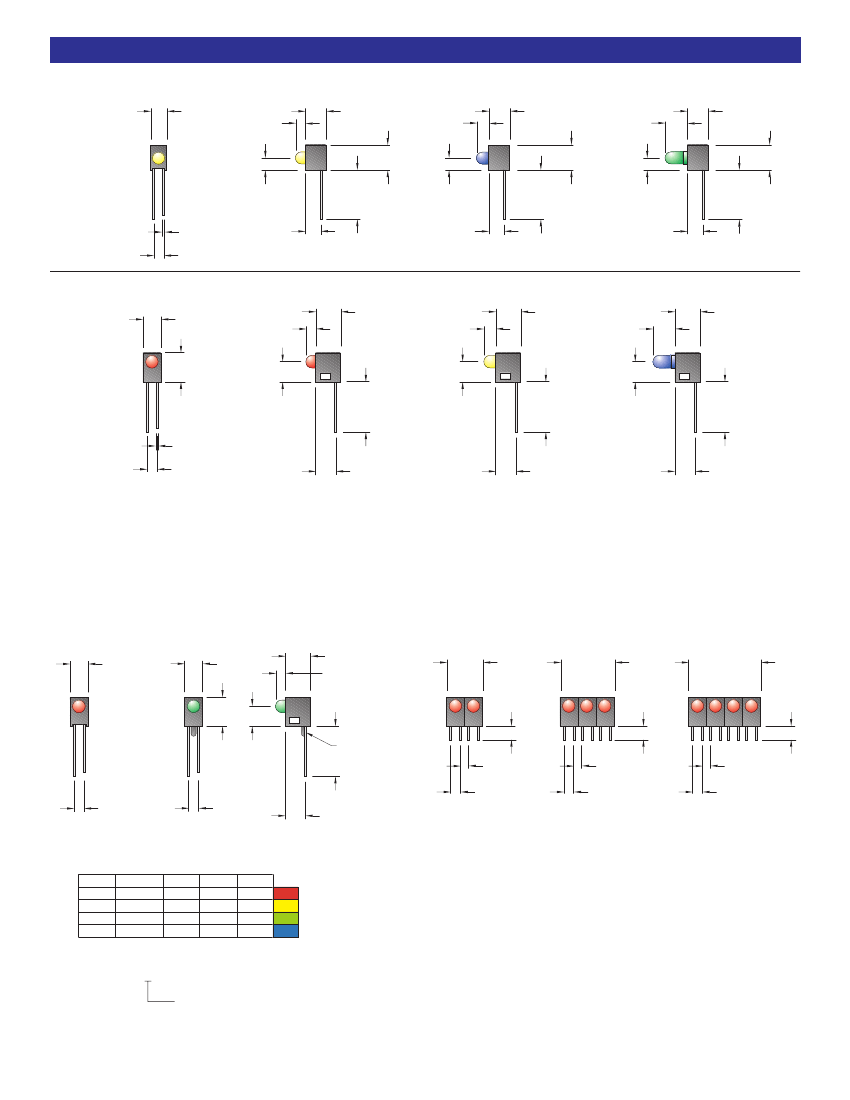

SINGLE LEVEL T1 [3mm] LEDs

PC110

.160

[4.1]

.095

[2.4]

.210

[5.4]

.120

[3.1]

PCM110

.210

[5.4]

.220

[5.6]

PCL110

.210

[5.4]

.120

[3.1]

.250

[6.4]

.120

[3.1]

.250

[6.4]

.120

[3.1]

.250

[6.4]

+

.020 SQ

[0.5]

.100

[2.6]

.160

[4.1]

.500 MIN

[12.7]

.160

[4.1]

.500 MIN

[12.7]

.160

[4.1]

.500 MIN

[12.7]

PC120

.180

[4.6]

.250

[6.4]

.095

[2.5]

.120

[3.1]

PCM120

.250

[6.4]

.220

[5.6]

PCL120

.250

[6.4]

.290

[7.4]

.200

[5.1]

.200

[5.1]

.200

[5.1]

+

.020 SQ

[0.5]

.100

[2.6]

.200

[5.1]

.500 MIN

[12.7]

.500 MIN

[12.7]

.500 MIN

[12.7]

.200

[5.1]

.200

[5.1]

Options

-SO

STAND OFF

.180

[4.6]

.180

[4.6]

Arrays

-P

12PC120

.250

[6.4]

.095

[2.5]

.140

[3.6]

.140

[3.6]

.140

[3.6]

.360

[9.2]

LOCATING PIN

13PC120

.540

[13.8]

14PC120

.720

[18.3]

.290

[7.4]

.200

[5.1]

.050x.100 LONG

.080

[2.1]

.100 TYP

[2.6]

.080 TYP

[2.1]

.100 TYP

[2.6]

.080 TYP

[2.1]

.100 TYP

[2.6]

.100

[2.6]

.100

[2.6]

.200

[5.1]

.500 MIN

[12.7]

CODE

R

Y

G

B

COLOR

RED

YELLOW

GREEN

BLUE

mA

10/30

10/20

10/30

20/30

Vf

2.0/2.8

2.1/2.8

3.2/3.7

Iv mcd

1.7/5.6

1.7/5.5

1.7/5.6

2.0/3.5

SPECIALS

SAMPLE PART NUMBER:

- ALL "Vf" READINGS ARE TYP/MAX

- ALL "mcd" READINGS ARE MIN/TYP

- 5V = 5 VOLT INTEGRATED RESISTOR

- LC = LOW CURRENT 2mA LEDs

- X = DENOTES BLANK LED SPACE

- CONSULT FACTORY ON PART NUMBERS FOR

ARRAYS WITH NONCONSECUTIVE COLORS

PC120TX4

LED COLOR

LEDTRONICS, INC.

23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

â

2

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

PC120TG4 Related Products

	PC120TG4	PCM120TB4	PCL120TB4	PC110TY4	PC120TY4	PC120TR4	PC110TG4	PC110TR4
Description	Single Color LED, High Efficiency Green, Diffused Green, T-1, 3mm, 2 PIN	Single Color LED, Blue, Diffused, T-1, 3mm,	Single Color LED, Blue, Diffused, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm, 2 PIN	Single Color LED, Yellow, Diffused, T-1, 3mm, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm, 2 PIN	Single Color LED, High Efficiency Green, Diffused Green, T-1, 3mm, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm, 2 PIN
Is it lead-free?	Lead free	Contains lead	Contains lead	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	incompatible	incompatible	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
color	HIGH EFFICIENCY GREEN	BLUE	BLUE	YELLOW	YELLOW	HIGH EFFICIENCY RED	HIGH EFFICIENCY GREEN	HIGH EFFICIENCY RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	DIFFUSED GREEN	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED RED	DIFFUSED GREEN	DIFFUSED RED
Nominal luminous intensity	18.0 mcd	3.5 mcd	3.5 mcd	22.0 mcd	22.0 mcd	24.0 mcd	18.0 mcd	24.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	565 nm	470 nm	470 nm	585 nm	585 nm	635 nm	565 nm	635 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Maker	LEDtronics	-	-	-	LEDtronics	LEDtronics	LEDtronics	LEDtronics
package instruction	2 PIN	-	-	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN
total height	7.37 mm	-	-	7.37 mm	7.37 mm	7.37 mm	7.37 mm	7.37 mm
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	45 deg	-	-	45 deg	45 deg	45 deg	45 deg	45 deg
