P4SMA SERIES
Taiwan Semiconductor
CREAT BY ART
400W, 6.8V - 200V Suface Mount Transient Voltage Suppressor

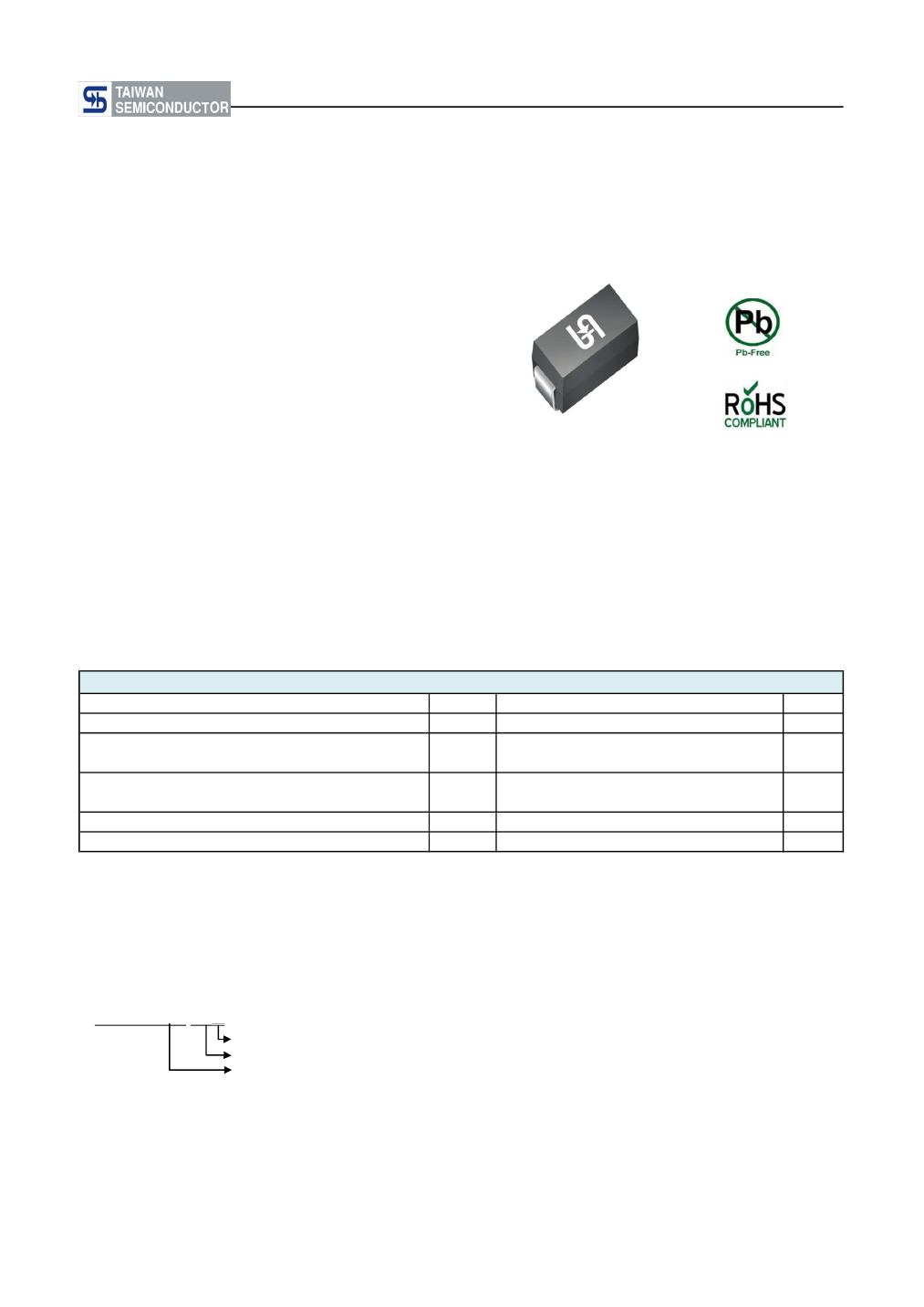

FEATURES
- Low profile package
- Ideal for automated placement
- Glass passivated junction
- Built-in strain relief
- Excellent clamping capability
- Fast response time: Typically less than
1.0ps from 0 volt to BV min
- Typical I
R
less than 1μA above 10V
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
- AEC-Q101 qualified
DO-214AC (SMA)
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Moisture sensitivity level: level 1, per J-STD-020
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25
o
C unless otherwise noted)
PARAMETER
Peak power dissipation at T
A
=25
o
C, Tp=1ms (Note 1)
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage at 25 A for
Unidirectional only
Operating junction temperature range
Storage temperature range
SYMBOL
P
PK
I
FSM
V
F
T
J
T
STG
o
VALUE
400
40
3.5
- 55 to +150
- 55 to +150
UNIT
Watts
A
Volts
O
O
C
C
Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above T
A
=25 C Per Fig. 2
Devices for Bipolar Applications
1. For Bidirectional Use C or CA Suffix for Types P4SMA6.8 through Types P4SMA200A
2. Electrical Characterstics Apply in Both Directions
ORDER INFORMATION (EXAMPLE)
P4SMA24A R3G
Green compound code
Packing code
Part no.
Document Number: DS_D1409030
Version: M15
P4SMA SERIES
Taiwan Semiconductor

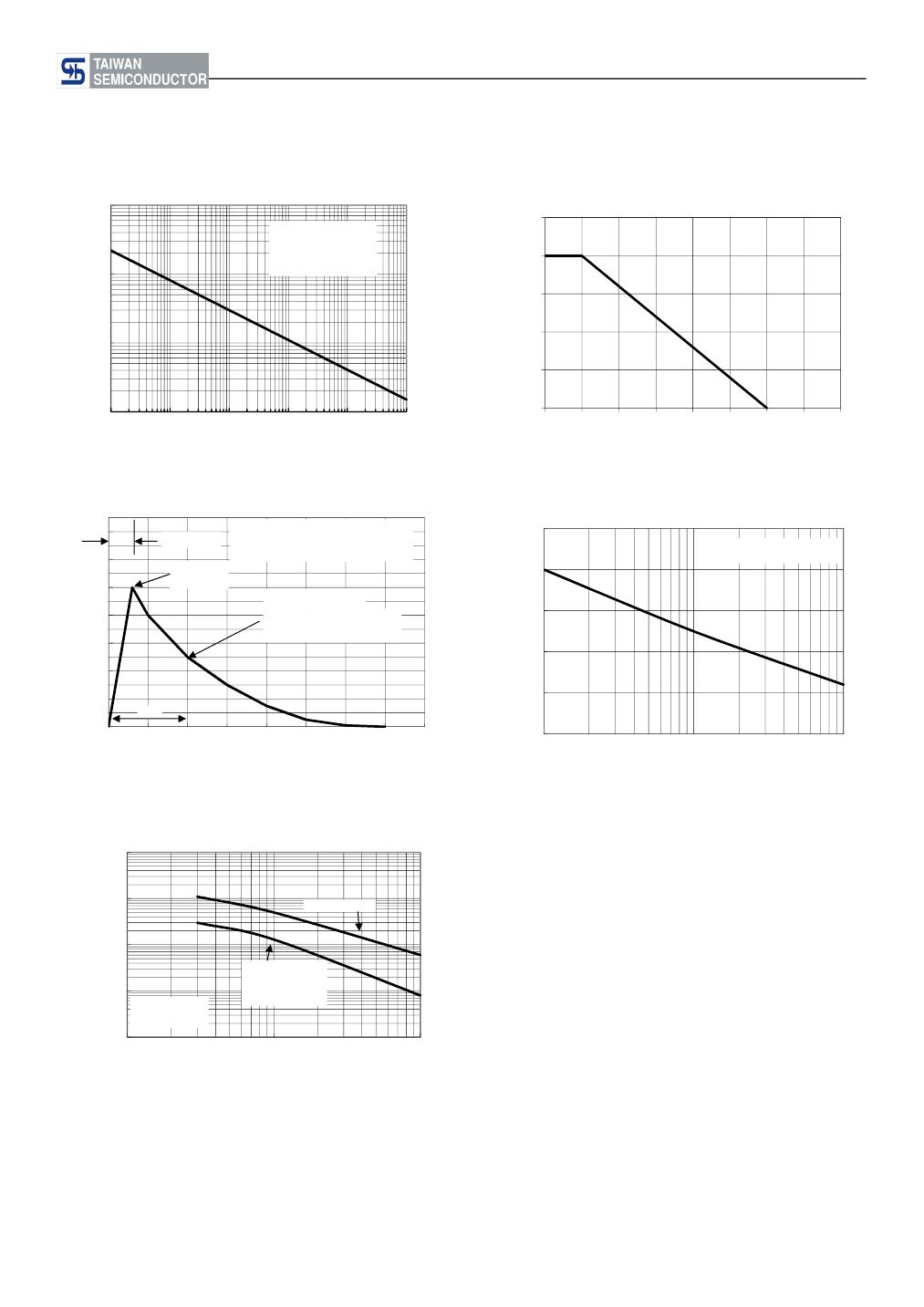

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25
o
C unless otherwise noted)
FIG. 1 PEAK PULSE POWER RATING CURVE
100
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG.3
10
125
PEAK PULSE POWER(P
PP
) OR CURRENT (I
PP
)
A
DERATING IN PERCENTAGE (%)
FIG.2 PULSE DERATING CURVE
P
PPM
, PEAK PULSE POWER, KW
100
75
50
25
0
0
25
50
75
100
125
150
175
200
1
0.1
0.1
1
10
100
1000
10000
tp, PULSE WIDTH, (us)
T
A
, AMBIENT TEMPERATURE (
o
C)
FIG. 3 CLAMPING POWER PULSE WAVEFORM
IFSM, PEAK FORWARD SURGE CURRENT (A)
140
PEAK PULSE CURRENT (%)
120
100
80
60
40
20
0
0
td
0.5
1
1.5
2
t, TIME ms
2.5
3
3.5
4
PULSE WIDTH(td) is DEFINED
as the POINT WHERE the PEAK
CURRENT DECAYS to 50% OF I
PPM
50
FIG. 4 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT UNIDIRECTIONAL ONLY
tr=10μs
Peak Value
I
PPM
8.3ms Single Half Sine Wave
40
Half Value-I
PPM
/2
10/1000μs, WAVEFORM
as DEFINED by R.E.A.
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100000
CJ, JUNCTION CAPACITANCE (pF)
A
10000
VR=0
1000
MEASURED at
STAND-OFF
VOLTAGE,Vwm
f=1.0MHz
Vsig=50mVp-p
10
1
10
V(
BR
), BREAKDOWN VOLTAGE (V)
100
100
Document Number: DS_D1409030
Version: M15
P4SMA SERIES
Taiwan Semiconductor
Device
Marking
Code
ADJ
AEJ
AFJ
AGJ
AHJ
AKJ
ALJ
AMJ
ANJ
APJ
AQJ
ARJ
ASJ
ATJ
AUJ
AVJ
AWJ
AXJ
AYJ
AZJ
BDJ
BEJ
BFJ
BGJ
BHJ
BKJ
BLJ
BMJ
BNJ
BPJ
BQJ
BRJ
BSJ
BTJ
BUJ
BVJ
BWJ
BXJ
BYJ
BZJ
CDJ
CEJ
CFJ
CGJ
CHJ
CKJ
Breakdown Voltage
V
BR
(V)
(Note 1)
Min
P4SMA6.8
P4SMA6.8A
P4SMA7.5
P4SMA7.5A
P4SMA8.2
P4SMA8.2A
P4SMA9.1
P4SMA9.1A
P4SMA10
P4SMA10A
P4SMA11
P4SMA11A
P4SMA12
P4SMA12A
P4SMA13
P4SMA13A
P4SMA15
P4SMA15A
P4SMA16
P4SMA16A
P4SMA18
P4SMA18A
P4SMA20
P4SMA20A
P4SMA22
P4SMA22A
P4SMA24
P4SMA24A
P4SMA27
P4SMA27A
P4SMA30
P4SMA30A
P4SMA33
P4SMA33A
P4SMA36
P4SMA36A
P4SMA39
P4SMA39A
P4SMA43
P4SMA43A
P4SMA47
P4SMA47A
P4SMA51
P4SMA51A
P4SMA56
P4SMA56A
6.12
6.46
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.50
10.80
11.40
11.70
12.40
13.50
14.30
14.40
15.20
16.20
17.10
18.00
19.00
19.80
20.90
21.60
22.80
24.30
25.70
27.00
28.50
29.70
31.40
32.40
34.20
35.10
37.10
38.70
40.90
42.30
44.70
45.90
48.50
50.40
53.20
Max
7.48
7.14
8.25
7.88
9.02
8.61
10.00
9.55
11.00
10.50
12.10
11.60
13.20
12.60
14.30
13.70
16.50
15.80
17.60
16.80
19.80
18.90
22.00
21.00
24.20
23.10
26.40
25.20
29.70
28.40
33.00
31.50
36.30
34.70
39.60
37.80
42.90
41.00
47.30
45.20
51.70
49.40
56.10
53.60
61.60
58.80
Test
Current
I
T
(mA)
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Stand-Off
Voltage
V
WM
(V)
5.50
5.80
6.05
6.40
6.63
7.02
7.37
7.78
8.10
8.55
8.92
9.40
9.72
10.2
10.5
11.1
12.1
12.8
12.9
13.6
14.5
15.3
16.2
17.1
17.8
18.8
19.4
20.5
21.8
23.1
24.3
25.6
26.8
28.2
29.1
30.8
31.6
33.3
34.8
36.8
38.1
40.2
41.3
43.6
45.4
47.8
Maximum
@ V
WM
I
D
(μA)
1000
1000
500
500
200
200
50
50
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Current I
PPM
(A) (Note 2)
38.0
40.0
35.0
37.0
33.0
34.0
30.0
31.0
28.0
29.0
26.0
27.0
24.0
25.0
22.0
23.0
19.0
20.0
17.8
18.6
16.0
16.5
14.0
15.0
13.0
13.7
12.0
12.6
10.7
11.0
9.6
10.0
8.8
9.0
8.0
8.4
7.4
7.7
6.7
7.0
6.2
6.4
5.7
6.0
5.2
5.4
Maximum
@ I
PPM
Vc (V)
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.5
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
67.8
64.8
73.5
70.1
80.5
77.0
Maximum
Coefficient
of V
BR
(%/
o
C)
0.057
0.057
0.061
0.061
0.065
0.065
0.068
0.068
0.073
0.073
0.075
0.075
0.078
0.078
0.081
0.081
0.084
0.084
0.086
0.086
0.088
0.088
0.090
0.090
0.092
0.092
0.094
0.094
0.096
0.096
0.097
0.097
0.098
0.098
0.099
0.099
0.100
0.100
0.101
0.101
0.101
0.101
0.102
0.102
0.103
0.103
Device
Reverse Leakage Peak Pulse
Clamping Voltage Temperature
Document Number: DS_D1409030
Version: M15
P4SMA SERIES
Taiwan Semiconductor
Device
Marking
Code
CLJ
CMJ
CNJ
CPJ
CQJ
CRJ
CSJ
CTJ
CUJ
CVJ
CWJ
CXJ
CYJ
CZJ
RDJ
REJ
RFJ
RGJ
RHJ
RKJ
RLJ
RMJ
RNJ
RPJ
RQJ
RRJ
RSJ
RTJ
Breakdown Voltage
V
BR
(V)
(Note 1)
Min
P4SMA62
P4SMA62A
P4SMA68
P4SMA68A
P4SMA75
P4SMA75A
P4SMA82
P4SMA82A
P4SMA91
P4SMA91A
P4SMA100
P4SMA100A
P4SMA110
P4SMA110A
P4SMA120
P4SMA120A
P4SMA130
P4SMA130A
P4SMA150
P4SMA150A
P4SMA160
P4SMA160A
P4SMA170
P4SMA170A
P4SMA180
P4SMA180A
P4SMA200
P4SMA200A
Notes:
1. V
BR
measure after I
T
applied for 300us, I
T
=square wave pulse or equivalent.
2. Surge current waveform per Figure. 3 and derate per Figure. 2.
3. For bipolar types having V
WM
of 10 volts and under, the I
D
limit is doubled.
4. For bidirectional use C or CA suffix for types PS4MA6.8 through P4SMA200A.
5. All terms and symbols are consistent with ANSI/IEEE C62.35.
55.8
58.9
61.2
64.6
67.5
71.3
73.8
77.9
81.9
86.5
90
95
99
105
108
114
117
124
135
143
144
152
153
162
162
171
180
190
Max
68.2
65.1
74.8
71.4
82.5
78.8
90.2
86.1
100
95.5
110
105
121
116
132
126
143
137
165
158
176
168
187
179
198
189
220
210
Test
Current
I
T
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Stand-Off
Voltage
V
WM
(V)
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102
105
111
121
128
130
136
138
145
146
154
162
171
Maximum
@ V
WM
I
D
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Current I
PPM
(A) (Note 2)
4.7
5.0
4.2
4.5
3.8
4.0
3.5
3.7
3.2
3.3
2.9
3.0
2.6
2.7
2.4
2.5
2.2
2.3
1.9
2.0
1.8
1.9
1.7
1.8
1.6
1.7
1.4
1.51
Maximum
@ I
PPM
Vc (V)
89.0
85.0
98.0
92.0
108
103
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
Maximum
Coefficient
of V
BR
(%/
o
C)
0.104
0.104
0.104
0.104
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
Device
Reverse Leakage Peak Pulse
Clamping Voltage Temperature
Document Number: DS_D1409030
Version: M15
P4SMA SERIES
Taiwan Semiconductor

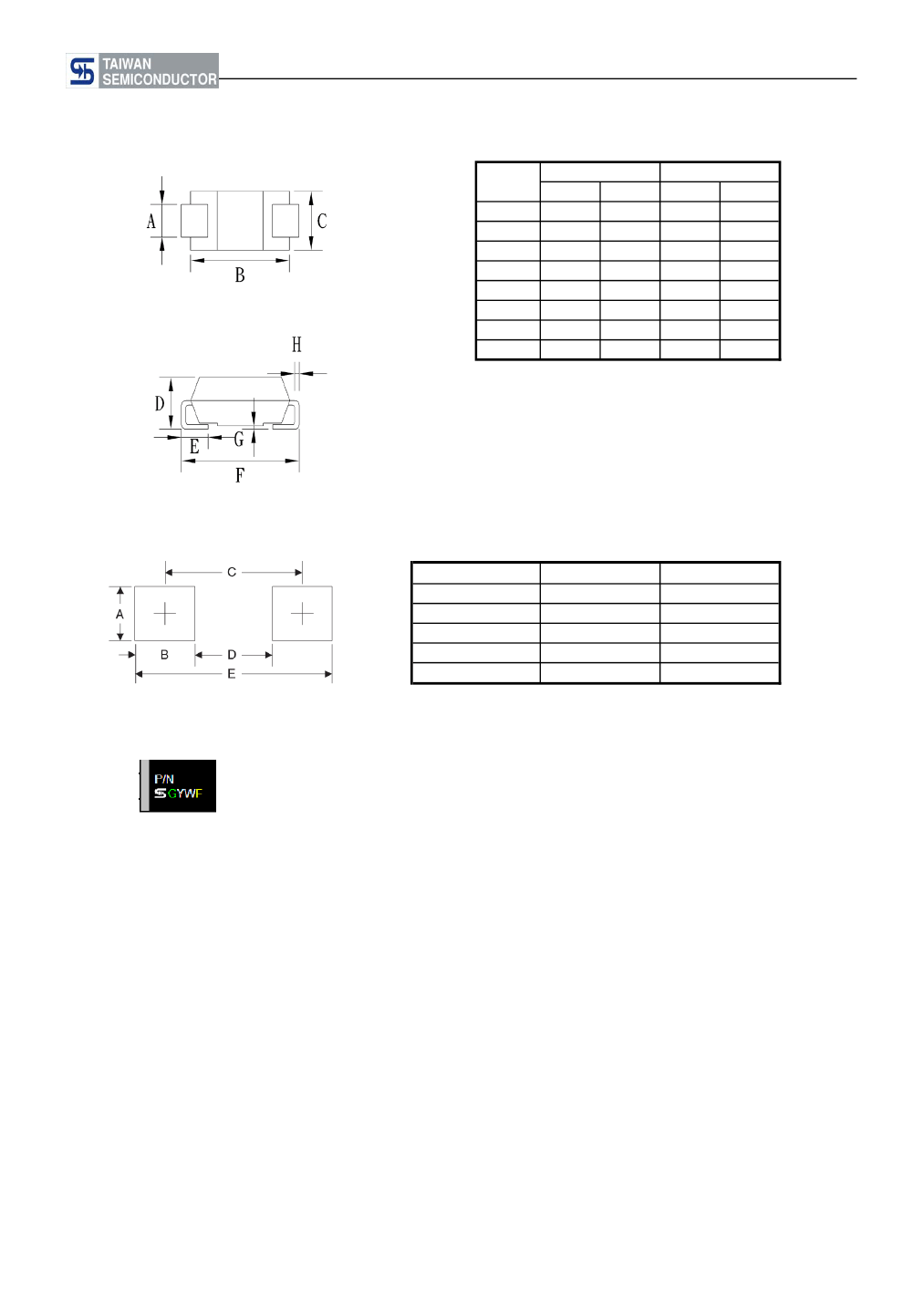

PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Device Marking Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1409030
Version: M15
京公网安备 11010802033920号
EEWORLD
