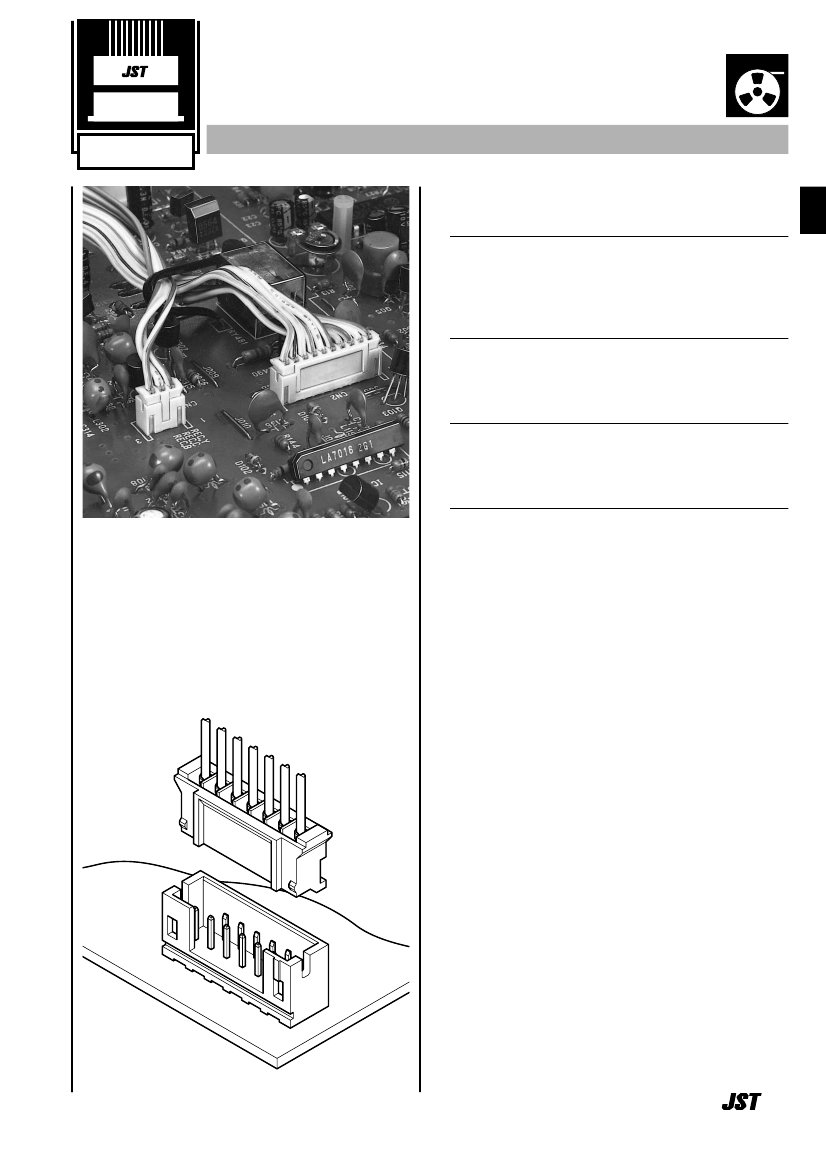

Crimp
PH
CONNECTOR
Disconnectable Crimp style connectors
• Reliable contact
current circuits.
Emboss Tape
2.0mm
(.079") pitch
Features ––––––––––––––––––––––––
The contact has long dimples near the center to ensure a good
connection at all times, even under conditions of vibration and
mechanical abuse, and when used with low voltage and low
• Fully shrouded header
The fully shrouded header has walls on all four sides to
prevent improper connection to the mating housing and to
prevent the instruction of flux and other contaminants.
• Printed circuit board retention mechanism
The solder side of the header has a retention mechanism that
prevents it from floating during soldering. As a result, the
header can be positioned accurately.
• Surface mount model (SMT)
This connector is also available in a surface mount
This is a thin, low-profile 2.0mm (.079")
pitch connector 7.5mm (.295") in height
after mounting and 4.5mm (.177") in width.
It is designed to meet the demand for
high-density connection of internal wires to
printed circuit boards. It is compact, highly
reliable and low in cost.
configuration. Its housing is made of heat resistant resin so
that it is not adversely affected during reflow soldering.
Because of its tiny size and ability to be surface mounted, this
connector meets the demand for high-density mounting of
components inside electronic products.
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 100V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #32 to #24
• Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
5
2
3
4
6
Standards ––––––––––––––––––––––
1
2
0
Recognized E60389
Certified LR20812
R75087
47
PH
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
mm
SPH-002T-P0.5S
2
Applicable wire
AWG #
30 to 24
28 to 24
32 to 28
Insulation O.D. mm(in.)
0.9 to 1.5(.035 to .059)
0.8 to 1.5(.031 to .059)
0.5 to 0.9(.020 to .035)
Q'ty /
reel
8,000
8,000
10,000
0.05 to 0.22
0.08 to 0.22
0.032 to 0.08
5.7(.224)
2.85(.112)
2.05(.081)
1.0
(.039)
2.08
(.082)
SPH-002T-P0.5L
SPH-004T-P0.5S
Material and Finish
Phosphor bronze, tin-plated
1.5
(.059)
Note:
1. Contact JST for gold-plated contacts.
2. SPH-002T-P0.5L is low-insertion force type contact, for easier insertion/
withdrawal, which would be less resistant to the vibration. The crimp height is
different from the standard.
3. When using AWG#32 or #30 wires, reflow-treated headers
(Low insertion force type, Model No. B#B-PH-KL or S#B-PH-KL) are
recommendable.
4. Contact JST for details.
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
2
3
4
Model No.
PHR- 2
PHR- 3
PHR- 4
PHR- 5
PHR- 6
PHR- 7
PHR- 8
PHR- 9
PHR-10
PHR-11
PHR-12
PHR-13
PHR-14
PHR-15
PHR-16
Dimensions mm(in.)
A
2.0( .079)
4.0( .157)
6.0( .236)
8.0( .315)
10.0( .394)
12.0( .472)
14.0( .551)
16.0( .630)
18.0( .709)
20.0( .787)
22.0( .866)
24.0( .945)
26.0(1.024)
28.0(1.102)
30.0(1.181)
B
5.8( .228)
7.8( .307)
9.8( .386)
11.8( .465)
13.8( .543)
15.8( .622)
17.8( .701)
19.8( .780)
21.8( .858)
23.8( .937)
25.8(1.016)
27.8(1.094)
29.8(1.173)
31.8(1.252)
33.8(1.331)
Q'ty /
box
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
B
1.9
(.075)
Circuit
No.1
2.0
(.079)
A
0.5
(.020)
4.5(.177)
5
6
7
8
9
10
6.35(.250)
11
12
13
0.6(.024)
14
15
16
Material
Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PHR-2-oo-
(blank)…natural (white)
BK…black R…red TR…tomato red BL…blue Y…yellow
L…lemon yellow M…green D…orange N…brown
P…purple PK…pink H…gray LE…light blue
FY…vivid yellow
48
PH
The shrouded headers are interchangeable with those of the KR, KRD and CR insulation displacement connectors.
CONNECTOR
Through-hole type shrouded header –––––––––––––––––––––––––––––––––––––––––
Top entry type
(2 circuits)
B
4.5(.177)
1.7(.067)
Model No.
Dimensions mm(in.)
A
2.0( .079)
4.0( .157)
6.0( .236)
Q'ty / box
Top
entry
type
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
500
250
250
250
250
(3 circuits or more)
B
4.5(.177)
1.7(.067)
Cir-
cuits
2
3
6.0(.236)
Top
entry
type
B 2B-PH-K-S
B 3B-PH-K-S
B 4B-PH-K-S
B 5B-PH-K-S
B 6B-PH-K-S
B 7B-PH-K-S
B 8B-PH-K-S
B 9B-PH-K-S
B10B-PH-K-S
B11B-PH-K-S
B12B-PH-K-S
B13B-PH-K-S
B14B-PH-K-S
B15B-PH-K-S
B16B-PH-K-S
Side
entry
type
S 2B-PH-K-S
S 3B-PH-K-S
S 4B-PH-K-S
S 5B-PH-K-S
S 6B-PH-K-S
S 7B-PH-K-S
S 8B-PH-K-S
S 9B-PH-K-S
S10B-PH-K-S
S11B-PH-K-S
S12B-PH-K-S
S13B-PH-K-S
S14B-PH-K-S
S15B-PH-K-S
S16B-PH-K-S
B
5.9( .232)
7.9( .311)
9.9( .390)
Side
entry
type
1,000
1,000
500
500
500
500
250
250
250
250
250
250
250
200
200
6.0(.236)
4
5
6
7
8
9
10
11
8.0( .315) 11.9( .469)
10.0( .394) 13.9( .547)
12.0( .472) 15.9( .626)
14.0( .551) 17.9( .705)
16.0( .630) 19.9( .783)
18.0( .709) 21.9( .862)
20.0( .787) 23.9( .941)
22.0( .866) 25.9(1.020)
24.0( .945) 27.9(1.098)
26.0(1.024) 29.9(1.177)
28.0(1.102) 31.9(1.256)
30.0(1.181) 33.9(1.335)
1.95
(.077)
A
0.5
(.020)
3.4
(.134)
Circuit
No.1
1.95
(.077)
2.0
(.079)
A
0.5
(.020)
Circuit
No.1
Side entry type
B
4.8(.189)
1.7(.067)
3.4
(.134)
12
13
6.25(.246)
6.0(.236)
14
15
16
1.95
(.077)
2.0
(.079)
A
0.5
(.020)
1.6
(.063)
Circuit
No.1
3.4
(.134)
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2B-PH-K-oo-
S…natural (white)
K…black R…red TR…tomato red
E…blue Y…yellow L…lemon yellow M…green
O…orange N…brown P…purple PK…pink H…gray
LE…light blue FY…vivid yellow (blank)…ivory
49
PH
CONNECTOR
Through-hole type shrouded header <Low insertion force type> –––––––––––––––––
Top entry type
(2 circuits)
B
4.5(.177)
1.7(.067)
Model No.
Dimensions mm(in.)
A
2.0( .079)
4.0( .157)
6.0( .236)
8.0( .315)
Q'ty / box
Top
entry
type
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
500
250
250
250
250
(3 circuits or more)
B
4.5(.177)
1.7(.067)
Cir-
cuits
2
3
Top
entry
type
Side
entry
type
B
5.9( .232)
7.9( .311)
9.9( .390)
11.9( .469)
Side
entry
type
1,000
1,000
500
500
500
500
250
250
250
250
250
250
200
200
200
B 2B-PH-KL S 2B-PH-KL
B 3B-PH-KL S 3B-PH-KL
B 4B-PH-KL S 4B-PH-KL
B 5B-PH-KL S 5B-PH-KL
6.0(.236)
6.0(.236)
4
5
6
3.4
(.134)
B 6B-PH-KL S 6B-PH-KL
10.0( .394) 13.9( .547)
B 7B-PH-KL S 7B-PH-KL
12.0( .472)
B 8B-PH-KL S 8B-PH-KL
14.0( .551)
15.9( .626)
17.9( .705)
3.4
(.134)
1.95
(.077)
A
0.5
(.020)
7
8
Circuit
No.1
1.95
(.077)
2.0
(.079)
A
0.5
(.020)
Circuit
No.1
9
10
B 9B-PH-KL S 9B-PH-KL
16.0( .630) 19.9( .783)
B10B-PH-KL S10B-PH-KL
18.0( .709) 21.9( .862)
B11B-PH-KL S11B-PH-KL
20.0( .787) 23.9( .941)
B12B-PH-KL S12B-PH-KL
22.0( .866) 25.9(1.020)
B13B-PH-KL S13B-PH-KL
24.0( .945) 27.9(1.098)
B14B-PH-KL S14B-PH-KL
26.0(1.024) 29.9(1.177)
B15B-PH-KL S15B-PH-KL
28.0(1.102) 31.9(1.256)
B16B-PH-KL S16B-PH-KL
30.0(1.181) 33.9(1.335)
Side entry type
B
4.8(.189)
1.7(.067)
11
12
13
6.25(.246)
6.0(.236)
14
15
16
1.95
(.077)
2.0
(.079)
A
0.5
(.020)
1.6
(.063)
Circuit
No.1
3.4
(.134)
Material and Finish
Post: Copper alloy, copper-undercoated, tin/lead-plated (reflow-treated)
Wafer: Nylon 66, UL94V-0, gray
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2B-PH-KL-oo-
(blank)…gray
R…red E…blue S…natural (white)
Through-hole type PC board layout
(viewed from soldering side)
and Assembly layout –––
Top entry type
2.0±0.05
(.079±.002)
4.5
(.177)
Side entry type
2.0±0.05
(.079±.002)
9.6(.378)
7.6(.299)
4.8(.189)
8.0(.315)
6.0(.236)
0.7
+ 0.1
0
.004
(.028
+ 0
)dia.
0.1
0.7
+ 0
.004
(.028
+ 0
)dia.
6.25
(.246)
Note:
1. Tolerances are non-cumulative:
±
0.05mm(
±
.002") for all centers.
2. Hole dimensions differ according to the kind of printed circuit board and piercing method. If printed circuit boards made of hard material are used,
the hole dimensions should be larger. The hole dimensions shown above are reference values.
Contact JST for details.
50
PH
•The shrouded headers are interchangeable with those of the KR, KRD and CR insulation displacement connectors.
¨
•SMT type shrouded headers are not TUV approved.
CONNECTOR
SMT type shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––
SM3, SM4 type
Top entry type
B
2.975
(.117)
A
2.0(.079)
5.0
(.197)
1.9(.075)
[2.0
(.079)]
SM3 type
Model No.
Cir-
cuits
2
3
4
6.6(.260)
Dimensions mm(in.)
A
B
Top entry type Side entry type
Q'ty /
reel
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
Top entry
type
Side entry
type
B 2B-PH-SM3-TB S 2B-PH-SM3-TB
2.0( .079) 7.95( .313) 7.9( .311)
B 3B-PH-SM3-TB S 3B-PH-SM3-TB
4.0( .157) 9.95( .392) 9.9( .390)
B 4B-PH-SM3-TB S 4B-PH-SM3-TB
6.0( .236) 11.95( .470) 11.9( .469)
B 5B-PH-SM3-TB S 5B-PH-SM3-TB
8.0( .315) 13.95( .549) 13.9( .547)
B 6B-PH-SM3-TB S 6B-PH-SM3-TB
10.0( .394) 15.95( .628) 15.9( .626)
B 7B-PH-SM3-TB S 7B-PH-SM3-TB
12.0( .472) 17.95( .707) 17.9( .705)
B 8B-PH-SM3-TB S 8B-PH-SM3-TB
14.0( .551) 19.95( .785) 19.9( .783)
B 9B-PH-SM3-TB S 9B-PH-SM3-TB
16.0( .630) 21.95( .864) 21.9( .862)
B10B-PH-SM3-TB S10B-PH-SM3-TB
18.0( .709) 23.95( .943) 23.9( .941)
B11B-PH-SM3-TB
–
20.0( .787) 25.95(1.022) 25.9(1.020)
5
6
7
2.2
(.087)
1.4
(.055)
8
9
10
11
Circuit No.1
Side entry type
12
13
14
5.5(.217)
2.4(.094)
B12B-PH-SM3-TB S12B-PH-SM3-TB
22.0( .866) 27.95(1.100) 27.9(1.098)
B13B-PH-SM3-TB S13B-PH-SM3-TB
24.0( .945) 29.95(1.179) 29.9(1.177)
B14B-PH-SM3-TB S14B-PH-SM3-TB
26.0(1.024) 31.95(1.258) 31.9(1.256)
B15B-PH-SM3-TB S15B-PH-SM3-TB
28.0(1.102) 33.95(1.337) 33.9(1.335)
B16B-PH-SM3-TB
–
30.0(1.181) 35.95(1.415) 35.9(1.413)
15
16
Material and Finish
1.6
(.063)
6.0(.236)
[2.6
(.102)]
2.0
2.95 (.079)
(.116)
A
B
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer: Nylon 46, UL94V-0, natural (white)
Solder tab: Brass, copper-undercoated, tin/lead-plated
Note: Contact JST for the top entry type headers with suction cap.
SM4 type
Model No.
Cir-
cuits
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Dimensions mm(in.)
A
B
Top entry type Side entry type
Q'ty /
reel
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
Top entry
type
Side entry
type
B 2B-PH-SM4-TB S 2B-PH-SM4-TB
2.0( .079) 7.95( .313) 7.9( .311)
B 3B-PH-SM4-TB S 3B-PH-SM4-TB
4.0( .157) 9.95( .392) 9.9( .390)
B 4B-PH-SM4-TB S 4B-PH-SM4-TB
6.0( .236) 11.95( .470) 11.9( .469)
B 5B-PH-SM4-TB S 5B-PH-SM4-TB
8.0( .315) 13.95( .549) 13.9( .547)
B 6B-PH-SM4-TB S 6B-PH-SM4-TB
10.0( .394) 15.95( .628) 15.9( .626)
B 7B-PH-SM4-TB S 7B-PH-SM4-TB
12.0( .472) 17.95( .707) 17.9( .705)
B 8B-PH-SM4-TB S 8B-PH-SM4-TB
14.0( .551) 19.95( .785) 19.9( .783)
B 9B-PH-SM4-TB S 9B-PH-SM4-TB
16.0( .630) 21.95( .864) 21.9( .862)
B10B-PH-SM4-TB S10B-PH-SM4-TB
18.0( .709) 23.95( .943) 23.9( .941)
B11B-PH-SM4-TB S11B-PH-SM4-TB
20.0( .787) 25.95(1.022) 25.9(1.020)
B12B-PH-SM4-TB S12B-PH-SM4-TB
22.0( .866) 27.95(1.100) 27.9(1.098)
B13B-PH-SM4-TB S13B-PH-SM4-TB
24.0( .945) 29.95(1.179) 29.9(1.177)
B14B-PH-SM4-TB S14B-PH-SM4-TB
26.0(1.024) 31.95(1.258) 31.9(1.256)
B15B-PH-SM4-TB S15B-PH-SM4-TB
28.0(1.102) 33.95(1.337) 33.9(1.335)
B16B-PH-SM4-TB
–
30.0(1.181) 35.95(1.415)
–
Material and Finish
Post: Copper alloy, copper-undercoated, tin-plated
Wafer: 6T nylon, UL94V-0, natural (white)
Solder tab: Brass, nickel-undercoated, tin/copper alloy-plated
Note: Contact JST for the top entry type headers with suction cap.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2B-PH-SM3-oo-TB
(blank)…natural (white)
R…red E…blue M…green L…lemon yellow K…black
51
京公网安备 11010802033920号
EEWORLD
