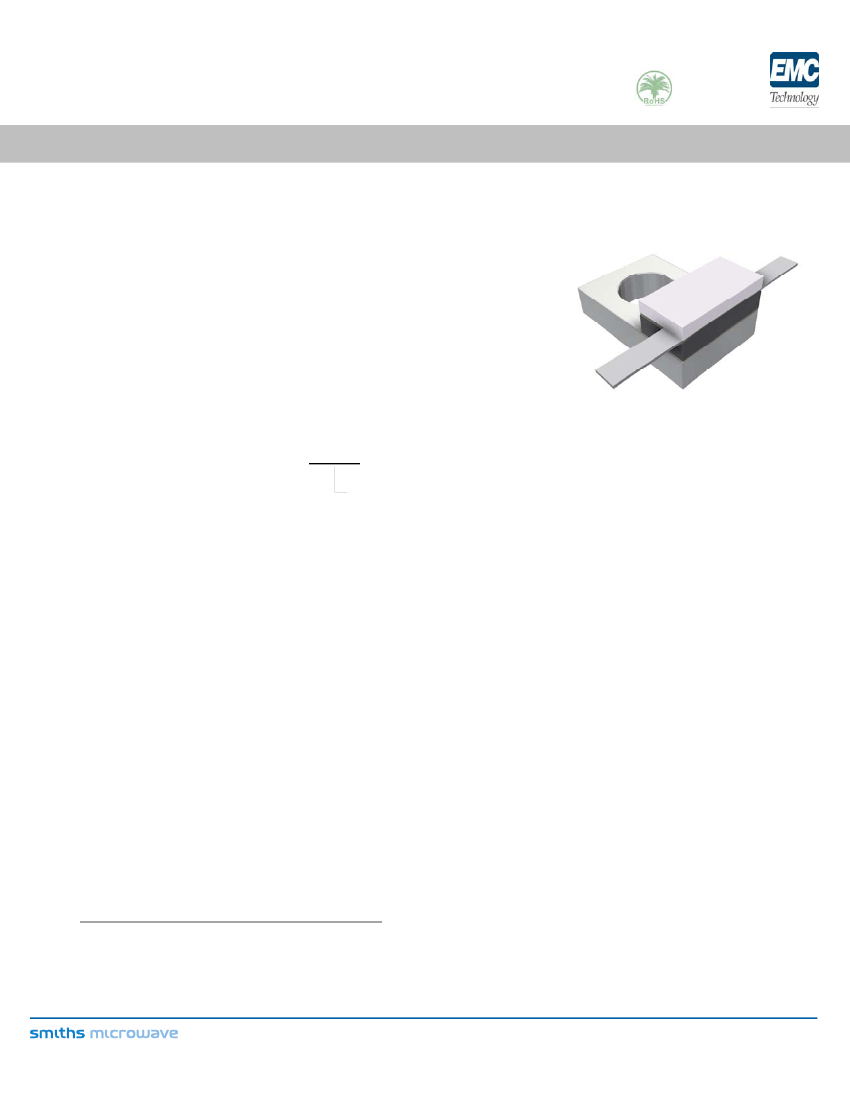

ATTENUATOR

FLANGE MOUNT 10 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 33A1005XX.XXF

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 33A1005F

EN 13-3530

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount attenuators worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

33A1005XX.XXF

Attenuation Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

Input Power CW:

Peak Power:

VSWR:

50 ohms

DC - 4.0 GHz

1 through 20 dB in 1 dB increments

1 through 10 dB ± 0.5 dB

11 through 20 dB ± 1.0 dB

10 watts @ 100˚C heat sink, derated linearly to zero power at 150˚C

100 watts (based on 10us pulse width and 1% duty cycle)

DC - 2.0 GHz 1.15:1 Max

2.0 - 4.0 GHz 1.35:1 Max

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM / ˚C max

3.0 MARKING

Unit Marking:

Attenuation value, legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Attenuation and VSWR

Data Retention – Standard

5.0 PACKAGING

Standard Packaging:

Form 423F108

Tray

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
