P6KE33A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P6KE33A

P6KE33A: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC; CategoryDiscrete semiconductor diode; File Size326KB，5 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric View All

P6KE33A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6KE33A	-	-	View	Buy Now

P6KE33A Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-204AC

P6KE33A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Digitron
package instruction	O-XALF-W2
Reach Compliance Code	unknow
Maximum breakdown voltage	34.7 V
Minimum breakdown voltage	31.4 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-XALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Maximum repetitive peak reverse voltage	28.2 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

DIGITRON SEMICONDUCTORS

P6KE6.8 – P6KE440A

SPECIFICATION FEATURES

Standard Zener Voltage Range

Peak Power

Maximum Clamp Voltage

Low Leakage

Maximum Temperature Coefficient Specified

Response Time is Typically < 1 ns

Available as Non-RoHS (standard) or RoHS compliant (add PBF suffix)

Available as “HR”(high-reliability) screened per MIL-PRF-19500, JANTX level (add –HR suffix)

Available as both unidirectional and bidirectional. (Add C or CA suffix to part number for bidirectional (i.e. P6KE6.8CA)

6.8 to 440 volts

600 watts @ 1 ms

@ peak pulse current

< 5µA above 10 volts

600 WATT TRANSIENT VOLTAGE SUPPRESSORS

MAXIMUM RATINGS

Rating

Peak Power Dissipation

(1)

Symbol

@ T

≤

25°C

Value

600

Unit

Watts

mW/ۜ°C

Amps

°C

Steady State Power Dissipation

@ T

≤

75°C, Lead Length = 3/8”

Derated above T

= 75°C

Forward Surge Current

@ T

= 25°C

(2)

FSM

, T

stg

100

-65 to +175

Operating and Storage Temperature Range

Forward Voltage @ 25°C:

(unidirectional only)

3.5V maximum @ 100A peak impulse of 8.3ms half-sine wave

Lead temperature not less than 1/16” from the case for 10 seconds : 230°C

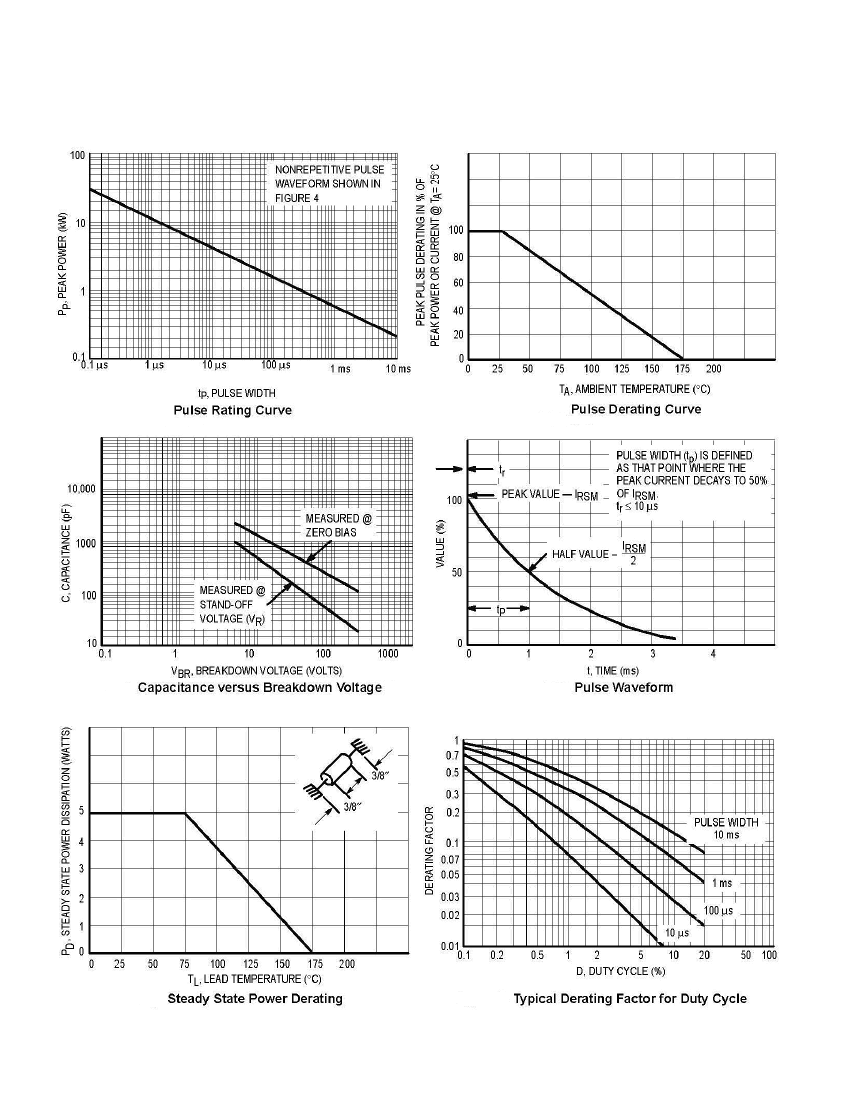

Note 1: Non repetitive current pulse per Figure 4 and derated above T

= 25°C per Figure 2.

Note 2: ½ sine wave (or equivalent square wave), PW 8.3 ms, duty cycle = 4 pulses per minute maximum.

ELECTRICAL CHARACTERISTICS

Breakdown Voltage

Part

Number

(Volts)

Min

P6KE6.8

P6KE6.8A

P6KE7.5

P6KE7.5A

P6KE8.2

P6KE8.2A

P6KE9.1

P6KE9.1A

P6KE10

P6KE10A

P6KE11

P6KE11A

P6KE12

P6KE12A

P6KE13

P6KE13A

P6KE15

6.12

6.45

6.75

7.13

7.38

7.79

8.19

8.65

9.0

9.5

9.9

10.5

10.8

11.4

11.7

12.4

13.5

Nom

= 25°C unless otherwise noted)

Max

7.48

7.14

8.25

7.88

9.02

8.61

10.0

9.55

11.0

10.5

12.1

11.6

13.2

12.6

14.3

13.7

16.5

Test

Current

(BR)

Rated

Stand Off

Voltage

5.50

5.80

6.05

6.40

6.63

7.02

7.37

7.78

8.10

8.55

8.92

9.40

9.72

10.20

10.50

11.10

12.10

Maximum

Standby

Current

@ V

µA

1000

500

200

Maximum

Clamping

Voltage

@ I

10.8

10.5

11.7

11.3

12.5

12.1

13.8

13.4

15.0

14.5

16.2

15.6

17.3

16.7

19.0

18.2

22.0

Peak Pulse

Current

56.0

57.0

51.0

53.0

48.0

50.0

44.0

45.0

40.0

41.0

37.0

38.0

35.0

36.0

32.0

33.0

27.0

Maximum

Temperature

Coefficient of

αV

(BR)

6.8

7.5

8.2

9.1

10.0

11.0

12.0

13.0

15.0

(%/°C)

0.057

0.061

0.065

0.068

0.073

0.075

0.078

0.081

0.084

144 Market Street

Kenilworth NJ 07033 USA

phone +1.908.245-7200

fax +1.908.245-0555

sales@digitroncorp.com

www.digitroncorp.com

Rev. 20120906
