GRM0335C1E470JD01W datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GRM0335C1E470JD01W

GRM0335C1E470JD01W: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.000047uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size81KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM0335C1E470JD01W Overview

CAPACITOR, CERAMIC, MULTILAYER, 25V, C0G, 0.000047uF, SURFACE MOUNT, 0201, CHIP, ROHS COMPLIANT

GRM0335C1E470JD01W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0201
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.3 mm
JESD-609 code	e3
length	0.6 mm
Manufacturer's serial number	GRM03
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	25 V
series	GRM0335C1E470JD01
size code	0201
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.3 mm

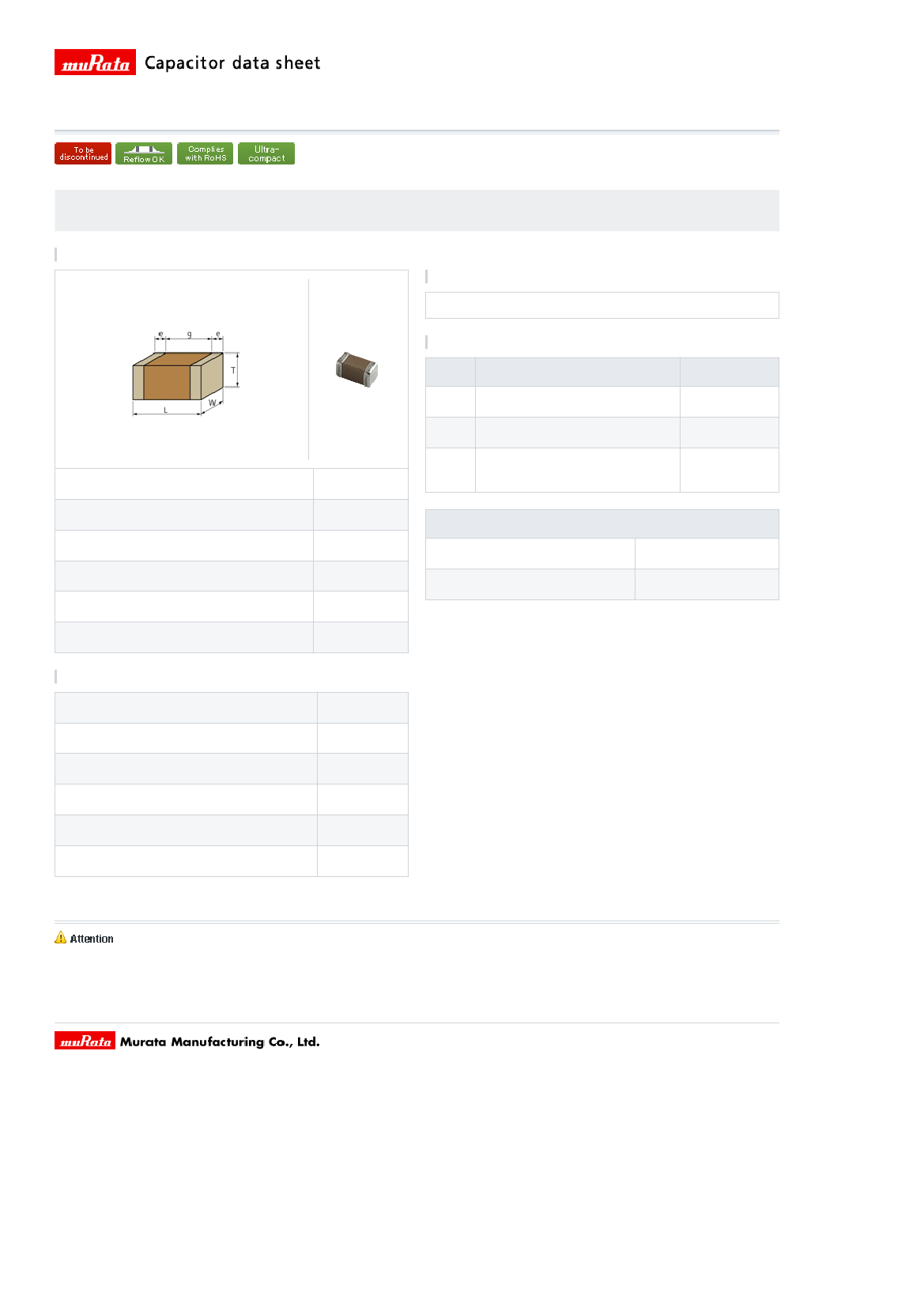

GRM0335C1E470JD01W Preview

GRM0335C1E470JD01#

Deadline for last orders: 30 Sep 2013

< List of part numbers with package codes >

# indicates a package specification code.

Date of discontinuation: 31 Mar 2014

GRM0335C1E470JD01D , GRM0335C1E470JD01W , GRM0335C1E470JD01J

Shape

Notes

Please use replacements or Recommended.

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

15000

50000

L size

W size

T size

External terminal width e

Distance between external terminals g (Min.)

Size code in mm(inch)

0.6 ±0.03mm

0.3 ±0.03mm

30000

Mass (typ.)

0.3 ±0.03mm

0.1 to 0.2mm

0.2mm

0603 (0201)

1 piece

φ180mm Reel

0.33mg

118g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

47pF ±5%

25Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/05/17

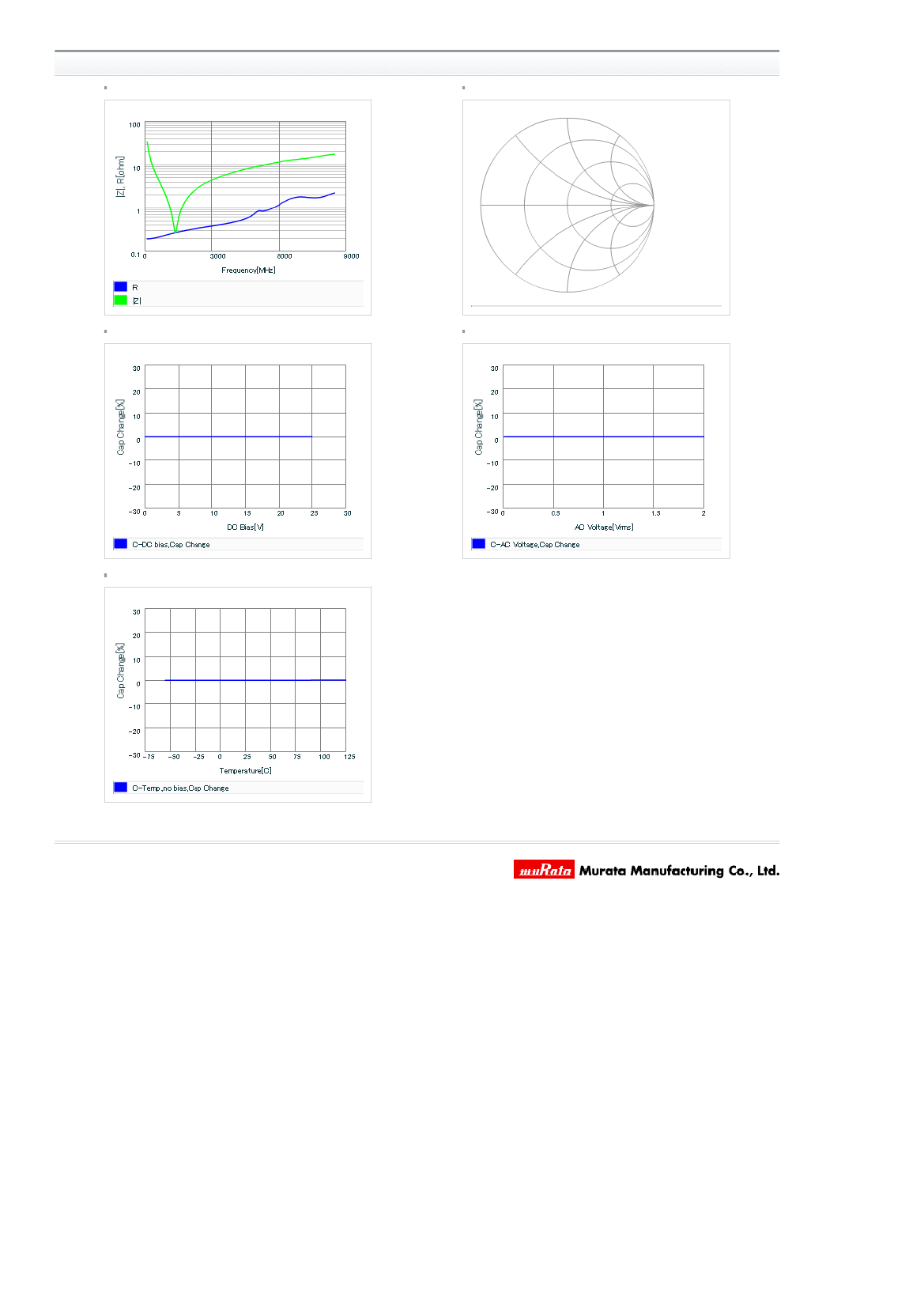

Chart of characteristic data (The charts below may show another part number which shares its characteristics.)

Frequency characteristics (ESR, Impedance)

S parameter (Smith chart S11)

DC bias characteristics

AC voltage characteristics

Capacitance - temperature characteristics

2 of 2

This PDF data has only typical specifications because there is no space

for detailed specifications.

Therefore, please reviewour product specifications or consult the

approval sheet for product specifications before ordering.

Last updated: 2013/05/17

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
