DV4528BN datasheet, PDF - EEWORLD Datasheet

DV4528BN: DescriptionMonostable Multivibrator, 4000/14000/40000 Series, 2-Func, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size172KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

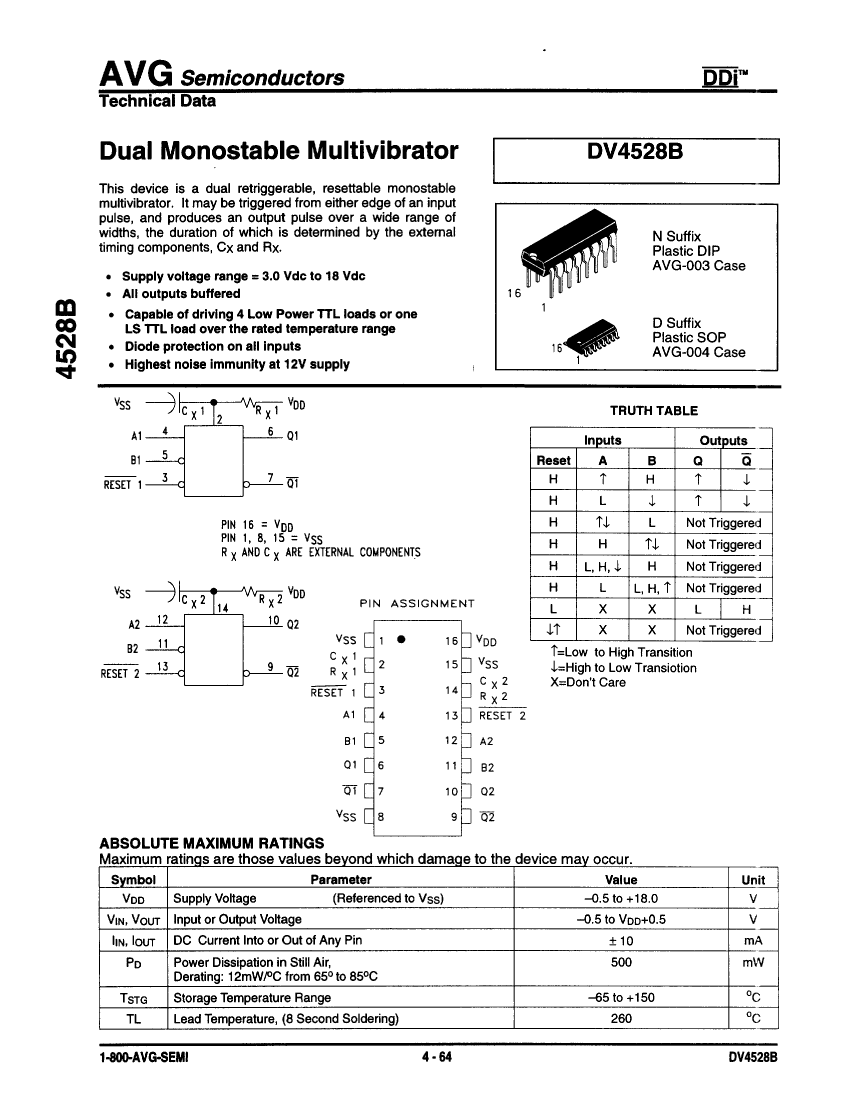

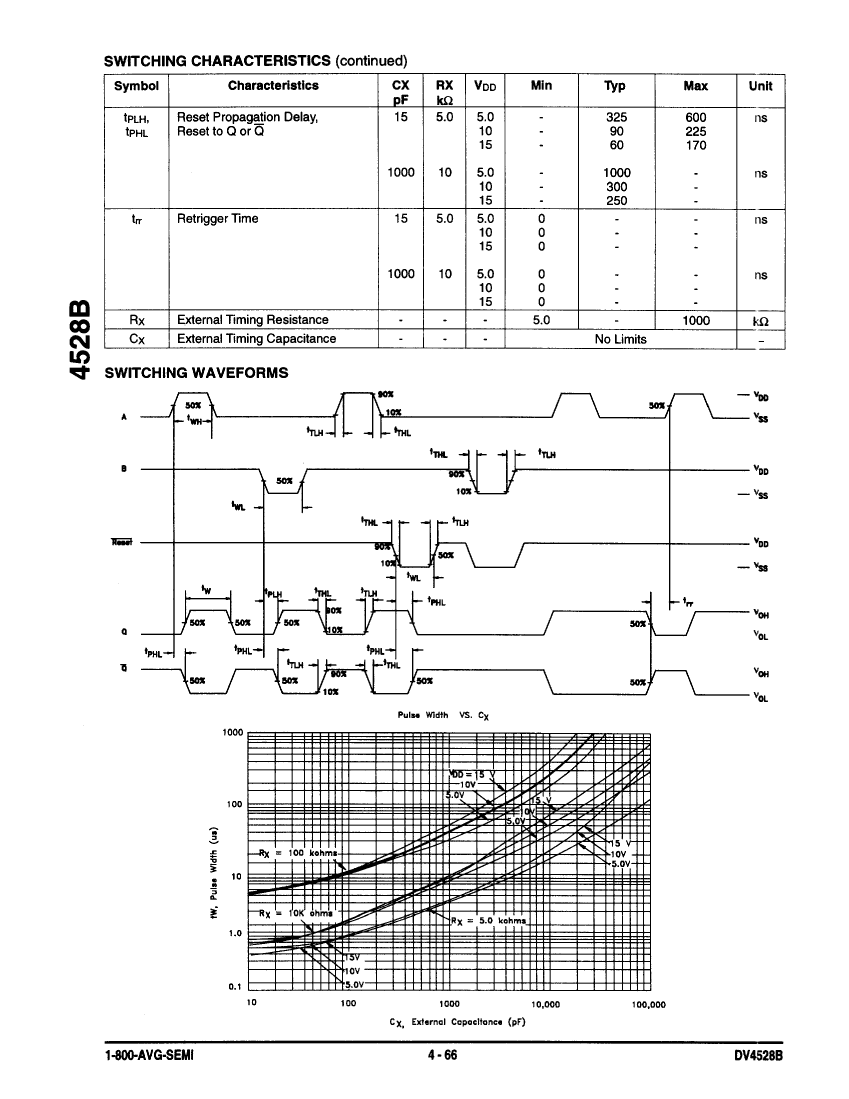

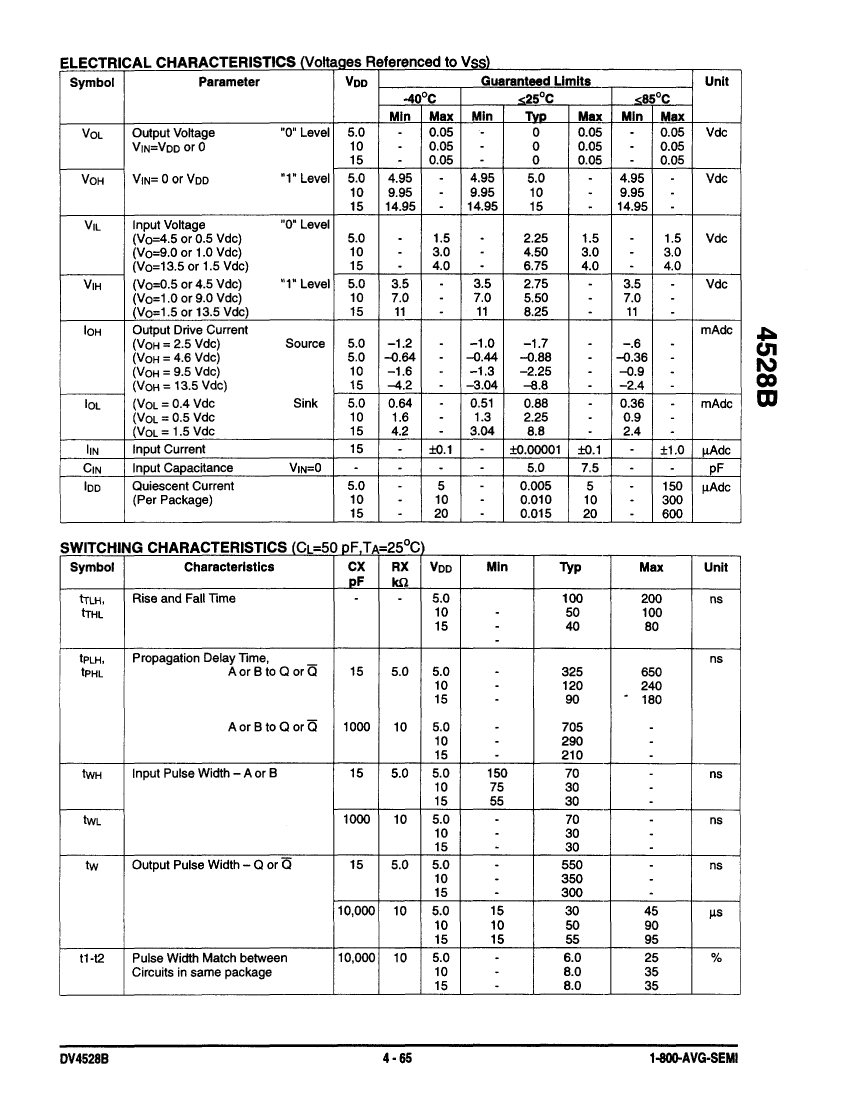

DV4528BN Overview

Monostable Multivibrator, 4000/14000/40000 Series, 2-Func, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-PDIP-T16
length	19.175 mm
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	650 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	DV4528BN	DV4528BD
Description	Monostable Multivibrator, 4000/14000/40000 Series, 2-Func, PDIP16, PLASTIC, DIP-16	Monostable Multivibrator, 4000/14000/40000 Series, 2-Func, PDSO16, PLASTIC, SOP-16
Parts packaging code	DIP	SOIC
package instruction	DIP,	SOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDIP-T16	R-PDSO-G16
length	19.175 mm	9.9 mm
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2	2
Number of functions	2	2
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	650 ns	650 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	1.75 mm
Maximum supply voltage (Vsup)	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	3.9 mm
