All specifications are subject to change without notice.
DS 229 Rev D | 02/08/06

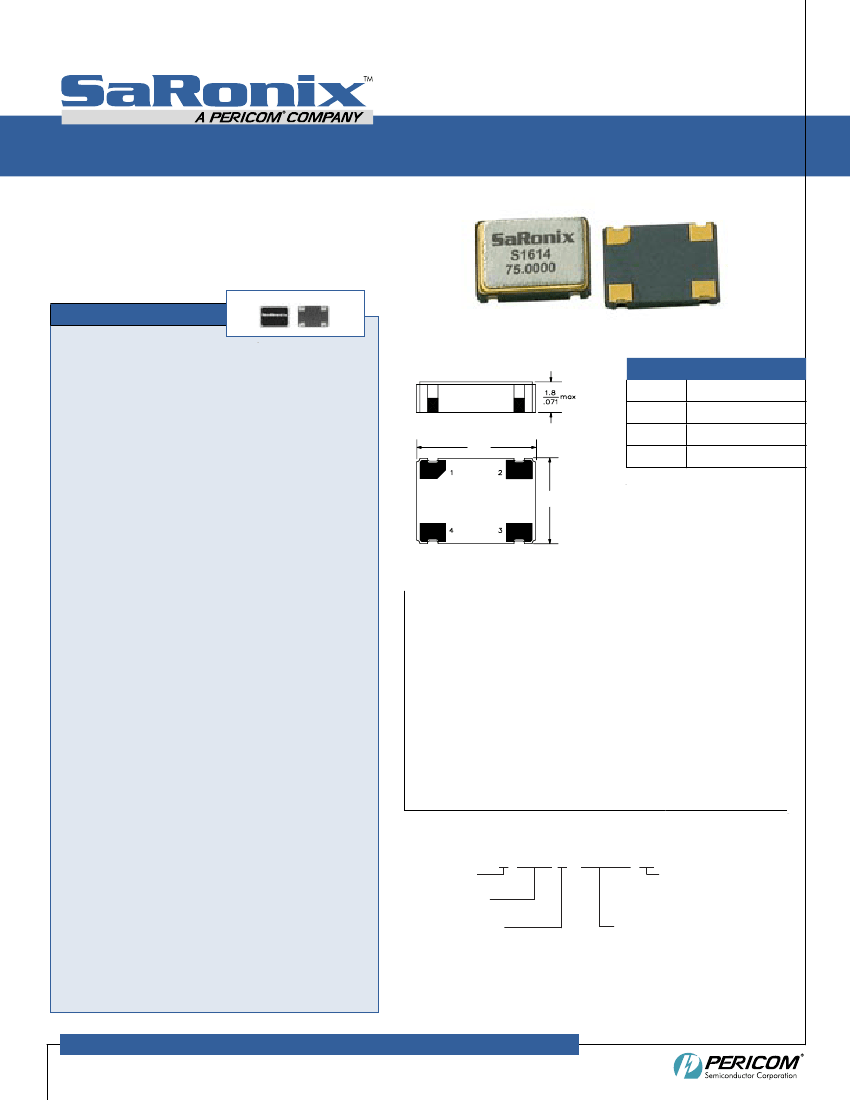

S1614 Series
2.5V CMOS Low Jitter
Crystal Clock Oscillator (XO)
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output frequency
Supply voltage
Supply current, output enabled
Supply current, standby mode
Frequency stability
Operating temperature
Output logic 0, VOL
Output logic 1, VOH
Output load
Duty cycle
Rise and fall
time
Jitter,
Phase

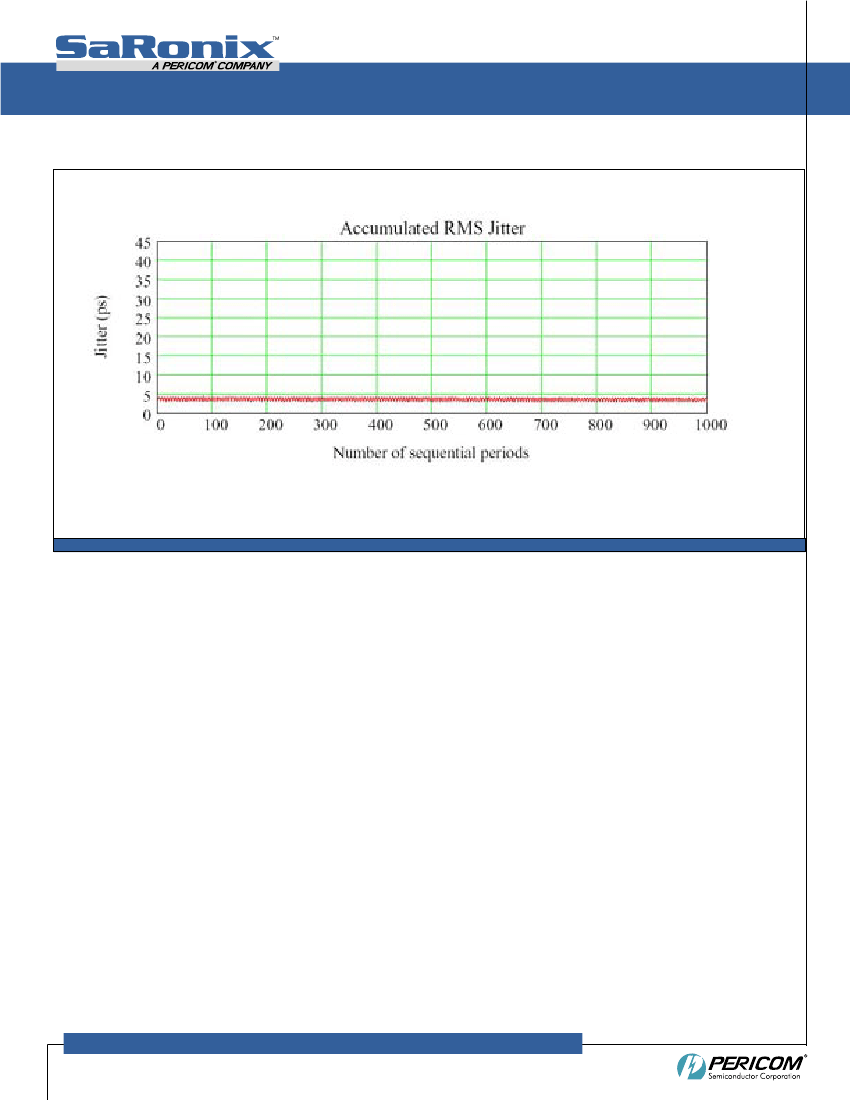

Jitter,
Accumulated
Jitter,
Total
up to 32 MHz
>32 to 70 MHz
>70 to 125 MHz
up to 80 MHz
>80 to 125 MHz
up to 80 MHz
>80 to 125 MHz
up to 80 MHz
>80 to 125 MHz
1.544
+2.375
+2.5
125
+2.625
15
25
35
10
±20 to ±50
MHz
V
As specified
1.544 to 32 MHz
mA
µA
ppM
°C
V
V
>32 to 50 MHz
>50 to 125 MHz
Output Hi-Z
See Note 1 below
As specified
-40
90% V
DD
+85
10% V
DD
15 pF (max)
45
55
10
7
3
1.5
1
5
3
50
30
%
ns
ps RMS
(1-σ)
ps RMS
(1-σ)
ps
pk-pk
-40 to +85°C measured 50%VDD
measured 20/80% of waveform
10kHz to 20 MHz frequency band
20.000 adjacent periods
100.000 random periods
Notes:
1. As specified. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (1 year at 25°C average effective ambient temperature), shock and vibration.
