Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8018008GMB

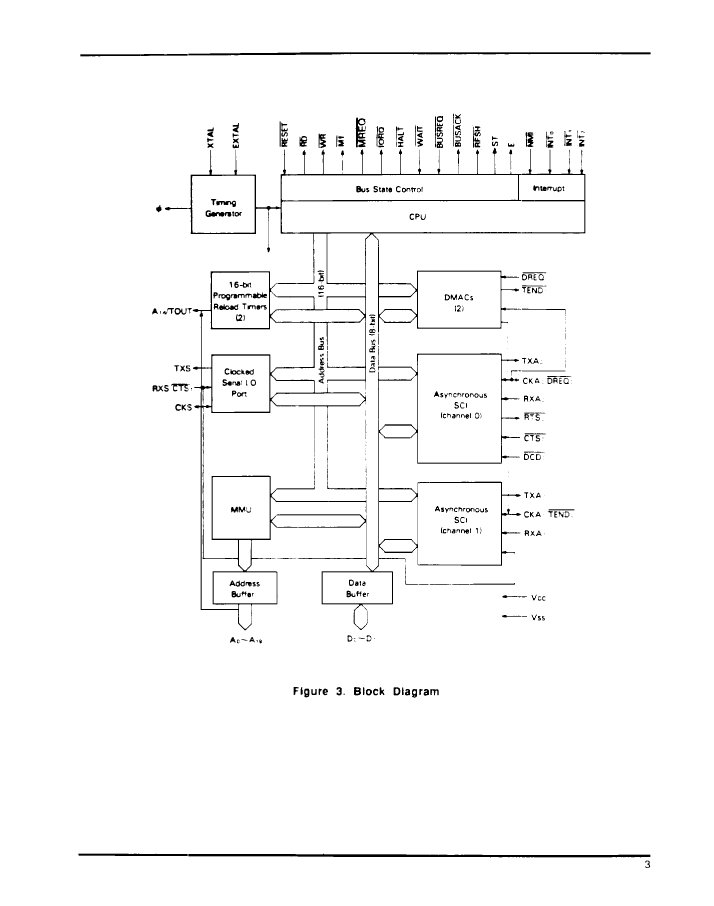

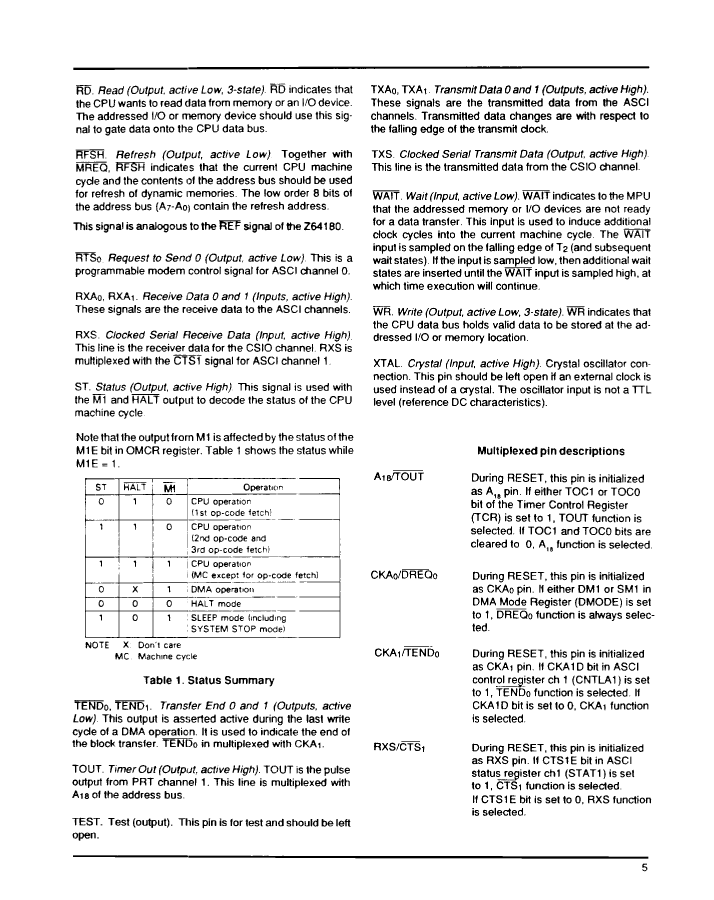

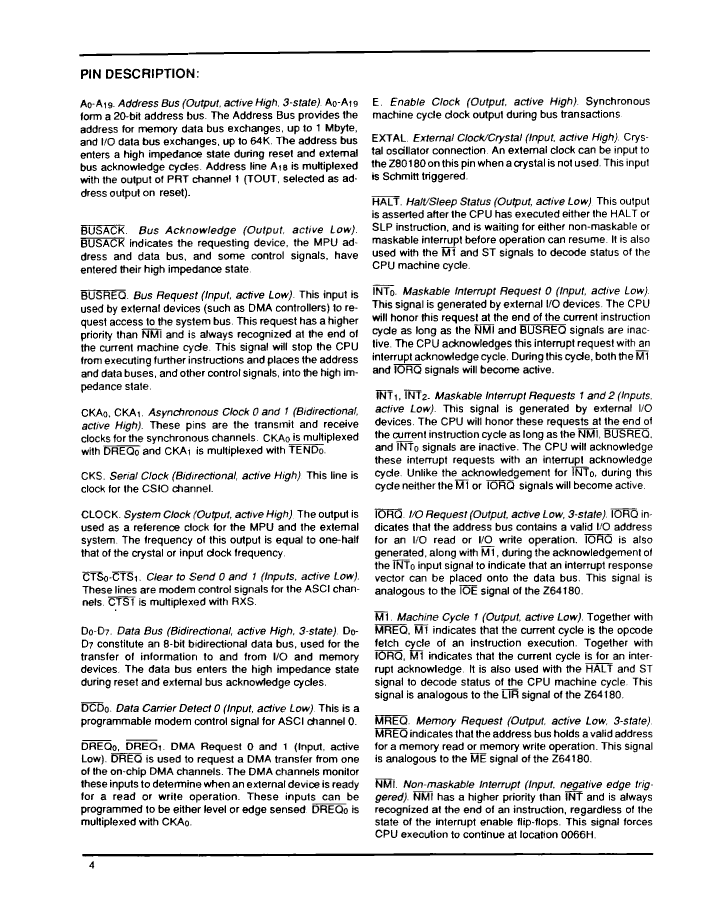

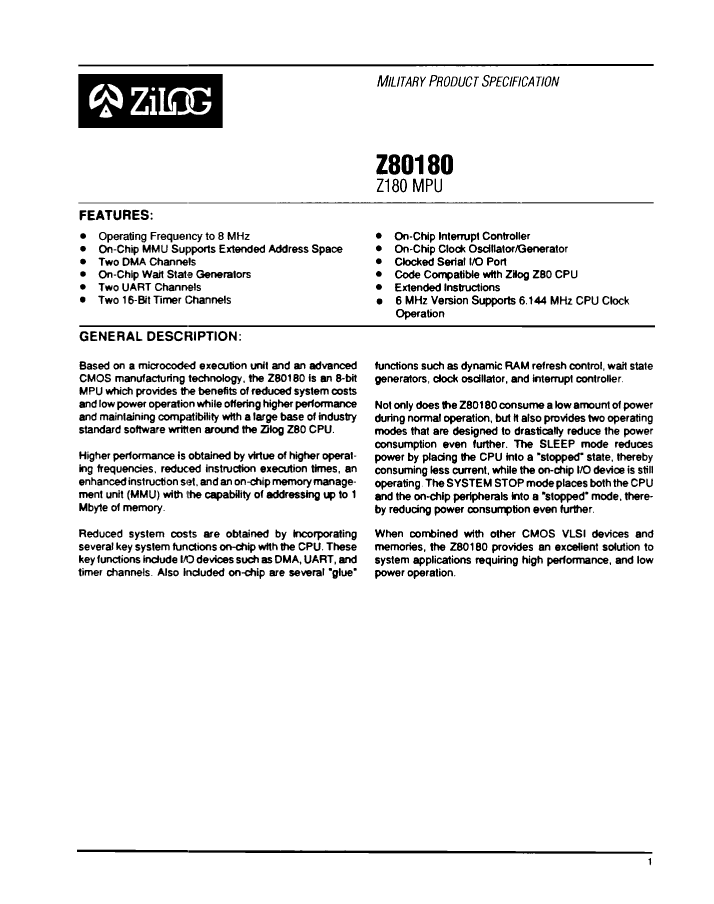

Preview

Z8018008GMB: DescriptionMicrocontroller, 8-Bit, 8MHz, CMOS, CPGA68, PGA-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，51 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z8018008GMB Overview

Microcontroller, 8-Bit, 8MHz, CMOS, CPGA68, PGA-68

Z8018008GMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	PGA
package instruction	PGA, PGA(UNSPEC)
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Has ADC	NO
Address bus width	20
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	YES
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-CPGA-P68
JESD-609 code	e0
length	27.8892 mm
low power mode	YES
Number of DMA channels	2
Number of external interrupt devices	4
Number of I/O lines
Number of serial I/Os	3
Number of terminals	68
Number of timers	2
On-chip data RAM width
On-chip program ROM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA(UNSPEC)
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
rom(word)	0
Filter level	38535Q/M;38534H;883B
Maximum seat height	3.8862 mm
speed	8 MHz
Maximum slew rate	60 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	27.8892 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

Z8018008GMB Related Products

	Z8018008GMB	5962-9453701MXX	5962-9453701MXA	Z8018006GMB	Z8018006GME	Z8018008GME
Description	Microcontroller, 8-Bit, 8MHz, CMOS, CPGA68, PGA-68	Microcontroller, 8-Bit, 8MHz, CMOS, CPGA68, PGA-68	Microcontroller, 8-Bit, 8MHz, CMOS, CPGA68	Microcontroller, 8-Bit, 6MHz, CMOS, CPGA68, PGA-68	Microcontroller, 8-Bit, 6MHz, CMOS, CPGA68, HERMETICALLY SEALED, PGA-68	Microcontroller, 8-Bit, 8MHz, CMOS, CPGA68, HERMETICALLY SEALED, PGA-68
package instruction	PGA, PGA(UNSPEC)	PGA, PGA68,11X11	PGA,	PGA, PGA(UNSPEC)	PGA,	PGA, PGA(UNSPEC)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Has ADC	NO	NO	NO	NO	NO	NO
Address bus width	20	20	20	20	20	20
bit size	8	8	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	12.288 MHz	12.288 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	YES	YES	YES	YES	YES	YES
External data bus width	8	8	8	8	8	8
JESD-30 code	S-CPGA-P68	S-CPGA-P68	S-CPGA-P68	S-CPGA-P68	S-CPGA-P68	S-CPGA-P68
Number of terminals	68	68	68	68	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	8 MHz	8 MHz	8 MHz	6 MHz	6 MHz	8 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Zilog, Inc.	Zilog, Inc.	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	PGA	PGA	-	PGA	PGA	PGA
Contacts	68	68	-	68	68	68
boundary scan	NO	-	-	NO	NO	NO
Format	FIXED POINT	-	-	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	-	-	NO	NO	NO
JESD-609 code	e0	-	e0	e0	-	e0
length	27.8892 mm	-	-	27.8892 mm	27.8892 mm	27.8892 mm
low power mode	YES	-	-	YES	YES	YES
Number of DMA channels	2	-	-	2	2	2
Number of external interrupt devices	4	-	-	4	4	4
Number of serial I/Os	3	-	-	3	3	3
Number of timers	2	-	-	2	2	2
Encapsulate equivalent code	PGA(UNSPEC)	PGA68,11X11	-	PGA(UNSPEC)	-	PGA(UNSPEC)
power supply	5 V	5 V	-	5 V	-	5 V
Maximum seat height	3.8862 mm	-	-	3.8862 mm	3.8862 mm	3.8862 mm
Maximum slew rate	60 mA	60 mA	-	50 mA	50 mA	60 mA
Terminal surface	Tin/Lead (Sn/Pb)	-	TIN LEAD	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
width	27.8892 mm	-	-	27.8892 mm	27.8892 mm	27.8892 mm
