TLC25L4ACD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> TLC25L4ACD

TLC25L4ACD: DescriptionQUAD OP-AMP, 6500uV OFFSET-MAX, 0.085MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，27 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TLC25L4ACD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TLC25L4ACD	-	-	View	Buy Now

TLC25L4ACD Overview

QUAD OP-AMP, 6500uV OFFSET-MAX, 0.085MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14

TLC25L4ACD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	PLASTIC, SOIC-14
Contacts	14
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.00006 µA
Nominal Common Mode Rejection Ratio	94 dB
Maximum input offset voltage	6500 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	8.65 mm
Humidity sensitivity level	1; 2
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	220; 260
Maximum seat height	1.75 mm
Nominal slew rate	0.04 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	85 kHz
width	3.9 mm

TLC25L4ACD Preview

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

TLC254, TLC254A, TLC254B, TLC254Y, TLC25L4, TLC25L4A, TLC25L4B

TLC25L4Y, TLC25M4, TLC25M4A, TLC25M4B, TLC25M4Y

LinCMOS QUAD OPERATIONAL AMPLIFIERS

SLOS003G – JUNE 1983 – REVISED MARCH 2001

A-Suffix Versions Offer 5-mV V

B-Suffix Versions Offer 2-mV V

Wide Range of Supply Voltages

1.4 V to 16 V

True Single-Supply Operation

Common-Mode Input Voltage Includes the

Negative Rail

Low Noise . . . 25 nV/√Hz Typ at f = 1 kHz

(High-Bias Version)

D, N, OR PW PACKAGE

(TOP VIEW)

1OUT

1IN –

1IN +

2IN +

2IN –

2OUT

4OUT

4IN –

4IN +

DD –

/GND

3IN +

2IN –

3OUT

description

symbol (each amplifier)

The TLC254, TLC254A, TLC254B, TLC25L4,

TLC254L4A, TLC254L4B, TLC25M4, TLC25M4A

IN +

and TL25M4B are low-cost, low-power quad

OUT

operational amplifiers designed to operate with

IN –

–

single or dual supplies. These devices utilize the

Texas Instruments silicon gate LinCMOS

process, giving them stable input-offset voltages that are available in selected grades of 2, 5, or 10 mV

maximum, very high input impedances, and extremely low input offset and bias currents. Because the input

common-mode range extends to the negative rail and the power consumption is extremely low, this series is

ideally suited for battery-powered or energy-conserving applications. The series offers operation down to a

1.4-V supply, is stable at unity gain, and has excellent noise characteristics.

These devices have internal electrostatic-discharge (ESD) protection circuits that prevent catastrophic failures

at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.1. However, care should be exercised

in handling these devices as exposure to ESD may result in degradation of the device parametric performance.

Because of the extremely high input impedance and low input bias and offset currents, applications for these

devices include many areas that have previously been limited to BIFET and NFET product types. Any circuit

using high-impedance elements and requiring small offset errors is a good candidate for cost-effective use of

these devices. Many features associated with bipolar technology are available with LinCMOS operational

amplifiers without the power penalties of traditional bipolar devices.

Available options

VIOmax

AT 25°C

10 mV

5 mV

2 mV

0°C to 70°C

10 mV

5 mV

2 mV

10 mV

5 mV

2 mV

PACKAGED DEVICES

SMALL OUTLINE

(D)

TLC254CD

TLC254ACD

TLC254BCD

TLC25L4CD

TLC25L4ACD

TLC25L2BCD

TLC25M4CD

TLC25M4ACD

TLC25M4BCD

PLASTIC DIP

(N)

TLC254CN

TLC254ACN

TLC254BCN

TLC25L4CN

TLC25L4ACN

TLC25L4BCN

TLC25M4CN

TLC25M4ACN

TLC25M4BCN

TSSOP

(PW)

TLC254CPW

—

TLC25L4CPW

—

TLC25M4CPW

—

CHIP FORM

(Y)

TLC254Y

—

TLC25L4Y

—

TLC25M4Y

—

The D package is available taped and reeled. Add the suffix R to the device type (e.g., TLC254CDR). Chips

are tested at 25°C.

LinCMOS is a trademark of Texas Instruments.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.



2001, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

TLC254, TLC254A, TLC254B, TLC254Y, TLC25L4, TLC25L4A, TLC25L4B

TLC25L4Y, TLC25M4, TLC25M4A, TLC25M4B, TLC25M4Y

LinCMOS QUAD OPERATIONAL AMPLIFIERS

SLOS003G – JUNE 1983 – REVISED MARCH 2001

description (continued)

General applications such as transducer interfacing, analog calculations, amplifier blocks, active filters, and

signal buffering are all easily designed with these devices. Remote and inaccessible equipment applications

are possible using their low-voltage and low-power capabilities. These devices are well suited to solve the

difficult problems associated with single-battery and solar-cell-powered applications. This series includes

devices that are characterized for the commercial temperature range and are available in 14-pin plastic dip and

the small-outline packages. The device is also available in chip form.

These devices are characterized for operation from 0°C to 70°C.

DEVICE FEATURES

PARAMETER

Supply current (Typ)

Slew rate (Typ)

Input offset voltage (Max)

TLC254C, TLC25L4C, TLC25M4C

TLC254AC, TLC25L4AC, TLC25M4AC

TLC254BC, TLC25L4BC, TLC25M4BC

Offset voltage drift (Typ)

Offset voltage temperature coefficient (Typ)

Input bias current (Typ)

TLC25L4_C

(LOW BIAS)

µA

0.04 V/µA

10 mV

5 mV

2 mV

0.1

µV/month

†

0.7

µV/°C

1 pA

TLC25M4_C

(MEDIUM BIAS)

600

µA

0.6 V/µA

10 mV

5 mV

2 mV

0.1

µV/month

†

µV/°C

1 pA

TLC254_C

(HIGH BIAS)

4000

µA

4.5 V/µA

10 mV

5 mV

2 mV

0.1

µV/month

†

µV/°C

1 pA

Input offset current (Typ)

1 pA

† The long-term drift value applies after the first month.

equivalent schematic (each amplifier)

VDD

IN +

ESD-

Protective

Network

IN –

ESD-

Protective

Network

OUT

VDD – /GND

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

TLC254, TLC254A, TLC254B, TLC254Y, TLC25L4, TLC25L4A, TLC25L4B

TLC25L4Y, TLC25M4, TLC25M4A, TLC25M4B, TLC25M4Y

LinCMOS QUAD OPERATIONAL AMPLIFIERS

SLOS003G – JUNE 1983 – REVISED MARCH 2001

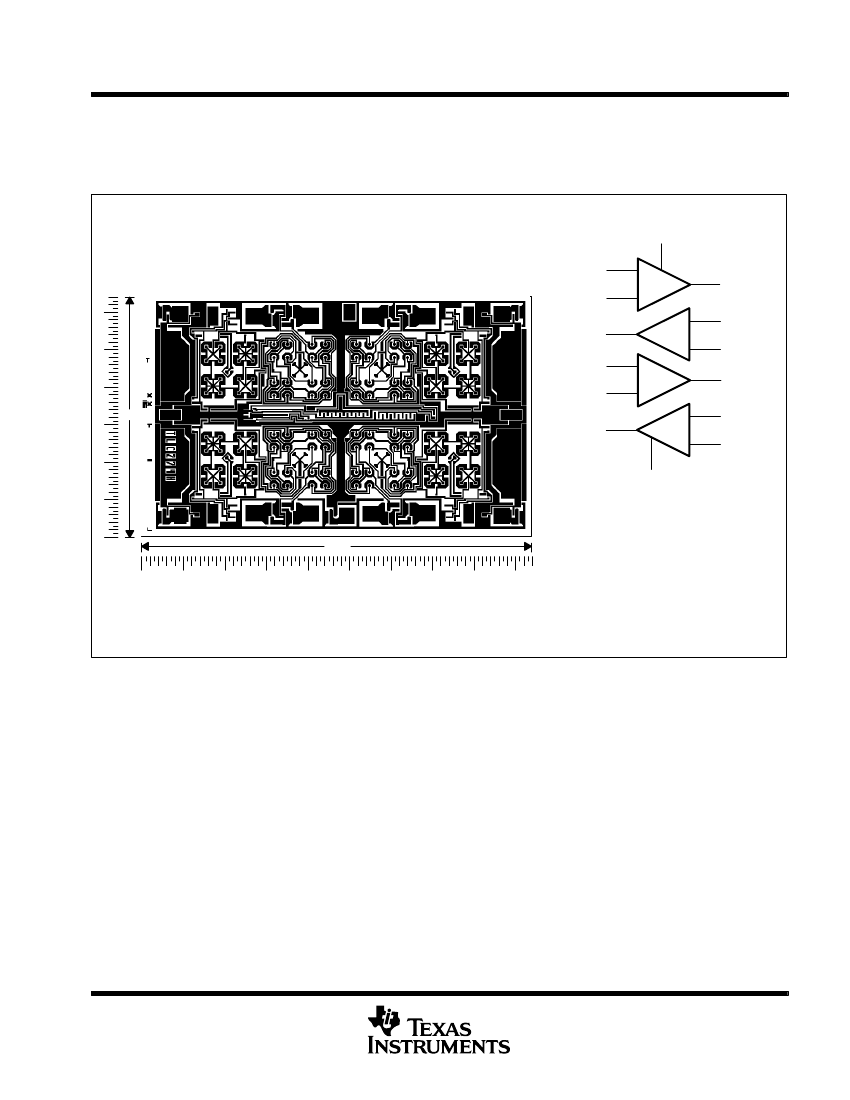

chip information

These chips, when properly assembled, display characteristics similar to the TLC25_4C. Thermal compression

or ultrasonic bonding may be used on the doped-aluminum bonding pads. Chips may be mounted with

conductive epoxy or a gold-silicon preform.

BONDING PAD ASSIGNMENTS

VDD

(4)

–

(11)

VDD– /GND

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(3)

1IN +

1IN –

(14)

(13)

(12) (11)

(10)

(9)

(8)

(1)

1OUT

(5)

(6)

(8)

3OUT

(12)

(13)

4IN +

4IN –

2IN +

2IN –

(2)

(7)

2OUT

(10)

3IN +

(9)

3IN –

4OUT

(14)

CHIP THICKNESS: 15 TYPICAL

BONDING PADS: 4

4 MINIMUM

TJmax = 150°C

TOLERANCES ARE

10%.

ALL DIMENSIONS ARE IN MILS.

PIN (11) IS INTERNALLY CONNECTED

TO BACKSIDE OF CHIP.

108

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

TLC254, TLC254A, TLC254B, TLC254Y, TLC25L4, TLC25L4A, TLC25L4B

TLC25L4Y, TLC25M4, TLC25M4A, TLC25M4B, TLC25M4Y

LinCMOS QUAD OPERATIONAL AMPLIFIERS

SLOS003G – JUNE 1983 – REVISED MARCH 2001

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

†

Supply voltage, V

(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V

Differential input voltage (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 V

Input voltage range (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 0.3 V to 18 V

Duration of short-circuit at (or below) 25°C free-air temperature (see Note 3) . . . . . . . . . . . . . . . . . . unlimited

Continuous total dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table

Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C

Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 65°C to 150°C

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C

† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and

functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not

implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values, except differential voltages, are with respect to VDD – /GND.

2. Differential voltages are at IN+, with respect to IN –.

3. The output may be shorted to either supply. Temperature and/or supply voltages must be limited to ensure the maximum dissipation

rating is not exceeded.

DISSIPATION RATING TABLE

PACKAGE

≤

25°C

POWER RATING

725 mW

1050 mW

700 mW

DERATING FACTOR

ABOVE TA = 25°C

5.8 mW/°C

9.2 mW/°C

5.6 mW/°C

TA = 70°C

POWER RATING

464 mW

736 mW

448 mW

recommended operating conditions

MIN

Supply voltage, VDD

VDD = 1.4 V

VDD = 5 V

VDD = 10 V

VDD = 16 V

1.4

– 0.2

MAX

0.2

°C

UNIT

Common-mode

Common mode input voltage VIC

voltage,

Operating free-air temperature, TA

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TLC25L4ACD Related Products

	TLC25L4ACD	TLC254ID	TLC25M4ACD
Description	QUAD OP-AMP, 6500uV OFFSET-MAX, 0.085MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14	QUAD OP-AMP, 12000uV OFFSET-MAX, 1.7MHz BAND WIDTH, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14	QUAD OP-AMP, 6500uV OFFSET-MAX, 0.525MHz BAND WIDTH, PDSO14, PLASTIC, SOIC-14
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	SOIC	SOIC
package instruction	PLASTIC, SOIC-14	GREEN, PLASTIC, MS-012AB, SOIC-14	PLASTIC, SOIC-14
Contacts	14	14	14
Reach Compliance Code	unknown	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.00006 µA	0.0006 µA	0.00006 µA
Nominal Common Mode Rejection Ratio	94 dB	80 dB	91 dB
Maximum input offset voltage	6500 µV	12000 µV	6500 µV
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e4	e4	e4
length	8.65 mm	8.65 mm	8.65 mm
Humidity sensitivity level	1; 2	1	1; 2
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	220; 260	260	220; 260
Maximum seat height	1.75 mm	1.75 mm	1.75 mm
Nominal slew rate	0.04 V/us	4.5 V/us	0.43 V/us
Supply voltage upper limit	18 V	18 V	18 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	85 kHz	1700 kHz	525 kHz
width	3.9 mm	3.9 mm	3.9 mm

Recommended Resources

Two motors (or electrical appliances) interlock control circuit

Indicator light power indication circuit

Sawtooth wave pulse signal generator circuit using XR-2207

Toshiba F3SS movement protection circuit

Closed tube control circuit using integrated trigger TcA780

Infrared remote control fan power socket

[Analog Electronics Course Selection Test] + TI High Precision Laboratory: [i=s]This post was last edited by yanbao on 2019-4-5 16:58[/i]TI Precision Labs has launched a list of customized courses, which include areas of interest: operational amplifiers, ADCs, isolation, and...; yanbao TI Technology Forum

Can the Cortex-M series run the system?: Can the Cortex-M series run operating systems? What operating systems can the LM3S811 run?[[i] This post was last edited by Guigui110 on 2011-8-15 00:20 [/i]]...; 贵贵110 Microcontroller MCU

uCOS learning experience and information sharing~~: I haven't been learning uCOSII for long. I have had some experience with various 8-bit and 16-bit MCUs and have done many projects. In the past year, I have been using STM32 due to project needs, but ...; 海岸韦 Real-time operating system RTOS

How does this assembly language affect the C flag? Is there a big impact? I am very anxious.: Here’s how to do it: SETB P3.6 ;When reading the level of a certain I/O port of the microcontroller, the port must be set to 1 before reading. MOV Cy P3.6 ;I have checked and found that this method of...; pyy1980 MCU

Types and Applications of Serial E2PROM (Part 2): Author: Wan Lin 2. Microwire bus type Microwire bus uses three wires: clock (CLK), data input (DI), and data output (DO) for data transmission, and the interface is simple. Microchip's 93XXX series se...; aabbcc Automotive Electronics

Getting Started with Embedded Development: I'm an entry-level novice in embedded development. Please help me learn!...; gmfeng Embedded System

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
