DMA5640M

Description
Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, PNP, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, 6 PIN
CategoryDiscrete semiconductor    The transistor
File Size425KB,3 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

DMA5640M Overview

Small Signal Bipolar Transistor, 0.1A I(C), 2-Element, PNP, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, 6 PIN

DMA5640M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPanasonic
package instructionSMALL OUTLINE, R-PDSO-F6
Contacts6
Reach Compliance Codeunknown
Maximum collector current (IC)0.1 A
Minimum DC current gain (hFE)80
JESD-30 codeR-PDSO-F6
Number of components2
Number of terminals6
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Maximum power dissipation(Abs)0.15 W
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Transistor component materialsSILICON

DMA5640M Preview

This product complies with the RoHS Directive (EU 2002/95/EC).
DMA5640M
Silicon PNP epitaxial planar type
For digital circuits
Features
Low collector-emitter saturation voltage V
CE(sat)
Contributes to miniaturization of sets, reduction of component count.
Eco-friendly Halogen-free package
Package
Code
SMini6-F3-B
Package dimension clicks here.→
Click!
Basic Part Number
Dual DRA2123J (Individual)
Packaging
DMA5640M0R Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard)
Name
Pin
1: Emitter (Tr1)
2: Base (Tr1)
3: Collector (Tr2)
4: Emitter (Tr2)
5: Base (Tr2)
6: Collector (Tr1)
Marking Symbol: S3
Internal Connection
(C1)
6
Tr1
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector current
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
I
C
P
T
T
j
T
stg
Rating
–50
–50
–100
150
150
–55 to +150
Unit
V
V
mA
mW
°C
°C
(B2)
5
R
1
R
2
R
2
(E2)
4
R
1
Tr2
1
(E1)
2
(B1)
3
(C2)
Resistance value
R
1
R
2
2.2
47
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Resistance ratio
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
R
1
/ R
2
Conditions
I
C
= –10 µA, I
E
= 0
I
C
= –2 mA, I
B
= 0
V
CB
= –50 V, I
E
= 0
V
CE
= –50 V, I
B
= 0
V
EB
= –6 V, I
C
= 0
V
CE
= –10 V, I
C
= –5 mA
I
C
= –10 mA, I
B
= – 0.5 mA
V
CE
= – 0.2 V, I
C
= –5 mA
V
CE
= –5 V, I
C
= –100 µA
–30%
0.037
2.2
0.047
–1.2
– 0.4
+30%
0.057
80
– 0.25
Min
–50
–50
– 0.1
– 0.5
– 0.2
Typ
Max
Unit
V
V
µA
µA
mA
V
V
V
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: February 2012
Ver. CED
1
This product complies with the RoHS Directive (EU 2002/95/EC).
DMA5640M

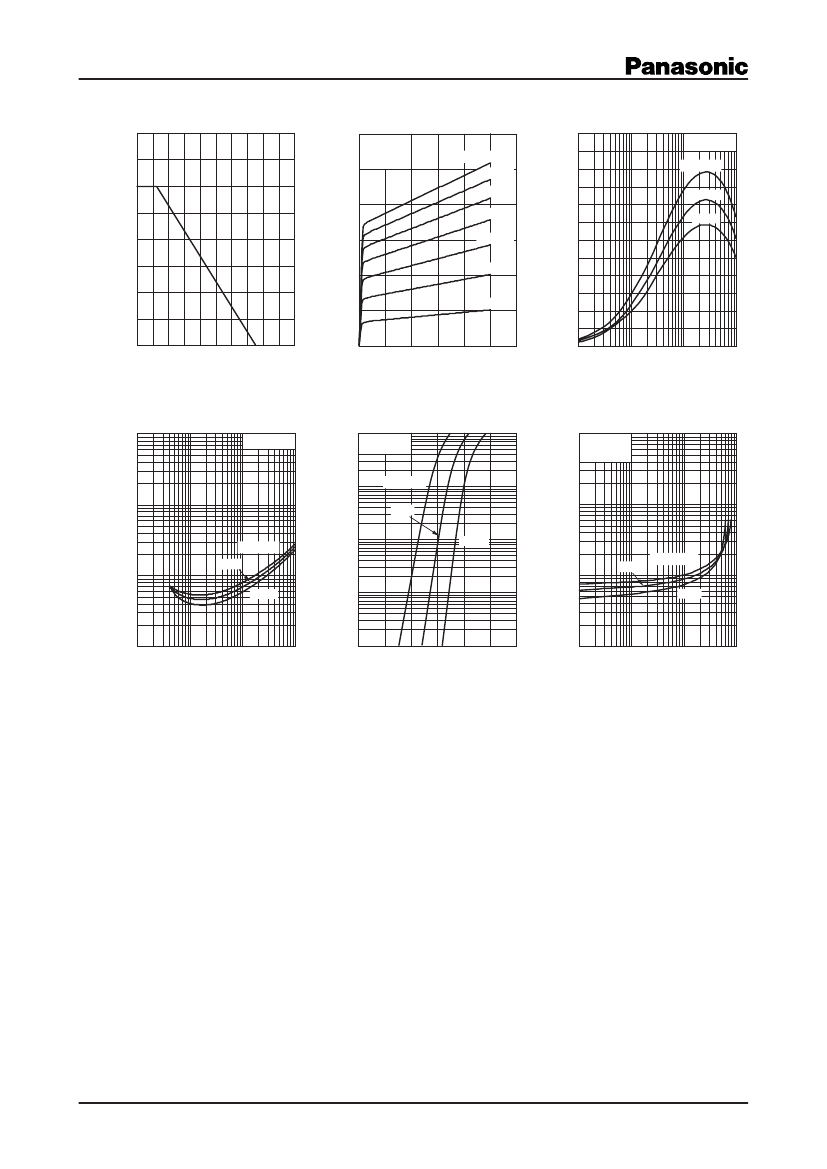

DMA5640M_PT-Ta
DMA5640M_IC-VCE
DMA5640M_hFE-IC
P
T
T
a
200
−120
T
a
=
25°C
−100
I
C
V
CE
300
I
B
= −700 µA
−600 µA
−500 µA
−80
−60
−40
−20
−400 µA
−300 µA
−200 µA
−100 µA
h
FE
I
C
V
CE
= −10
V
T
a
=
85°C
25°C
−30°C
150
100
50
0
0.1
Total power dissipation P
T
(mW)
Collector current I
C
(mA)
150
Forward current transfer ratio h
FE
250
200
100
50
0
0
40
80
120
160
200
0
Ambient temperature T
a
(
°C
)
DMA5640M_VCEsat-IC
0
−2
−4
−6
−8
−10
−12
−1
−10
−100
Collector-emitter voltage V
CE
(V)
DMA5640M_I
O
-V
IN
Collector current I
C
(mA)
DMA5640M_VIN-IO
V
CE(sat)
I
C
I
O
V
IN
−10
V
O
= −5
V
T
a
=
85°C
25°C
−30°C
−100
V
O
= −
0.2 V
V
IN
I
O
Collector-emitter saturation voltage V
CE(sat)
(V)
−10
I
C
/ I
B
= 20
Output current I
O
(mA)
Input voltage V
IN
(V)
−1
−1
−10
T
a
=
85°C
25°C
−10
−1
0.1
−1
25°C
T
a
= −30°C
85°C
−30°C
−10
−2
0.01
0.1
−1
−10
−100
−10
−3
0
0.4
0.8
−1.2
0.1
0.1
−1
−10
−100
Collector current I
C
(mA)
Input voltage V
IN
(V)
Output current I
O
(mA)
2
