HD4-6409-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> HD4-6409-2

HD4-6409-2: DescriptionManchester Encoder/Decoder, CMOS, CQCC20,; CategoryWireless rf/communication Telecom circuit; File Size300KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HD4-6409-2 Overview

Manchester Encoder/Decoder, CMOS, CQCC20,

HD4-6409-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
Reach Compliance Code	unknown
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

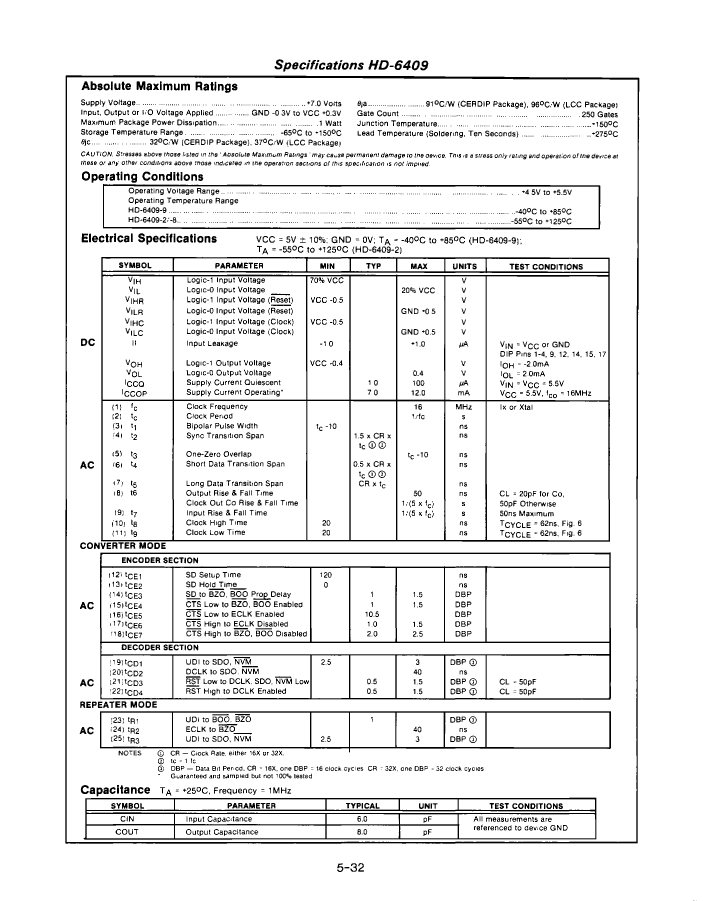

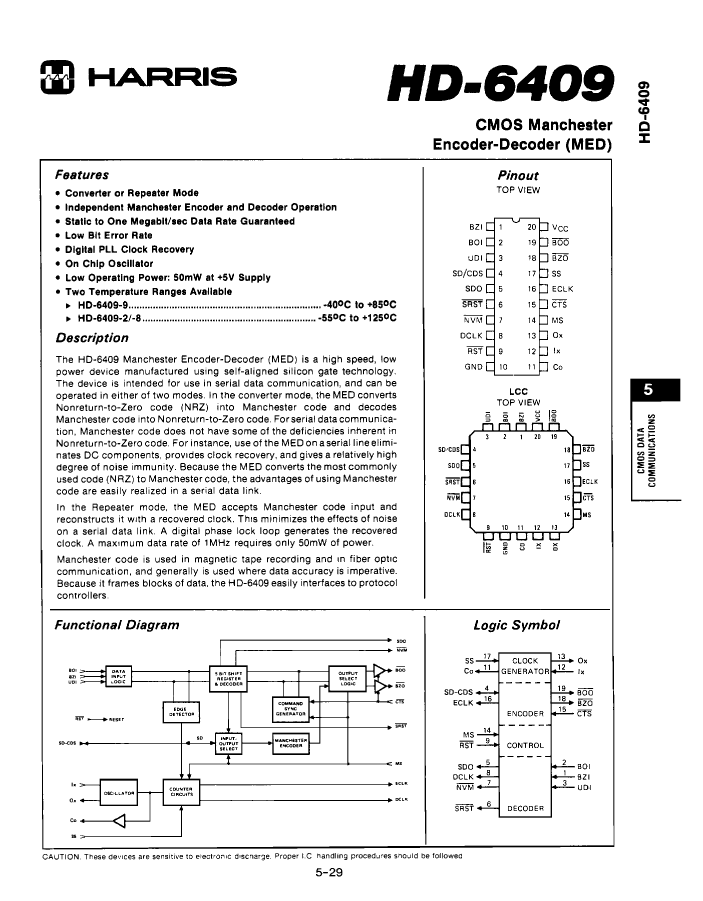

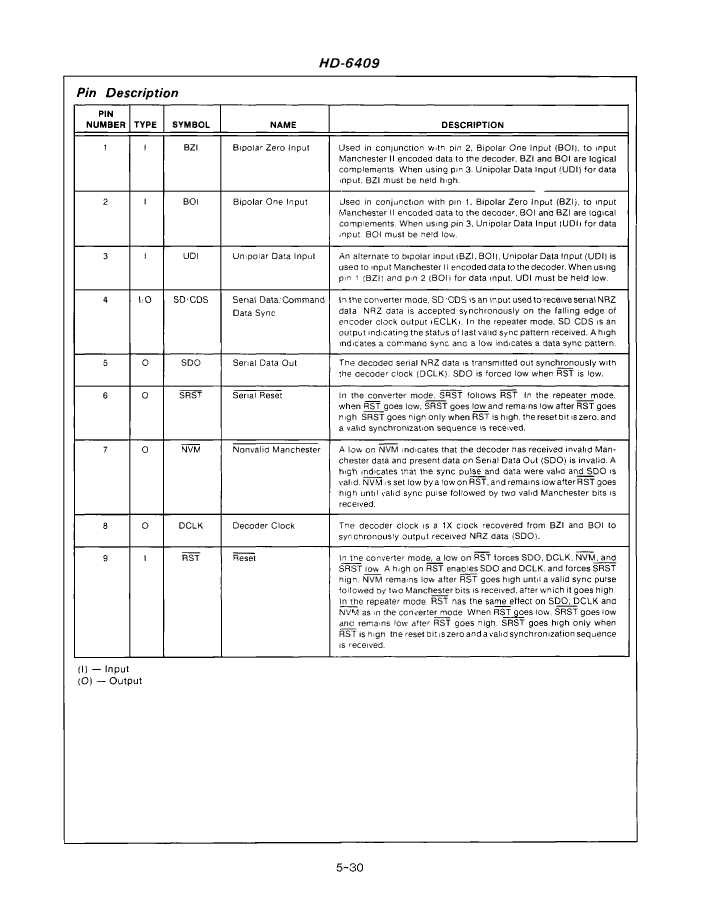

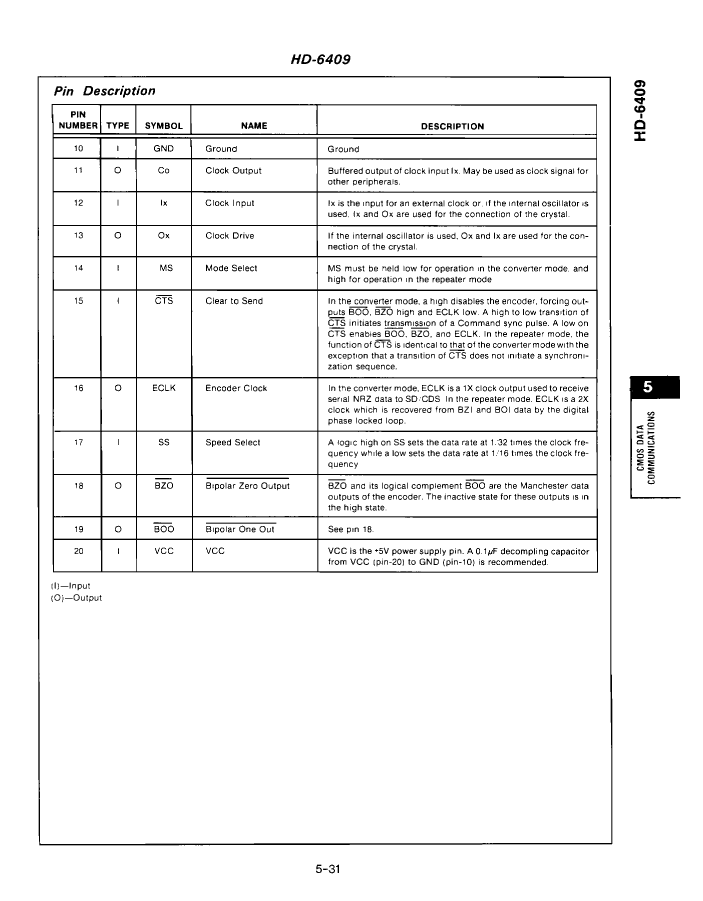

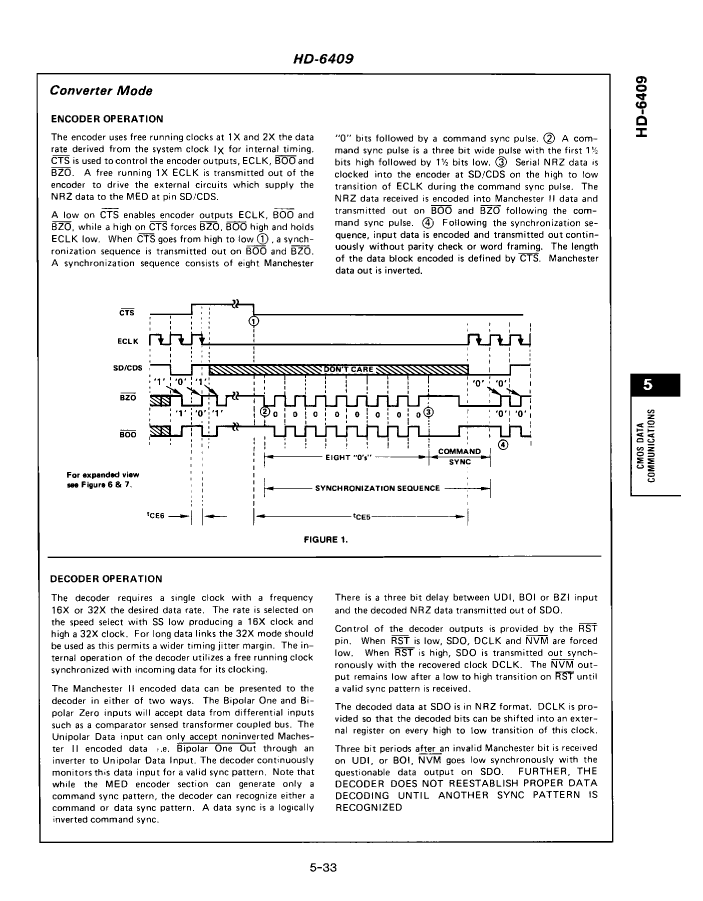

Preview

Download Datasheet

View All

HD4-6409-2 Related Products

	HD4-6409-2	HD1-6409-2	HD4-6409-8	HD1-6409-8
Description	Manchester Encoder/Decoder, CMOS, CQCC20,	Manchester Encoder/Decoder, CMOS, CDIP20,	Manchester Encoder/Decoder, CMOS, CQCC20,	Manchester Encoder/Decoder, CMOS, CDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknow	unknow	unknow
JESD-30 code	S-CQCC-N20	R-GDIP-T20	S-CQCC-N20	R-GDIP-T20
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	QCCN	DIP
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3	LCC20,.35SQ	DIP20,.3
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Harris	-	Harris	Harris
