Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
1
For Automotive
Chip Ferrite Bead for Automotive
BLM41P Series (1806 Size)
c
Dimensions
0.7±0.3
c
Equivalent Circuit
4.5±0.2
1.6±0.2
1.6±0.2
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
c
Packaging
Code
L
K
B
Packaging
180mm Embossed Tape
330mm Embossed Tape
Bulk(Bag)
Minimum Quantity
2500
8000
1000
c
Rated Value (p: packaging code)
Part Number
BLM41PG600SH1p
BLM41PG750SH1p
BLM41PG181SH1p
BLM41PG471SH1p
BLM41PG102SH1p
Number of Circuits: 1
Continued on the following page.
Impedance
(at 100MHz/20°C)
60ohm (Typ.)
75ohm (Typ.)
180ohm ±25%
470ohm ±25%
1000ohm ±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
Rated Current
6000mA
3500mA
3500mA
2000mA
1500mA
DC Resistance
0.009ohm max.
0.015ohm max.
0.02ohm max.
0.05ohm max.
0.09ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.7.5
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
2
c

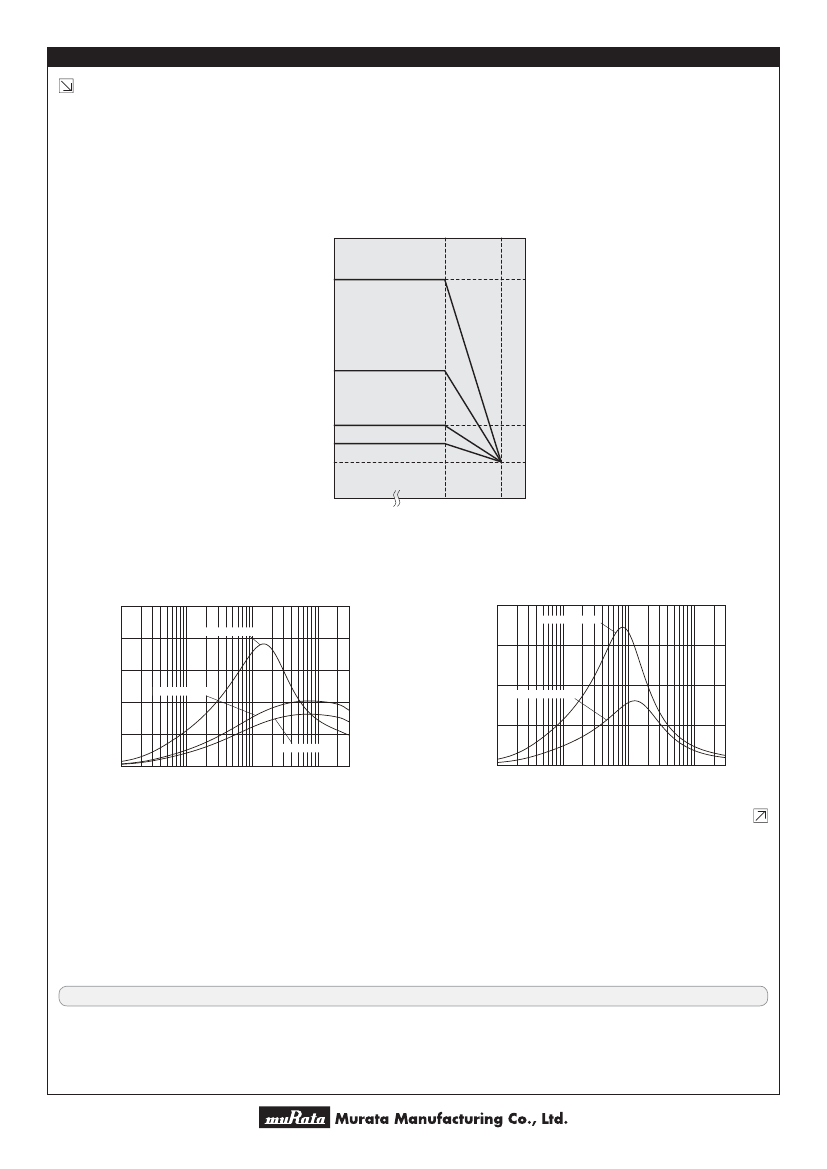

Derating of Rated Current
In operating temperature exceeding +85°C,
derating of current is necessary for
BLM41PG series.
Please apply the derating curve shown in
chart according to the operating
temperature.
Derating of Rated Current
6000
Rated Current (mA)
3500
2000
1500
1000
0
0
85
Operating Temperature (°C)
125
c
Impedance-Frequency Characteristics (Main Items)
BLM41PG Series (60ohm to 180ohm)
250
c
Impedance-Frequency Characteristics (Main Items)
BLM41PG Series (470ohm to 1000ohm)
1200
BLM41PG102SH1
200
BLM41PG181SH1
900
Impedance (Ω)
150
BLM41PG750SH1
100
Impedance (Ω)
600
BLM41PG471SH1
300
50
BLM41PG600SH1
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.7.5
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
3
c

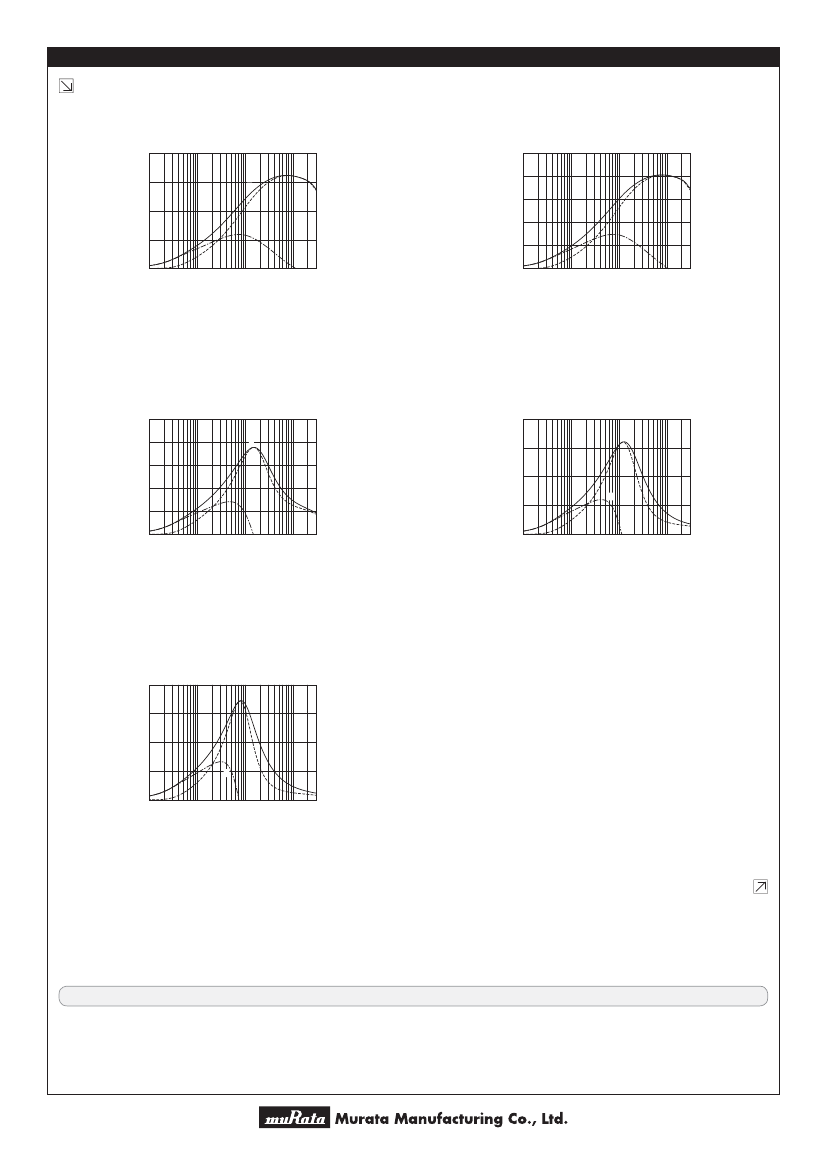

Impedance-Frequency Characteristics
BLM41PG600SH1
100
c
Impedance-Frequency Characteristics
BLM41PG750SH1
125
100
Impedance (Ω)
75
Impedance (Ω)
Z
R
Z
75
R
50
X
25
0
50
X
25
0
1
10
100
Frequency (MHz)
1000
3000
1
10
100
Frequency (MHz)
1000
3000
c
Impedance-Frequency Characteristics
BLM41PG181SH1
250
200
Impedance (Ω)
150
100
50
0
Z
c
Impedance-Frequency Characteristics
BLM41PG471SH1
600
Z
450
Impedance (Ω)
R
300
X
150
R
X
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
c
Impedance-Frequency Characteristics
BLM41PG102SH1
1200
Z
900
Impedance (Ω)
600
R
300
X
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.7.5
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > For Automotive > Chip Ferrite Bead for Automotive
Data Sheet
Continued from the preceding page.
4
c !Caution/Notice
!Caution
(Rating)
1. Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
2. Be sure to provide an appropriate fail-safe
function on your product to prevent a second damage
that may be caused by the abnormal function or
the failure our product.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
oThis
data sheet is applied for CHIP FERRITE BEAD used for Automotive Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
