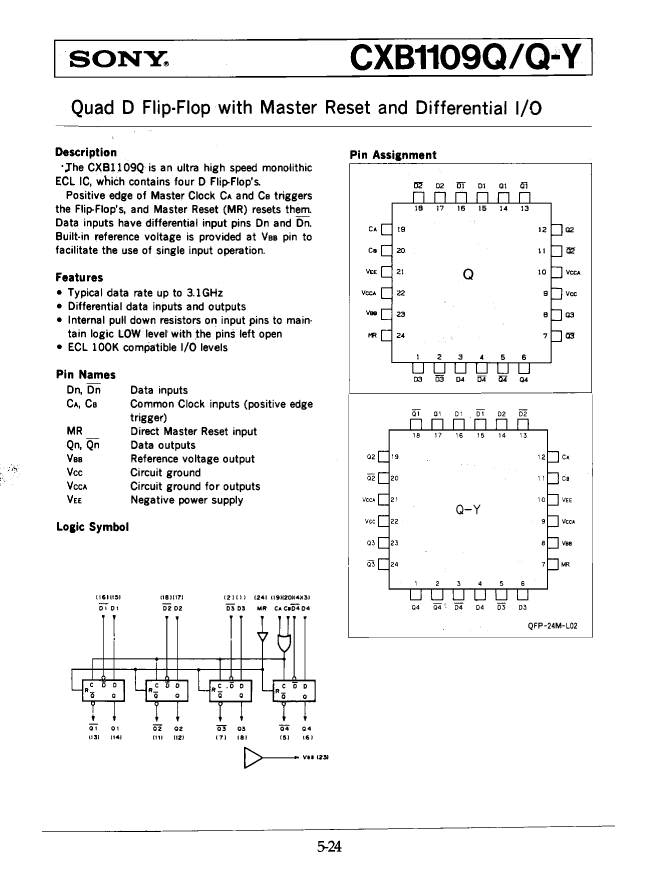

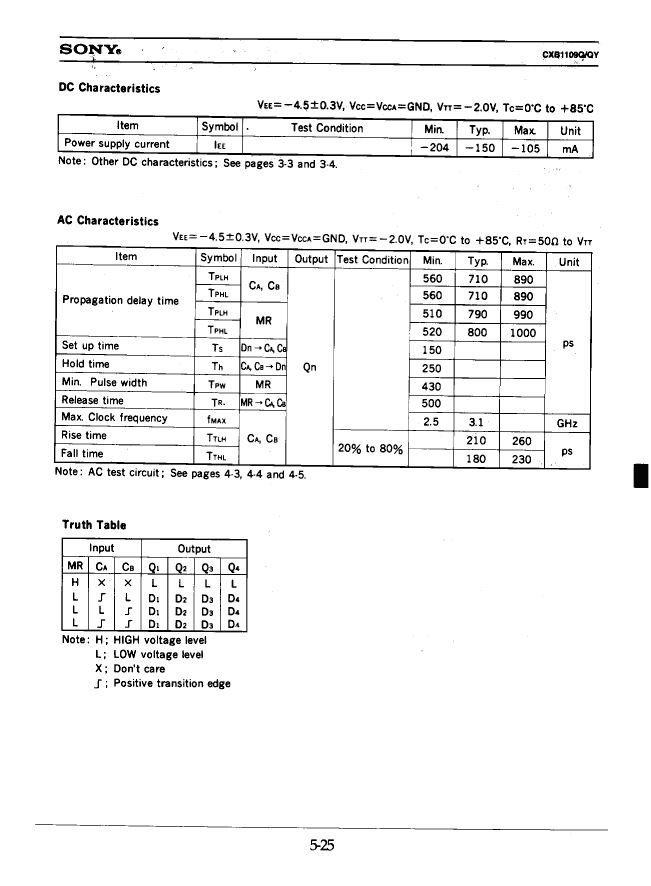

D Flip-Flop, 1000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, ECL, MQFP24, METAL, QFP-24
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | SONY |
| Parts packaging code | QFP |
| package instruction | QFF, QFL24,.27SQ,30 |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| Other features | WITH DUAL CLOCK; FACILITATES SINGLE INPUT OPERATION; OPTEMP SPECIFIED AS TC |
| series | 1000 |
| JESD-30 code | S-MQFP-F24 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 2 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 2500000000 Hz |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-EMITTER |
| Output polarity | COMPLEMENTARY |
| Package body material | METAL |
| encapsulated code | QFF |
| Encapsulate equivalent code | QFL24,.27SQ,30 |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | -4.5 V |
| Maximum supply current (ICC) | 204 mA |
| propagation delay (tpd) | 0.89 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.52 mm |
| surface mount | YES |
| technology | ECL |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 0.762 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| minfmax | 2500 MHz |
| CXB1109Q | CXB1109QY | |
|---|---|---|
| Description | D Flip-Flop, 1000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, ECL, MQFP24, METAL, QFP-24 | D Flip-Flop, 1000 Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, ECL, MQFP24, METAL, QFP-24 |
| Is it Rohs certified? | incompatible | incompatible |
| Maker | SONY | SONY |
| Parts packaging code | QFP | QFP |
| package instruction | QFF, QFL24,.27SQ,30 | QFP, QFP24,.44SQ,30 |
| Contacts | 24 | 24 |
| Reach Compliance Code | unknown | unknown |
| Other features | WITH DUAL CLOCK; FACILITATES SINGLE INPUT OPERATION; OPTEMP SPECIFIED AS TC | WITH DUAL CLOCK; FACILITATES SINGLE INPUT OPERATION; OPTEMP SPECIFIED AS TC |
| series | 1000 | 1000 |
| JESD-30 code | S-MQFP-F24 | S-MQFP-G24 |
| JESD-609 code | e0 | e0 |
| Load capacitance (CL) | 2 pF | 2 pF |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 2500000000 Hz | 2500000000 Hz |
| Number of digits | 4 | 4 |
| Number of functions | 1 | 1 |
| Number of terminals | 24 | 24 |
| Maximum operating temperature | 85 °C | 85 °C |
| Output characteristics | OPEN-EMITTER | OPEN-EMITTER |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | METAL | METAL |
| encapsulated code | QFF | QFP |
| Encapsulate equivalent code | QFL24,.27SQ,30 | QFP24,.44SQ,30 |
| Package shape | SQUARE | SQUARE |
| Package form | FLATPACK | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED |
| power supply | -4.5 V | -4.5 V |
| Maximum supply current (ICC) | 204 mA | 204 mA |
| propagation delay (tpd) | 0.89 ns | 0.89 ns |
| Certification status | Not Qualified | Not Qualified |
| Maximum seat height | 1.52 mm | 2.79 mm |
| surface mount | YES | YES |
| technology | ECL | ECL |
| Temperature level | OTHER | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | GULL WING |
| Terminal pitch | 0.762 mm | 0.762 mm |
| Terminal location | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE |
| minfmax | 2500 MHz | 2500 MHz |
