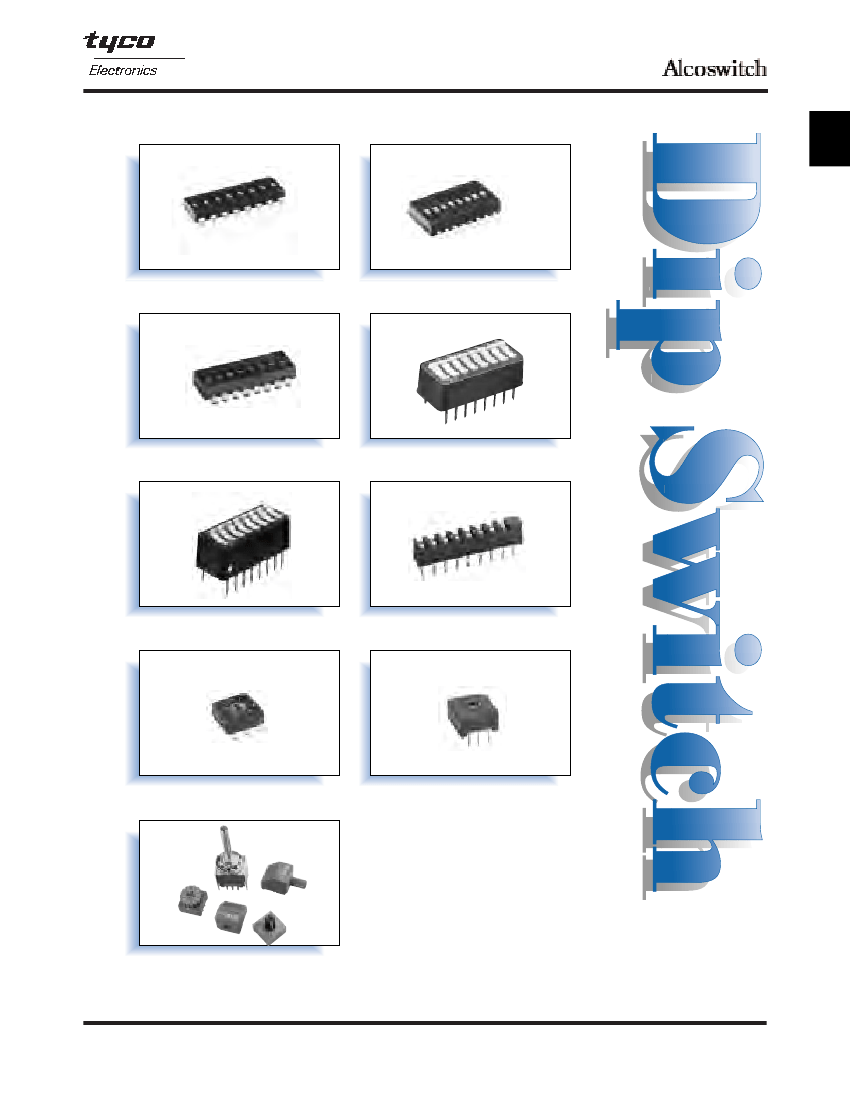

DIP Switches

GD Series - Page A3

GDH Series - Page A5

AD Series - Page A7

7000 Series - Page A11

7100 Series - Page A17

S Series - Page A18

MRD Series - Page A21

DRD Series - Page A23

DR Series - Page A25

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

DIP Switches

DIP Switch Part Number Index

DIP Switches

ADE02 …………………A7

ADE02S …………………A7

ADE02SA ………………A7

ADE03 …………………A7

ADE03S …………………A7

ADE03SA ………………A7

ADE04 …………………A7

ADE04S …………………A7

ADE04SA ………………A7

ADE05 …………………A7

ADE05S …………………A7

ADE05SA ………………A7

ADE06 …………………A7

ADE06S …………………A7

ADE06SA ………………A7

ADE07 …………………A7

ADE07S …………………A7

ADE07SA ………………A7

ADE08 …………………A7

ADE08S …………………A7

ADE08SA ………………A7

ADE09 …………………A7

ADE09S …………………A7

ADE09SA ………………A7

ADE10 …………………A7

ADE10S …………………A7

ADE10SA ………………A7

ADE12 …………………A7

ADE12S …………………A7

ADE12SA ………………A7

ADF02……………………A8

ADF02S …………………A8

ADF02SA ………………A8

ADF02SAT ………………A8

ADF02ST ………………A8

ADF02STTR ……………A8

ADF02T …………………A8

ADF03……………………A8

ADF03S …………………A8

ADF03SA ………………A8

ADF03SAT ………………A8

ADF03ST ………………A8

ADF03STTR ……………A8

ADF03T …………………A8

ADF04……………………A8

ADF04S …………………A8

ADF04SA ………………A8

ADF04SAT ………………A8

ADF04ST ………………A8

ADF04STTR ……………A8

ADF04T …………………A8

ADF05……………………A8

ADF05S …………………A8

ADF05SA ………………A8

ADF05SAT ………………A8

ADF05ST ………………A8

ADF05STTR ……………A8

ADF05T …………………A8

ADF06……………………A8

ADF06S …………………A8

ADF06SA ………………A8

ADF06SAT ………………A8

ADF06ST ………………A8

ADF06STTR ……………A8

ADF06T …………………A8

ADF07……………………A8

ADF07S …………………A8

ADF07SA ………………A8

ADF07SAT ………………A8

ADF07ST ………………A8

ADF07STTR ……………A8

ADF07T …………………A8

ADF08……………………A8

ADF08S …………………A8

ADF08SA ………………A8

ADF08SAT ………………A8

ADF08ST ………………A8

ADF08STTR ……………A8

ADF08T …………………A8

ADF09……………………A8

ADF09S …………………A8

ADF09SA ………………A8

ADF09SAT ………………A8

ADF09ST ………………A8

ADF09STTR ……………A8

ADF09T …………………A8

ADF10……………………A8

ADF10S …………………A8

ADF10SA ………………A8

ADF10SAT ………………A8

ADF10ST ………………A8

ADF10STTR ……………A8

ADF10T …………………A8

ADF12……………………A8

ADF12S …………………A8

ADF12SA ………………A8

ADF12SAT ………………A8

ADF12ST ………………A8

ADF12STTR ……………A8

ADF12T …………………A8

ADP02……………………A9

ADP02S …………………A9

ADP02SA ………………A9

ADP04……………………A9

ADP04S …………………A9

ADP04SA ………………A9

ADP05……………………A9

ADP05S …………………A9

ADP05SA ………………A9

ADP06……………………A9

ADP06S …………………A9

ADP06SA ………………A9

ADP07……………………A9

ADP07S …………………A9

ADP07SA ………………A9

ADP08……………………A9

ADP08S …………………A9

ADP08SA ………………A9

ADP09……………………A9

ADP09S …………………A9

ADP09SA ………………A9

ADP10……………………A9

ADP10S …………………A9

ADPA02 …………………A9

ADPA02S ………………A9

ADPA02SA………………A9

ADPA04 …………………A9

ADPA04S ………………A9

ADPA04SA………………A9

ADPA05 …………………A9

ADPA05S ………………A9

ADPA05SA………………A9

ADPA06 …………………A9

ADPA06S ………………A9

ADPA06SA………………A9

ADPA07 …………………A9

ADPA07S ………………A9

ADPA07SA………………A9

ADPA08 …………………A9

ADPA08S ………………A9

ADPA08SA………………A9

ADPA09 …………………A9

ADPA09S ………………A9

ADPA09SA………………A9

ADPA10 …………………A9

ADPA10S ………………A9

ADPA10SA………………A9

APD10SA ………………A9

DRD*RAE ………………A25

DRD10CE ………………A23

DRD10CES………………A23

DRD10E …………………A23

DRD10ES ………………A23

DRD16CE ………………A23

DRD16CES………………A23

DRD16E …………………A23

DRD16ES ………………A23

DRM ……………………A25

DRS………………………A25

DRW ……………………A25

GDB02 …………………A4

GDB02S …………………A4

GDB04 …………………A4

GDB04S …………………A4

GDB06 …………………A4

GDB06S …………………A4

GDB08 …………………A4

GDB08S …………………A4

GDB10 …………………A4

GDB10S …………………A4

GDH02S …………………A5

GDH02STR………………A5

GDH04S …………………A5

GDH04STR………………A5

GDH06S …………………A5

GDH06STR………………A5

GDH08S …………………A5

GDH08STR………………A5

GDH10S …………………A5

GDH10STR………………A5

GDP02 …………………A4

GDP02NTS ………………A4

GDP02S …………………A4

GDP02STR ………………A4

GDP04……………………A4

GDP04NTS ………………A4

GDP04S …………………A4

GDP06……………………A4

GDP06S …………………A4

GDP08……………………A4

GDP08S …………………A4

GDP08STR ………………A4

GDP10……………………A4

GDP10S …………………A4

GDP10STR ………………A4

GDR02 …………………A5

GDR02S …………………A5

GDR04 …………………A5

GDR04S …………………A5

GDR06 …………………A5

GDR06S …………………A5

GDR08 …………………A5

GDR08S …………………A5

GDR10 …………………A5

GDR10S …………………A5

GDS02……………………A3

GDS02NTS ………………A3

GDS02S …………………A3

GDS02STR ………………A3

GDS04……………………A3

GDS04NTS ………………A3

GDS04S …………………A3

GDS04STR ………………A3

GDS06……………………A3

GDS06NTS ………………A3

GDS06S …………………A3

GDS06STR ………………A3

GDS08……………………A3

GDS08NTS ………………A3

GDS08S …………………A3

GDS08STR ………………A3

GDS10……………………A3

GDS10S …………………A3

GDS10STR ………………A3

MGDH04 ………………A6

MRD10 …………………A21

MRD10S …………………A21

MRD16C…………………A21

MRD16S …………………A21

SLV04 ……………………A18

SLV06 ……………………A18

SSH02 ……………………A18

SSH04 ……………………A18

SSH06 ……………………A18

SSH08 ……………………A18

SSH10 ……………………A18

SSV02 ……………………A18

SSV04 ……………………A18

SSV06 ……………………A18

SSV08 ……………………A18

SSV10 ……………………A18

435166……………………A15

435469……………………A14

435470……………………A13

435626……………………A15

435640……………………A17

435668……………………A17

435704……………………A20

435802……………………A12

436860……………………A20

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

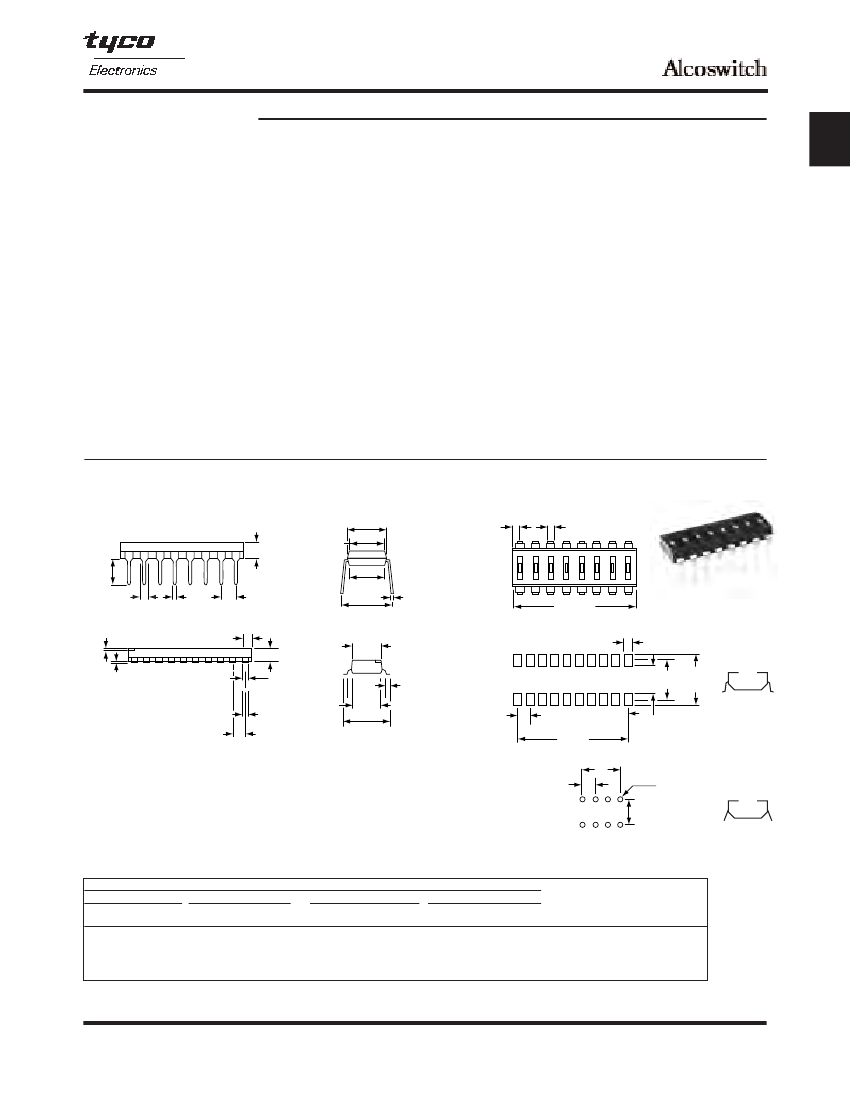

GD Series

DIP Switches, Low Profile, Slide Actuator, Through Hole and Surface Mount

FEATURES:

• Conventional gold wiping contact system

• Available in PC and surface mount configurations

• Traditional tape seal standard

• 95% Minimum solder coverage (90/10 tin lead)

• Withstands wave soldering temperature of 245°C for 3-5 seconds

• Heat deflection temperature of 260°C for surface mount compatibility

• End stackable (GDS version)

• Auto-insertable (GDS and GDB version)

• Vacuum pick and place compatible (GDS, GDB and GDH)

• Half pitch .050” terminal spacing (GDH version)

• Available in optional tape & reel packaging

• Shipped in the off position

MATERIAL SPECIFICATIONS:

Moving Contact ……………Gold over nickel over copper alloy

Fixed Contact ………………Gold over nickel over copper alloy

Base Material ………………PPS UL94V-0

Cover Material ………………PPS UL94V-0

Actuator Material ……………High temperature polyester/polyamide

Terminal ……………………Tin lead plated over nickel over

copper alloy

GD Series

TYPICAL PERFORMANCE CHARACTERISTICS:

Contact Rating ………………0.4 VA @ 24 VDC

Initial Contact Resistance……100 Milliohms max.

Insulation Resistance ………100 Megohms min. @ 250 VDC

Dielectric Strength …………300 VAC

Life Expectancy ……………1,000 Cycles

Operating Force ……………60-600 Grams

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature …………-30°C to +85°C

Storage Temperature……………-45°C to +100°C

Solder Heat Resistance …………See page M3-4

End to End Stackable!

.106

(2.70)

.244

(6.20)

.232

(5.90)

.169

(4.30)

.047

(1.20)

.015

(0.40)

.100

(2.54)

.047

(1.20)

.106

(2.70)

.004/.012

(0.10/0.30)

.024–.004

(0.61)–(0.10)

TYP.

.047–.008

(1.20)–(0.20)

TYP.

.228

(5.79)

.228

(5.80)

.335

(8.50)

.232

(5.89)

.010

(0.25)

LENGTH

.047

(1.20)

.024

(0.60)

GDS

Low Profile Slide Actuator

.024

(0.60)

GDS08

.060

(1.52)

MIN.

.035–.008

(0.89) (–0.20)

.100

(2.54)

DIM. M

.325 .409

(8.26) (10.39)

MIN.

.240

(6.10)

MAX.

.100

(2.54)

TYP.

.366–.020

(9.30) (–0.51)

.100

(2.54)

TYP.

¿.031

(0.80)

TYP.

.300

(7.60)

Part Number

PC Model

Tyco

Alcoswitch

Electronics

5-1437590-5 GDS02

5-1437590-9 GDS04

6-1437590-3 GDS06

6-1437590-7 GDS08

7-1437590-1 GDS10

S Model

Tyco

Alcoswitch

Electronics

5-1437590-7

GDS02S

GDS04S

6-1437590-1

6-1437590-5

GDS06S

6-1437590-9

GDS08S

GDS10S

7-1437590-2

Tape & Reel

Tyco

Alcoswitch

Electronics

5-1437590-8

GDS02STR

6-1437590-2

GDS04STR

6-1437590-6

GDS06STR

7-1437590-0

GDS08STR

GDS10STR

7-1437590-3

S Model No Tape

Tyco

Alcoswitch

Electronics

5-1437590-6 GDS02NTS

6-1437590-0 GDS04NTS

6-1437590-4 GDS06NTS

6-1437590-8 GDS08NTS

—

Poles

Length

.194(4.94)

.394(10.02)

.594(15.10)

.794(20.18)

.994(25.26)

Dim.

.100(2.54)

.300(7.62)

.500(12.7)

.700(17.78)

.900(22.86)

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

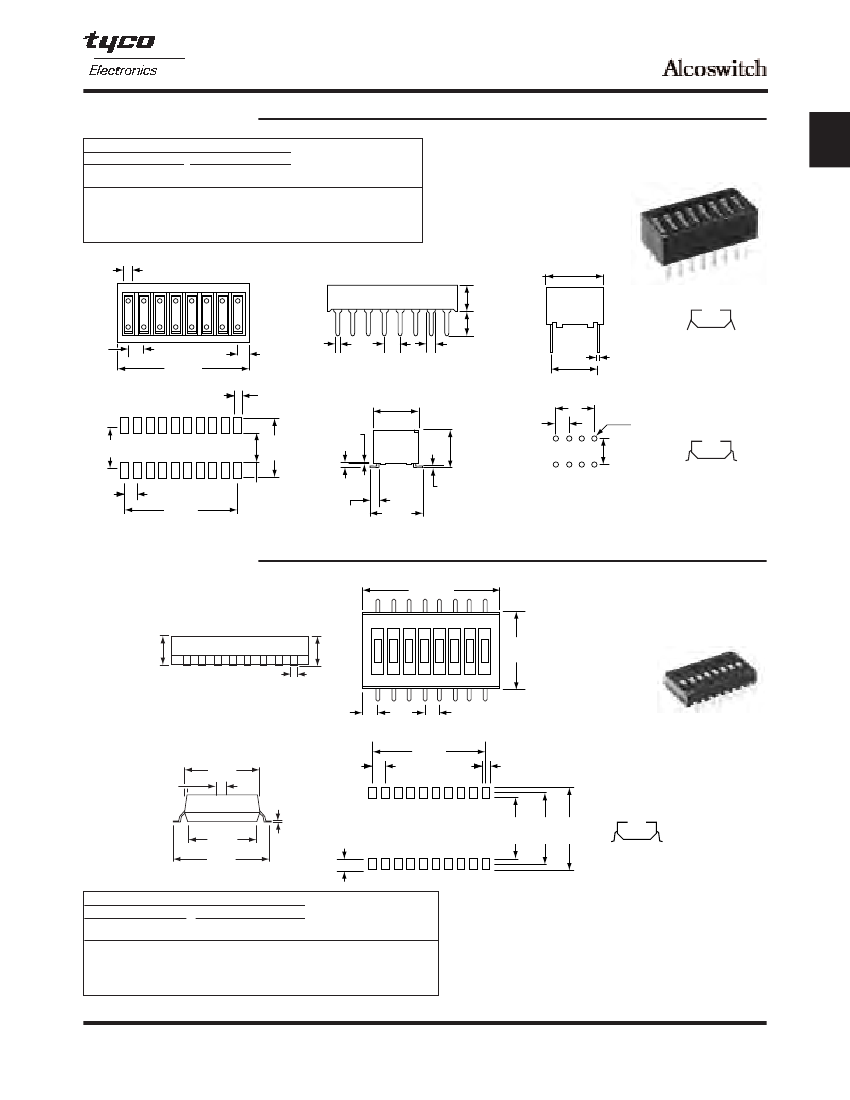

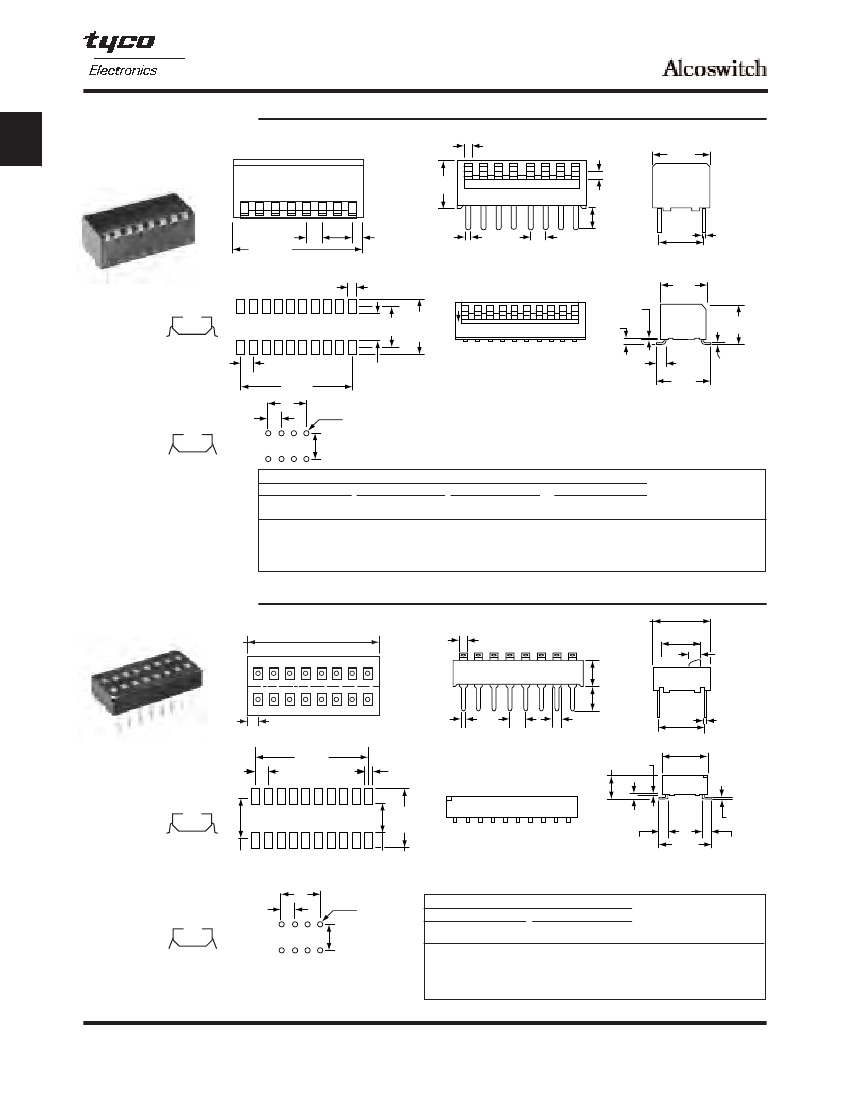

GD Series

DIP Switches, Piano Actuator, Through Hole and Surface Mount

GD Series

SEE PAGE A3 FOR PRODUCT SPECIFICATIONS

GDP

Classic Profile Piano Actuator

.303

(7.70)

.047

(1.20)

.051

(1.30)

.378

(9.60)

n 1

.140

(3.56)

.010

(0.25)

.300

(7.62)

.378

(9.60)

.008

(0.20)

.100

(2.54)

LENGTH

.069

(1.75)

.024

(0.60)

.100

(2.54)

GDP08

.060

(1.52)

MIN.

.325 .476

(8.26) (12.10)

MIN.

.100

(2.54)

TYP.

DIM. M

.100

(2.54)

TYP.

¿0.03

(0.80)

TYP.

.300

(7.60)

N1 2 3 4 5 6 7 8 9 10

.040

(1.00)

.343

(8.710)

.240

(6.10)

MAX.

.071

(1.82)

TYP.

.010

(0.25)

.433

(11.00)

PC Model

Tyco

Alcoswitch

Electronics

3-1437590-2 GDP02

3-1437590-5 GDP04

3-1437590-8 GDP06

4-1437590-0 GDP08

4-1437590-3 GDP10

Tape and Reel

Tyco

Alcoswitch

Electronics

3-1437590-4 GDP02S

1571668-1 GDP02STR

3-1437590-7 GDP04S

—

3-1437590-9 GDP06S

—

4-1437590-1 GDP08S 4-1437590-2 GDP08STR

4-1437590-4 GDP10S 4-1437590-5 GDP10STR

Part Number

S Model

S Model No Tape

Poles Length

Dim. M

Tyco

Alcoswitch

Electronics

3-1437590-3 GDP02NTS

.238(6.04) .100(2.54)

3-1437590-6 GDP04NTS

.438(11.12) .300(7.62)

—

.638(16.20) .500(12.7)

—

.838(21.28) .700(17.78)

—

10 1.038(26.36) .900(22.86)

DIP Switches, Flush Rocker Actuator, Through Hole and Surface Mount

GDB

Flush Rocker Actuator

LENGTH

.055

(1.40)

.169

(4.30)

.152

(3.85)

.024

(0.60)

.100

(2.54)

.100

(2.54)

TYP.

DIM. M

.060

(1.52)

MIN. TYP.

.047

(1.20)

.378

(9.60)

.203

(5.16)

.055

(1.40)

.069

(1.75)

GDB08

.300

(7.62)

.209 .008

(5.30) (0.20)

.010

(0.25)

.378

(9.60)

.325

(8.26)

.476

(12.1)

MIN.

.240

(6.10)

MAX.

.100

(2.54)

TYP.

¿.031

(0.80)

TYP.

.300

(7.60)

.039

(1.00)

.072

(1.82)

TYP.

.433

(11.0)

.010

(0.25)

TYP.

.072

(1.82)

TYP.

Part Number

PC Model

S Model

Tyco

Alcoswitch

Electronics

GDB02

—

GDB02S

1437590-1

1437590-2

GDB04

1437590-3

GDB04S

1437590-4

GDB06

1437590-5

GDB06S

1437590-6

GDB08

1437590-7

GDB08S

1437590-8

GDB10

1437590-9

GDB10S

Poles

Length

.238(6.04)

.438(11.12)

.638(16.20)

.838(21.28)

1.038(26.36)

Dim. M

.100(2.54)

.300(7.62)

.500(12.7)

.700(17.78)

.900(22.86)

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

GD Series

DIP Switches, Recessed Rocker, Through Hole and Surface Mount

Part Number

PC Model

Tyco

Alcoswitch

Electronics

GDR02

4-1437590-6

GDR04

4-1437590-8

5-1437590-0

GDR06

GDR08

5-1437590-2

GDR10

5-1437590-4

S Model

Tyco

Alcoswitch

Electronics

4-1437590-7 GDR02S

4-1437590-9 GDR04S

5-1437590-1 GDR06S

5-1437590-3 GDR08S

—

GDR10S

Poles

Length

.238(6.04)

.438(11.12)

.638(16.20)

.838(21.28)

1.038(26.36)

Dim. M

.100(2.54)

.300(7.62)

.500(12.7)

.700(17.78)

.900(22.86)

SEE PAGE A3 FOR PRODUCT SPECIFICATIONS

GDR

Classic Profile

Recessed Rocker Actuator

GD Series

.047

(1.20)

.270

(6.85)

(9.60) .378

(9.60)

GDR08

.152

(3.85)

OFF

.100

(2.54)

TYP.

.069

(1.75)

.060

(1.52)

MIN. TYP.

.008

(0.20)

.309

(7.85)

.024

(0.60)

LENGTH

.100

(2.54)

.047

(1.20)

.300

(7.62)

.010

(0.25)

.378

(9.60)

.100

(2.54)

TYP.

¿0.03

(0.80)

TYP.

.300

(7.60)

.325

(8.26)

.476

(12.1)

MIN.

.100

(2.54)

TYP.

DIM. M

.240

(6.10)

MAX.

.039

(1.00)

.072

(1.82)

TYP.

.433

(11.00)

.010

(0.25)

TYP.

DIP Switches, Half Pitch, Low Profile

LENGTH

GDH

Half Pitch .050” Terminal Spacing

.087

(2.20)

.091

(2.30)

.014

(0.35)

2.36

(6.00)

.047

(1.20)

.050

(1.27)

TYP.

.050

(1.27)

DIM. M

.030

(0.76)

TYP.

GDH08S

.244

(6.20)

.031

(0.80)

.006

(0.15)

.236

(6.00)

.320

(8.12)

.250 .299 .350

(6.35) (7.60) (8.89)

MAX. REF. MIN.

.050

(1.27)

REF.

TYP.

Part Number

PC Model

S Model

Tyco

Alcoswitch

Electronics

1-1437590-3 GDH02STR

1-1437590-0 GDH02S

1-1437590-4 GDH04S

1-1437590-6 GDH04STR

2-1437590-1 GDH06STR

1-1437590-9 GDH06S

2-1437590-2 GDH08S

2-1437590-4 GDH08STR

2-1437590-6 GDH10S

2-1437590-8 GDH10STR

Poles

Length

.144(3.66)

.244(6.20)

.344(8.75)

.444(11.29)

.544(13.82)

Dim. M

.050(1.27)

.150(3.81)

.250(6.35)

.350(8.89)

.450(11.43)

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

Recommended Resources

Correct and incorrect wiring of fluorescent lampsb

Timing loop music performance circuit

Change the 78XX series fixed voltage circuit to a high-precision adjustable voltage

Control circuit using unijunction transistor

Car headlight automatic dimmer

AM FM IF amplifier integrated circuit LA1201

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

RD83THS210STB
1-1971923-9
2225Y5V685F2NG6
CMMS2211
ASMT-MG00-NB6
MWDM6L-31CS-8K2-18
PRA135I2-365RDWGT
SQS05F2941
1.5SMCJ26C-AU-R1-00001
GD32VF103R8T6
MPP224K0630D261707B2315
A2541WR-15P-C305-T
