UTR2305

Description
2 A, SILICON, RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size130KB,3 Pages
ManufacturerDigitron
Websitehttp://www.digitroncorp.com
Download Datasheet Parametric View All

UTR2305 Online Shopping

Suppliers Part Number Price MOQ In stock
UTR2305 - - View Buy Now

UTR2305 Overview

2 A, SILICON, RECTIFIER DIODE

UTR2305 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDigitron
Reach Compliance Codeunknow
applicationFAST RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JESD-30 codeO-XALF-W2
JESD-609 codee0
Maximum non-repetitive peak forward current60 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-195 °C
Maximum output current2 A
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage50 V
Maximum reverse current5 µA
Maximum reverse recovery time0.25 µs
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
DIGITRON SEMICONDUCTORS
UTR2305-UTR2360
UTR3305-UTR3360
UTR4305-UTR4360
MAXIMUM RATINGS
Characteristic
Maximum average DC output current
@ T
A
= 25°C
@ T
A
= 100°C
Non-repetitive sinusoidal
Surge current (8.3ms)
Operating temperature range
Storage temperature range
2 amp series
2.0A
1.0A
60A
3 amp series
3.0A
1.5A
80A
-195 to +175°C
-195 to +200°C
4 amp series
4.0A
2.0A
100A
FAST RECOVERY RECTIFIERS
ELECTRICAL CHARACTERISTICS (@25°C unless otherwise noted)
Part number
Peak inverse
voltage
Maximum forward
voltage drop
Maximum leakage
current @ PIV
25°C
UTR4305
UTR4310
UTR4320
UTR4340
UTR4350
UTR4360
UTR3305
UTR3310
UTR3320
UTR3340
UTR3350
UTR3360
UTR2305
UTR2310
UTR2320
UTR2340
UTR2350
UTR2360
50V
100V
200V
400V
500V
600V
50V
100V
200V
400V
500V
600V
50V
100V
200V
400V
500V
600V
1.1V @2A
5µA
100µA
250ns
300ns
350ns
400ns
1.1V @ 3A
5µA
100µA
250ns
300ns
350ns
400ns
1.1V @ 4A
5µA
100µA
400ns
250ns
100°C
Maximum reverse
recovery time *
Maximum
junction
capacitance @
25°C
0V
600pF
400pF
320pF
240pF
200pF
160pF
600pF
400pF
320pF
240pF
200pF
160pF
600pF
400pF
320pF
240pF
200pF
160pF
-10V
240pF
160pF
128pF
96pF
80pF
64pF
240pF
160pF
128pF
96pF
80pF
64pF
240pF
160pF
128pF
96pF
80pF
64pF
Recovery time is measured from 1A to 1A recovering to 0.5A.

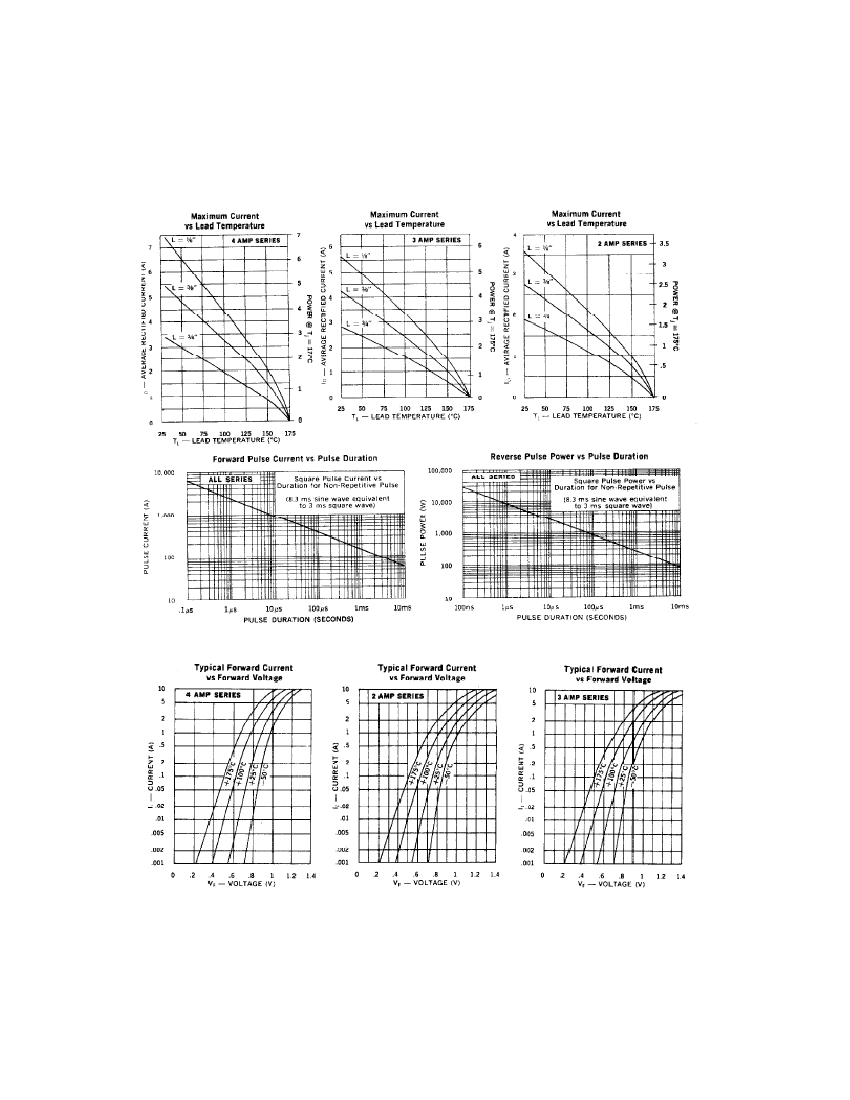

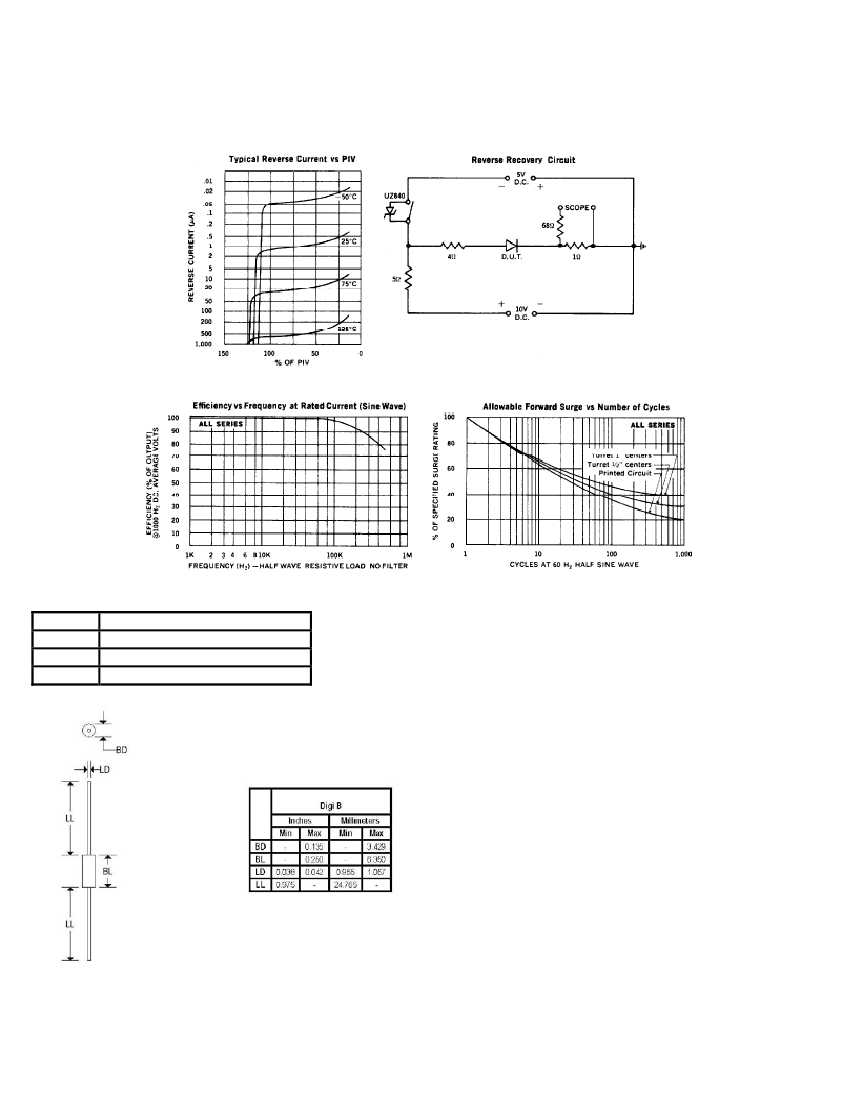

144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20121119
