ACPL-W480-000E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ACPL-W480-000E

ACPL-W480-000E: DescriptionLOGIC OUTPUT OPTOCOUPLER; CategoryLED optoelectronic/LED photoelectric; File Size342KB，10 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ACPL-W480-000E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ACPL-W480-000E	-	-	View	Buy Now

ACPL-W480-000E Overview

LOGIC OUTPUT OPTOCOUPLER

ACPL-W480-000E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVAGO
Reach Compliance Code	compliant
Factory Lead Time	22 weeks
Samacsys Description	Broadcom, ACPL-W480-000E Optocoupler
Maximum forward current	0.01 A
Maximum insulation voltage	5000 V
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Nominal response time	3.5e-7 ns
Nominal supply voltage	20 V
surface mount	YES
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

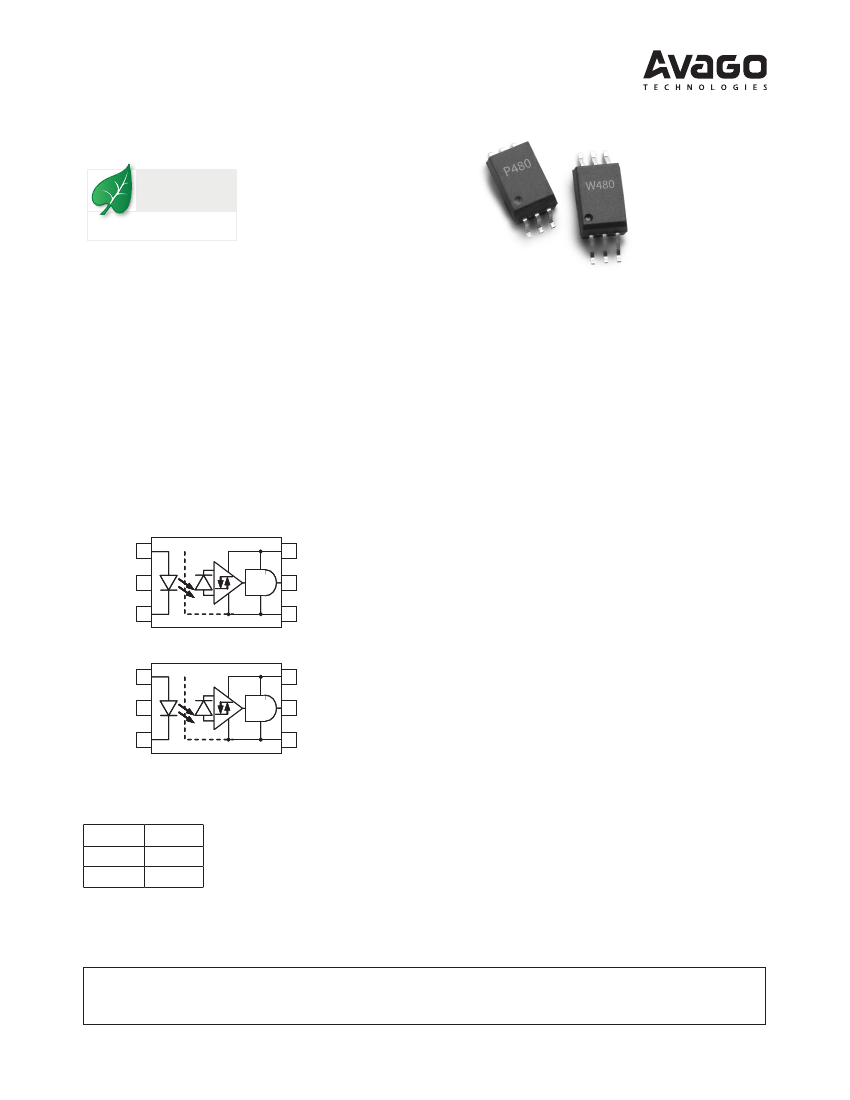

ACPL-P480 and ACPL-W480

High CMR Intelligent Power Module and Gate Drive Interface Optocoupler

Data Sheet

Lead (Pb) Free

RoHS 6 fully

compliant

RoHS 6 fully compliant options available;

-xxxE denotes a lead-free product

Description

The ACPL-P480 and ACPL-W480 fast speed optocou-

plers contain a GaAsP LED and photo detector with

built-in Schmitt trigger to provide logic-compatible

waveforms, eliminating the need for additional wave

shaping. The totem pole output eliminates the need for

a pull up resistor and allows for direct drive Intelligent

Power Module or gate drive. Minimized propagation

delay difference between devices make these optocou-

plers excellent solutions for improving inverter efficiency

through reduced switching dead time.

Features

•

Performance Specified for Common IPM Applications

Over Industrial Temperature Range.

•

Short Maximum Propagation Delays

•

Minimized Pulse Width Distortion (PWD)

•

Very High Common Mode Rejection (CMR)

•

Hysteresis

•

Totem Pole Output (No Pull-up Resistor Required)

•

Available in Stretched SO-6 package.

•

Safety Approval:

UL Recognized with 3750 V

rms

for 1 minute (5000

Vrms for 1 minute for all ACPL-W480 devices and

Option 020 device for ACPL-P480) per UL1577.

CSA Approved.

IEC/EN/DIN EN 60747-5-5 Approved:

IORM

= 891 V

peak

for ACPL-P480, and V

IORM

= 1140

peak

for ACPL-W480.

Functional Diagrams

ACPL-P480

ANODE 1

N.C. 2

CATHODE 3

SHIELD

6 V

5 V

4 Ground

ACPL-W480

ANODE 1

N.C. 2

CATHODE 3

SHIELD

6 V

5 V

4 Ground

Specifications

•

Wide operating temperature range: –40°C to 100°C.

Maximum propagation delay t

PHL

/ t

PLH

= 350 ns

Maximum Pulse Width Distortion (PWD) = 250 ns.

Propagation Delay Difference: Min. –100 ns, Max. 250 ns

Wide Operating V

Range: 4.5 to 20 Volts

20 kV/µs minimum common mode rejection (CMR) at

= 1000 V.

IPM Interface Isolation

Isolated IGBT/MOSFET Gate Drive

AC and Brushless DC Motor Drives

Industrial Inverters

General Digital Isolation

Note: A 0.1 µF bypass capacitor must be connected between pins 4 and 6.

Truth Table (Positive Logic)

LED

OFF

Applications

•

HIGH

LOW

CAUTION:

It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.
