AS3PJHM3_A/H

Description
Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.1A, 600V V(RRM), Silicon, TO-277A,
CategoryDiscrete semiconductor    diode
File Size86KB，5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

AS3PJHM3_A/H Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.1A, 600V V(RRM), Silicon, TO-277A,

AS3PJHM3_A/H Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
package instructionR-PDSO-F3
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time12 weeks
Other featuresFREE WHEELING DIODE, LOW LEAKAGE CURRENT
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JEDEC-95 codeTO-277A
JESD-30 codeR-PDSO-F3
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current70 A
Number of components1
Phase1
Number of terminals3
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Maximum output current2.1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
GuidelineAEC-Q101
Maximum repetitive peak reverse voltage600 V
Maximum reverse current10 µA
Maximum reverse recovery time1.2 µs
surface mountYES
technologyAVALANCHE
Terminal surfaceMatte Tin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

AS3PJHM3_A/H Preview

AS3PD, AS3PG, AS3PJ, AS3PK, AS3PM
www.vishay.com
Vishay General Semiconductor
High Current Density Standard Avalanche
Surface Mount Rectifiers
FEATURES
eSMP
Series
K
®
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Glass passivated pallet chip junction
• Controlled avalanche characteristics
• Low leakage current
Available
1
2
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TO-277A (SMPC)
K
Cathode
Anode 1
Anode 2
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
E
AS
V
F
at I
F
= 3 A
T
J
max.
Package
Diode variations
3.0 A
200 V, 400 V, 600 V, 800 V,
1000 V
70 A
20 mJ
0.90 V
175 °C
TO-277A (SMPC)
Single die
MECHANICAL DATA
Case:
TO-277A (SMPC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS-compliant and
AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
TYPICAL APPLICATIONS
For use in general purpose rectification of power supplies,
inverters, converters and freewheeling diodes for consumer,
automotive and telecommunication.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Max. repetitive peak reverse voltage
Max. DC forward current (fig. 1)
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
Non-repetitive avalanche energy
at T
J
= 25 °C
I
AS
= 2.5 A max.
I
AS
= 1.0 A typical
V
RRM
I
F (1)
I
F (2)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
AS3PD
AS3D
200
AS3PG
AS3G
400
AS3PJ
AS3J
600
3.0
2.1
70
20
30
-55 to +175
AS3PK
AS3K
800
AS3PM
AS3M
1000
V
A
A
mJ
°C
UNIT
Operating junction and storage temperature range
Notes
(1)
Mounted on 10 mm x 10 mm pad areas, 1 oz. FR4 PCB
(2)
Free air, mounted on recommended copper pad area
Revision: 27-Jul-15
Document Number: 88837
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AS3PD, AS3PG, AS3PJ, AS3PK, AS3PM
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
I
F
= 1.5 A
Instantaneous forward voltage
I
F
= 3.0 A
I
F
= 1.5 A
I
F
= 3.0 A
Reverse current
Typical reverse recovery time
Typical junction capacitance per diode
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
rated V
R
SYMBOL
TYP.
0.92
V
F (1)
1.00
0.81
0.90
I
R (2)
t
rr
C
J
0.28
62
1.2
37
MAX.
-
1.10
-
0.95
10
150
-
-
μA
μs
pF
V
UNIT
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
AS3PD
AS3PG
AS3PJ
80
5
AS3PK
AS3PM
UNIT
°C/W
Notes
(1)
Free air, mounted on recommended PCB 1 oz. pad area; thermal resistance R
JA
- junction to ambient
(2)
Units mounted on PCB with 10 mm x 10 mm copper pad areas, 1 oz. FR4 PCB; R
JM
- junction to mount
ORDERING INFORMATION
(Example)
PREFERRED P/N
AS3PJ-M3/86A
AS3PJ-M3/87A
AS3PJHM3/86A
(1)
AS3PJHM3/87A
(1)
AS3PJHM3_A/H
(1)
AS3PJHM3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
0.10
0.10
PREFERRED PACKAGE CODE
86A
87A
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 27-Jul-15
Document Number: 88837
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AS3PD, AS3PG, AS3PJ, AS3PK, AS3PM
www.vishay.com
Vishay General Semiconductor

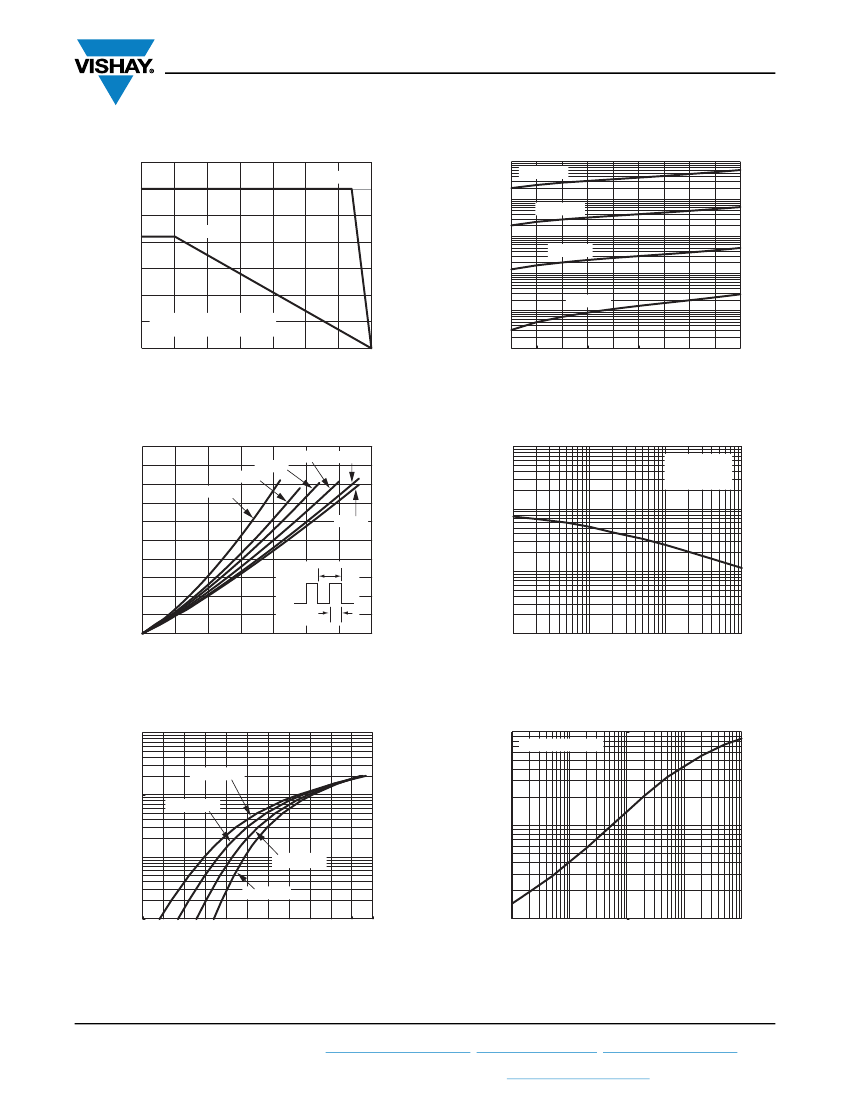

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
3.5
3.0
1000
Instantaneous Reverse Current (μA)
T
M
= 160 °C
T
A
= 175 °C
100
DC Forward Current (A)
2.5
T
A
= 25 °C
2.0
1.5
1.0
0.5
0
0
25
50
75
100
125
150
175
T
M
Measured
at the Cathode Band Terminal
T
A
= 125 °C
10
T
A
= 75 °C
1
T
A
= 25 °C
0.1
0.01
10
20
30
40
50
60
70
80
90
100
Mount Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
4.0
D = 0.5
3.6
D = 0.8
D = 0.3
D = 0.2
D = 0.1
D = 1.0
1000
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
Average Power Loss (W)
3.2
2.8
2.4
2.0
1.6
T
1.2
0.8
0.4
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
D = t
p
/T
t
p
Junction Capacitance (pF)
10
1
0.1
1
10
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Forward Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
T
A
= 175 °C
10
T
A
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
Junction to Ambient
10
1
T
A
= 75 °C
T
A
= 25 °C
0.1
0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 27-Jul-15
Document Number: 88837
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
AS3PD, AS3PG, AS3PJ, AS3PK, AS3PM
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-277A (SMPC)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 27-Jul-15
Document Number: 88837
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AS3PJHM3_A/H Related Products

AS3PJHM3_A/H AS3PDHM3_A/I
Description Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.1A, 600V V(RRM), Silicon, TO-277A, Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.1A, 200V V(RRM), Silicon, TO-277A,
Is it Rohs certified? conform to conform to
Maker Vishay Vishay
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Factory Lead Time 12 weeks 12 weeks
Other features FREE WHEELING DIODE, LOW LEAKAGE CURRENT FREE WHEELING DIODE, LOW LEAKAGE CURRENT
application GENERAL PURPOSE GENERAL PURPOSE
Shell connection CATHODE CATHODE
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.1 V 1.1 V
JEDEC-95 code TO-277A TO-277A
JESD-30 code R-PDSO-F3 R-PDSO-F3
JESD-609 code e3 e3
Humidity sensitivity level 1 1
Maximum non-repetitive peak forward current 70 A 70 A
Number of components 1 1
Phase 1 1
Number of terminals 3 3
Maximum operating temperature 175 °C 175 °C
Minimum operating temperature -55 °C -55 °C
Maximum output current 2.1 A 2.1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Guideline AEC-Q101 AEC-Q101
Maximum repetitive peak reverse voltage 600 V 200 V
Maximum reverse current 10 µA 10 µA
Maximum reverse recovery time 1.2 µs 1.2 µs
surface mount YES YES
technology AVALANCHE AVALANCHE
Terminal surface Matte Tin (Sn) Matte Tin (Sn)
Terminal form FLAT FLAT
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED

Recommended Resources

Synchronous motor thyristor excitation circuit 2

Use PSSR to make light-controlled automatic street lights

Integrated touch dimmer circuit

LB1403-13-23-33-43N power amplifier circuit

555 kinds of analog signal generator circuits

Multiple remote control

Puran Communications (Shanghai) is looking for a senior software engineer
-------------------------------------------------------------------------------- Puran Communication Technology (Shanghai) Co., Ltd. ([url=http://www.opulan.com]http://www.opulan.com[/url]) is a high-...
youyouyouxia Embedded System
Discussion of CCM buck circuit
After reading Raymond B. Ridley's paper, I designed a 10V-5V circuit based on the Simplis simulation tool. However, there are still many things that are not very clear. I found that the basis for meas...
海南的苹果 Power technology
Make announces its return
[i=s]This post was last edited by dcexpert on 2019-8-20 23:44[/i]A few months ago, Make announced that it would cease publication due to financial problems. A few days ago, Make announced its return.A...
dcexpert MicroPython Open Source section
If you have any unused electronic items, come and exchange them!
This section has added some new categories for everyone to interact with:Gift: Many friends have some unused boards and items that can be given to friends in the forum; Exchange: to hope to exchange o...
soso Buy&Sell
USBDeviceAttach LocalAlloc exception in Device.exe
ce 5.0 USB driver USBDeviceAttach function uses LocalAlloc (LPTR, sizeof (struct pointer)) My current problem is: when the driver is loaded, it usually gets an exception at LocalAlloc, not necessarily...
hd2046 Embedded System
Design of SPI Driver Based on Windows CE
Device drivers interact directly with hardware or virtual devices, packaging the operations on hardware or virtual devices into a set of operating system calls and completely hiding the programming in...
xtss Embedded System
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. 1200SGF6004B2UA
  2. TVFBRW2175SDX
  3. CMF603R4700FKBF
  4. TVFBRW1935PBXLC
  5. TRU050-GHLHB-16M3840000
  6. PRV6CK1MOHM5%ABO50
  7. FMD-1F-3CM121PVH
  8. HCHP1020L2700GF
  9. P6SMBJ43
  10. 1SMB3EZ16-AU
  11. LL914T/R7
  12. TC0525F1003T5E

Popular Articles

  1. Brief discussion on the lining structure of magnetic flap level gauge
  2. What is the best alarm value setting for a gas detector?
  3. Take you to learn more about autonomous driving sensors
  4. LPC1788 SPI usage
  5. tiny4412 bare metal program 7. Relocate code to DRAM
  6. Ming-Chi Kuo predicts Apple's second-generation AirPods Pro will have a new look, lossless audio
  7. The difference and distinction between automobile noise and abnormal sound
  8. Huawei smart glasses are not only a great tool for listening to music, but also have a new feature: a new hope for people who are looking down at their phones
  9. Wavelength division multiplexer channel fiber length measurement solution
  10. [Three Driving Forces of Automotive Innovation] Series One: Discussion on methods to solve the challenges of electrification and battery testing

Technical ResourceMore

  1. Basic electronic teaching plan of motor and drag
  2. USB Function IP Core
  3. Inverted Pendulum and Automatic Control Principle Experiment
  4. Getting Started with MATLAB
  5. C Algorithms Volume 1 (pdf version)
  6. Cadence 16.6 Harmony Method _ Revised Edition
  7. Non-data-aided carrier frequency offset estimation algorithm for burst transmission
  8. Circuit Analysis Methods
  9. Network planning and optimization in the evolution from 2G/2.5G/3G to 4G
  10. LCD1602 Pin Definition

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 875  496  2903  558  343  18  10  59  12  7
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
