VTB2-XXX Miniature TCXOs
Featuring
l
l
l
l
l
+3.0 or 5.0 Vdc Option
Low Cost
Voltage Tune Option
Low Profile Surface
Mount
Reflowable
Frequency Range
Stability Options
9.6 to 25 MHz
1
= ±1.0 PPM 0°C to +50°C
2
= ±2.5 PPM -30°C to +70°C
3
= ±3.5 PPM -30°C to +70°C
4
= ±5.0 PPM -40°C to +85°C
<±0.3 PPM vs B+ ±5%
<1.0 PPM/year at +40°C dynamic
A
= +5.0 Vdc ±5% <2 mA
B
= +3.0 Vdc ±5% <1.5 mA
Clipped Sinewave
1.0 VP-P minimum with 5.0 Vdc
input
0.7 VP-P minimum with 3.0 Vdc
input
10 K // 10 pf
±3.0 PPM Minimum
0
= Mechanical Trim
1
= ±5.0 PPM minimum Voltage
Control & Mechanical Trimmer
<1000 pcs boxed
>1000 pcs Tape and Reel
VTB2-2B0 12.8 MHz
2
= ±2.5 PPM
B
= +3.0 Vdc
0
= Mechanical trim adjust
Stability vs Supply
Aging (Typical)
Input Voltage & Current
Output
Load

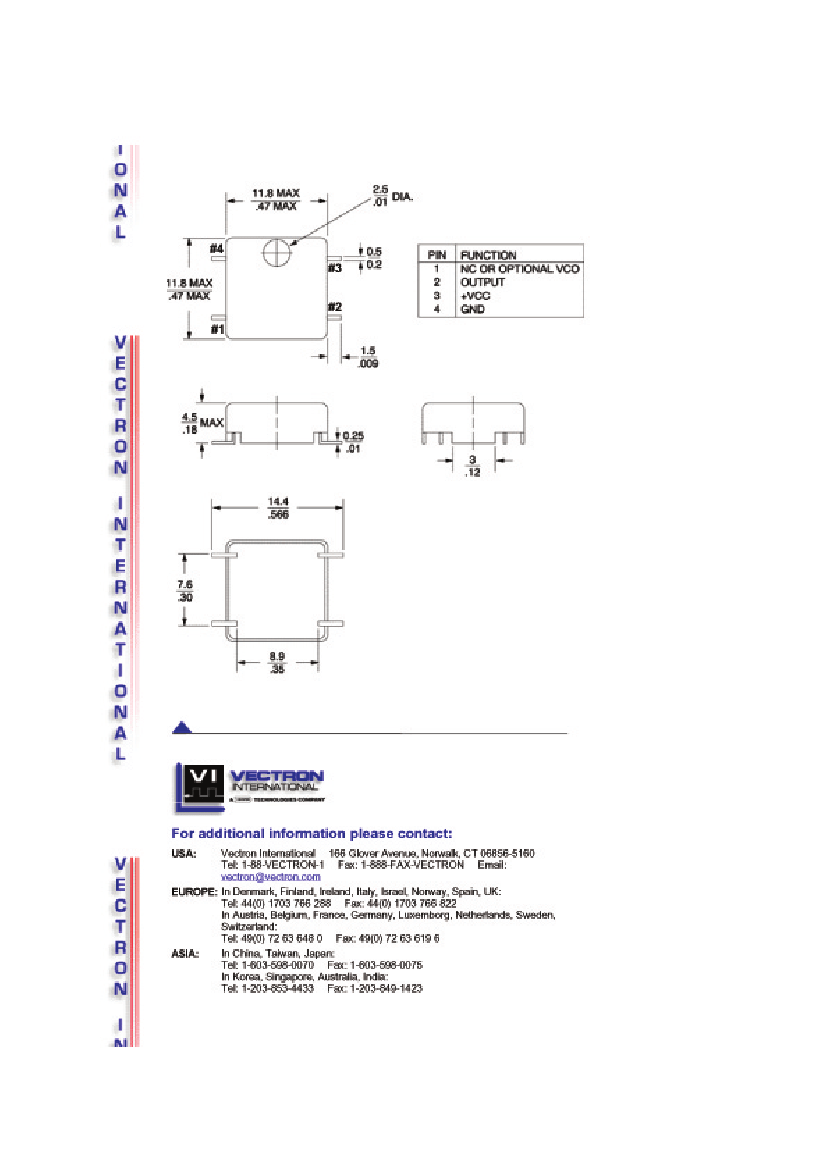

Mechanical Trim
Trim Options
Standard Packaging
Typical P/N
We welcome your custom requests and will issue a custom part
number for items that are not listed.
