B494 Overview

BOOTSEAL 1/4 BLACK HEX

Preview

Download Datasheet

View All

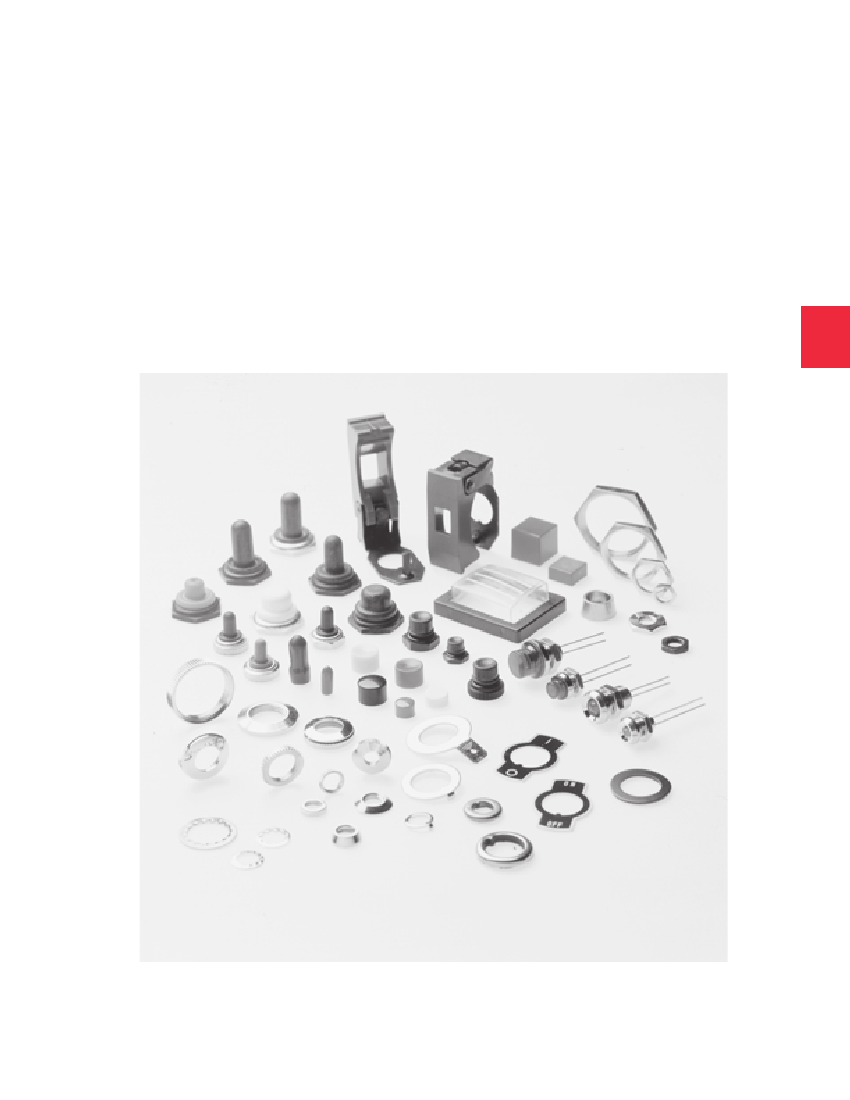

MISCELLANEOUS HARDWARE

& ACCESSORIES

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

SWITCH HARDWARE....................................... D2 - D4

PUSHBUTTON AND TOGGLE CAPS............... D5 - D6

SECURITY GUARDS......................................... D7 - D9

SEALING BOOTS.............................................. D10 - D14

VL SERIES LED INDICATORS.......................... D15 - D16

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

MISCELLANEOUS HARDWARE

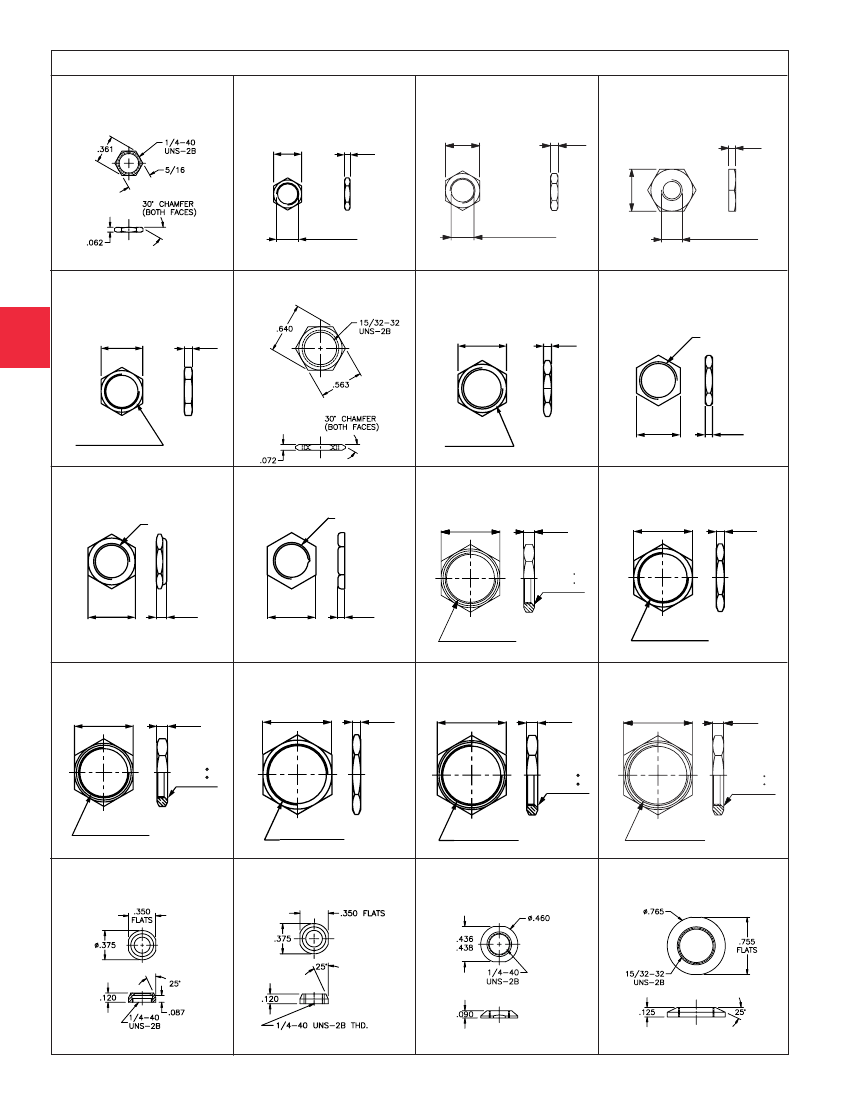

HEX NUT A112

Nickel plated brass

1/4-40

HEX NUT

Brass 1/4-40

Nickel plated

U76

Matte black

U94

HEX NUT

Brass

Nickel plated

U208

Matte black

U726

9.00

(.354)

2.00

(.078)

HEX NUT

Brass

Chrome plated

U1916

2.00

(.086)

8.00

(.314)

1.60

(.062)

12.00

(.472)

6.35 DIA-40UNS

(1/4-40UNS)

6.00 DIA x 0.75 SI

(.236 DIA x 0.75SI)

6.00 DIA x 0.75 SI

(.236 DIA x 0.75SI)

HEX NUT U842

10mm (.393")

Nickel plated brass

HEX NUT A465

Nickel plated brass 15/32-32

HEX NUT

Brass 15/32-32

Nickel plated

U162

Matte black

U41

Chrome plated

U92

14.00

(.551)

2.30

(.090)

HEX NUT

Brass 12mm (.472")

Nickel plated

U166

Matte black

U183

Chrome plated

U212

12.00DIA X 0.75SI

(.472DIA X 0.75SI)

12.00

(.472)

2.30

(.090)

10.00 DIA x 0.75 SI

(.393 DIA X 0.75 SI)

11.90 DIA-32UNS

(15/32-32UNS)

14.00

(.551)

2.30

(.09)

HEX CAP NUT

Brass 12mm (.472")

Chrome plated

U35

12.00DIA X 0.75SI

(.472DIA X 0.75SI)

PAL NUT U42

12mm (.472")

Zinc plated steel

12.00DIA X 0.75SI

(.472DIA X 0.75SI)

HEX NUT 10-621

16mm (.629")

Nickel plated brass

19.00

(.748)

3.00

(.118)

HEX NUT U1950-5

19mm (.748")

Nickel plated brass

22.00

(.866)

3.00

(.118)

1.20-45

(.047-45 )

16.00

(.629)

3.50

(.137)

16.00

(.629)

2.20

(.086)

16.00 DIAx1.00 SI

(.629 DIAx1.00 IS)

19.00 DIAx1.00 SI

(.748 DIAx1.00 IS)

HEX NUT 10-855-5

19mm (.748")

Nickel plated brass

22.00

(.866)

4.00

(.157)

HEX NUT U1951-5

22mm (.866")

Nickel plated brass

25.00

(.984)

3.00

(.118)

HEX NUT 10-856-5

22mm (.866")

Nickel plated brass

25.00

(.984)

4.00

(.157)

HEX NUT U2059-5

24mm (.944")

Nickel plated brass

27.00

(1.062)

4.00

(.157)

1.30-45

(.051-45 )

1.30-45

(.051-45 )

1.30-45

(.051-45 )

19.00 DIAx1.00 SI

(.748 DIAx1.00 IS)

22.00 DIAx1.00 SI

(.866 DIAx1.00 IS)

22.00 DIAx1.00 SI

(.866 DIAx1.00 IS)

24.00 DIAx1.00 SI

(.944 DIAx1.00 IS)

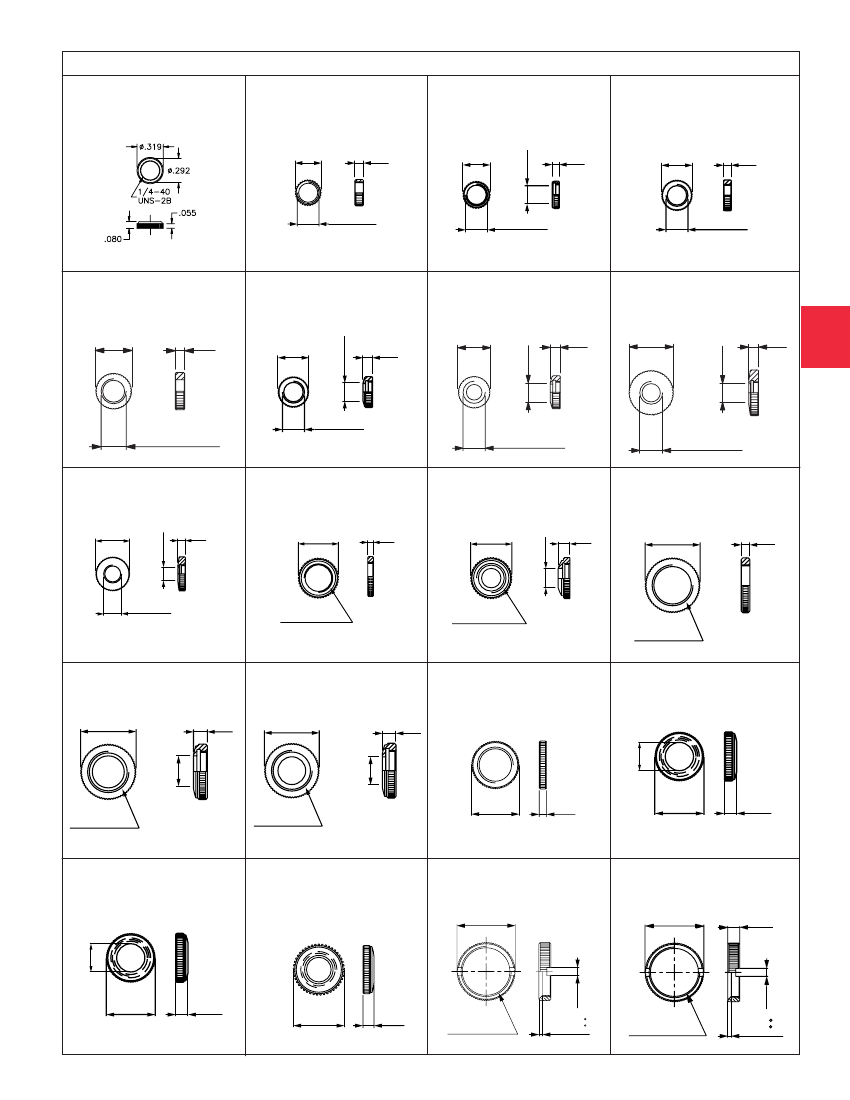

PANEL DRESS NUT A168P1

Blind thread, Nickel plated brass

1/4-40

PANEL DRESS NUT A168P2

Thru thread, Nickel plated brass

1/4-40

PANEL DRESS NUT A274

Nickel plated brass 1/4-40

PANEL DRESS NUT A540

Nickel plated brass 15/32-32

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

MISCELLANEOUS HARDWARE (CONT'D.)

DECORATIVE NUT A447

Thru thread, chromium plated brass

1/4-40

KNURLED NUT U369

1/4-40

Nickel plated brass

KNURLED NUT U501

1/4-40

Chrome plated brass

KNURLED NUT

Brass 1/4-40

Nickel plated

U229

Matte black

U230

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

6.35 DIA-40UNS

(1/4-40UNS)

5.20 DIA

(.204 DIA)

7.70 DIA

(.303 DIA)

2.54

(.100)

8.00 DIA

(.314 DIA)

2.00

(.078)

9.00 DIA

(.354 DIA)

2.20

(.086)

6.35 DIA-40UNS

(1/4-40UNS)

6.35 DIA-40UNS

(1/4-40UNS)

KNURLED NUT U826

Nickel plated brass

KNURLED CAP NUT

Brass 1/4-40

Chrome plated

U216

Matte black

U218

KNURLED CAP NUT

Brass

Chrome pl.

U461

Matte black

U502

KNURLED CAP NUT

Brass

Chrome plated

U232

5.20 DIA

(.204 DIA)

6.00 DIA x 0.75 SI

(.236 DIA x 0.75SI)

6.35 DIA-40UNS

(1/4-40UNS)

5.20 DIA

(.204 DIA)

9.00 DIA

(.354 DIA)

2.70

(.106)

6.00 DIA x 0.75 SI

(.236 DIA x 0.75SI)

6.00 DIA x 0.75 SI

(.236 DIA x 0.75SI)

KNURLED CAP NUT

Brass 1/4-40

Chrome pl.

U268

Matte black

U725

KNURLED NUT U2311

10mm (.393")

Chrome plated brass

KNURLED CAP NUT U2220

10mm (.393") Chrome plated brass

KNURLED NUT

Brass 15/32-32

Nickel plated

U53

Matte black

U1634

6.35 DIA-40UNS

(1/4-40UNS)

4.80 DIA

(.188 DIA)

10.00 DIA x 0.75 SI

(.393 DIA X 0.75 SI)

10.00 DIA x 0.75 SI

(.393 DIA X 0.75 SI)

6.60 DIA

(.259 DIA)

12.00 DIA

(.472 DIA)

2.60

(.102)

14.00 DIA

(.551 DIA)

2.20

(.086)

14.00 DIA

(.551 DIA)

4.00

(.157)

16.00 DIA

(.629 DIA)

4.80 DIA

(.188 DIA)

9.00 DIA

(.354 DIA)

2.20

(.086)

9.00 DIA

(.354 DIA)

2.70

(.106)

12.00 DIA

(.472 DIA)

2.60

(.102)

2.50

(.098)

11.90 DIA-32UNS

(15/32-32UNS)

KNURLED CAP NUT U123

15/32-32

Chrome plated brass

16.00 DIA

(.629 DIA)

4.00

(.157)

KNURLED CAP NUT U124

15/32-32

Chrome plated brass

16.00 DIA

(.629 DIA)

4.00

(.157)

PANEL DRESS NUT

Brass 12mm

(.472") Nickel plated

U411,

Matte

black

U413,

Chrome plated

U412

KNURLED CAP NUT

Brass

12mm (.472") Chrome plated

U117

Matte black

U129

8.70 DIA

(.342 DIA)

8.20 DIA

(.322 DIA)

8.5 (.334)

11.90 DIA-32UNS

(15/32-32UNS)

11.90 DIA-32UNS

(15/32-32UNS)

16.00 DIA

(.63 DIA)

2.50

(.098)

16.00 DIA

(.629 DIA)

4.00

(.157)

KNURLED CAP NUT

Brass

12mm (.472") Chrome plated

U118

Matte black

U130

INSULATED PANEL DRESS NUT

12mm (.472") ABS or polyamide with

glass fiber. blue

U521,

black

U522,

green

U523,

gray

U524,

yellow

U525,

red

U526,

white

U527/1,

orange

U529

KNURLED NUT 10-960-5

16mm (.629") Nickel plated brass

18.50 DIA

(.728 DIA)

KNURLED NUT U1977-5

19mm (.748") Nickel plated brass

22.00 DIA

(.866 DIA)

4.50

(.177)

10.3 (.405)

3.00

(.118)

16.00 DIA

(.629 DIA)

4.00

(.157)

17.00 DIA

(.669 DIA)

4.00

(.157)

16.00 DIAx1.00 SI

(.629 DIAx1.00 IS)

1.20 - 45

(.047 - 45 )

19.00 DIAx1.00 SI

(.748 DIAx1.00 IS)

1.30-45

(.051-45 )

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

3.00

(.118)

MISCELLANEOUS HARDWARE (CONT'D.)

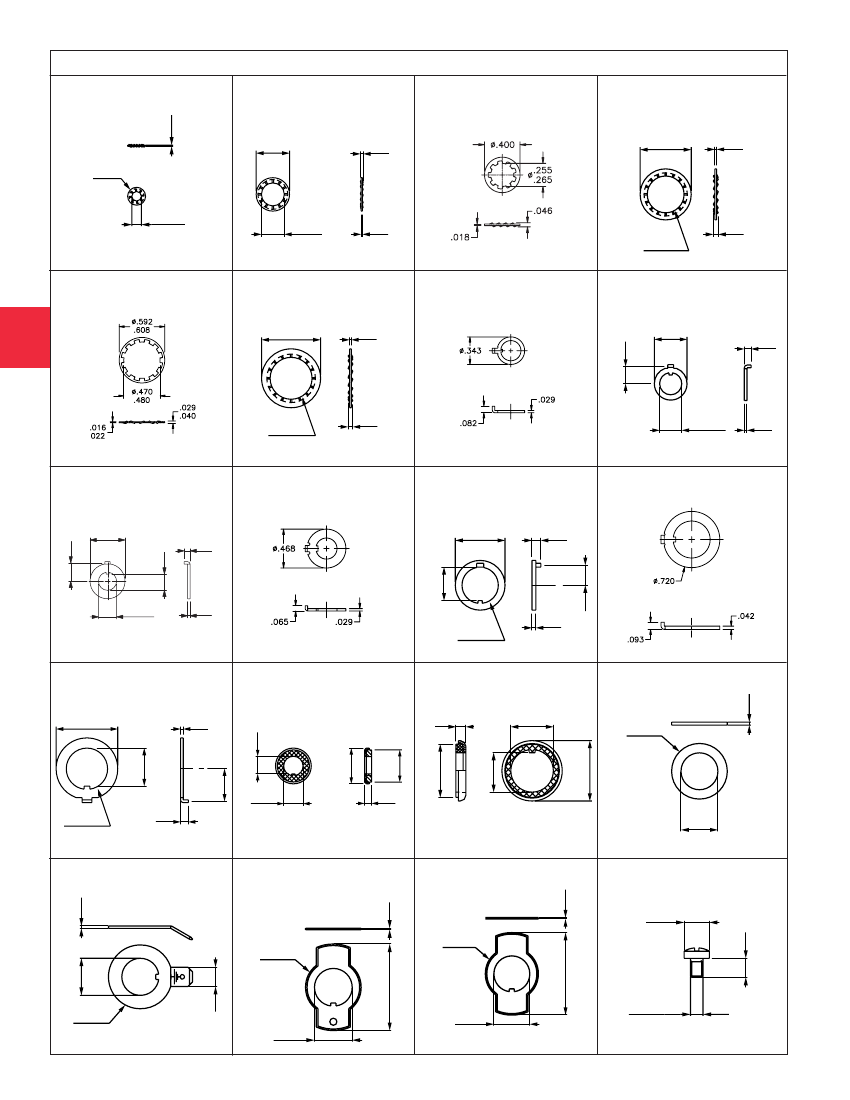

LOCKWASHER U14

.122 I.D.

LOCKWASHER

1/4

Stainless steel

U215

LOCKWASHER A115

Nickel plated steel 1/4

LOCKWASHER U843

10mm (.393")

Stainless steel

0.40

(.015)

9.50 DIA

(.374 DIA)

0.80

(.031)

14.40 DIA

(.566 DIA)

0.50

(.019)

5.80 DIA

(.228 DIA)

10.30 DIA

(.405 DIA)

LOCKWASHER A466

Nickel plated steel 15/32

LOCKWASHER U13

15/32

Zinc plated

17.00 DIA

(.669 DIA)

0.50

(.019)

ANTI-ROTATE RING A107

Nickel plated brass 1/4

LOCKING RING

1/4

Nickel plated

U78

Matte black

U93

9.60 DIA

(.377 DIA)

5.20

(.204)

2.00

(.078)

12.10 DIA

(.476 DIA)

1.40

(.055)

6.50 DIA

(.255 DIA)

0.80

(.031)

LOCKING RING

Brass

Nickel plated

U198

Matte black

U728

ANTI-ROTATE RING (LARGE) A158

Nickel plated brass 1/4

LOCKING RING U844

10mm (.393")

Nickel plated

14.00 DIA

(.551 DIA)

2.50

(.098)

ANTI-ROTATE RING A482

Nickel plated brass 15/32

11.80 DIA

(.464 DIA)

6.20

(.244)

2.00

(.078)

5.50

(.216)

9.40

(.370)

6.10 DIA

(.240 DIA)

0.80

(.031)

10.20 DIA

(.401 DIA)

1.10

(.043)

LOCKING RING

12mm (.472")

Nickel plated

U121

Matte black

U12

18.20 DIA

(.716 DIA)

0.80

(.031)

SEALING WASHER U360

1/4-40

For keyway bushing

SEALING WASHER U60

15/32

5.65

(.222)

SEALING WASHER

Nylon

12mm (.472")

U21

1.00

(.039)

2.80

(.110)

5.80

(.228)

12.00 DIA

(.472 DIA)

18.20 DIA

(.716 DIA)

11.80 DIA

(.464 DIA)

10.60 DIA

(.417 DIA)

15.00 DIA

(.590 DIA)

9.60

(.377)

6.40 DIA

(.251 DIA)

2.30

(.090)

12.20 DIA

(.480 DIA)

2.30

(.090)

17.00 DIA

(.669 DIA)

11.20

(.440)

11.10

(.437)

12.20 DIA

(.48 DIA)

GROUND CONNECTOR

12mm (.472") Nickel plated

U187

0.80

(.031)

SWITCH PLATE I-O U1050

.480 I.D.

0.50

(.019)

SWITCH PLATE ON-OFF U19

.480 I.D.

0.50

(.019)

CONNECTING SCREW U03

6.00 DIA

(.236 DIA)

18.00 DIA

(.708 DIA)

12.20 DIA

(.48 DIA)

28.00

(1.102)

28.00

(1.102)

6.35

(.25)

21.00 DIA

(.826 DIA)

12.20 DIA

(.48 DIA)

OFF

3.00 DIAx0.5

(.118 DIAx0.5)

12.20 DIA

(.48 DIA)

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

4.50

(.177)

18.00 DIA

(.708 DIA)

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

3.10 DIA

(.122 DIA)

6.50 DIA

(.255 DIA)

0.40

(.015)

1.40

(.055)

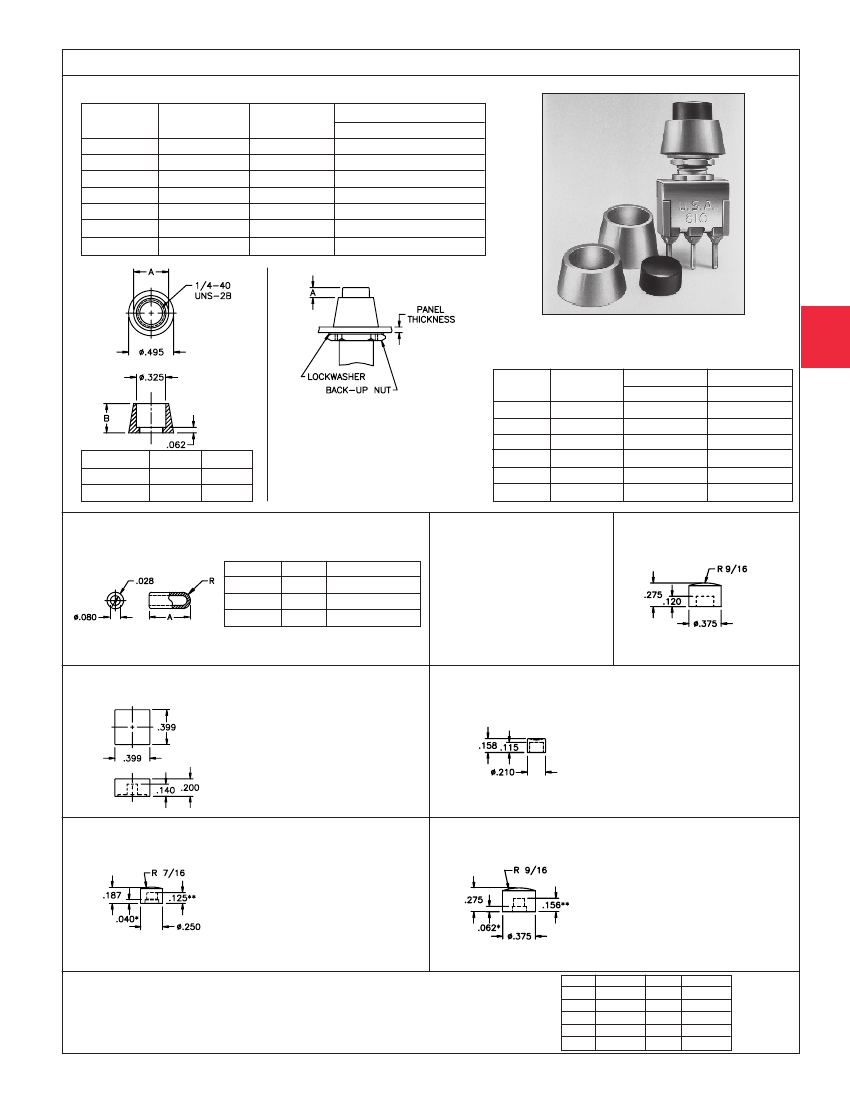

MISCELLANEOUS PUSHBUTTON ACCESSORIES & CAPS

PANEL DRESS NUTS & CAPS FOR PUSHBUTTON SWITCHES

ASSEMBLY

NUMBER

A1354P1

A1354P2

A1354P3

A1355P1

A1355P2

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Note: additional caps are

shown in some switch sections.

FITS SWITCH

MODEL

810/820

401/402

810/820

302

401/402

OPTION(S)

REQUIRED

NONE

PY or P2Y1

INCLUDES

DRESS NUT

A495P1

A495P2

CAP

B494P1

B494P2

B494P3

B494P1

B494P2

B494P3

A1355P2

A1355P3

(P.T.)

Order Assembly Number from chart to left. Add cap color no.

from color code chart below. Example: A1354P36 indicates

assembly to fit a PB switch and is supplied with a red cap.

SWITCH

MODEL

810/820

302

401/402

OPTION

(IF REQ'D)

P2Y1

A1354

P.T.

.040

.062

.100

.125

.130

.062

A1355

P.T.

.090

.093

.135

.171

.120

.093

.070

.078

.130

.078

PART NO.

A495P1

A495P2

A DIA.

.385

.413

B DIA.

.323

.245

'A' dimension is determined by

panel thickness indicated in table

and allows for (1) back-up Nut

A112 and (1) Lockwasher A115.

Order these separately to provide

for secure, vibration resistant

mounting.

COLOR CAP

Vinyl plastisol

PUSHBUTTON CAPS (ALL)

Material - Nylon

PART NO.

A118

A391

A392

DIM. A

5/16

3/16

3/4

FITS ACTUATOR

Caps press fit adequately, however

they may be pulled off. If permanent

retention is required, cement with

Loctite 405 or equivalent, insuring

no cement enters switch.

PUSHBUTTON CAP A212

FITS PB SERIES

COLOR CAPS B366 & B497

PUSHBUTTON CAPS A180 & A496

B366

fits 300 & 400 Series with

S option only, and all PB Series.

B497

fits 800 Series with options

KM, KS, KM1, K1M1 & K2M1.

A180

fits all PB Series.

A496

fits 800 Series with options

KM, KS, KM1, K1M1, K2M, K2S

&K2M1.

PUSHBUTTON CAP A235

PUSHBUTTON CAP A420

* - fits all PB, 300 & 400 Series.

** - fits 800 Series with options

KM, KS, KM1 & K2M1.

* - Fits all 300 Series except 301

& 305. Fits 301 & 305 with S

option. Fits all 400 & PB Series.

** - Fits 800 Series withoptions KM,

KS, KM1 & K2M1.

STANDARD COLOR CODE

For nylon caps, actuators, bezels & bezel inserts.

To specify, add selected color code to part number. Example: A2122 is a

black A212 Cap.To specify for actuators, bezels and bezel inserts, see

'Order Format' section following specific series information in this catalog.

Code

Color

blue

green

yellow

ivory

orange

Code

Color

black

gray

red

white

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com

Recommended Resources

answering machine circuit

Lithium battery charger circuit diagram

Touch AC switch circuit

Diode-Transistor NAND Gate Circuit

FM demodulator C

Ultrasonic humidifier circuit

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

ATS-54150W-C2-R0
HW-15-20-S-S-975-SM-TR
EVA-23-75+
MWDM3L-9CS-6J1-18S
FSGYE230R4
SS7A-02-198K-CGPB
2220F0250223JCBS02A
RNC60H3522BSBSL
1N746AB
P6SMBJ20CA-AU_R1_000A1
A5001HB-4P-GN
B3952H-12P
