NAZK101K35V6.3X8NBF

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size240KB,3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

NAZK101K35V6.3X8NBF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, CHIP, ROHS COMPLIANT

NAZK101K35V6.3X8NBF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNichicon
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance100 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee6
leakage current0.035 mA
Manufacturer's serial numberNAZK
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)35 V
ripple current150 mA
surface mountYES
Delta tangent0.12
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal shapeFLAT

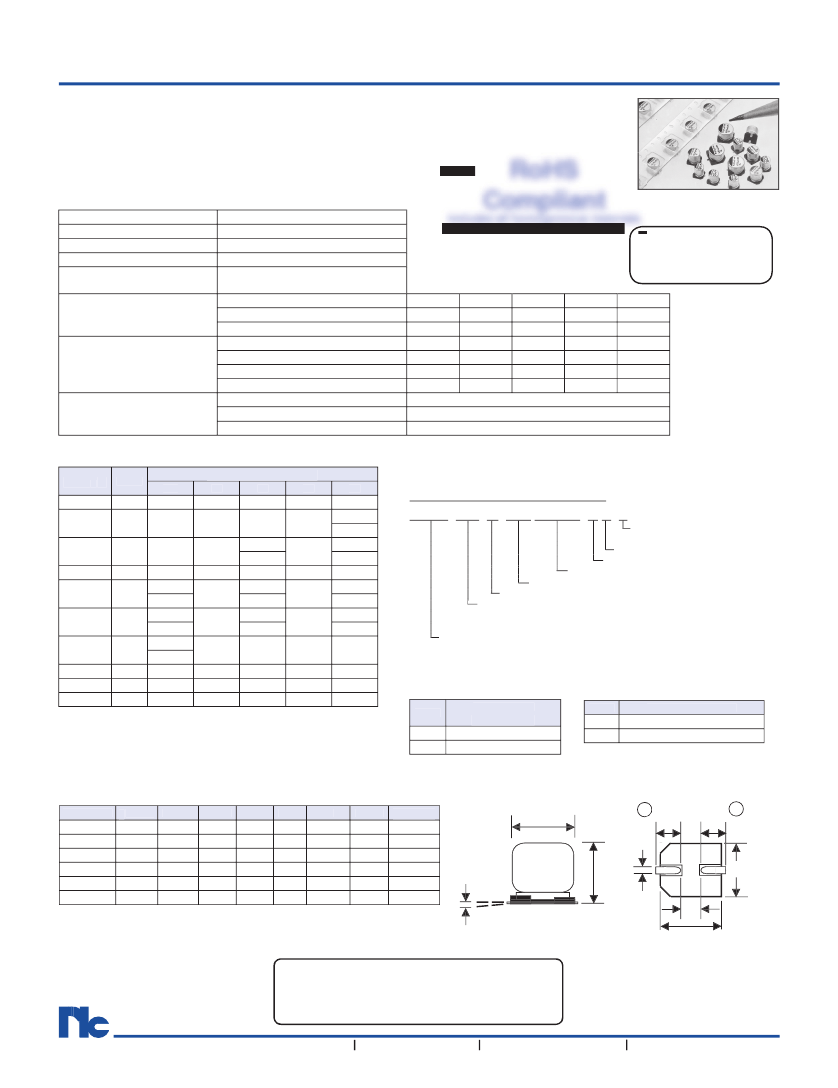

NAZK101K35V6.3X8NBF Preview

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C)
LOW IMPEDANCE AND HIGH RIPPLE CURRENT
2,000 HOUR LOAD LIFE @ +105°C
DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
NAZK Series
CHARACTERISTICS
Rated Voltage Rating
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Miuntes @ 20°C
Tan
δ
@ 120Hz/20°C
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 105°C
All Case Sizes = 2,000 hours
6.3 ~ 35Vdc
4.7 ~ 1,000µF
-55 ~ +105°C
±20% (M)
0.01CV or 3µA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
W.V. (Vdc)
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Z-55°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
includes all homogeneous materials
*See Part Number System for Details
LOW ESR COMPONENT
LIQUID ELECTROLYTE
For Performance Data
see www.LowESR.com
RoHS
Compliant
10
16
25
35
13
20
32
44
0.19
0.16
0.14
0.12
10
16
25
35
2
2
2
2
3
3
3
3
4
4
3
3
Within ±30% of initial measured value
Less than ±200% of the specified maximum value
Less than the specified maximum value
6.3
8.0
0.26
6.3
2
3
4
STANDARD VALUES AND CASE SIZES (mm)
Cap (µF) Code
4.7
10
22
33
47
100
220
330
470
1000
4R7
100
220
330
470
101
221
331
-
102
6.3
-
-
4x6.1
-
4x6.1
5x6.1
5x6.1
6.3x6.1
6.3x6.1
6.3x8
6.3x8
8x10.5
-
Working Voltage (Vdc)
10
16
25
-
-
-
-
-
5x5.5
-
-
6.3x8
35
4x6.1
4x6.1
4x6.1
-
5x6.1
4x6.1
5x6.1
-
5x6.1
6.3x6.1
-
6.3x5.5
-
5x6.1
6.3x6.1
6.3x6.1
6.3x6.1
6.3x8
6.3x6.1
6.3x8
6.3x8
6.3x8
8x10.5
6.3x8
8x10.5
8x10.5
PART NUMBER SYSTEM
NAZK 101 M 16V 6.3x6.1 N B F
RoHS Compliant
Termination/Packaging Code
Reflow
Reflow Temperature Code
Size in mm
Working Voltage
Tolerance Code M=20%, K=10%
Capacitance Code in
µF,
first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10µF
10
Series
-
8x10.5 8x10.5 10x10.5
8x10.5 8x10.5 10x10.5
-
8x10.5 10x10.5
-
-
PEAK REFLOW
TEMPERATURE CODES
Code
N
L
Peak Reflow
Temperature
260°C
250°C
TERMINATION FINISH &
PACKAGING OPTIONS CODES
Code
B
LB
Finish & Reel Size
Sn-Bi Finish & 13" Reel
Sn-Bi Finish & 15" Reel
DIMENSIONS (mm) AND REEL QUANTITIES
Case Size
φD±0.5
L max. A±0.2 B±0.2 I±0.3
W
P±0.3 Qty/Reel
4x6.1
4.0
6.1
4.3
4.3
1.8 0.5~0.8 1.0
1,200
5x6.1
5.0
6.1
5.3
5.3
2.2 0.5~0.8 1.3
800
6.3x6.1
6.3
6.1
6.6
6.6
2.7 0.5~0.8 1.8
800
6.3x8
6.3
8.0
6.6
6.6
2.7 0.5~0.8 1.8
500
8x10.5
8.0
10.5
8.3
8.3
2.9 0.8~1.1 3.1
300
10x10.5
10.0
10.5
10.3 10.3 3.2 0.8~1.1 4.5
300
W
0.3mm max.
+
I
I
-
L
P
B
A
®
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
43
Surface Mount Aluminum Electrolytic Capacitors
STANDARD VALUES, CASE SIZES AND SPECIFICATIONS
NIC Part Number
NAZK220M6.3V4X6.1NBF
NAZK470M6.3V4X6.1NBF
NAZK470M6.3V5X6.1NBF
NAZK101M6.3V5X6.1NBF
NAZK101M6.3V6.3X6.1NBF
NAZK221M6.3V6.3X6.1NBF
NAZK221M6.3V6.3X8NBF
NAZK331M6.3V6.3X8NBF
NAZK102M6.3V8X10.5LBF
NAZK330M10V4X6.1NBF
NAZK221M10V6.3X8NBF
NAZK471M10V8X10.5LBF
NAZK681M10V8X10.5LBF
NAZK102M10V10X10.5LBF
NAZK100M16V4X6.1NBF
NAZK220M16V4X6.1NBF
NAZK220M16V5X6.1NBF
NAZK330M16V5X6.1NBF
NAZK470M16V5X6.1NBF
NAZK470M16V6.3X6.1NBF
NAZK101M16V6.3X6.1NBF
NAZK101M16V6.3X8NBF
NAZK221M16V6.3X8NBF
NAZK331M16V8X10.5LBF
NAZK471M16V8X10.5LBF
NAZK681M16V10X10.5LBF
NAZK330M25V5X6.1NBF
NAZK330M25V6.3X6.1NBF
NAZK470M25V6.3X6.1NBF
NAZK101M25V6.3X8NBF
NAZK221M25V8X10.5LBF
NAZK331M25V8X10.5LBF
NAZK471M25V10X10.5LBF
NAZK4R7M35V4X6.1NBF
NAZK100M35V4X6.1NBF
NAZK100M35V5X6.1NBF
NAZK220M35V5X6.1NBF
NAZK220M35V6.3X6.1NBF
NAZK330M35V6.3X6.1NBF
NAZK470M35V6.3X6.1NBF
NAZK470M35V6.3X8NBF
NAZK101M35V6.3X8NBF
NAZK101M35V8X10.5LBF
NAZK221M35V8X10.5.BF
NAZK331M35V10X10.5LBF
Cap.
(µF)
22
47
47
100
100
220
220
330
1000
33
220
470
680
1000
10
22
22
33
47
47
100
100
220
330
470
680
33
33
47
100
220
330
470
4.7
10
10
22
22
33
47
47
100
100
220
330
W.V.
(Vdc)
Dissipaton Factor
(Tan
δ)
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.26
0.19
0.19
0.19
0.19
0.19
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
Max. Impedance (Ω)
+20°C/100KHz
1.35
1.35
0.70
0.70
0.36
0.36
0.34
0.34
0.16
1.35
0.34
0.16
0.16
0.08
1.35
1.35
0.70
0.70
0.70
0.36
0.36
0.34
0.34
0.16
0.16
0.08
0.70
0.36
0.36
0.34
0.16
0.16
0.09
1.45
1.45
0.70
0.70
0.36
0.36
0.36
0.34
0.34
0.16
0.16
0.09
NAZK Series
Load Life Hours
@ +105°C
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
6.3
10
16
25
35
Max. Ripple Current (mA)
+105°C/100KHz
90
90
170
170
250
250
300
300
600
90
300
600
600
850
90
90
170
170
170
250
250
300
300
600
600
850
170
250
250
300
600
600
850
90
90
170
170
250
250
250
300
300
600
600
850
RIPPLE CURRENT FREQUENCY CORRECTION FACTORS
Frequency
4.7µF
10 ~ 33µF
47 ~ 100µF
220 ~ 1000µF
120Hz
0.42
0.45
0.50
0.60
500Hz
0.60
0.75
0.80
0.85
1KHz
0.80
0.90
0.95
0.95
10KHz
1.00
1.00
1.00
1.00
®
44
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Surface Mount Aluminum Electrolytic Capacitors
PEAK REFLOW TEMPERATURE AND DURATION
Temperature - Deg. C
Diameter
4 ~ 6.3mm
φ
8 ~ 10mm
φ
Time above
217°C
60 sec. max.
60 sec. max.
Peak Temperature
5 seconds
260°C
250°C
NAZK Series
Peak Temperature
(see table)
230
200
150
100
50
Time (Seconds)
Preheat - 120 seconds max.
(150°C ~ 180°C)
Time Above 217°C
(see table)
RECOMMENDED LAND PATTERN DIMENSIONS (mm)
Case Size
4x6.1
5x6.1
6x3x6.1
8x10.5
10x10.5
a
1.0
1.4
2.1
3.0
4.5
b
2.6
3.0
3.5
4.1
4.3
c
1.6
1.6
1.6
2.2
2.2
a
c
b
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
45
