Printview: Male connector; 100% protected against mismating - Item No.: 723-602/000-040
.
Male connector; 100% protected against mismating
Item No.: 723-602/000-040
.
Male connector; 100% protected against mismating
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
723-602/000-040
4050821404446
1
100
Item description:Universal connection for all conductor typesEasy cable pre-assembly and on-unit wiring via vertical
and horizontal CAGE CLAMP® actuationFor “wire-to-wire” and “board-to-wire” connectionsOptional, preceding
ground contact available for 3- to 5-pole male connectors100% protected against mismatingCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings per
2
7.5 mm (0.295 in)
light gray
IEC/EN 60664-1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male connector; 100% protected against mismating - Item No.: 723-602/000-040
Technical data
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
500 [V]
6 [kV]
2
630 [V]
6 [kV]
1000 [V]
6 [kV]
12 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
CAGE CLAMP®
1
Operating tool
0.08 … 2.5 mm² / 28 … 12 AWG
0.08 … 2.5 mm² / 28 … 12 AWG
0.25 … 1.5 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 1.5 mm² / …
Strip length
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Depth
8 … 9 mm / 0.31 … 0.35 Inch
I
Polyamide 66 (PA 66)
V0
-60 … 100 °C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
0.073 [MJ]
4.34 [g]
15.7 mm / 0.618 Inch
14.3 mm / 0.563 Inch
27.5 mm / 1.083 Inch
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male connector; 100% protected against mismating - Item No.: 723-602/000-040

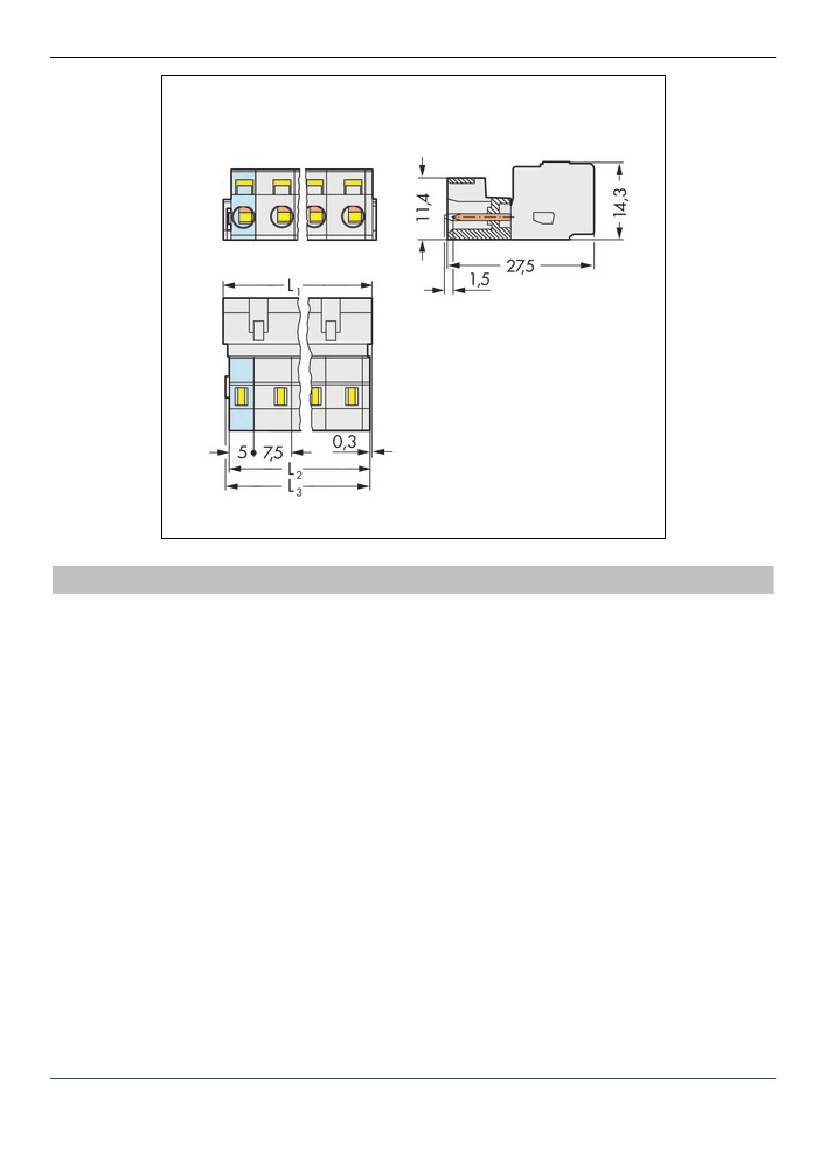

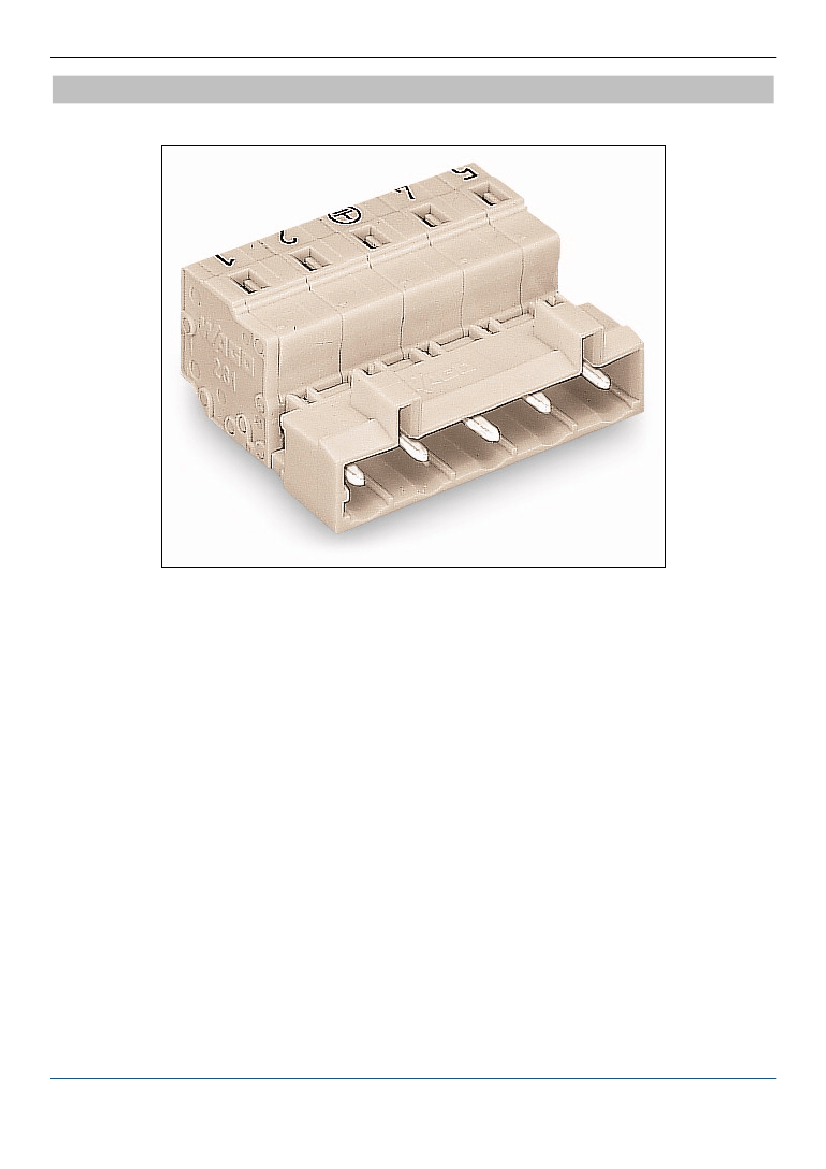

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male connector; 100% protected against mismating - Item No.: 723-602/000-040
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
