769-108/000-039 datasheet, PDF

Datasheet> All Categories > The connector> 769-108/000-039

769-108/000-039: DescriptionBarrier Strip Terminal Block; CategoryThe connector; File Size104KB，4 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric View All

769-108/000-039 Overview

Barrier Strip Terminal Block

769-108/000-039 Parametric

Parameter Name	Attribute value
Maker	WAGO
Reach Compliance Code	unknown
ECCN code	EAR99
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

769-108/000-039 Preview

Printview: 1-conductor female plug; with ground end module (green-yellow); for insertion into carrier

terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 8-pole -

Item No.: 769-108/000-039

1-conductor female plug; with ground end module (green-yellow);

for insertion into carrier terminal blocks or male connectors;

codable; can be commoned with miniature adjacent jumpers; 8-

pole

Item No.: 769-108/000-039

1-conductor female plug; with ground end module (green-yellow); for insertion into carrier terminal blocks or male

connectors; codable; can be commoned with miniature adjacent jumpers; 8-pole

Marking

Business data

Supplier

Item no.

GTIN / EAN

Content

Order amount

Customer item number

Notes

WAGO

769-108/000-039

4050821653486

Item description:According to EN 61984, pluggable connectors without current interrupting capacity shall not be

mated and unmated when live or under load.

Technical data

Miscellaneous

No. of poles

Total number of connection points

Total number of potentials

Color

Ratings according to 1

green-yellow, blue, gray

IEC/EN 61984

WAGO Kontakttechnik GmbH & Co. KG

Printview: 1-conductor female plug; with ground end module (green-yellow); for insertion into carrier

terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 8-pole -

Item No.: 769-108/000-039

Technical data

Rated voltage (III / 3) [V]

Rated surge voltage (III / 3) [kV]

Nominal current [A]

Connection technology

Number of connection points

Actuation type

Connectable conductor materials

Nominal cross section

Solid sizes

Fine-stranded wires

Strip length

Type of wiring

Marking level

Insulating material

Fire load [MJ]

Weight [g]

Width

Height

Length

Module width [mm]

Module width [inch] [inch]

500 [V]

6 [kV]

32 [A]

CAGE CLAMP®

Betätigungswerkzeug

Kupfer

4 mm²

0.08 … 4 mm² / 28 … 12 AWG

8 … 9 mm / 0.31 … 0.35 in

Front-entry wiring

Side marking

Polyamide 66 (PA 66)

0.43 [MJ]

25.898 [g]

40 mm / 1.575 in

45.2 mm / 1.78 in

18.3 mm / 0.72 in

5 [mm]

0.197 [inch]

WAGO Kontakttechnik GmbH & Co. KG

Printview: 1-conductor female plug; with ground end module (green-yellow); for insertion into carrier

terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 8-pole -

Item No.: 769-108/000-039

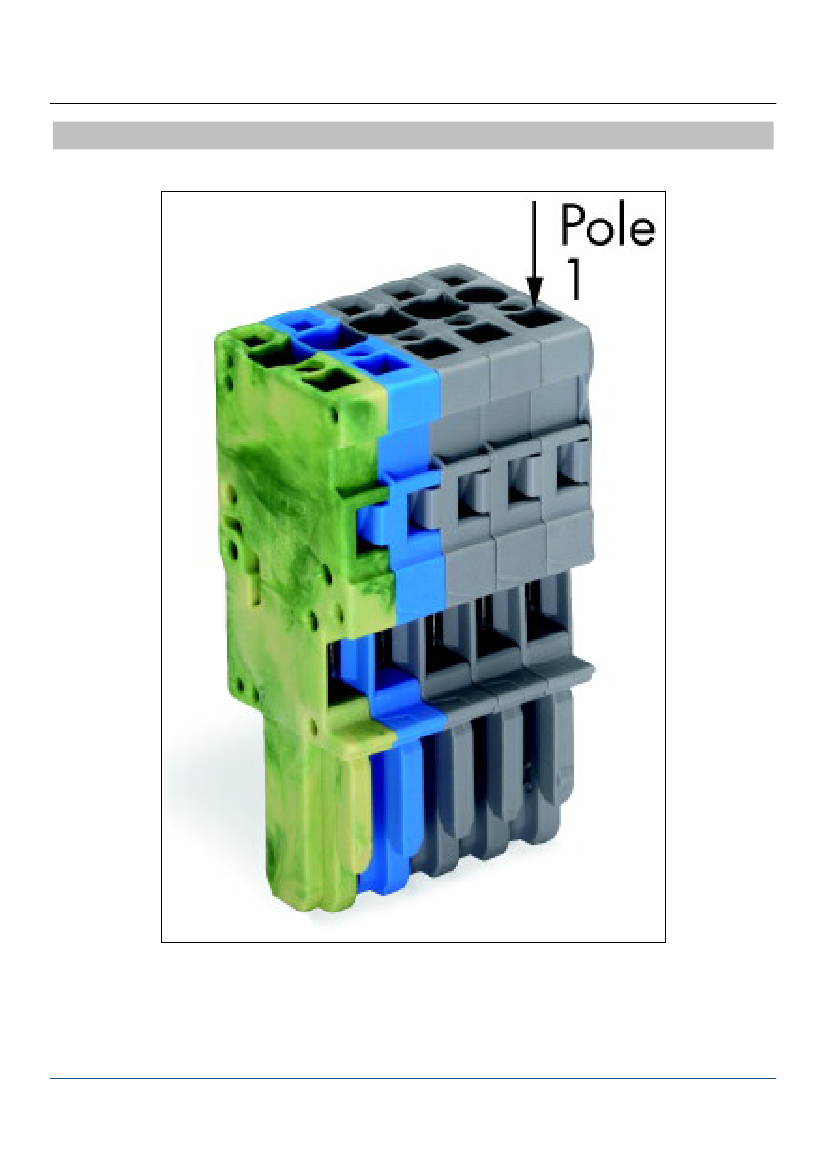

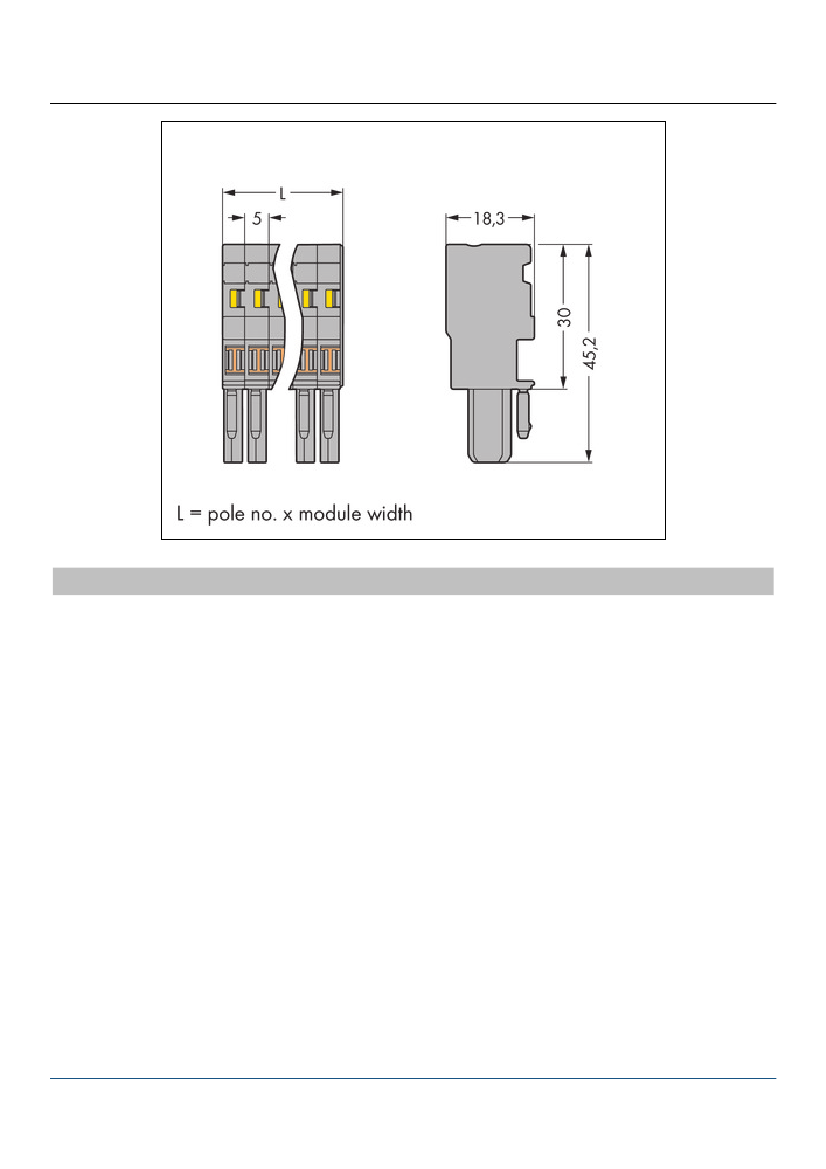

Images & drawings

WAGO Kontakttechnik GmbH & Co. KG

Printview: 1-conductor female plug; with ground end module (green-yellow); for insertion into carrier

terminal blocks or male connectors; codable; can be commoned with miniature adjacent jumpers; 8-pole -

Item No.: 769-108/000-039

Address

WAGO Kontakttechnik GmbH & Co. KG

Hansastr. 27

32423 Minden

Telefon: 0571/887-0

Fax: 0571/887-169

http://www.wago.com

Technische Änderungen und Irrtümer vorbehalten.

WAGO Kontakttechnik GmbH & Co. KG
