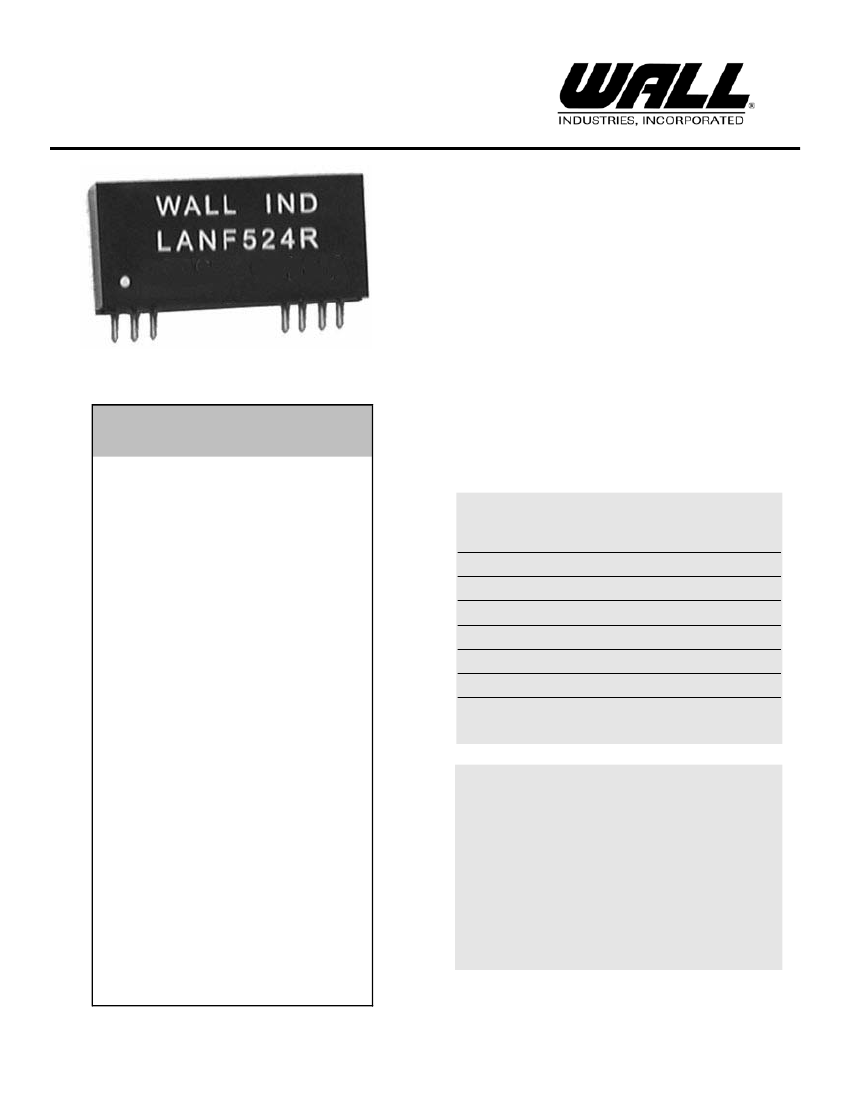

LAN F SERIES
dc/dc converters
Single and Dual Output, to 1.8 Watts
• Ultra Miniature SIP: 12 Pin
• Two levels of I/O Isolation Available,
500VDC or 3KVDC
• Single and Dual Outputs
• Low Ripple and Noise
• Regulated and Non-Regulated Versions
• RoHS Approved Type Available
THE LAN F SERIES
When board space is at a premium and voltage con-
versions require low power, the LAN F Series
miniature converters, offer superior solutions for an
economical cost. A multitude of options and operat-
ing ranges allow you to custom-tailor the converter
to the demands of the application. The LAN F
series provides up to 1.8 watts of power while main-
taining specification over the entire commercial
operation temperature range.
MODELS
Input Output Output
Model
Voltage Voltage Current
Number
(VDC)
(VDC)
(mA) (SEE NOTE 2)
5
5
300 LANF505N
5
9
170 LANF509N
5
12
125 LANF512N
5
15
100 LANF515N
5
24
65
LANF524N
5
±5
100 LANF505ND
5
±12
60
LANF512ND
5
±15
50
LANF515ND
12
5
300 LANF1205N
12
9
170 LANF1209N
12
12
125 LANF1212N
12
15
100 LANF1215N
12
24
65
LANF1224N
12
±5
100 LANF1205ND
12
±12
60
LANF1212ND
12
±15
50
LANF1215ND
15
5
300 LANF1505N
15
9
170 LANF1509N
15
12
125 LANF1512N
15
15
100 LANF1515N
15
24
65
LANF1524N
15
±5
100 LANF1505ND
15
±12
60
LANF1512ND
15
±15
50
LANF1515ND
24
5
300 LANF2405N
24
9
170 LANF2409N
24
12
125 LANF2412N
24
15
100 LANF2415N
24
24
65
LANF2424N
24
±5
100 LANF2405ND
24
±12
60
LANF2412ND
24
±15
50
LANF2415ND

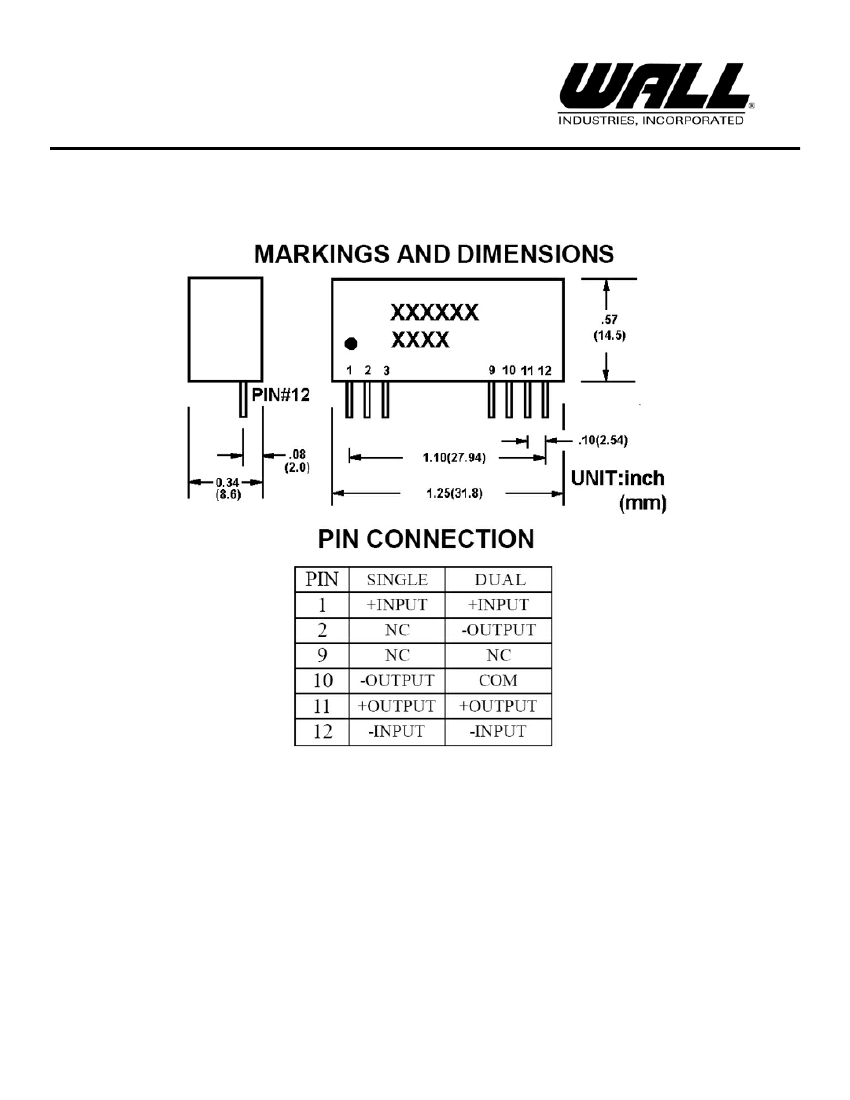

PIN CONNECTIONS
“H OPTION”
1
2
3
9
10
11
12
+Vin
-Vin
NC
-Vout
-Vout
+ Vout
+ Vout
Single
+ Vin
NC
N/C
NC
- Vout
+ Vout
- Vin
Dual
consult
factory
for
Dual
Pin-out
NOTES:
1. All case and pin-to-case dimensions reference
only unless otherwise noted.
2. All LANF models can be regulated, substitute
“R” for “N” in last digits of part number
3. Add ”H” onto end of LANF part number for
3000VDC isolation.
4. For RoHS type add suffix “-NL” to part number.
12/12/2006
888 597-9255
www.wallindustries.com
1
LAN F SERIES
dc/dc converters
Single and Dual Output, to 1.8 Watts
All specifications apply at 25ºC unless otherwise noted.
SPECIFICATIONS
Specifications
(all specifications apply @ +25 C ambient unless otherwise noted.)
Input Voltage Range
±10%
Input Filtering
Pi Network
Output Current
See table
Output Current
See table
Voltage Tolerance
±5%(nom. line 100% load)
Regulation:
Line: Regulated
±0.3%
Load: Regulated
±0.5%
Line:Non-Regulated
±1.2%/% of Vin
Load: Non-Regulated (load 20% to 100%)
±10%
Short Circuit Protection
Continuous
Ripple/Noise (20MHz BW)
50mV p-p max.
General Specifications
Efficiency (Typical) Regulated
55 to 65%
Non-Regulated
70 to 75%
Isolation Voltage (input to output)
500VDC or 3000VDC
Switching Frequency
20kHz minimum
Operating Temperature
-25 to +71°C
Storage Temperature
-40 to +100°C
Cooling
Free Air Convection
Dimensions
1.29 x 0.40 x 0.55”
Case Material
Non-Conductive Black Plastic
Due to advances in technology, specifications subject to change without notice.
12/12/2006
888 597-9255
www.wallindustries.com
2
