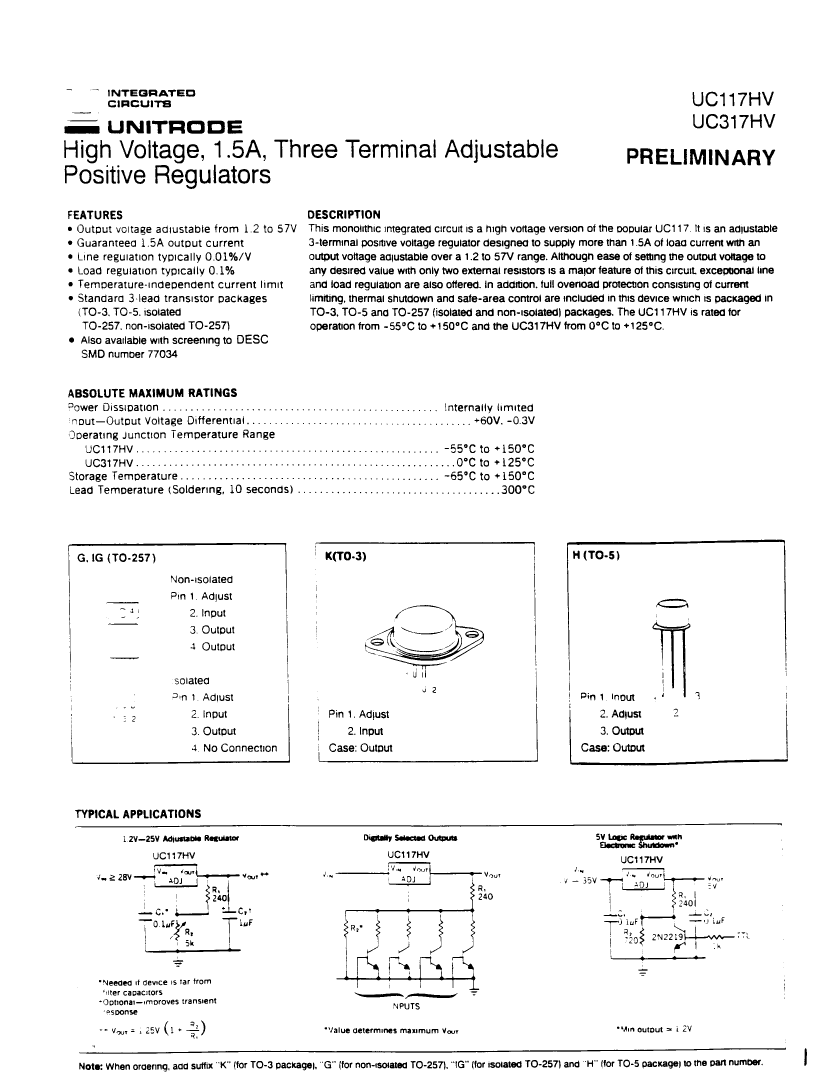

Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBFM2, TO-3

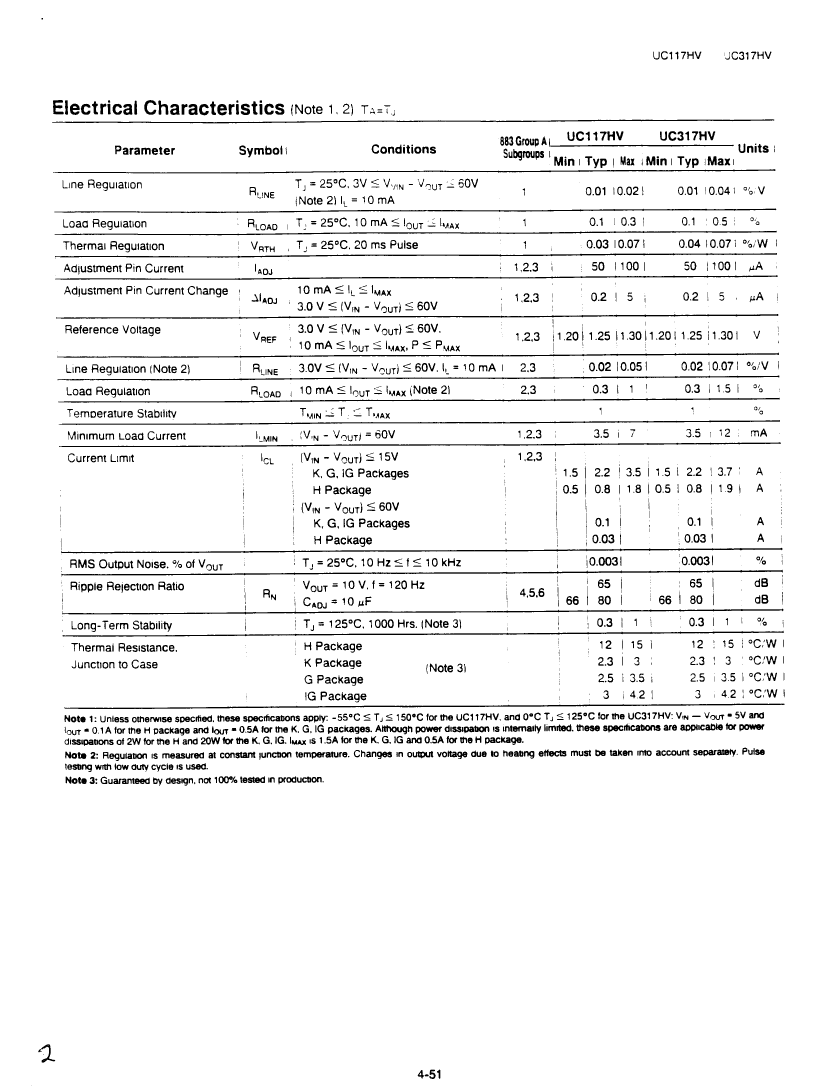

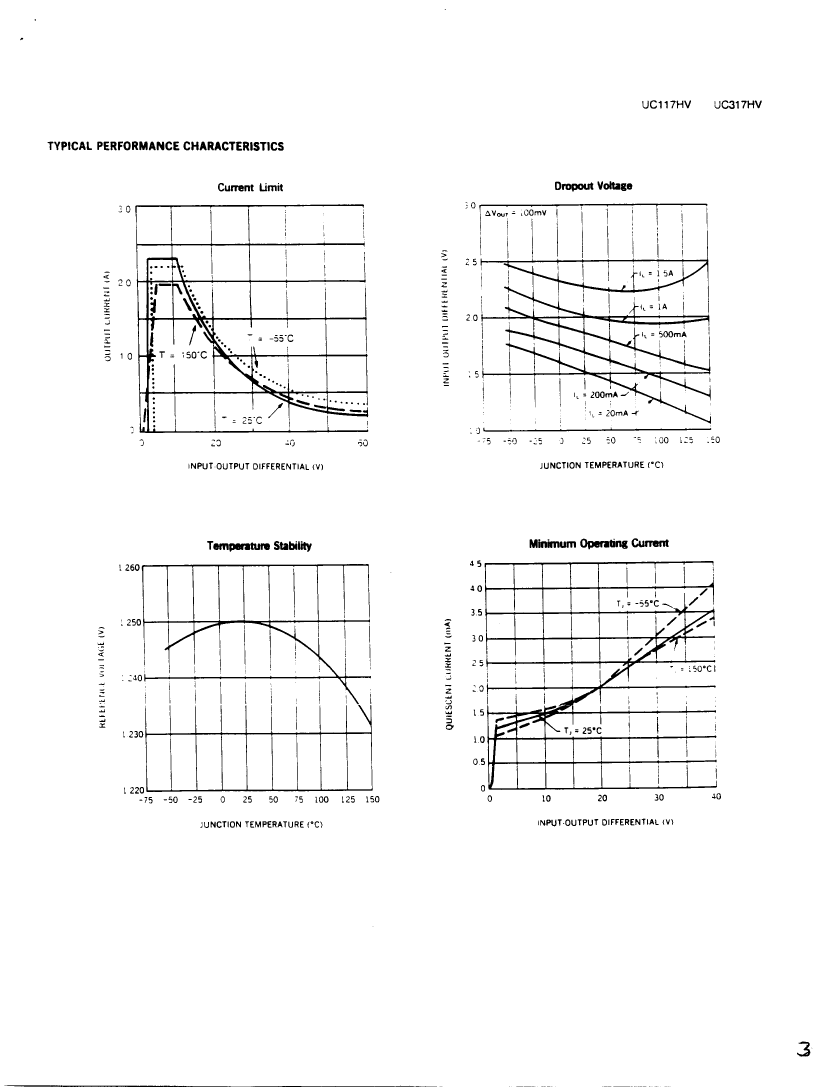

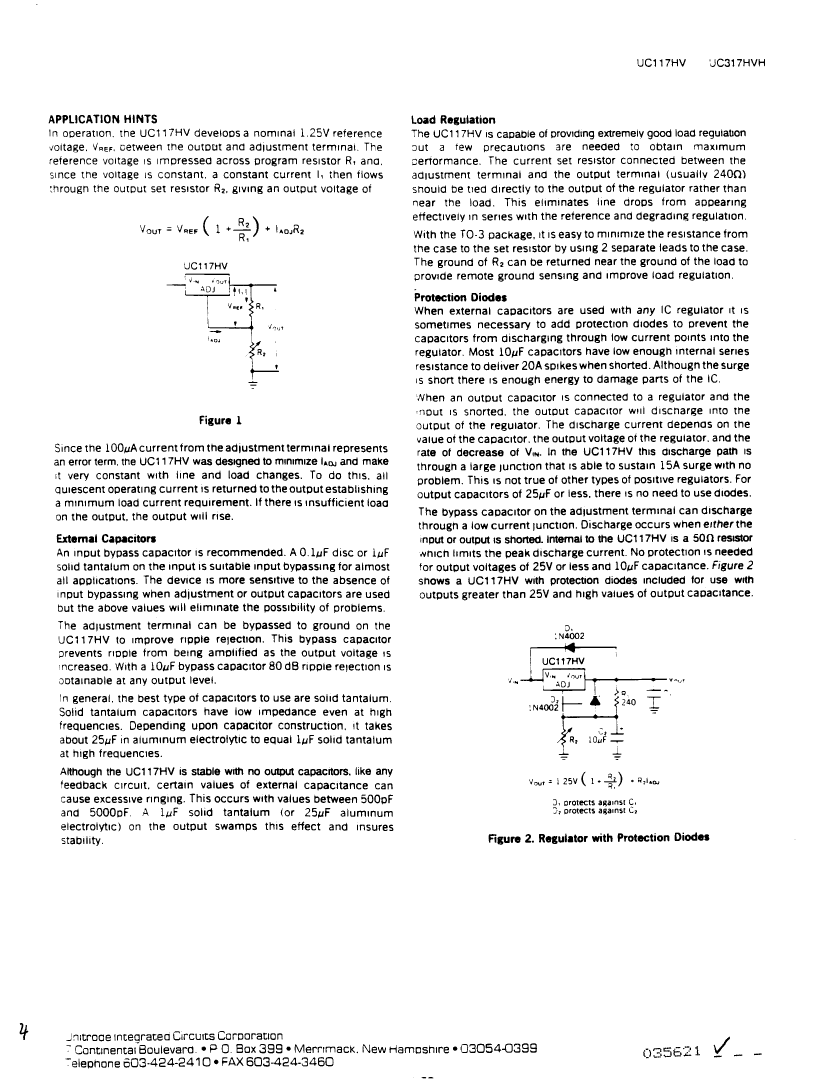

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Unitrode Corporation |
| package instruction | , TO-204/-3 |
| Reach Compliance Code | unknown |
| Adjustability | ADJUSTABLE |
| JESD-30 code | O-MBFM-P2 |
| JESD-609 code | e0 |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 2 |
| Working temperatureTJ-Max | 150 °C |
| Working temperature TJ-Min | -55 °C |
| Maximum output current 1 | 1.5 A |
| Maximum output voltage 1 | 37 V |
| Minimum output voltage 1 | 1.2 V |
| Package body material | METAL |
| Encapsulate equivalent code | TO-204/-3 |
| Package shape | ROUND |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Regulator type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Filter level | MIL-STD-883 Class B |
| surface mount | NO |
| technology | BIPOLAR |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| UC117K/883B | UC117K | UC117G | UC317T | UC117H | UC317K | UC117H/883BC | UC117K/883BC | UC117G/883BC | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBFM2, TO-3 | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBFM2, TO-3 | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, CSFM3, TO-257 | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, PSFM3, TO-220, 3 PIN | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBCY3, TO-3, 2 PIN | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBFM2, TO-3 | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBCY3, TO-3, 2 PIN | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, MBFM2, TO-3 | Adjustable Positive Standard Regulator, 1.2V Min, 37V Max, BIPolar, CSFM3, TO-257 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation |
| package instruction | , TO-204/-3 | TO-3 | TO-257 | TO-220, 3 PIN | TO-3, 2 PIN | TO-3 | , CAN3/4,.2 | , TO-204/-3 | , SIP3,.1TB |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Adjustability | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE |
| JESD-30 code | O-MBFM-P2 | O-MBFM-P2 | R-CSFM-T3 | R-PSFM-T3 | O-MBCY-W3 | O-MBFM-P2 | O-MBCY-W3 | O-MBFM-P2 | R-CSFM-T3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 3 | 3 | 3 | 2 | 3 | 2 | 3 |
| Working temperatureTJ-Max | 150 °C | 150 °C | 150 °C | 125 °C | 150 °C | 125 °C | 150 °C | 150 °C | 150 °C |
| Working temperature TJ-Min | -55 °C | -55 °C | -55 °C | - | -55 °C | - | -55 °C | -55 °C | -55 °C |
| Maximum output current 1 | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 0.5 A | 1.5 A | 0.5 A | 1.5 A | 1.5 A |
| Maximum output voltage 1 | 37 V | 37 V | 37 V | 37 V | 37 V | 37 V | 37 V | 37 V | 37 V |
| Minimum output voltage 1 | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V |
| Package body material | METAL | METAL | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | METAL | METAL | METAL | METAL | CERAMIC, METAL-SEALED COFIRED |
| Encapsulate equivalent code | TO-204/-3 | TO-204/-3 | SIP3,.1TB | SIP3,.1TB | CAN3/4,.2 | TO-204/-3 | CAN3/4,.2 | TO-204/-3 | SIP3,.1TB |
| Package shape | ROUND | ROUND | RECTANGULAR | RECTANGULAR | ROUND | ROUND | ROUND | ROUND | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | CYLINDRICAL | FLANGE MOUNT | CYLINDRICAL | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Regulator type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG | PIN/PEG | THROUGH-HOLE | THROUGH-HOLE | WIRE | PIN/PEG | WIRE | PIN/PEG | THROUGH-HOLE |
| Terminal location | BOTTOM | BOTTOM | SINGLE | SINGLE | BOTTOM | BOTTOM | BOTTOM | BOTTOM | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum Differential Input-Output Voltage | - | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V |
| Minimum Differential Input-Output Voltage | - | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
