CL001S02320HPAT-60 datasheet, PDF

Datasheet> All Categories > storage> storage> CL001S02320HPAT-60

CL001S02320HPAT-60: DescriptionFast Page DRAM Module, 2MX32, 60ns, CMOS; Categorystorage storage; File Size449KB，14 Pages; ManufacturerCelestica Inc.

Download Datasheet Parametric Compare View All

CL001S02320HPAT-60 Overview

Fast Page DRAM Module, 2MX32, 60ns, CMOS

CL001S02320HPAT-60 Parametric

Parameter Name	Attribute value
Maker	Celestica Inc.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-XDMA-N72
memory density	67108864 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL

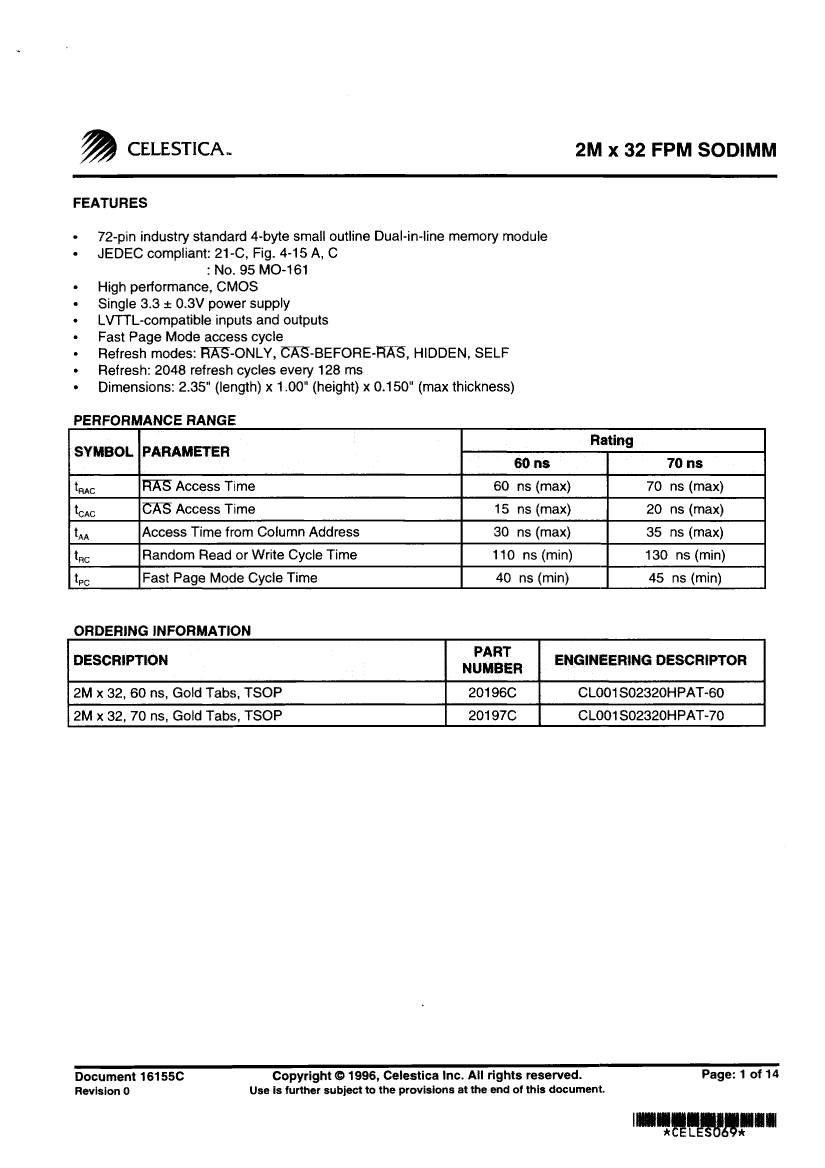

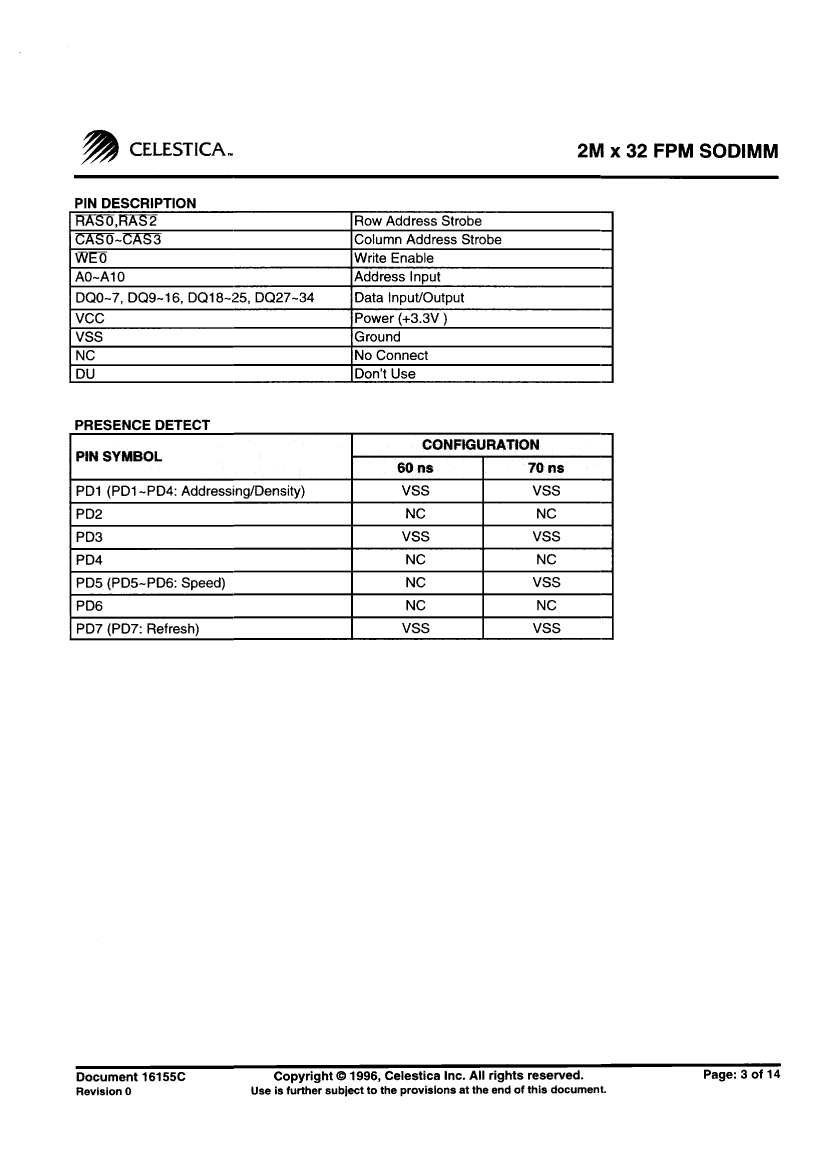

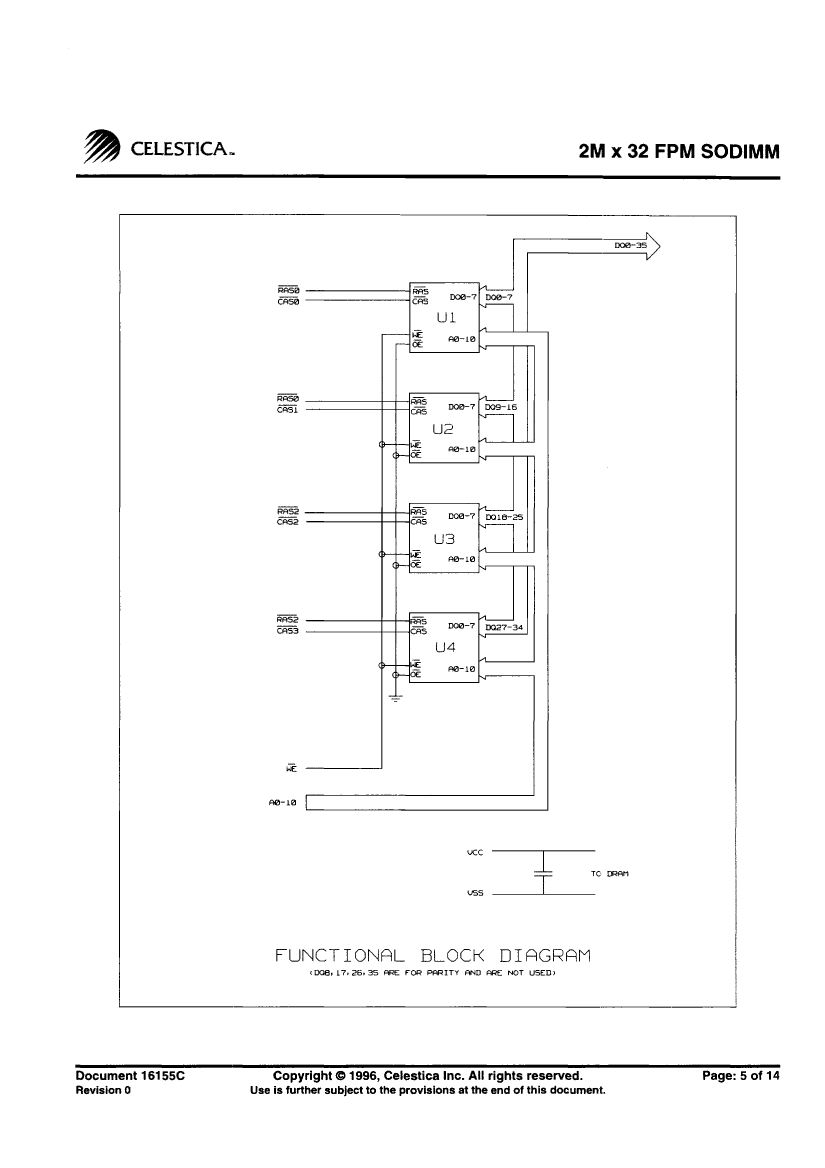

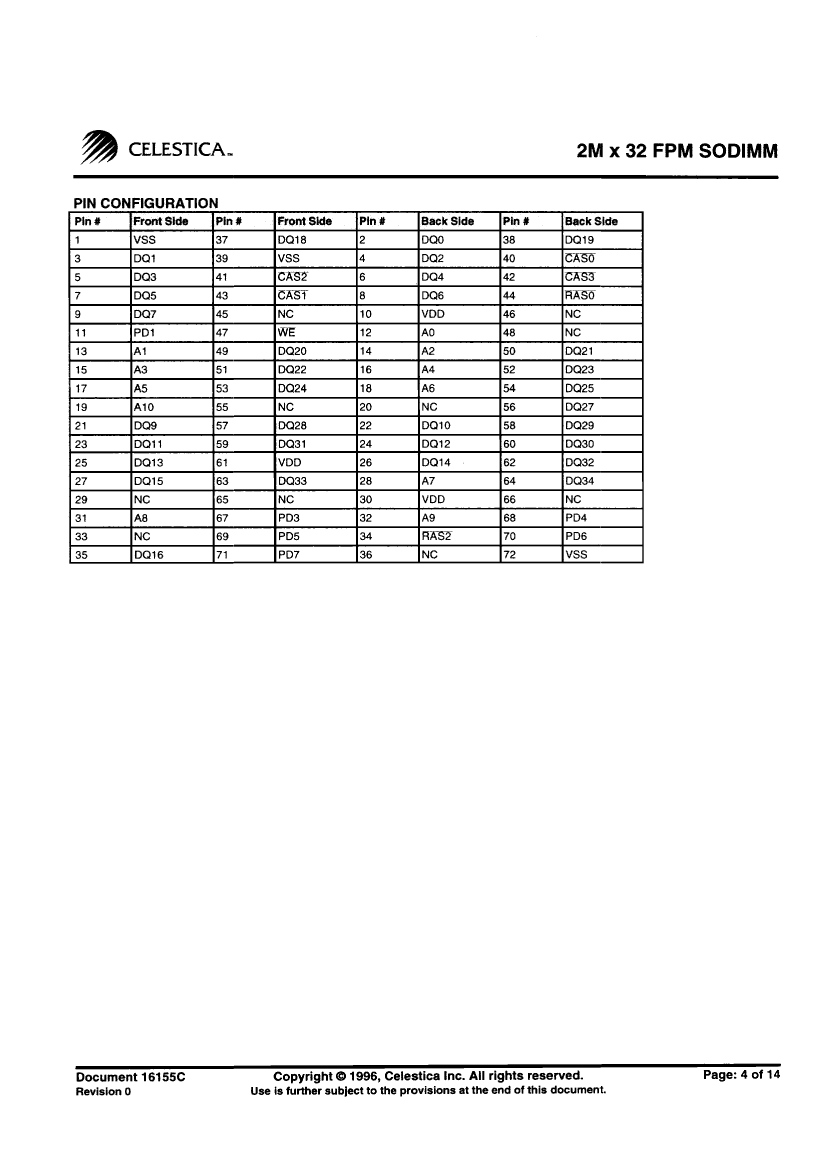

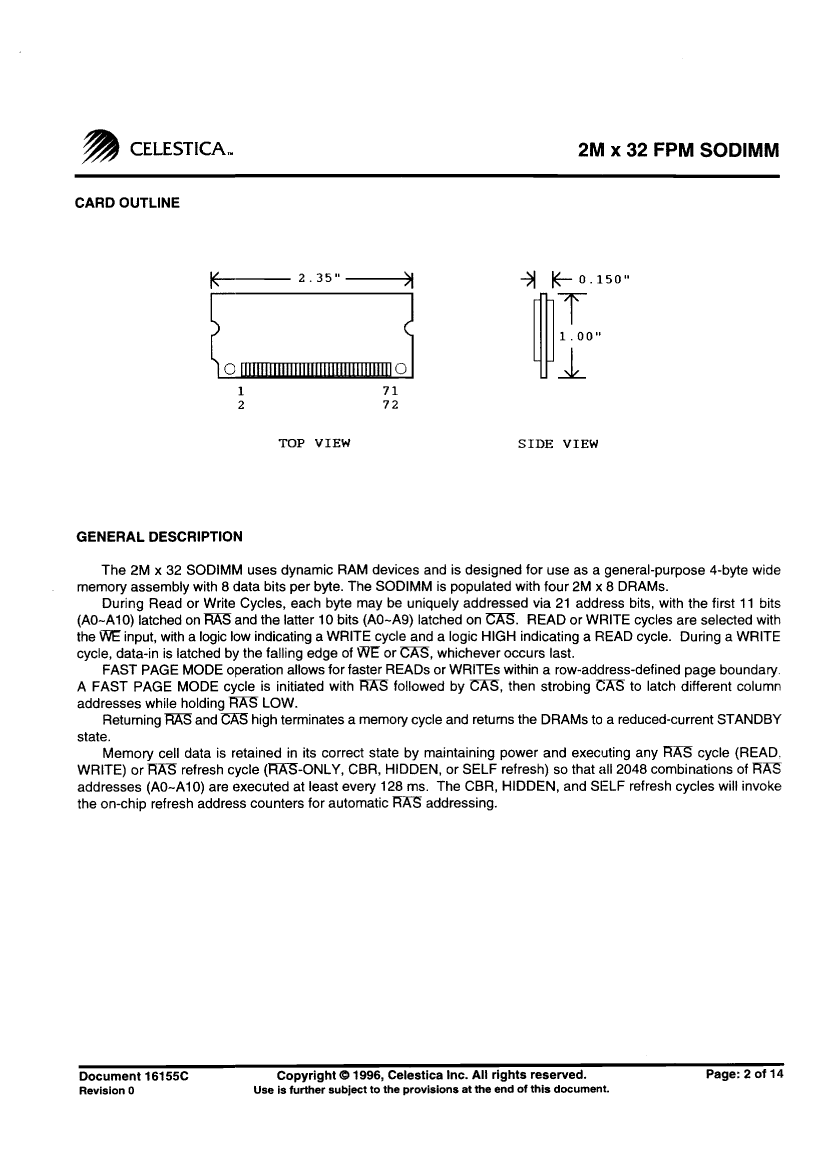

Preview

Download Datasheet

View All

CL001S02320HPAT-60 Related Products

	CL001S02320HPAT-60	20196C	20197C	CL001S02320HPAT-70
Description	Fast Page DRAM Module, 2MX32, 60ns, CMOS	Fast Page DRAM Module, 2MX32, 60ns, CMOS	Fast Page DRAM Module, 2MX32, 70ns, CMOS	Fast Page DRAM Module, 2MX32, 70ns, CMOS
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	60 ns	60 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	32	32
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	72	72	72	72
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX32	2MX32	2MX32	2MX32
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
self refresh	YES	YES	YES	YES
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL
