Part Number

Search

MH4M08A0AJA-7

Description
Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30
Categorystorage    storage
File Size391KB,12 Pages
ManufacturerMitsubishi
Websitehttp://www.mitsubishielectric.com/semiconductors/
Download Datasheet Parametric Compare View All

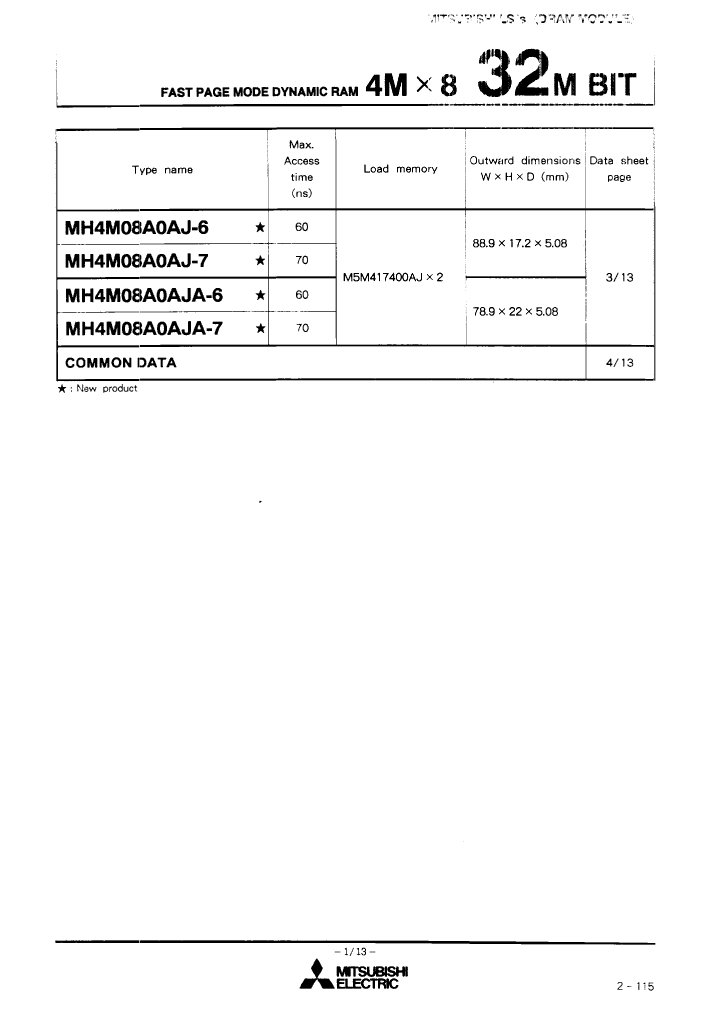

MH4M08A0AJA-7 Overview

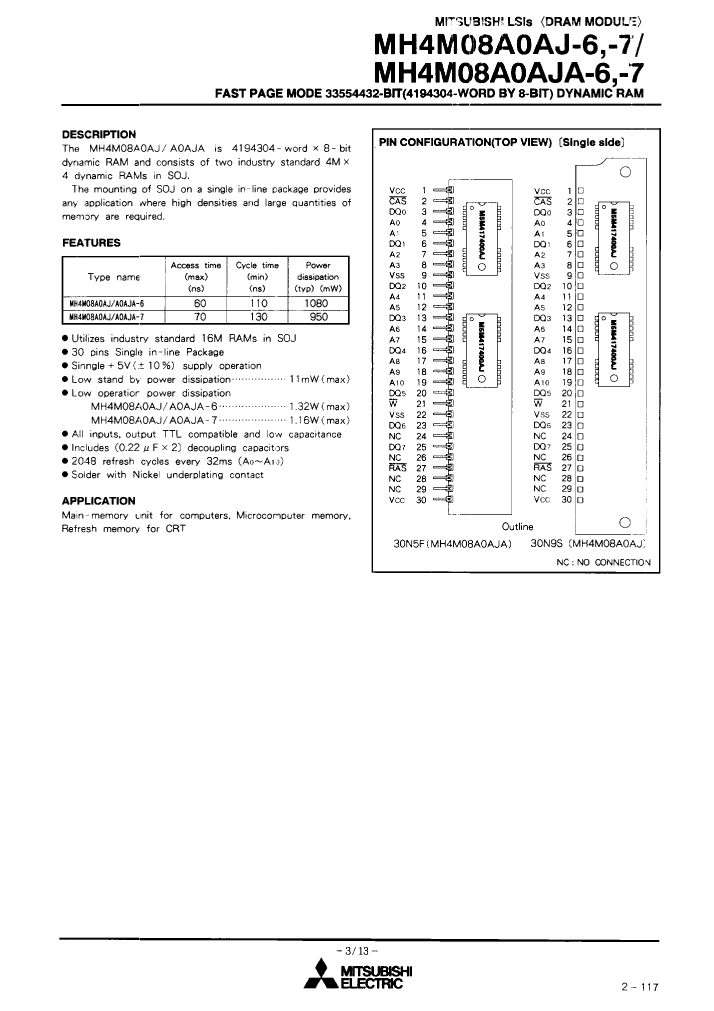

Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30

MH4M08A0AJA-7 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMitsubishi
Parts packaging codeSIMM
package instruction, SIP30
Contacts30
Reach Compliance Codeunknown
ECCN codeEAR99
access modeFAST PAGE

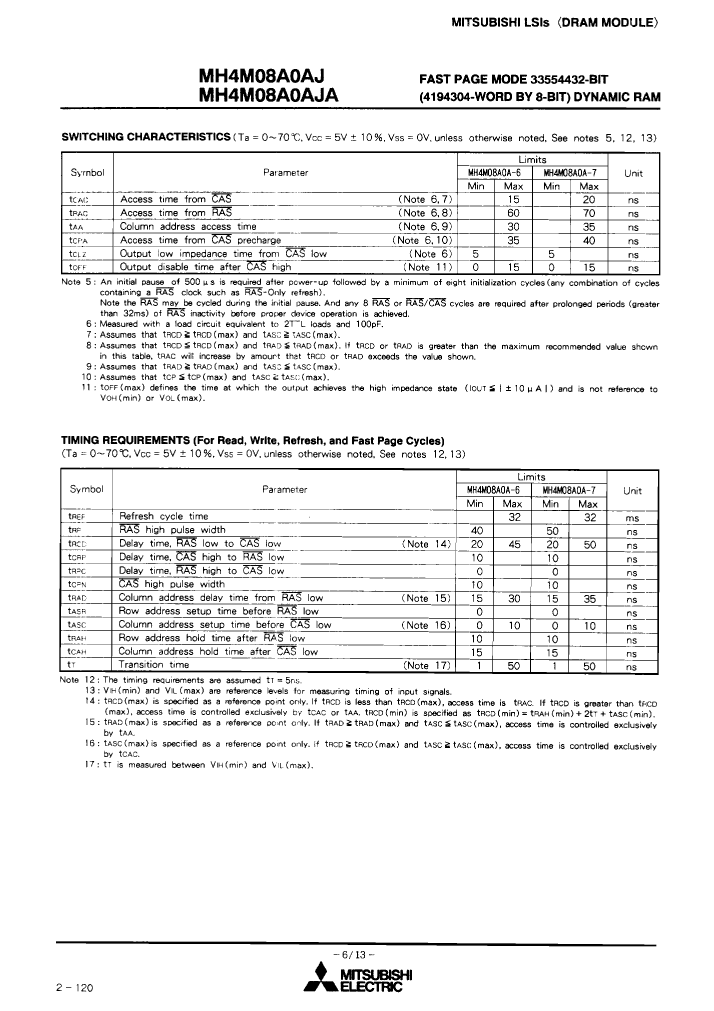

Maximum access time70 ns

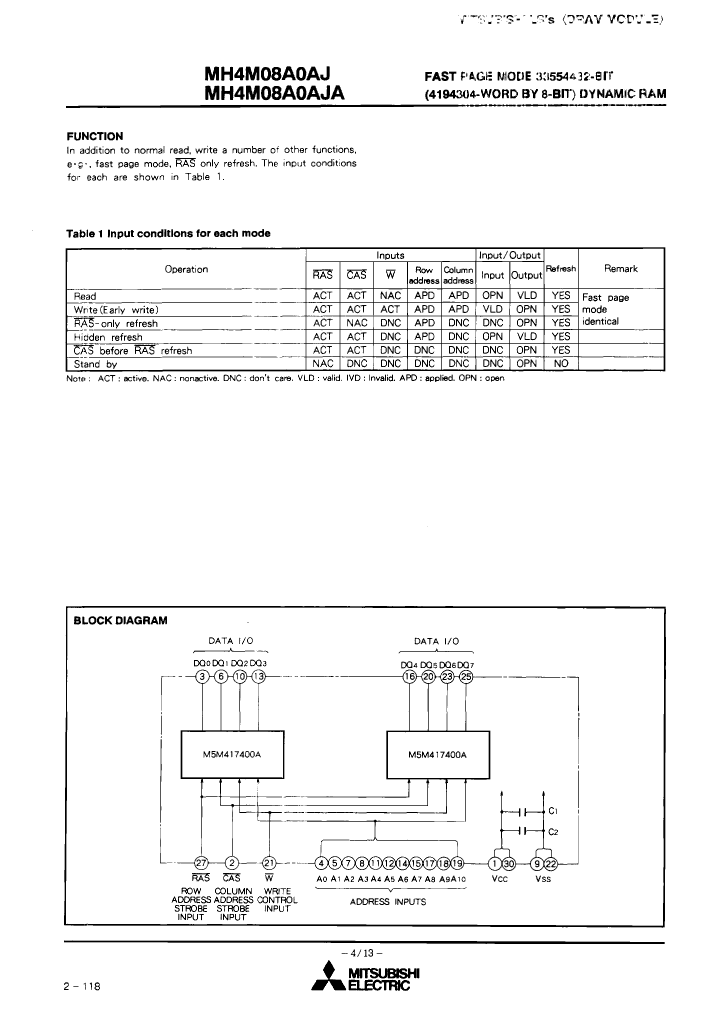

Other featuresRAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O typeCOMMON
JESD-30 codeR-XSMA-T30
JESD-609 codee0
memory density33554432 bit
Memory IC TypeFAST PAGE DRAM MODULE
memory width8
Number of functions1
Number of ports1
Number of terminals30
word count4194304 words
character code4000000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize4MX8
Output characteristics3-STATE
Package body materialUNSPECIFIED
Encapsulate equivalent codeSIP30
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED

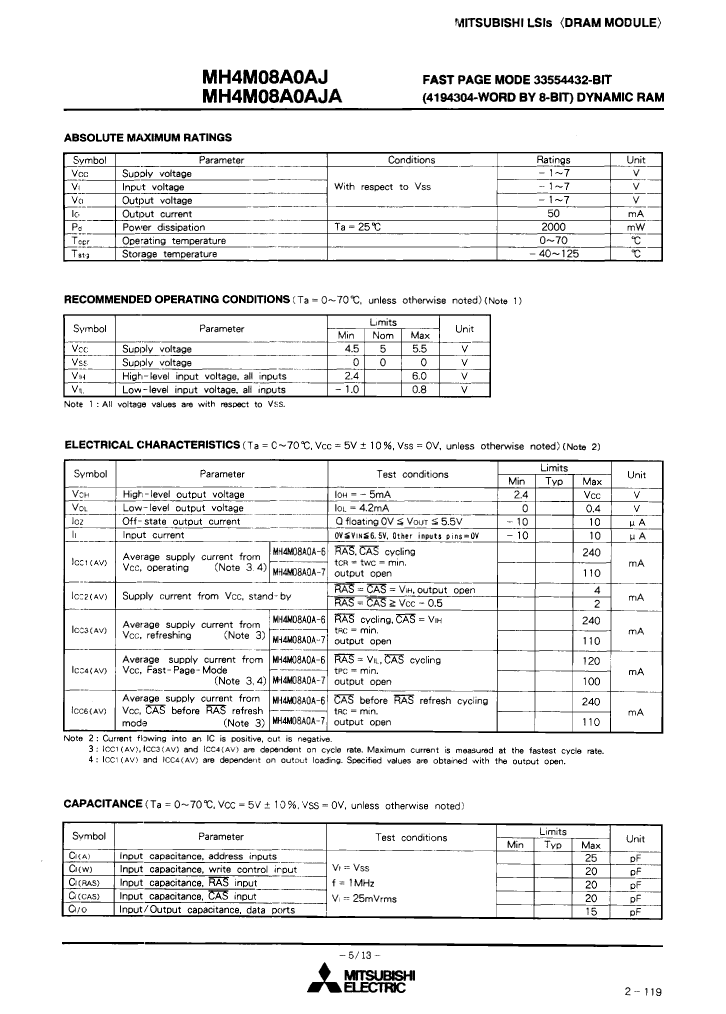

power supply5 V
Certification statusNot Qualified
refresh cycle2048
Maximum seat height17.272 mm
Maximum standby current0.002 A
Maximum slew rate0.11 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED

MH4M08A0AJA-7 Related Products

MH4M08A0AJA-7 MH4M08A0AJ-7 MH4M08A0AJA-6 MH4M08A0AJ-6
Description Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30 Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30 Fast Page DRAM Module, 4MX8, 60ns, CMOS, SIMM-30 Fast Page DRAM Module, 4MX8, 60ns, CMOS, SIMM-30
Maker Mitsubishi Mitsubishi Mitsubishi Mitsubishi
Parts packaging code SIMM SIMM SIMM SIMM
package instruction , SIP30 SIMM, SIM30 , SIP30 SIMM, SIM30
Contacts 30 30 30 30
Reach Compliance Code unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
access mode FAST PAGE FAST PAGE FAST PAGE FAST PAGE
Maximum access time 70 ns 70 ns 60 ns 60 ns
Other features RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type COMMON COMMON COMMON COMMON
JESD-30 code R-XSMA-T30 R-XSMA-N30 R-XSMA-T30 R-XSMA-N30
memory density 33554432 bit 33554432 bit 33554432 bit 33554432 bit
Memory IC Type FAST PAGE DRAM MODULE FAST PAGE DRAM MODULE FAST PAGE DRAM MODULE FAST PAGE DRAM MODULE
memory width 8 8 8 8
Number of functions 1 1 1 1
Number of ports 1 1 1 1
Number of terminals 30 30 30 30
word count 4194304 words 4194304 words 4194304 words 4194304 words
character code 4000000 4000000 4000000 4000000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C
organize 4MX8 4MX8 4MX8 4MX8
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Encapsulate equivalent code SIP30 SIM30 SIP30 SIM30
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
power supply 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
refresh cycle 2048 2048 2048 2048
Maximum seat height 17.272 mm 17.78 mm 17.272 mm 17.78 mm
Maximum standby current 0.002 A 0.002 A 0.002 A 0.002 A
Maximum slew rate 0.11 mA 0.11 mA 0.24 mA 0.24 mA
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V
surface mount NO NO NO NO
technology CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form THROUGH-HOLE NO LEAD THROUGH-HOLE NO LEAD
Terminal location SINGLE SINGLE SINGLE SINGLE
