PMD17K60LEADFREE: DescriptionPower Bipolar Transistor, 20A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-3, Metal, 2 Pin, TO-3, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size488KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

PMD17K60LEADFREE Overview

Power Bipolar Transistor, 20A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-3, Metal, 2 Pin, TO-3, 2 PIN

PMD17K60LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Parts packaging code	TO-204AA
package instruction	TO-3, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	20 A
Collector-emitter maximum voltage	60 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	800
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN (315)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	10
Transistor component materials	SILICON
Nominal transition frequency (fT)	4 MHz

PMD17K60LEADFREE Preview

PMD16K SERIES

PMD17K SERIES

NPN

PNP

w w w. c e n t r a l s e m i . c o m

COMPLEMENTARY SILICON

DARLINGTON POWER

TRANSISTORS

DESCRIPTION:

The CENTRAL SEMICONDUCTOR PMD16K, PMD17K

series types are complementary silicon Darlington power

transistors, manufactured by the epitaxial base process,

mounted in a hermetically sealed metal package, and

designed for power switching applications.

MARKING: FULL PART NUMBER

TO-3 CASE

PMD16K60

SYMBOL PMD17K60

VCBO

60

VCEO

60

VEBO

IC

ICM

IB

PD

TJ, Tstg



JC

PMD16K80

PMD17K80

80

5.0

20

40

500

200

-65 to +200

0.875

PMD16K100

PMD17K100 UNITS

100

V

100

V

A

mA

W

°C

°C/W

MAXIMUM RATINGS:

(TC=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Continuous Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

ICER

VCE=Rated VCEO, RBE=1.0kΩ

ICER

IEBO

BVCEO

VCE(SAT)

VBE(SAT)

VBE(ON)

hFE

hfe

fT

Cob

VCE=Rated VCEO, RBE=1.0kΩ, TC=150°C

VEB=5.0V

IC=100mA (PMD16K60, 17K60)

IC=100mA (PMD16K80, 17K80)

IC=100mA (PMD16K100, 17K100)

IC=10A, IB=40mA

VCE=3.0V,

IC=10A

IC=10A (PMD16K series)

1.0K

800

300

4.0

60

80

100

MAX

1.0

5.0

2.0

UNITS

mA

V

2.0

2.8

20K

V

VCE=3.0V, IC=10A (PMD17K series)

VCE=3.0V, IC=7.0A, f=1.0kHz

VCE=3.0V, IC=7.0A, f=1.0MHz

VCB=10V, IE=0, f=1.0MHz

MHz

400

pF

R1 (26-November 2012)

PMD16K SERIES

PMD17K SERIES

NPN

PNP

COMPLEMENTARY SILICON

DARLINGTON POWER

TRANSISTORS

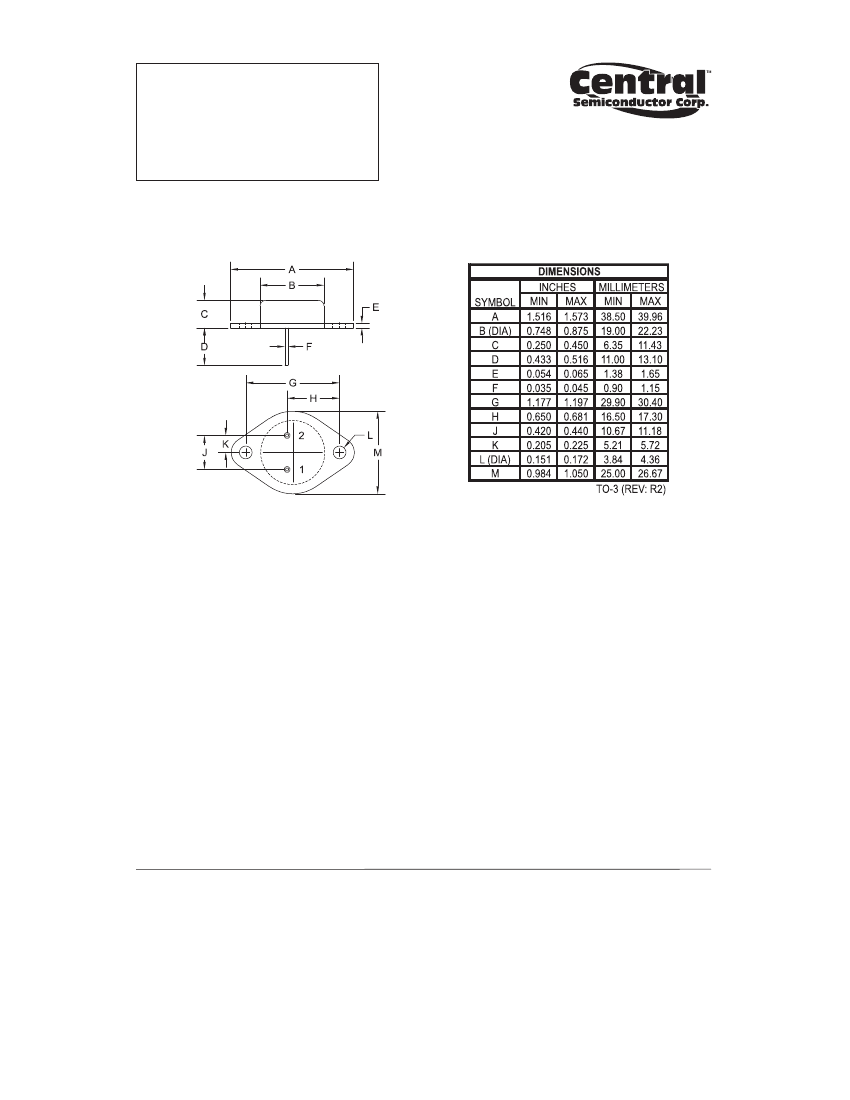

TO-3 CASE - MECHANICAL OUTLINE

R2

LEAD CODE:

1) Base

2) Emitter

Case) Collector

MARKING:

FULL PART NUMBER

R1 (26-November 2012)

w w w. c e n t r a l s e m i . c o m
