1-002-111ST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-002-111ST

1-002-111ST: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size220KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

1-002-111ST Overview

Interconnection Device, ROHS COMPLIANT

1-002-111ST Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

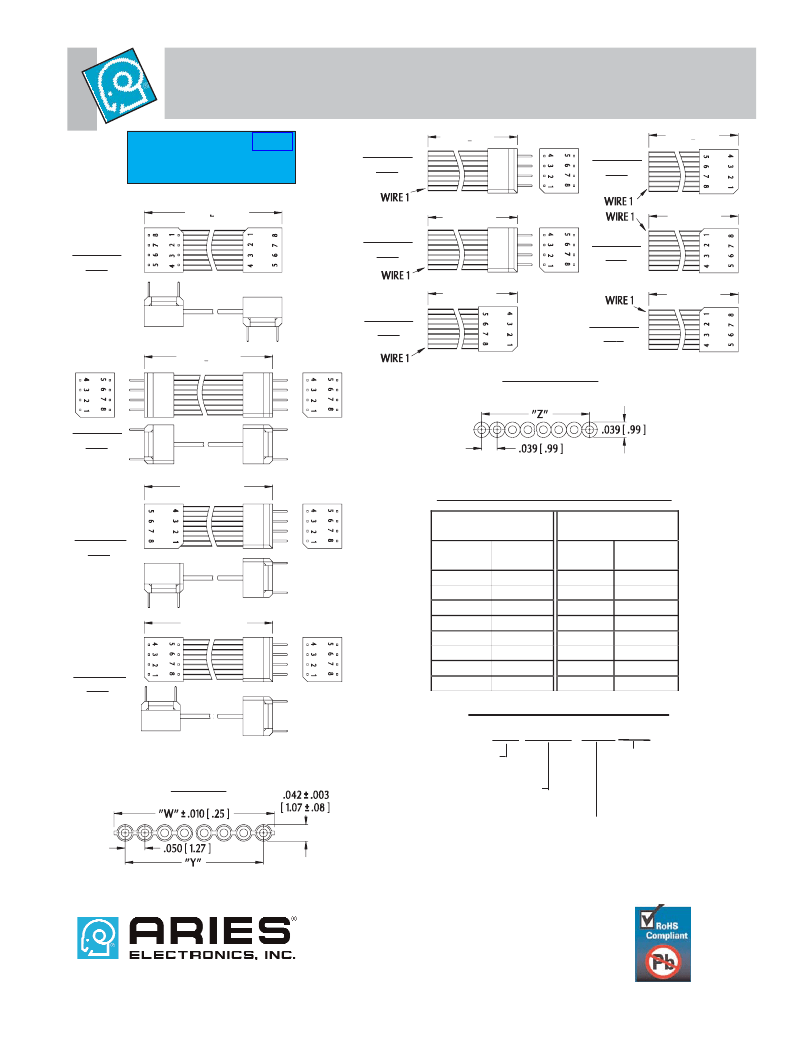

Series 100 thru 111 DIP Jumpers (cont.)

See Data Sheet No. 11006

for other configurations and

additional information.

“L” ± .125

SERIES

106

SERIES

109

“L” ± .125

SERIES

102

SERIES

107

“L” ± .125

SERIES

110

“L” ± .125

SERIES

108

“L” ± .125

SERIES

111

CABLE DETAIL

(Series 107/109/111)

SERIES

103

“L” ± .125

“Z”=(NO. OF CONDUCTORS - 1) X .039 [.99]

SINGLE END DIP JUMPER WIRE LIST

Series 106, 108, 110

Series 107, 109,

111

Wire

Header

No.

Pin No.

SERIES

104

“L” ± .125

SERIES

105

Wire

No.

Header

Pin No.

ORDERING INFORMATION

XX-XXXX-XXXXXX

No. of conductors

(see table)

CABLE DETAIL

Cable Length in inches:

Ex: 2” = -.002-/ 2.5” = -002.5-

min cable length =

2”[50.80mm]

Jumper

series

“W”=(NO. OF CONDUCTORS X .050 [1.27]) + .005 [.08]

“Y”=(NO. OF CONDUCTORS - 1) X .050 [1.27]

Optional suffix:

T=Tin plated header pins

TL=Tin/Lead plated header

pins

TW=twisted pair cable

ST=stripped and Tin

Dipped ends

(Series 106-111)

STL=stripped and Tin/Lead

Dipped ends

(Series 106-111)

http://www.arieselec.com • info@arieselec.com

Bristol, PA USA

TEL: (215) 781-9956

FAX: (215) 781-9845

abc

11007

REV. G

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
