CARDINAL
COMPONENTS
Dual Field Programmable Blank Oscillator
•
•
•
•
•
Series CPPD
Programmed on the fly with the PG-3000 field oscillator programming instrument within seconds
Full Programming available for each frequency
Provides a sealed finished custom oscillator
Standard Package Options
The dual FIPO contains a frequency select function. For example, consumer products often require
different electrical standards around the world. Ex: Converting PAL to NTSC by changing FS line
or modem real-time switching between transmit and receive frequencies
Part Numbering Example: CPPD C 1 L Z - A5 B6 - XX.XXXX / YY.YYYY
CPPD
C
1
L
Z
A5
B6
XX.XXXX YY.YYYY
Specifications:
SERIES OUTPUT PACKAGE STYLE
CPPD C = CMOS 1 = Full Size
T = TTL 4 = Half Size
5 = 3.2X5 Ceramic
7 = 5X7 Ceramic
8 = PLASTIC SMD
8B = PLASTIC SMD
VOLTAGE ADDED FEATURES
FREQ. F0
FREQ. F1
OPERATING TEMP.
STABILITY
1.000~133.000 1.000~133.000
Blank = 5V Blank = Bulk
Blank = 0°C +70°C B6 = ±100 ppm
MHz
MHz
±50 ppm
= Tube
A5
= -20°C +70°C BP =
L = 3.3 V T
+25 ppm
BR =
PIN 1
PIN 1
= Tape and Reel A7
= -40°C +85°C
R = 2.7 V Z
Logic “0”
Logic “1”
Description
Frequency Range:
Programmable to Any Discrete
Frequency
Available Stability Options:
Min
1.000
Typ
Max
133.000
Unit
MHz
-100
-50
-25
4.5
3.0
2.5
0
-20
-40
-55
5.0
3.3
2.7
100
50
25
5.5
3.6
3.0
+70
+70
+85
+125
±5
±1
ppm
ppm
ppm
V
V
V
°C
°C
°C
°C
Programmable Input Voltage:
(1–133 MHz)
(1–100 MHz)
(1-66 MHz)
Operating Temperature
Range Options:
Storage Temperature:
Aging (PPM/1st Year)
Ta=25C, Vdd=5/3.3V
PPM/Year (after 1st year)
Programmable Output Level:
Packaging:
TTL/CMOS
Tape and Reel (1K per Reel)
Tube
Bulk
Operating Conditions:
Description
Vdd
C
TTL
Supply Voltage
Max Capacitive Load on outputs for TTL levels
4.5V–5.5V Vdd < 40 MH
Z
4.5V–5.5V Vdd > 40–133 MH
Z
Max Capacitive Load on outputs for CMOS levels
4.5V–5.5V Vdd, < 66 MHz
4.5V–5.5V Vdd, 66–133 MHz
3.0V–3.6V Vdd, < 40 MHz
3.0V–3.6V Vdd, 40–100 MHz
2.5V-3.0V Vdd, < 66 MHz
Min
3.0
Max
5.5
50
25
50
25
30
15
25
Unit
V
pF
pF
pF
pF
pF
pF
pF
C
CMOS
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
012803-REV. 2.2
Specifications subject to change without notice. Check website for latest updates
1
.
CARDINAL
COMPONENTS
Dual Field Programmable Blank Oscillator
•
Programmed on the fly with the PG-3000 field oscillator programming instrument within seconds
•
Full Programming available for each frequency
•
Provides a sealed finished custom oscillator
Series CPPD
Electrical Characteristics
Description
Input Characteristics (Pin 1):
C
ONTROL
P
IN
V
IL
, Low–Level Input Voltage
T
O SWITCH TO
F0
OUTPUT
V
IH
, High–Level Input Voltage
T
O SWITCH TO
F1
OUTPUT
I
IL
, Input Low Current
I
IH
, Input High Current
Output Characteristics:
V
OL
, Low–Level Output Voltage
V
OHTTL
,
High-level Output Voltage TTL
V
OHCMOS
,
High-level CMOS Voltage
Power Supply Current:
(unloaded)
Input Pull-Up Resistor
Frequency Select Switching
Time
T
EST
C
ONDITIONS
Min
4.5–5.5V Vdd
3.0–3.6V Vdd
2.5-3.0V Vdd
4.5–5.5V Vdd
3.0–3.6V Vdd
2.5-3.0V Vdd
V
IN
= 0V
V
IN
=Vdd
4.5V–5.5V Vdd, 16 mA I
OL
3.0V–3.6V Vdd, 8 mA I
OL
4.5V–5.5V Vdd, -16 mA I
OL
4.5V–5.5V Vdd, -16 mA I
OL
3.0V–3.6V Vdd, -8 mA I
OL
2.5-3.0V V
DD
, 6mA
4.5–5.5 Vdd, O
UTPUT
F
REQ
< 133 MHz
3.0–3.6 Vdd, O
UTPUT
F
REQ
< 100 MHz
2.5-3.0 Vdd, Output Freq < 66 MHz
4.5–5.5 Vdd, V
IN
= 0V
4.5–5.5 Vdd, V
IN
= 0.7V
Typ
Max
Unit
0.8
V
0.2Vdd V
0.2Vdd V
2.0
0.7Vdd
0.7Vdd
10
5
0.40
0.4
2.4
Vdd-0.4
Vdd-0.4
Vdd-0.4
45
25
20
1.1
50
3.0
100
8.0
200
500
V
V
V
µA
µA
V
V
V
V
V
V
mA
mA
mA
MΩ
KΩ
µs
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
012803-REV. 2.2
Specifications subject to change without notice. Check website for latest updates
2
.
CARDINAL
COMPONENTS
Dual Field Programmable Blank Oscillator
•
Programmed on the fly with the PG-3000 field oscillator programming instrument within seconds
•
Full Programming available for each frequency
•
Provides a sealed finished custom oscillator
Series CPPD
Output Clock Switching Characteristics
Description
Duty Cycle:
TTL @ 1.4 V
4.5-5.5 Vdd
T
EST
C
ONDITIONS
< 50 MHz, C
L
= 50 pF
50–66 MHz, C
L
= 15 pF
66–125 MHz, C
L
= 25 pF
125–133 MHz, C
L
= 15 pF
< 66 MHz, C
L
< 25 pF
66–125 MHz, C
L
< 25 pF
125–133 MHz, C
L
< 15 pF
< 40 MHz, C
L
< 30 pF
40-100 MHz, C
L
< 15 pF
0.8V–2.0V, 4.5-5.5 Vdd, C
L
= 50
0.8V–2.0V, 4.5-5.5 Vdd, C
L
= 25
0.8V–2.0V, 4.5-5.5 Vdd, C
L
= 15
0.2–0.8Vdd, 4.5-5.5 Vdd, C
L
= 50
0.2–0.8Vdd, 3.0–3.6 Vdd, C
L
= 30
0.2–0.8Vdd, 3.0–3.6 Vdd, C
L
= 15
Min
45
45
40
40
45
40
40
45
40
Typ
Max Unit
55
55
60
60
55
60
60
55
60
1.8
1.2
0.9
3.4
4.0
2.4
10
%
%
%
%
%
%
%
%
%
ns
ns
ns
ns
ns
ns
ms
ps
ps
ps
Duty Cycle:
CMOS @ Vdd/2
4.5-5.5 Vdd
3.0–3.6 Vdd
Output Clock Rise/Fall
Start Up Time
Period Jitter:
Σ ∗
Peak to Peak *
From power on
1 – 133 MHz
< 33.000 MHz
> 33.000 MHz
8
65
65
11
99
80
* Jitter tested at > 1,000,000 samples, exceeding JEDEC std JESD65.
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
012803-REV. 2.2
Specifications subject to change without notice. Check website for latest updates
3
.
CARDINAL
COMPONENTS
Field Programmable Blank Oscillator
Note: Bypass
Vdd
to GND with a 0.01
µ
F capacitor

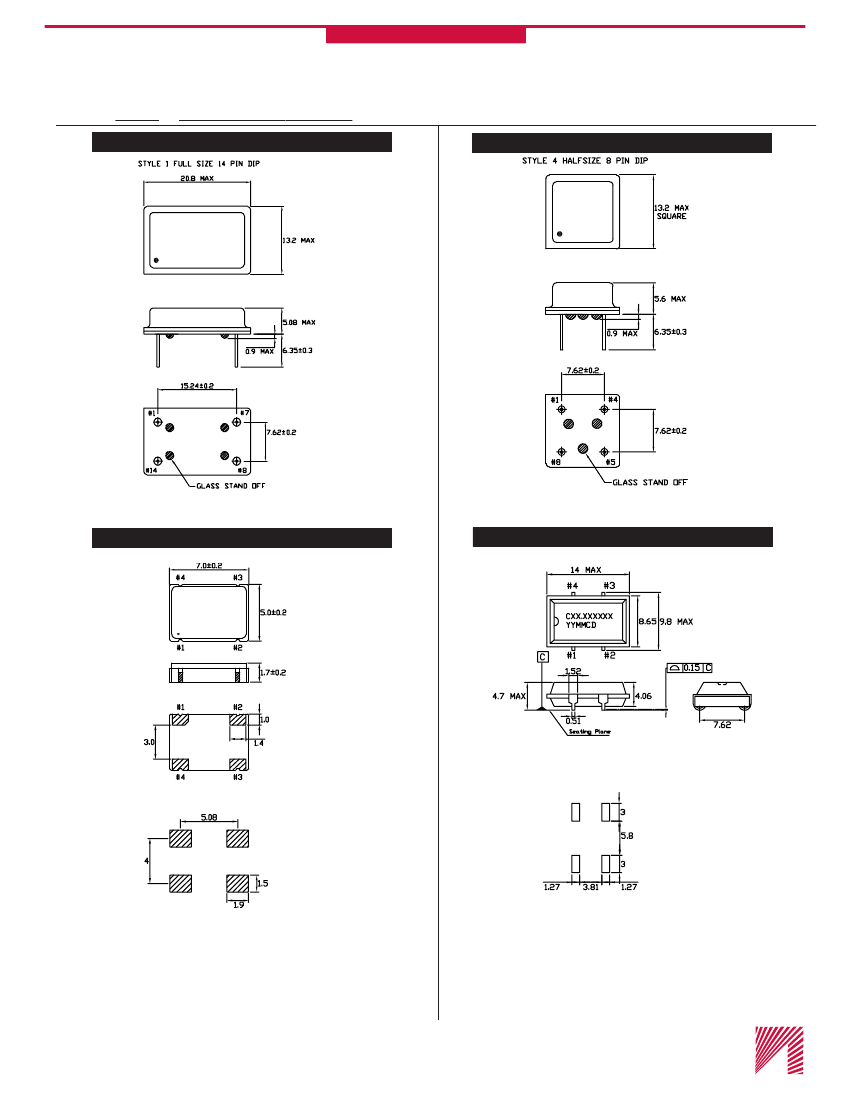

Style 1 Full Size 14 Pin Dip
Style 4 Half Size 8 Pin Dip
PIN FUNCTION
1 NC/CONTROL
7 FS
8 OUTPUT
14 Vdd
PIN FUNCTION
1 FS
4 GND
5 OUTPUT
8 Vdd
Style 7 5x7 Ceramic SMD
Style 8 Plastic SMD
PIN FUNCTION
1 FS
2 GND
3 OUTPUT
4 Vdd
PIN FUNCTION
1 FS
2 GND
3 OUTPUT
4 Vdd
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
012803-REV. 2.2
Specifications subject to change without notice. Check website for latest updates
4
.
CARDINAL
COMPONENTS
Field Programmable Blank Oscillator
Note: Bypass
Vdd
to GND with a 0.01
µ
F capacitor

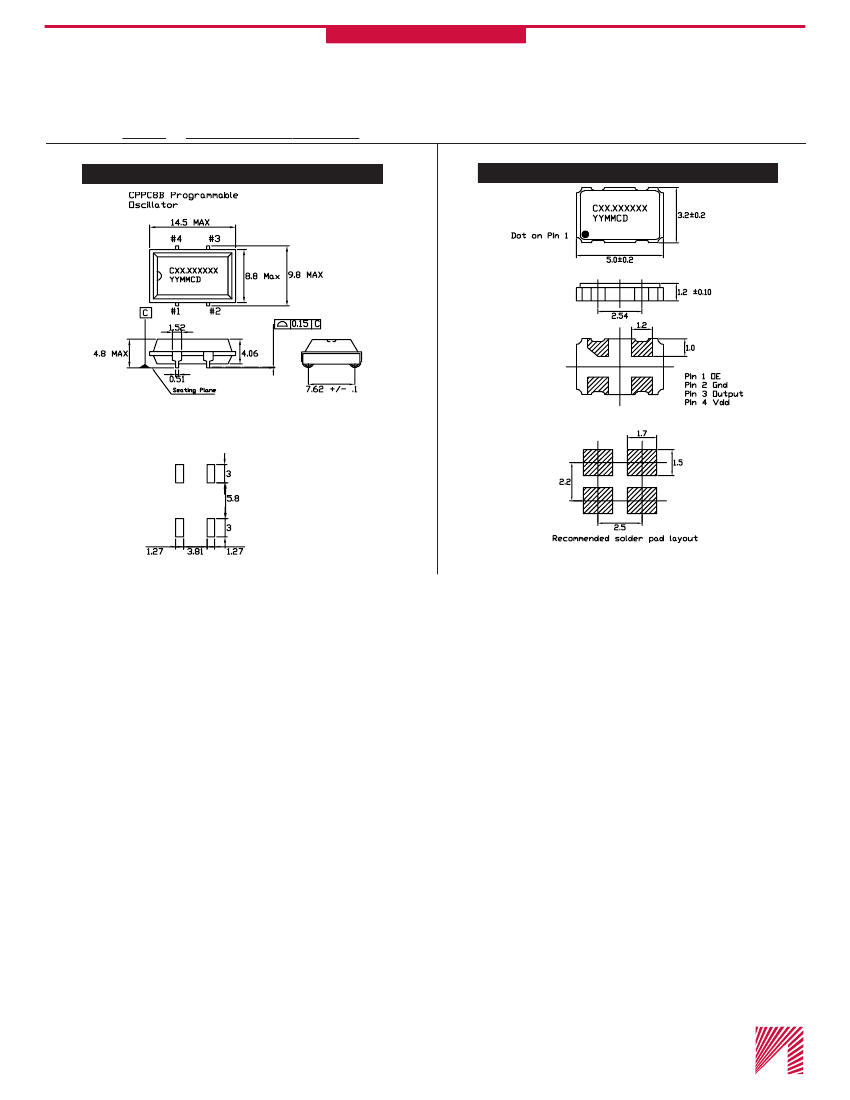

Style 8B Plastic SMD
Style 8B Plastic SMD
Style 5 3.2x5 Ceramic SMD
PIN FUNCTION
1 OE
2 GND
3 OUTPUT
4 Vdd
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
012803-REV. 2.2
Specifications subject to change without notice. Check website for latest updates
5
.
