MBRD820/S – MBRD8100/S
8.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
WON-TOP ELECTRONICS
Pb
Features
Schottky Barrier Chip
Guard Ring Die Construction for
Transient Protection
High Surge Current Capability
Low Power Loss, High Efficiency
Ideally Suited for Automatic Assembly
For Use in Low Voltage, High Frequency
Inverters, Free Wheeling, and Polarity
Protection Applications
D
A
B
C
J
E
PIN 1
2
3
K
H
L
G
P
P
Mechanical Data
Case: DPAK/TO-252, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.3 grams (approx.)
Mounting Position: Any
Marking: Device Code, See Page 3
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
PIN 1
PIN 3
Case, PIN 2
(MBRD820 Series)
DPAK/TO-252
Dim
Min
Max
A
B
C
D
E
G
H
J
K
L
P
6.05
5.05
2.25
1.05
5.48
2.55
0.55
0.49
0.95
0.49
6.65
5.55
2.40
1.25
6.08
3.00
0.90
0.55
1.25
0.55
PIN 3
Case, PIN 2
(MBRD820S Series)
2.30 Typical
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@T
C
= 125°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
C
J
R
θJA
R
θJC
T
J
, T
STG
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
MBRD MBRD MBRD MBRD MBRD MBRD MBRD MBRD
820/S 830/S 840/S 845/S 850/S 860/S 880/S 8100/S
20
14
30
21
40
28
45
32
8.0
85
0.55
0.2
20
450
80
3.0
-55 to +150
350
0.75
0.85
50
35
60
42
80
56
100
70
Unit
V
V
A
A
V
mA
pF
°C/W
°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed on
Rated Load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 8.0A
@T
J
= 25°C
@T
J
= 100°C
Typical Junction Capacitance (Note 1)
Thermal Resistance, Junction to Ambient (Note 2)
Thermal Resistance, Junction to Case (Note 2)
Operating and Storage Temperature Range
Note: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC.
2. Mounted on FR-4 PC board with minimum recommended pad layout.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
MBRD820/S – MBRD8100/S
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
WON-TOP ELECTRONICS
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
100
Pulse Width = 300µs
1% Duty Cycle
T
J
= 25°C
850/S – 860/S
8
10
6
820/S – 845/S
880/S – 8100/S
4
1.0
2
Resistive or
Inductive Load
0
0
15
30 45 60 75 90 105 120 135 150
T
C
, CASE TEMPERATURE (°C)

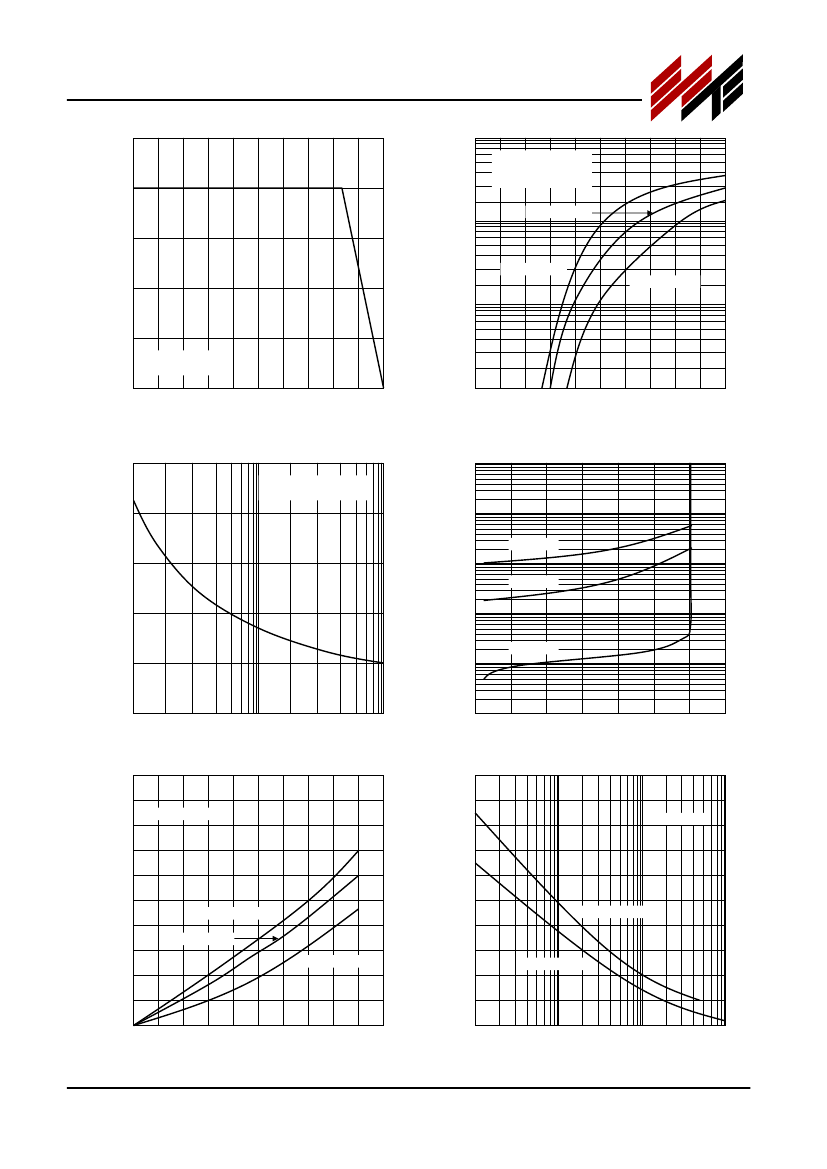

Fig. 1 Forward Current Derating Curve
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
0.1
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
Single Half-Sine-Wave
JEDEC Method
100
80
10
T
J
= 125°C
60
1.0
T
J
= 75°C
40
0.1
T
J
= 25°C
20
0.01
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Forward Surge Current Derating Curve
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
1500
C
J
, JUNCTION CAPACITANCE (pF)
10
9
DC, T
J
= 150°C
P
D
, POWER DISSIPATION (W)
8
7
6
5
880/S – 8100/S
1200
f = 1MHz
900
820/S – 845/S
4
850/S – 860/S
600
3
820/S – 845/S
850/S –8100/S
2
1
0
0
1
2
3
4
5
6
7
8
9 10
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 5 Forward Power Dissipation
300
0
0.1
1
10
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
100
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
MBRD820/S – MBRD8100/S
WON-TOP ELECTRONICS
MARKING INFORMATION
RECOMMENDED FOOTPRINT
0.298
(7.57)
0.109
(2.77)
B8xxS
0.24
(6.10)
0.091
(2.30)
0.056
(1.42)
B8xx
xx
S
= Device Number
= 20, 30, 40, 45, 50, 60, 80 or 100
= Suffix for MBRD820S Series (remove
when ordering MBRD820 series)
0.261
(6.63)
inches(mm)
PACKAGING INFORMATION
TAPE & REEL
Direction of Unreeling
8mm
330mm
16mm
4mm
16mm
Product ID Label
1.6mm
Reel Diameter
(mm)
330
Quantity
(PCS)
2,500
Inner Box Size
L x W x H (mm)
340 x 337 x 45
Quantity
(PCS)
5,000
Carton Size
L x W x H (mm)
370 x 370 x 420
Quantity
(PCS)
40,000
Approx. Gross Weight
(KG)
18.0
Note:
1. Paper reel, white or gray color.
2. Components are packed in accordance with EIA standard 481-1 and 481-2.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
®
MBRD820/S – MBRD8100/S
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
MBRD820/S-T3
MBRD830/S-T3
MBRD840/S-T3
MBRD845/S-T3
MBRD850/S-T3
MBRD860/S-T3
MBRD880/S-T3
MBRD8100/S-T3
1.
2.
Package Type
DPAK
DPAK
DPAK
DPAK
DPAK
DPAK
DPAK
DPAK
Shipping Quantity
2500/Tape & Reel
2500/Tape & Reel
2500/Tape & Reel
2500/Tape & Reel
2500/Tape & Reel
2500/Tape & Reel
2500/Tape & Reel
2500/Tape & Reel
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, MBRD820-T3-LF.
WON-TOP ELECTRONICS and
are registered trademarks of Won-Top Electronics Co., Ltd (WTE). WTE has checked all information carefully and
believes it to be correct and accurate. However, WTE cannot assume any responsibility for inaccuracies. Furthermore, this information does not give the
purchaser of semiconductor devices any license under patent rights to manufacturer. WTE reserves the right to change any or all information herein
without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road,
Chine Chen Dist., Kaohsiung 806, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
www.wontop.com
4
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
