XC3142A-09PG84C datasheet, PDF

XC3142A-09PG84C: DescriptionField Programmable Gate Array, 144 CLBs, 2000 Gates, 370MHz, 144-Cell, CMOS, CPGA84, CERAMIC, PGA-84; CategoryProgrammable logic devices Programmable logic; File Size4MB，76 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/; Environmental Compliance

Download Datasheet Parametric View All

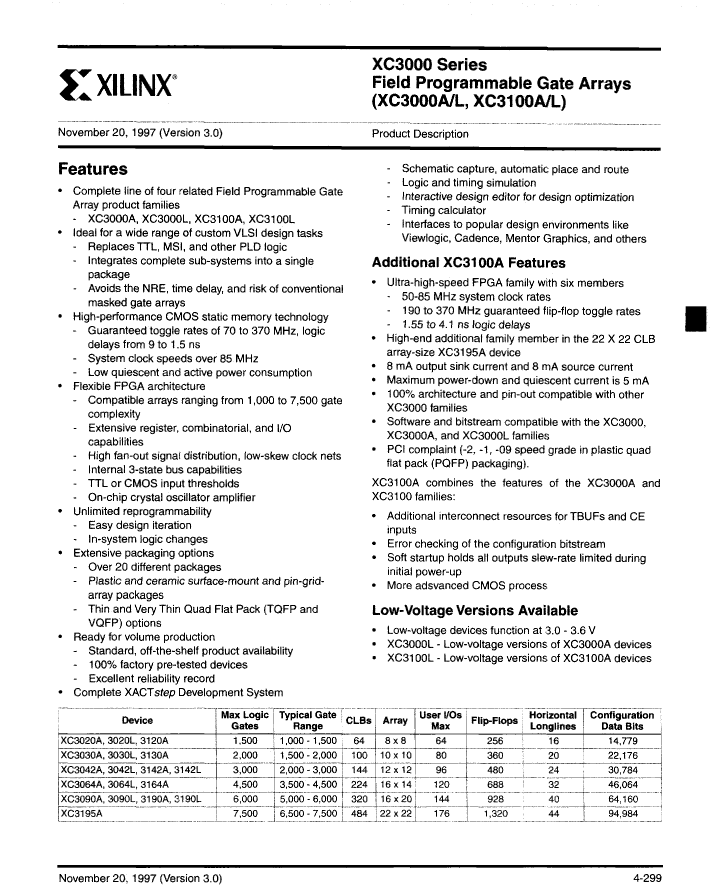

XC3142A-09PG84C Overview

Field Programmable Gate Array, 144 CLBs, 2000 Gates, 370MHz, 144-Cell, CMOS, CPGA84, CERAMIC, PGA-84

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	XILINX
Parts packaging code	PGA
package instruction	PGA, PGA84M,11X11
Contacts	84
Reach Compliance Code	unknown
Other features	TYP. GATES = 2000-3000
maximum clock frequency	370 MHz
Combined latency of CLB-Max	1.5 ns
JESD-30 code	S-CPGA-P84
length	27.94 mm
Configurable number of logic blocks	144
Equivalent number of gates	2000
Number of entries	74
Number of logical units	144
Output times	74
Number of terminals	84
organize	144 CLBS, 2000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA84M,11X11
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	5.207 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	27.94 mm
