DC/DC Converters
XPiQ inc.
Intelligent
Design
Quality
Product
10/15 Watts

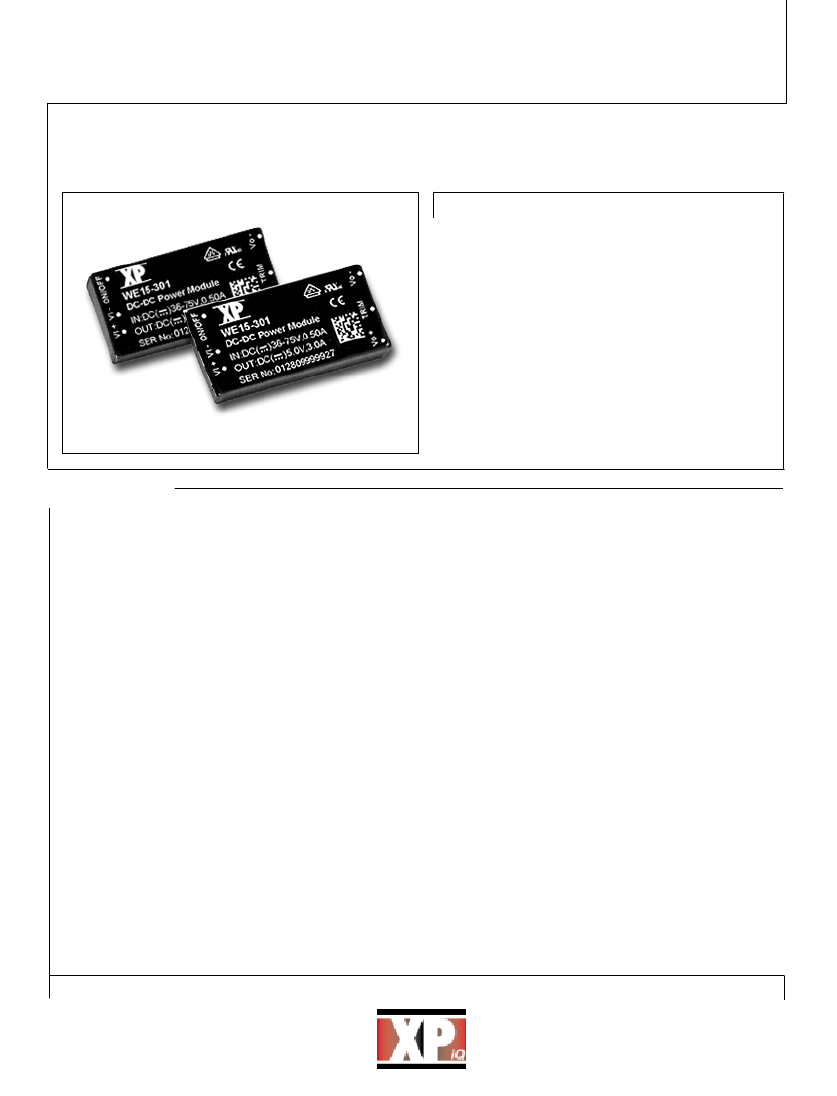

WE10/15 Series
•
Industry Standard Package
•
Designed For Telecom Standards
•
Low Voltage Outputs to 1.8 Volts
•
Under Voltage Lockout
•
Remote On/Off
•
Output Voltage Adjustment
•
Conducted EMI level B with
External Filtering
Specification
Input
Input Voltage
Input Current
Start Up Time
Remote On/Off
•
•
•
•
18-36 VDC
36-75 VDC
0.17 A - 0.82 A typical for WE15
0.21 A - 0.52 A typical for WE10
Less than 10 ms
Negative Logic Standard
Positive Logic Available.
External components required
24 Vin - 11 V min, 14 V typical
48 Vin - 20 V min, 27 V typical
Short Circuit
Protection
•
Protected to short circuit conditions
General
Efficiency
Isolation Voltage
MTBF
Package Style
Weight
•
•
•
•
•
80% typical for 5 V models
1500 VDC Input to Output
2.4 million hours per Bellcore
Potted module with plastic case
28.3 grams typical
Input Reverse Voltage •
Protection
Undervoltage Lockout •
Protection
Environmental
Operating
Temperature
Cooling
200 LFM
•
•
-40°C to 105°C Case Temperature
Full power with Convection cooling
WE10 - Full power to 80°C ambient
WE15 - Full power to 60°C ambient

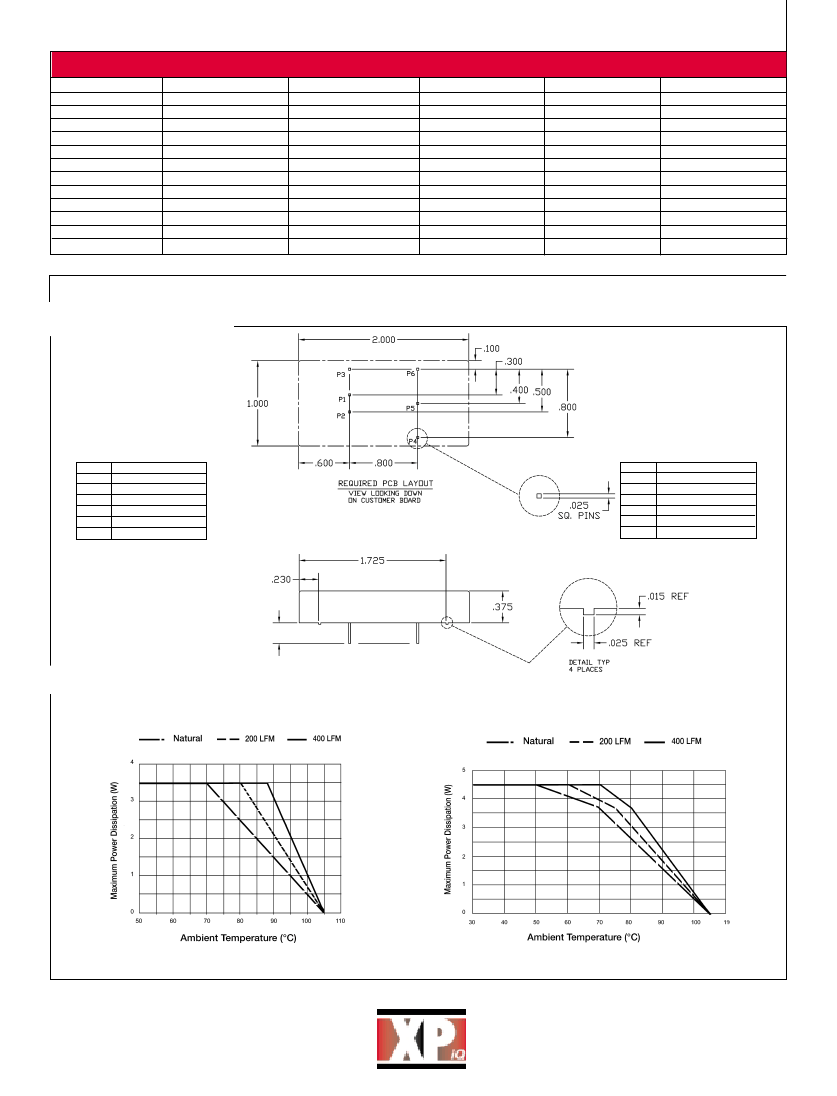

See derating chart
-55°C to +125°C
70G/6ms 1/2 sine 3 shocks x 6 sides
2.5G RMS, 10-55Hz, sweep vibration
1 hour each axis
Output
Output Voltage
Output Voltage
Adjustment
Minimum Load
Line Regulation
Load Regulation
Output Voltage
Accuracy
Ripple and Noise
Transient Response
•
•
•
•
•
•
•
•
1.8 - 12 VDC
±10%
0.4 Watts
±0.5% maximum
±1.0% maximum
±4%
100 mV typical
5% deviation 0.8 ms recovery time
for 25% load change
±0.015%°C
Standard with auto restart
see chart
continuous with auto restart
Storage Temperature •
Shock
•
Vibration
•
Safety
Safety Approvals
EMI/EMC
Warranty
•
•
•
UL1950, EN60950, VDE 0805,
CSA 22.2 No. 950, CE marked for LVD
EN55022 and FCC level B Part 15
with external filtering
1 Year
Temperature Coefficient
Overvoltage
•
Protection
Overcurrent
•
Protection
