PC4SF11YVZ Series

PC4SF11YVZ

Series

∗

V

DRM

: 800V, Reinforced insulation type

Non-zero cross type

DIP 6pin

Phototriac Coupler for triggering

Zero cross type is also available.

(PC4SF21YVZ

Series)

■

Description

PC4SF11YVZ Series

reinforced insulation type

Phototriac Coupler include an infrared emitting diode

(IRED) optically coupled to an output Phototriac.

These devices feature full wave control and are

ideal isolated drivers for medium to high current Triacs.

DIP package provides 5.0kV isolation from input to

output with superior commutative noise immunity.

■

Agency approvals/Compliance

1. Recognized by UL1577 (Double protection isolation),

file No. E64380 (as model No.

4SF11)

2. Approved by CSA, file No. CA95323 (as model No.

4SF11)

3. Approved by BSI : BS-EN60065, file No. 6690/BS-

EN60950, file No. 7421, (as model No.

4SF11)

4. Approved by SEMKO, EN60065/EN60950, file No.

0033029 (as model No.

4SF11)

5. Approved by DEMKO, EN60065/EN60950, file No.

310107 (as model No.

4SF11)

6. Approved by FIMKO, EN60065/EN60950, file No.

15795 (as model No.

4SF11)

7. Approved by VDE

(

∗

)

(DIN EN 60747-5-2), file No.

40008189 (as model No.

4SF11)

8. Package resin : UL flammability grade (94V-0)

(∗)

■

Features

1. High repetitive peak off-state voltage (V

DRM

: 800V)

2. Non-zero crossing functionality

3. I

FT

ranks available (see Model Line-up section in this

datasheet)

4. 6 pin DIP package

5. Reinforced insulation type (MIN. 0.4mm internal

separation)

6.

Double transfer mold construction (Ideal for Flow

Soldering)

7.

High isolation voltage between input and output

(V

iso

(rms) : 5.0kV)

DIN EN60747-5-2 : successor standard of DIN VDE0884

Up to Date code "RD" (December 2003), approval of DIN

VDE0884.

From Date code "S1" (January 2004), approval of DIN

EN60747-5-2.

■

Applications

1. Triggering for Triacs used to switch on and off

devices which require AC Loads.

For example heaters, fans, motors, solenoids, and

valves.

2. Triggering for Triacs used for implementing phase

control in applications such as lighting control and

temperature control (HVAC).

3. AC line control in power supply applications.

Notice The content of data sheet is subject to change without prior notice.

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP

devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

1

Sheet No.: D2-A08201FEN

Date Mar. 31. 2004

PC4SF11YVZ Series

■

Internal Connection Diagram

1

2

3

6

5

4

1

2

3

4

5

6

Anode

Cathode

NC

Anode/Cathode

No external connection

Cathode/Anode

■

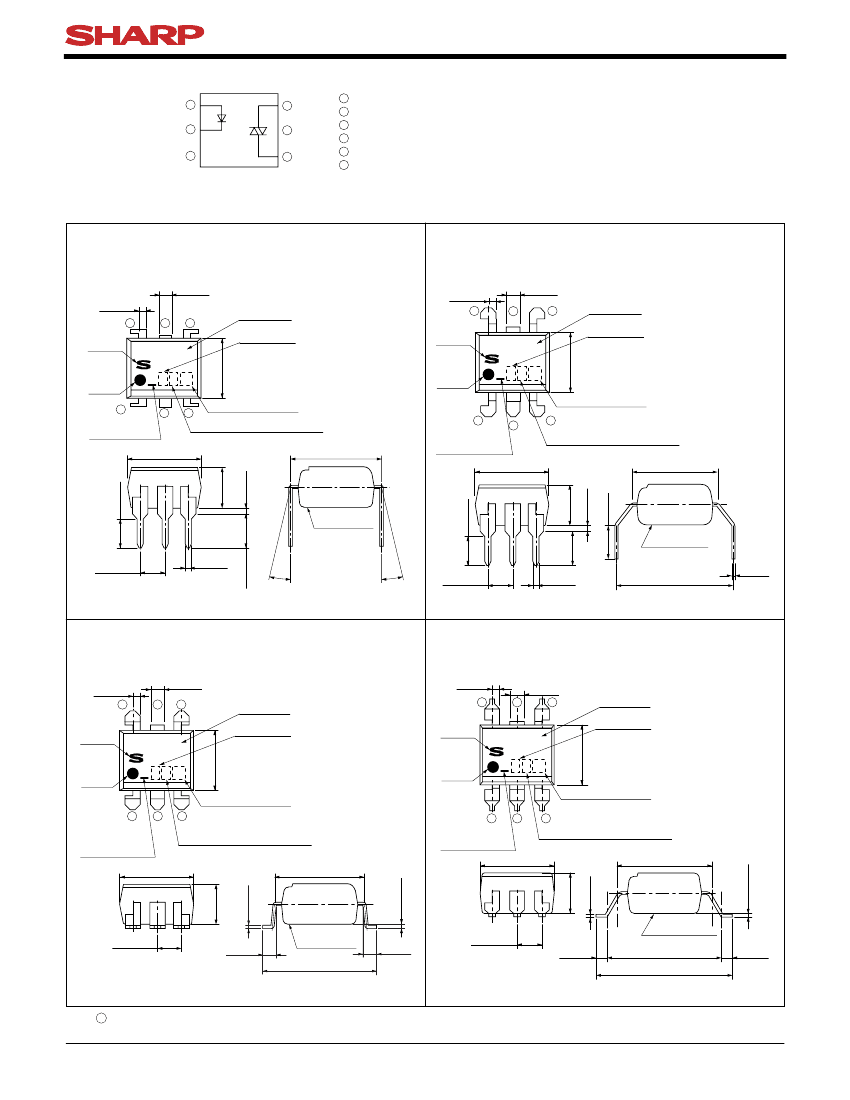

Outline Dimensions

1. Through-Hole [ex.

PC4SF11YTZ]

1.2

±0.3

0.6

±0.2

SHARP

mark

"S"

Anode

mark

1

6

5

4

(Unit : mm)

2. Wide Through-Hole Lead-Form [ex.

PC4SF11YVZ]

0.6

±0.2

Model No.

Rank mark

SHARP

mark

"S"

Anode

mark

6

5

1.2

±0.3

4

Model No.

Rank mark

6.5

±0.5

4

2

3

4

1

2

3

Date code (2 digit)

Factory identification mark

7.62

±0.3

0.5

TYP.

3.5

±0.5

VDE

identification mark

7.12

±0.5

VDE

identification mark

Factory identification mark

7.62

0.5

TYP.

3.5

±0.5

2.7

MIN.

±0.3

7.12

±0.5

2.9

±0.5

Epoxy resin

0.5

±0.1

3.25

±0.5

2.9

±0.5

3.25

±0.5

6.5

±0.5

Date code (2 digit)

4SF11

Epoxy resin

±0.5

2.54

±0.25

θ

: 0 to 13˚

θ

2.54

±0.25

0.5

±0.1

10.16

0.26

±0.1

Product mass : approx. 0.35g

3. SMT Gullwing Lead-Form [ex.

PC4SF11YXP]

1.2

±0.3

5

4

Product mass : approx. 0.35g

4. Wide SMT Gullwing Lead-Form [ex.

PC4SF11YWP]

0.6

±0.2

1.2

±0.3

5

4

0.6

±0.2

6

SHARP

mark

"S"

Anode

mark

Model No.

Rank mark

SHARP

mark

"S"

Anode

mark

6

Model No.

Rank mark

6.5

±0.5

4

1

2

3

Date code (2 digit)

1

2

3

Date code (2 digit)

VDE

identification mark

7.12

±0.5

Factory identification mark

7.62

0.26

±0.1

3.5

±0.5

±0.3

VDE

identification mark

7.12

±0.5

0.35

±0.25

Factory identification mark

7.62

±0.3

0.26

±0.1

6.5

4

±0.5

4SF11

3.5

±0.5

2.54

±0.25

1.0

+0.4

−0

Epoxy resin

10.0

+0

−0.5

1.0

+0.4

−0

2.54

±0.25

Epoxy resin

0.75

±0.25

10.16

±0.5

12.0

MAX.

Product mass : approx. 0.33g

∗Pin

5

Product mass : approx. 0.34g

is not allowed external connection

Sheet No.: D2-A08201FEN

2

0.25

±0.25

0.75

±0.25

PC4SF11YVZ Series

Date code (2 digit)

1st digit

Year of production

A.D

Mark

2002

A

2003

B

2004

C

2005

D

2006

E

2007

F

2008

H

2009

J

2010

K

2011

L

2012

M

·

N

·

2nd digit

Month of production

Month

Mark

January

1

February

2

March

3

April

4

May

5

June

6

July

7

August

8

September

9

October

O

November

N

December

D

A.D.

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

2000

2001

Mark

P

R

S

T

U

V

W

X

A

B

C

·

repeats in a 20 year cycle

Factory identification mark

Factory identification Mark

no mark

Japan

Indonesia

Philippines

China

* This factory marking is for identification purpose only.

Please contact the local SHARP sales representative to see the actural status of the

production.

Country of origin

Rank mark

Refer to the Model Line-up table

Sheet No.: D2-A08201FEN

3

PC4SF11YVZ Series

■

Absolute Maximum Ratings

(T

a

=25˚C)

Parameter

Symbol

Rating

Unit

I

F

50

mA

Forward current

Input

V

R

6

V

Reverse voltage

I

T

(rms)

0.1

A

RMS ON-state current

*3

Output

Peak one cycle surge current

I

surge

1.2

A

800

V

Repetitive peak OFF-state voltage V

DRM

*1

V

iso

(rms)

5.0

kV

Isolation voltage

T

opr

−30

to

+100

˚C

Operating temperature

T

stg

−55

to

+125

˚C

Storage temperature

*2

T

sol

270

*4

˚C

Soldering temperature

*1 40 to 60%RH, AC for 1minute, f=60Hz

*2 For 10s

*3 f=50Hz sine wave

*4 Lead solder plating models: 260˚C

Soldering area

■

Electro-optical Characteristics

Parameter

Forward voltage

Input

Reverse current

Repentitive peak OFF-state current

ON-state voltage

Output

Holding current

Critical rate of rise of OFF-state voltage

Rank A

Transfer Minimum trigger current

Rank B

charac-

teristics Isolation resistance

Turn-on time

Symbol

V

F

I

R

I

DRM

V

T

I

H

dV/dt

I

FT

R

ISO

t

on

Conditions

I

F

=20mA

V

R

=3V

V

D

=V

DRM

I

T

=0.1A

V

D

=6V

−

V

D

=1/√

2

·V

DRM

V

D

=6V,

R

L

=100Ω

DC500V,40 to 60%RH

V

D

=6V,

R

L

=100Ω,

I

F

=20mA

MIN. TYP.

−

1.2

−

0.1

−

50

−

10

5×10

10

11

−

1mm

(T

a

=25˚C)

MAX.

1.4

10

3

2.5

3.5

−

10

7

−

100

Unit

V

µA

V

mA

V/µs

mA

Ω

µs

Sheet No.: D2-A08201FEN

4

PC4SF11YVZ Series

Model Line-up

Lead Form

Shipping Package

DIN

EN60747-5-2

Model No.

-

Approved

Through-Hole

SMT Gullwing

Sleeve

50pcs/sleeve

-

Approved

Wide Through-Hole

Rank mark

-

Approved

A

B

I

FT

[mA]

(V

D

=6V,

R

L

=100Ω

)

MAX.10

MAX.7

-

PC4SF11YTZAF

-

PC4SF11YTZBF

Wide SMT Gullwing

Sleeve

50pcs/sleeve

-

Approved

-

PC4SF11YXZAF

-

PC4SF11YXZBF

SMT Gullwing

-

PC4SF11YVZAF

-

PC4SF11YVZBF

Lead Form

Shipping Package

DIN

EN60747-5-2

Model No.

Wide SMT Gullwing

Taping

1 000pcs/reel

-

Approved

Rank mark

-

Approved

I

FT

[mA]

(V

D

=6V,

R

L

=100Ω

)

MAX.10

MAX.7

-

PC4SF11YWZAF

-

PC4SF11YWZBF

-

PC4SF11YXPAF

-

PC4SF11YXPBF

-

PC4SF11YWPAF

-

PC4SF11YWPBF

A

B

Please contact a local SHARP sales representative to inquire about production status.

Sheet No.: D2-A08201F EN

5
