VSB-3STC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> VSB-3STC

VSB-3STC: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.106A (COIL), 5VDC (COIL), 530mW (COIL), 16A (CONTACT), 150VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size125KB，6 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

VSB-3STC Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.106A (COIL), 5VDC (COIL), 530mW (COIL), 16A (CONTACT), 150VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

VSB-3STC Parametric

Parameter Name	Attribute value
Maker	FUJITSU
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
body width	12.9 mm
body height	25.3 mm
Body length or diameter	29.2 mm
Maximum coil current (DC)	0.177 A
Coil operating voltage (DC)	2.1 V
Coil power	530 mW
Coil release voltage (DC)	0.3 V
Coil resistance	17 Ω
Maximum coil voltage (DC)	3 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated R load	16A@150VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	VSB
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
physical size	29.2mm X 12.9mm X 25.3mm
Guideline	BSI; CSA; FIMKO; OVE; SEMKO; SEV; UL; VDE
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
seal	PLASTIC SEALED
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

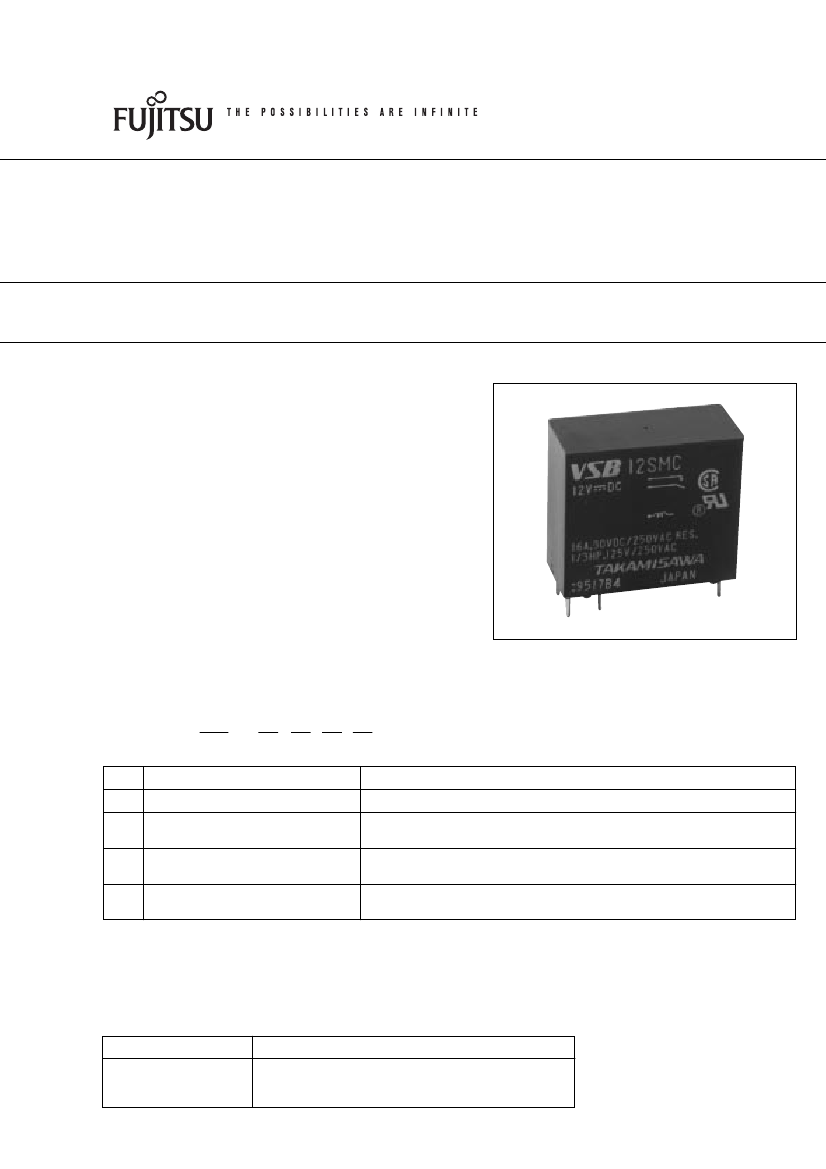

POWER RELAY

1 POLE—16 A

(HEAVY POWER CONTROL)

VSB SERIES

FEATURES

All or nothing relay

UL, CSA, VDE, SEV, FIMKO, SEMKO, IMQ, ÖVE, BSI

recognized

Working class: C

Type of service: continuous duty

Heavy duty 16 A miniature power relay

UL Class B (130°C) insulation

High isolation in small package

—Insulation distance: 8 mm

—Dielectric strength: 5,000 VAC

(between coil and contacts)

—Surge strength: 10,000 V

Low power consumption and high sensitivity type

available VSB-S)

Plastic sealed (with tape) type available

ORDERING INFORMATION

[Example]

(a)

(b)

(c)

(d)

(e)

VSB – 12

(a) (*) (b)

(c)

(d)

(e)

VSB: VSB Series

Refer to the COIL DATA CHART

Nil : Standard type

S : High sensitivity type

: 1 form A (SPST-NO)

: 1 form C (SPDT)

: Flux free type

: Plastic sealed type (with tape)

Series Name

Nominal Voltage

Coil Type

Contact Arrangement

Enclosure

Note: Actual marking omits the hyphen (-) of (*)

SAFETY STANDARD AND FILE NUMBERS

UL508, 873 (File No. E56140, E108658)

C22.2 No. 14 (File No. LR35579)

VDE0435, 0631, 0700 (File No. 11039-4940-0005/30K)

Nominal voltage

3 to 100 VDC

Contact rating

1/3 HP 125 VAC/250 VAC

16 A 30 VDC/250 VAC resistive

Pilot duty C 150
