S-8209A Series
www.ablic.com
www.ablicinc.com
© ABLIC Inc., 2008-2016
BATTERY PROTECTION IC
WITH CELL-BALANCE FUNCTION
Rev.3.7
_01
The S-8209A Series is a protection IC for lithium-ion / lithium polymer rechargeable batteries and includes a high-accuracy
voltage detection circuit and a delay circuit.
The S-8209A Series has a transmission function and two types of cell-balance function so that users are also able to configure
a protection circuit with series multi-cell.
Features
High-accuracy voltage detection circuit
*1
3.55 V to 4.40 V (5 mV step)
Overcharge detection voltage
*1
Overcharge release voltage
3.50 V to 4.40 V
*2
Cell-balance detection voltage
*1
3.55 V to 4.40 V (5 mV step)
*3
Cell-balance release voltage
*1
3.50 V to 4.40 V
*4
Overdischarge detection voltage
2.0 V to 3.0 V (10 mV step)
*5
Overdischarge release voltage
2.0 V to 3.4 V
Settable delay time by external capacitor for output pin
Control charging, discharging, cell-balance by CTLC pin and CTLD pin
Two types of cell-balance function; charge / discharge
*6
Wide range of operation temperature
Ta =
40°C
to
85C
Low current consumption
7.0
A
max.
*7
Lead-free, Sn 100%, halogen-free
Accuracy
25
mV
Accuracy
50
mV
Accuracy
25
mV
Accuracy
50
mV
Accuracy
50
mV
Accuracy
100
mV
*1.
Regarding selection of overcharge detection voltage, overcharge release voltage, cell-balance detection voltage
and cell-balance release voltage, refer to
Remark 3
in "3.
Product name list"
of "
Product Name Structure"
*2.
Overcharge release voltage = Overcharge detection voltage
Overcharge hysteresis voltage
(Overcharge hysteresis voltage is selectable in 0 V to 0.4 V, in 50 mV step.)
*3.
Select as to overcharge detection voltage
cell-balance detection voltage.
*4.
Cell-balance release voltage = Cell-balance detection voltage
Cell-balance hysteresis voltage
(Cell-balance hysteresis voltage is selectable in 0 V to 0.4 V, in 50 mV step.)
*5.
Overdischarge release voltage = Overdischarge detection voltage
Overdischarge hysteresis voltage
(Overdischarge hysteresis voltage is selectable in 0 V to 0.7 V, in 100 mV step.)
*6.
Also available the product without discharge cell-balance function
*7.
Refer to "
Product Name Structure"
for details.
Applications
Lithium-ion rechargeable battery pack
Lithium polymer rechargeable battery pack
Packages
8-Pin TSSOP
SNT-8A
1

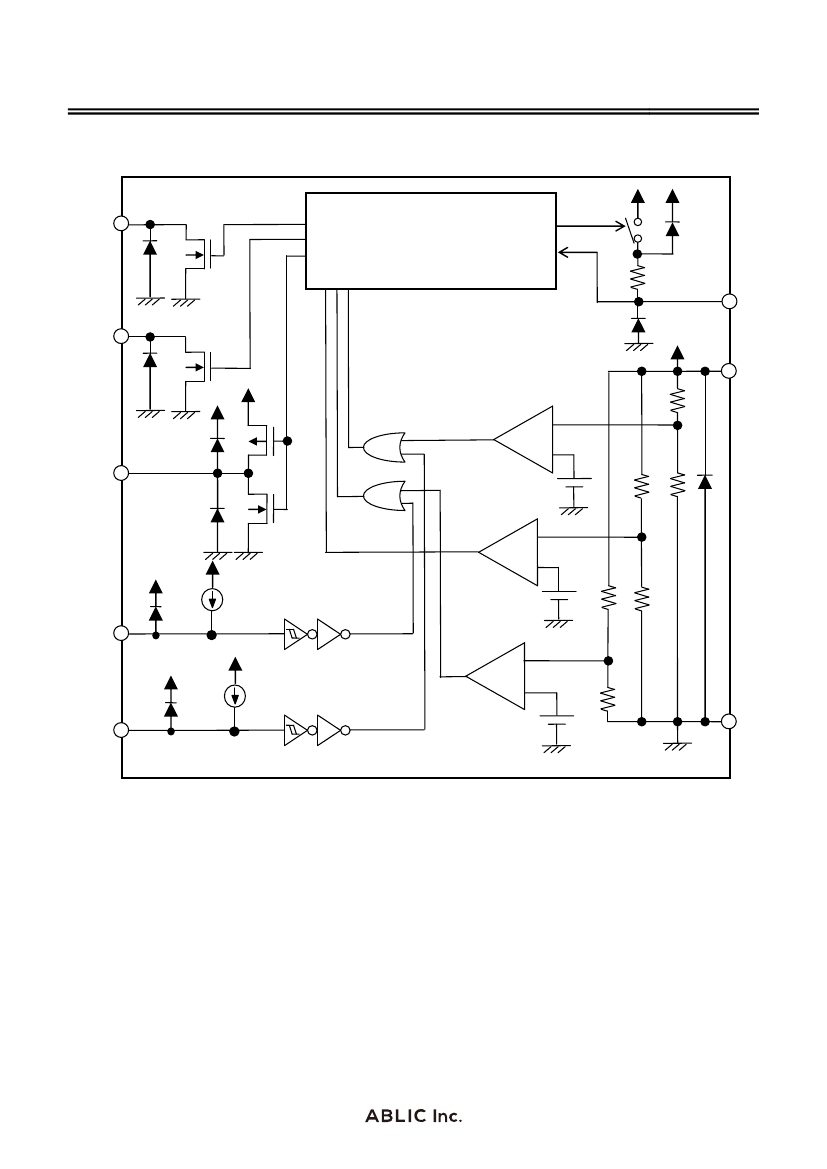

Rev.3.7
_01
BATTERY PROTECTION IC WITH CELL-BALANCE FUNCTION
S-8209A Series
Product Name Structure
1. Product name
1. 1 8-Pin TSSOP
S-8209A
xx
-
T8T1
x
Environmental code
U:
Lead-free (Sn 100%), halogen-free
S:
Lead-free, halogen-free
Package name abbreviation and IC packing specifications
T8T1: 8-Pin TSSOP, Tape
Serial code
Sequentially set from AA to ZZ
*1
*1.
Refer to the tape drawing.
1. 2 SNT-8A
S-8209A
xx
-
I8T1
U
Environmental code
U:
Lead-free (Sn 100%), halogen-free
Package name abbreviation and IC packing specifications
I8T1: SNT-8A, Tape
Serial code
Sequentially set from AA to ZZ
*1
*1.
Refer to the tape drawing.
2. Packages
Table 1 Package Drawing Codes
Package Name
8-Pin TSSOP
SNT-8A
Environmental code = S
Environmental code = U
Dimension
FT008-A-P-SD
FT008-A-P-SD
PH008-A-P-SD
Tape
FT008-E-C-SD
FT008-E-C-SD
PH008-A-C-SD
Reel
FT008-E-R-SD
FT008-E-R-S1
PH008-A-R-SD
Land
PH008-A-L-SD
3
