SLA7080MPR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> SLA7080MPR

SLA7080MPR: DescriptionSTEPPER MOTOR CONTROLLER, 1.5 A, ZFM23; CategoryOther integrated circuit (IC) The signal circuit; File Size440KB，18 Pages; ManufacturerSANKEN; Websitehttp://www.sanken-ele.co.jp/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

SLA7080MPR Overview

STEPPER MOTOR CONTROLLER, 1.5 A, ZFM23

SLA7080MPR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SANKEN
package instruction	,
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-XZFM-T23
Number of functions	1
Number of terminals	23
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SLA7080M Series

Unipolar 2-Phase Stepping Motor Driver ICs

Features and Benefits

▪

Power supply voltage, V

, 46 V maximum; 10 to 44 V

normal operating range

▪

Logic supply voltage, V

, 3 to 5.5 V

▪

Four output currents, I

(max) , options: 1, 1.5, 2, and 3 A

▪

Stepping control for phase input (full or half step)

▪

Built-in sense resistor detects motor current

▪

Compact ZIP 23-pin molded package (SLA package)

▪

Self-excitation PWM control with fixed off-time

▪

Built-in synchronous rectifying circuit reduces losses at

PWM-off

▪

Synchronous PWM function prevents noise generation in

motor Hold mode

▪

Sleep function reduces power consumption of drivers in

Standby mode

▪

Protection circuit detects motor coil open/short and

prevents overheating due to avalanche breakdown

▪

Externally-adjustable (3.2

μs

/5.2

μs)

blanking time

(minimum on-time)

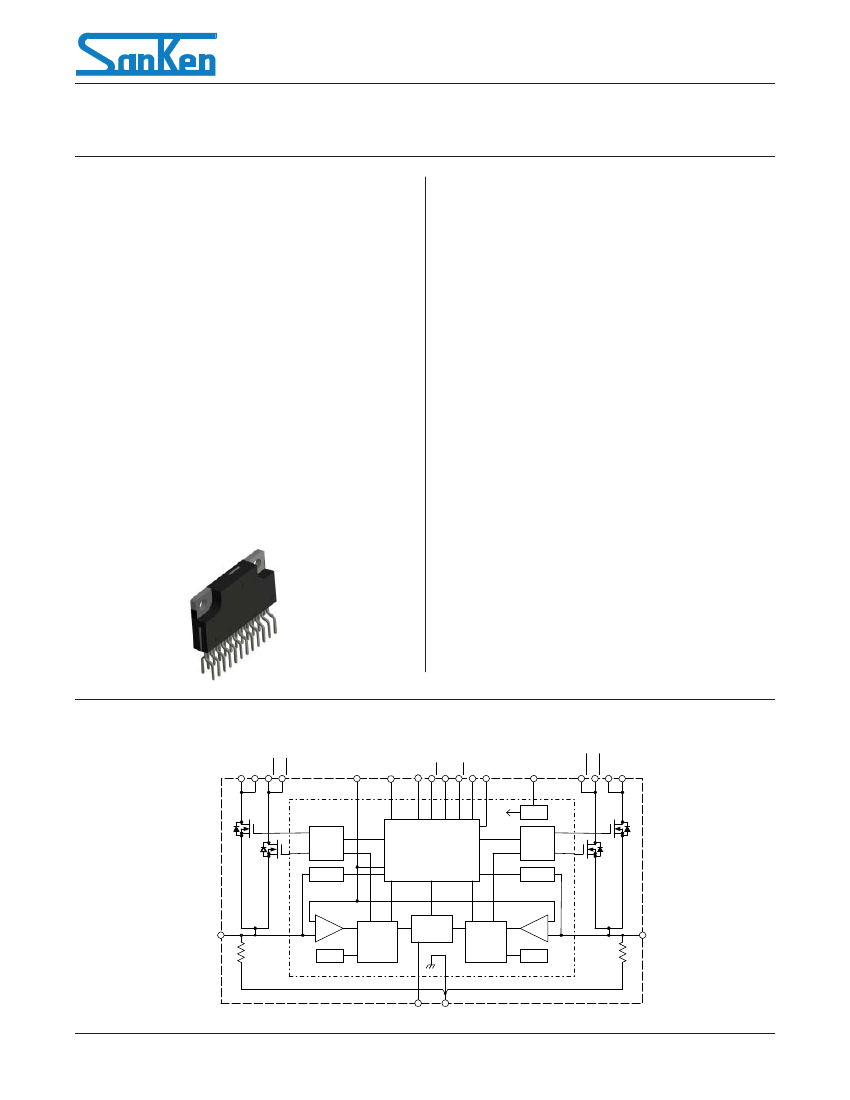

Description

This document describes the function and features of SLA7080M

series, which are unipolar 2-phase stepping motor driver ICs.

Four levels of output current are available from the incorporated

MOSFETs, corresponding to the rated output current ratings.

All current ratings are available with protection against motor

coil shorts or motor open wire detection.

The SLA7080M series has a multichip structure, for enhanced

thermal dispersion. The Control IC (MIC), four power elements

(MOSFET), and dual sense resistors, are all separate ICs.

Built-in sense resistors for each phase allow accurate track-

ing of performance without additional external components.

Low-power sleep mode as well as reduced power during PWM

off-time maximize energy savings.

Package: 23-pin ZIP (type SLA)

Not to scale

Functional Block Diagram

REF/SLEEP

SEL

OUTB

OUTA

MIC

Pre-

Driver

Protect

Comp

OSC

FLAG

VDD

VBB

INB

INA

Reg.

Logic Block

Pre-

Driver

Protect

SENSEA

PWM

Control

Synchro

Control

PWM

Control

Comp

OSC

SENSEB

SYNC

GND

28610.23, Rev. 1

SANKEN ELECTRIC CO., LTD.

http://www.sanken-ele.co.jp/en/

SLA7080MPR Related Products

	SLA7080MPR	SLA7082MPR	SLA7083MPR
Description	STEPPER MOTOR CONTROLLER, 1.5 A, ZFM23	STEPPER MOTOR CONTROLLER, 1.5 A, ZFM23	STEPPER MOTOR CONTROLLER, 3 A, ZFM23
Number of functions	1	1	1
Number of terminals	23	23	23
Maximum operating temperature	85 °C	85 °C	85 Cel
Minimum operating temperature	-20 °C	-20 °C	-20 Cel
Maximum output current	1 A	2 A	3 A
Temperature level	OTHER	OTHER	other
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-hole
Terminal location	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG
Is it Rohs certified?	conform to	conform to	-
Maker	SANKEN	SANKEN	-
Reach Compliance Code	unknow	unknow	-
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER	STEPPER MOTOR CONTROLLER	-
JESD-30 code	R-XZFM-T23	R-XZFM-T23	-
Package body material	UNSPECIFIED	UNSPECIFIED	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	3 V	3 V	-
Nominal supply voltage (Vsup)	5 V	5 V	-
surface mount	NO	NO	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
