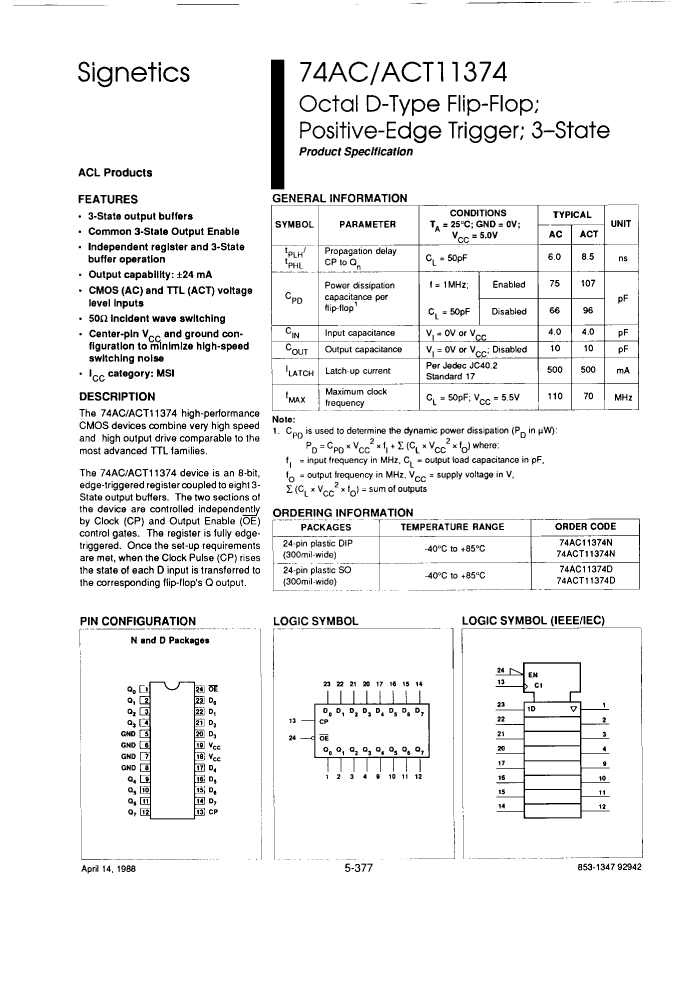

Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24

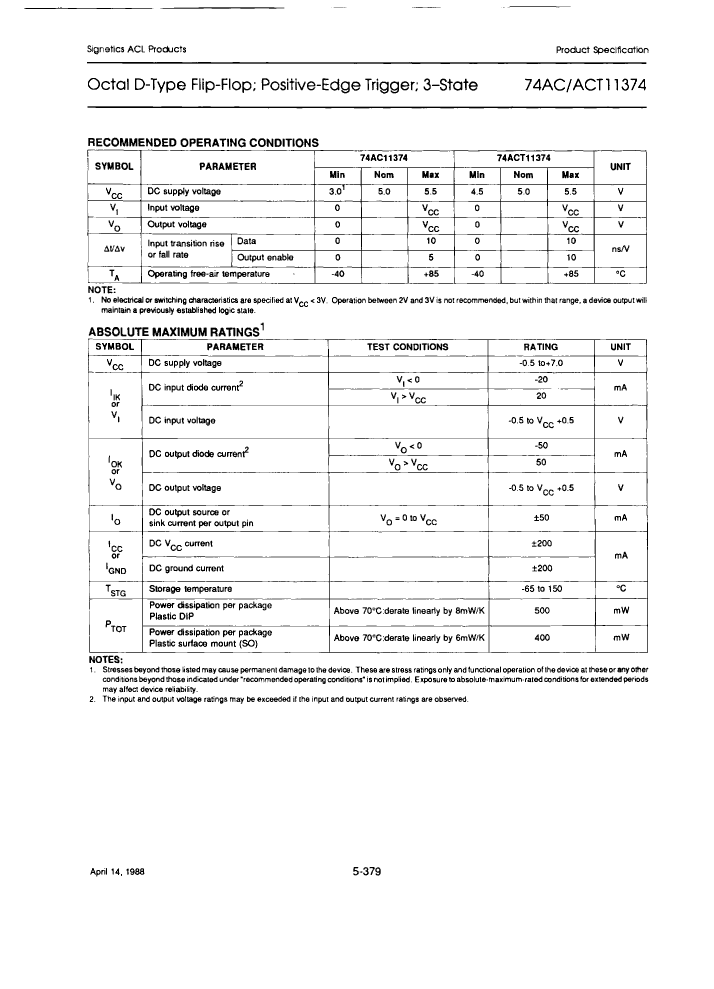

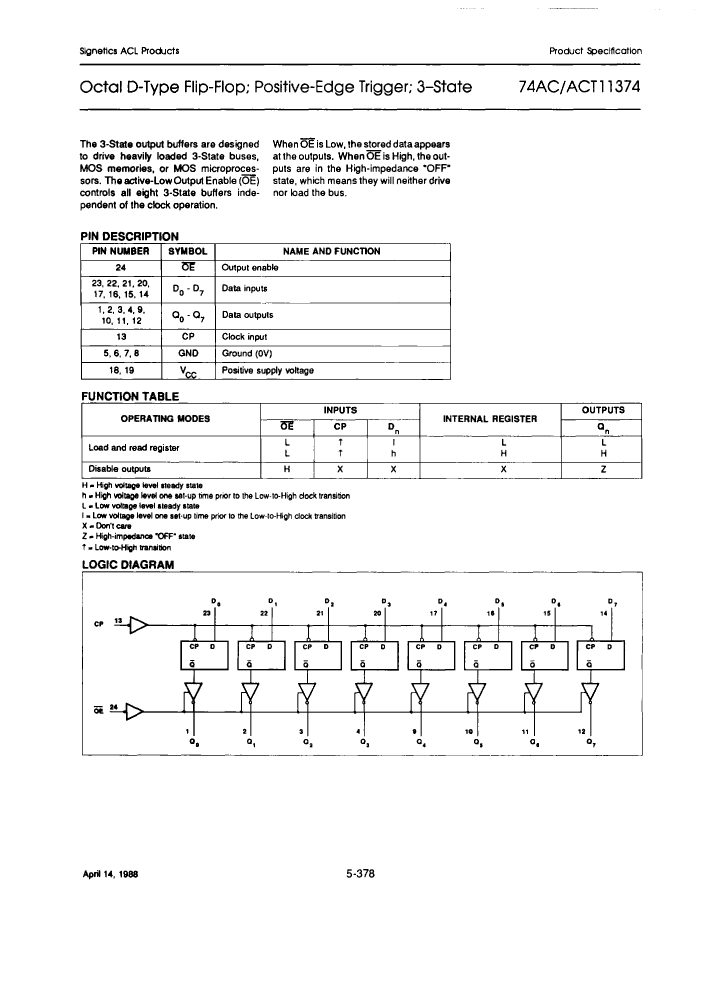

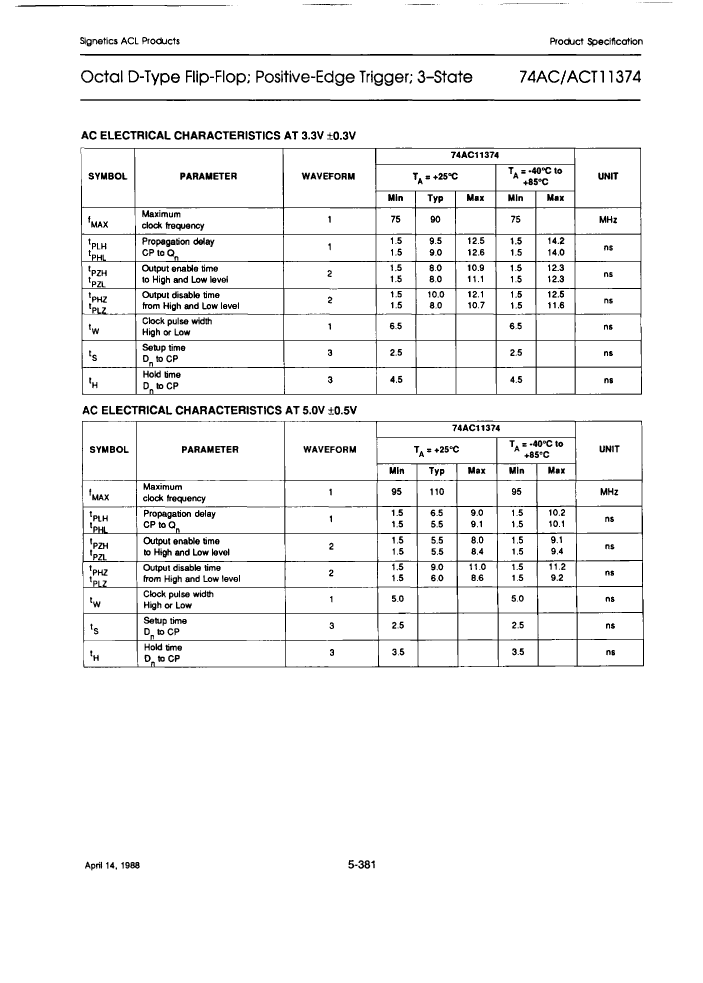

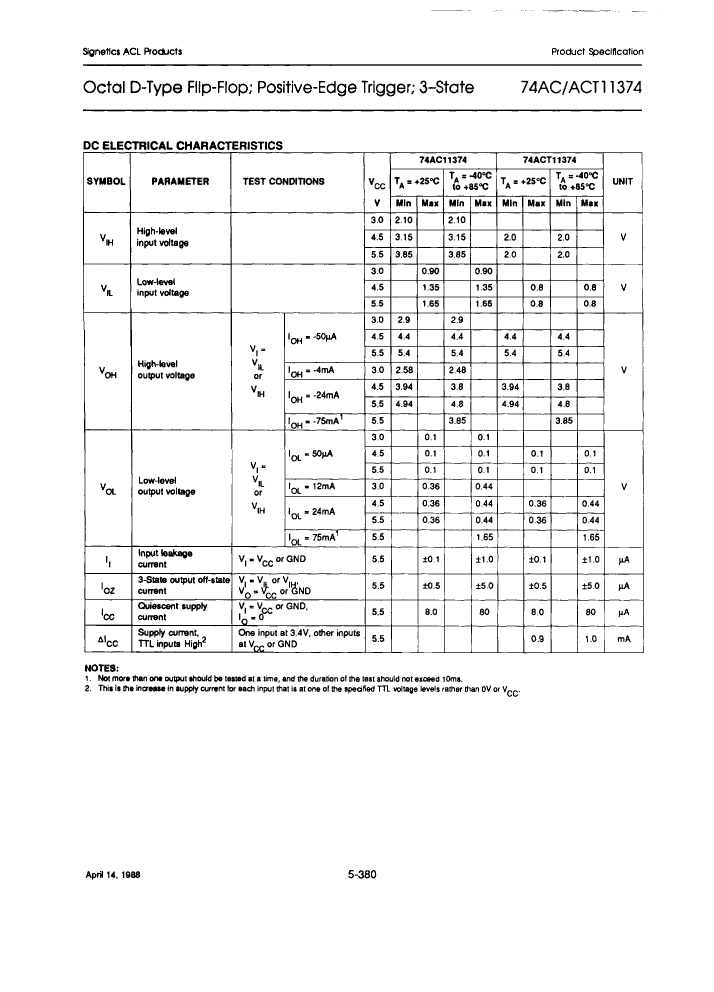

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| series | AC |
| JESD-30 code | R-PDSO-G24 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 14 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| 74AC11374D | 74ACT11374D-T | 74ACT11374D | 74AC11374D-T | 74ACT11374N | 74AC11374N | |
|---|---|---|---|---|---|---|
| Description | Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 | Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24 | Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24 |
| Maker | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| series | AC | ACT | ACT | AC | ACT | AC |
| JESD-30 code | R-PDSO-G24 | R-PDSO-G24 | R-PDSO-G24 | R-PDSO-G24 | R-PDIP-T24 | R-PDIP-T24 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| propagation delay (tpd) | 14 ns | 13 ns | 13 ns | 14 ns | 13 ns | 14 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 3 V | 4.5 V | 4.5 V | 3 V | 4.5 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
