74ACT11842N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74ACT11842N

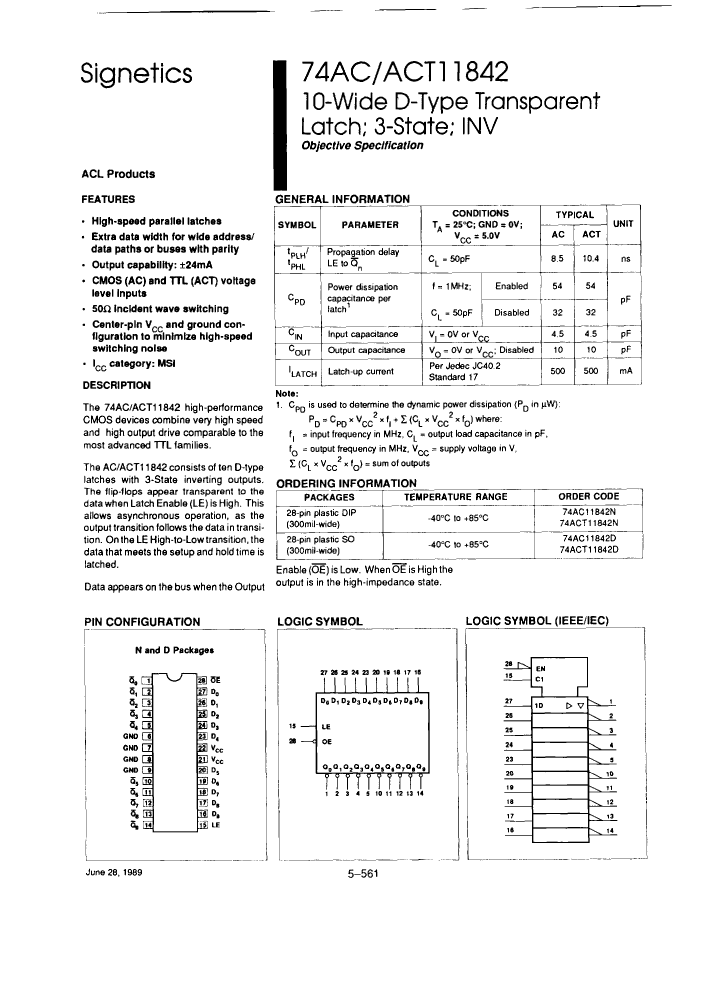

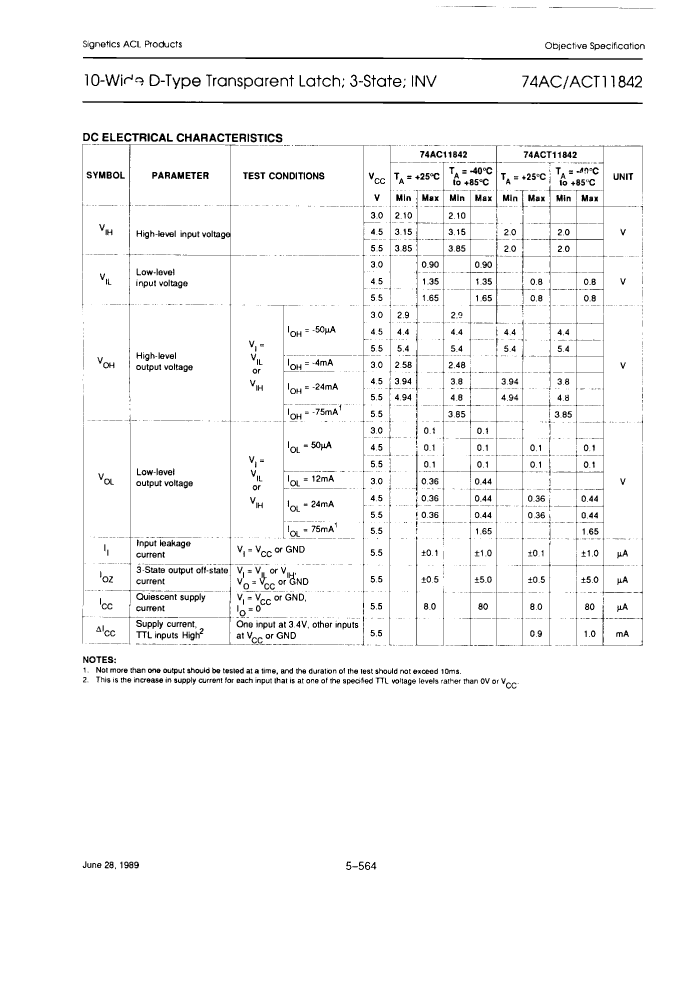

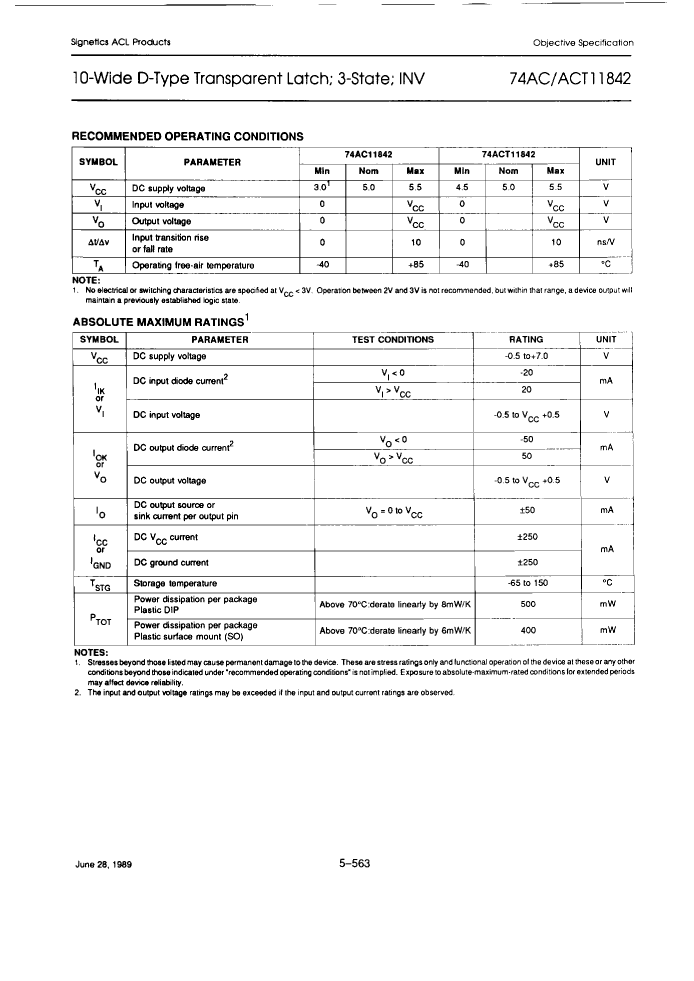

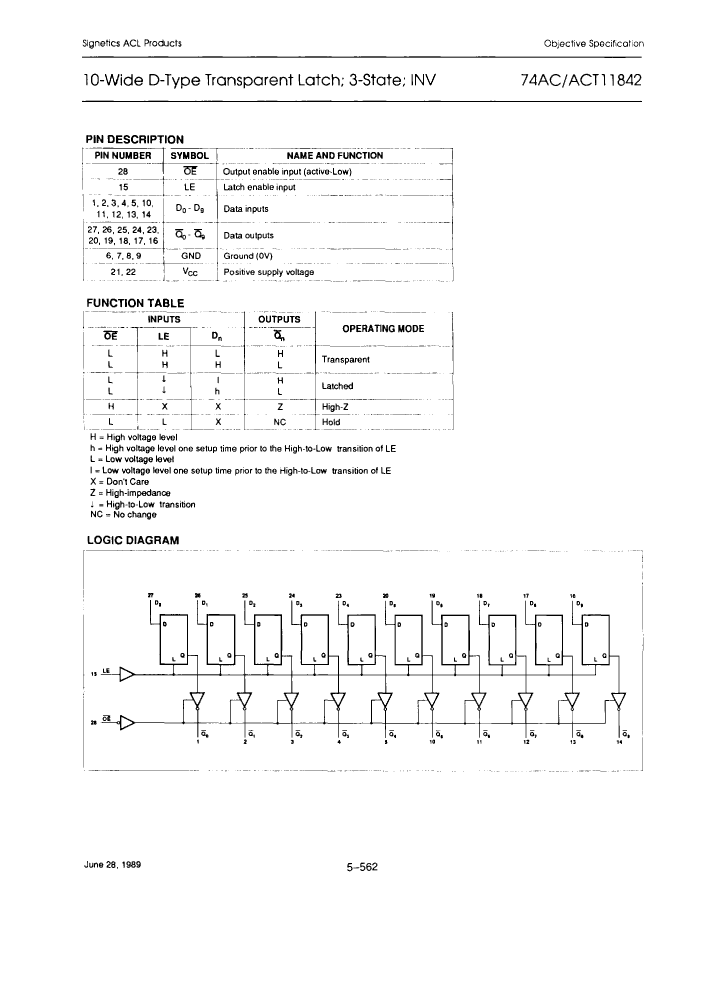

74ACT11842N: DescriptionBus Driver, ACT Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28; Categorylogic logic; File Size121KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74ACT11842N Overview

Bus Driver, ACT Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28

74ACT11842N Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDIP-T28
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

Preview

Download Datasheet

View All

74ACT11842N Related Products

	74ACT11842N	74AC11842D	74AC11842D-T	74AC11842N	74ACT11842D	74ACT11842D-T
Description	Bus Driver, ACT Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28	Bus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDSO28	Bus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDSO28	Bus Driver, AC Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDIP28	Bus Driver, ACT Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDSO28	Bus Driver, ACT Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDSO28
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	ACT	AC	AC	AC	ACT	ACT
JESD-30 code	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	3 V	3 V	3 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
