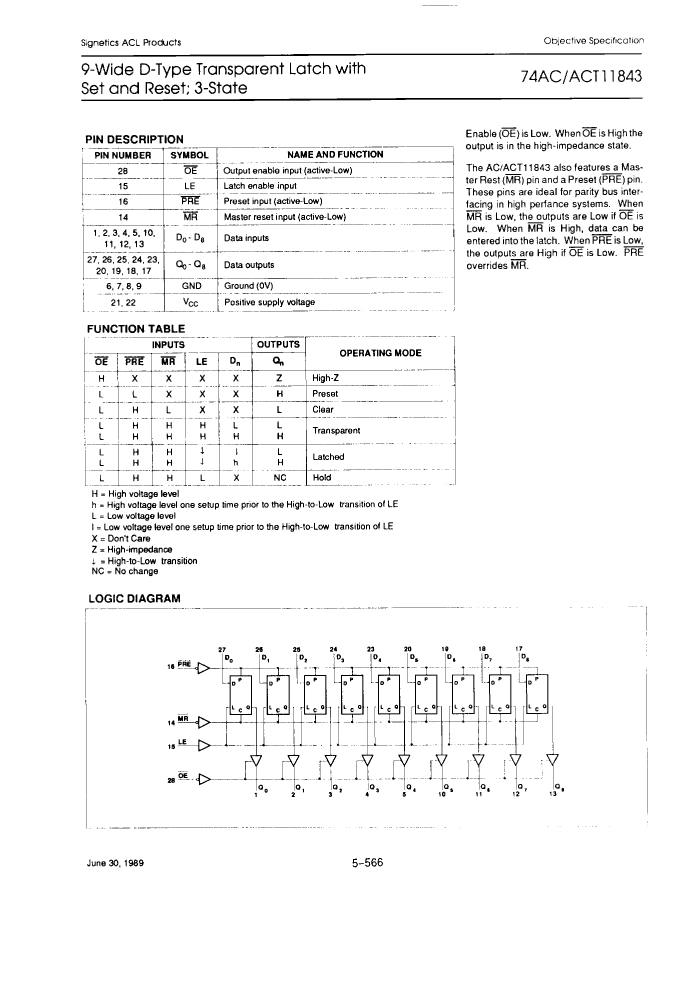

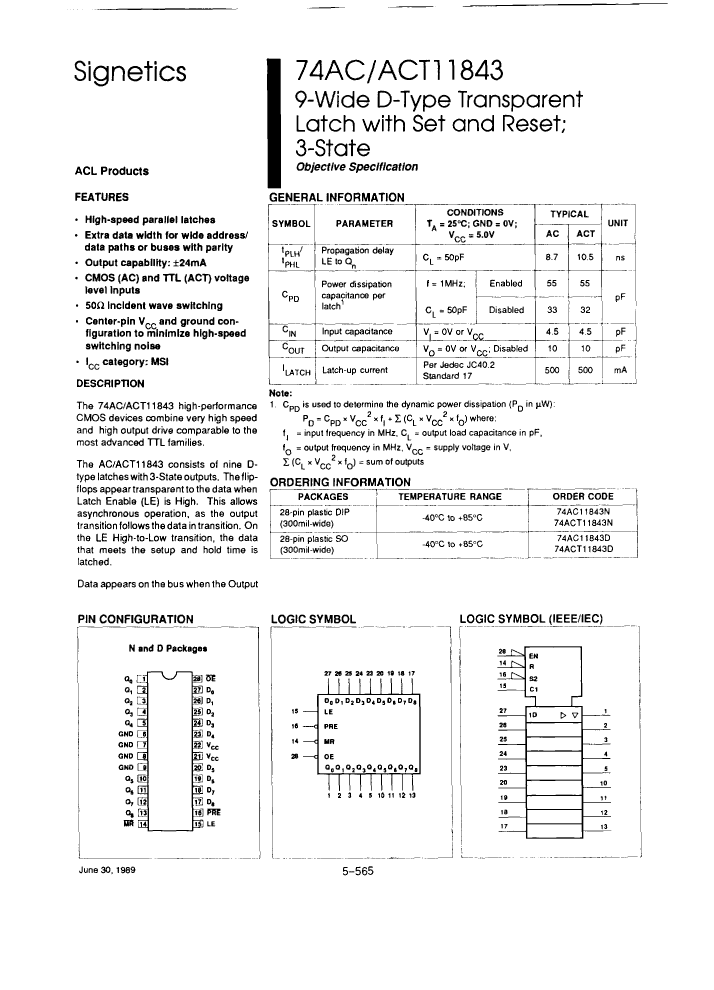

Bus Driver, ACT Series, 1-Func, 9-Bit, True Output, CMOS, PDSO28

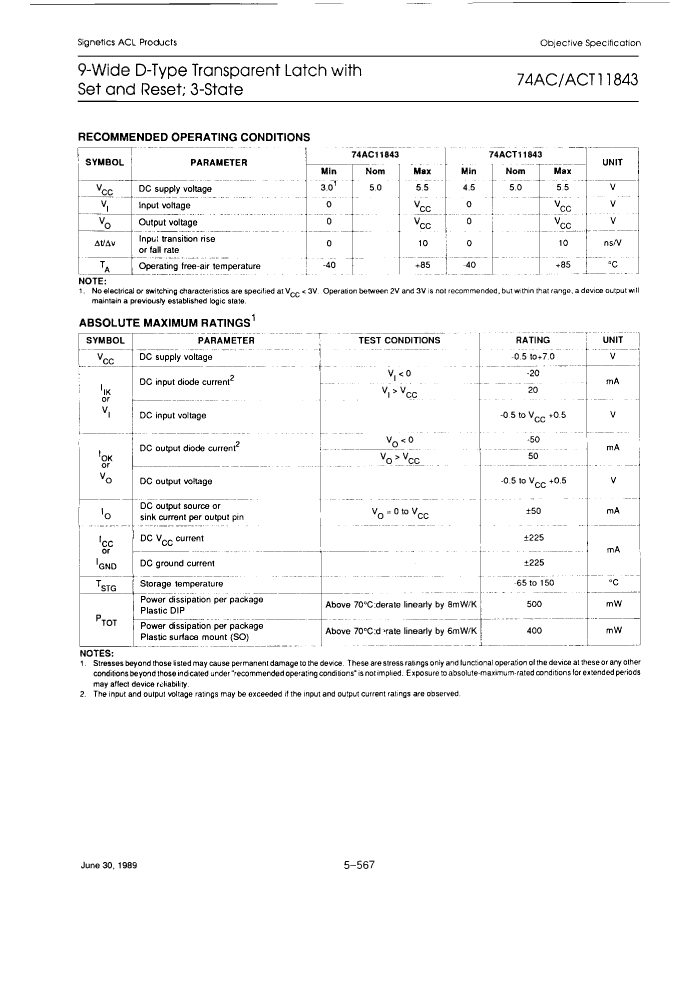

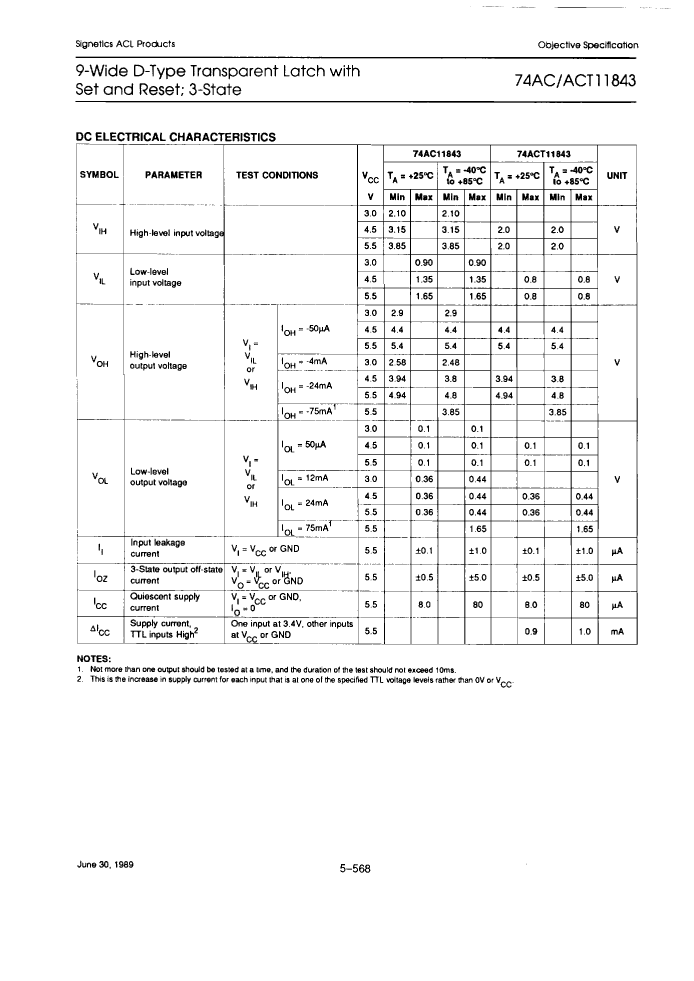

| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | WITH CLEAR AND PRESET |
| series | ACT |
| JESD-30 code | R-PDSO-G28 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 9 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 28 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| 74ACT11843D | 74ACT11843N | 74ACT11843D-T | 74AC11843D-T | 74AC11843D | 74AC11843N | |
|---|---|---|---|---|---|---|
| Description | Bus Driver, ACT Series, 1-Func, 9-Bit, True Output, CMOS, PDSO28 | Bus Driver, ACT Series, 1-Func, 9-Bit, True Output, CMOS, PDIP28 | Bus Driver, ACT Series, 1-Func, 9-Bit, True Output, CMOS, PDSO28 | Bus Driver, AC Series, 1-Func, 9-Bit, True Output, CMOS, PDSO28 | Bus Driver, AC Series, 1-Func, 9-Bit, True Output, CMOS, PDSO28 | Bus Driver, AC Series, 1-Func, 9-Bit, True Output, CMOS, PDIP28 |
| Maker | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | WITH CLEAR AND PRESET | WITH CLEAR AND PRESET | WITH CLEAR AND PRESET | WITH CLEAR AND PRESET | WITH CLEAR AND PRESET | WITH CLEAR AND PRESET |
| series | ACT | ACT | ACT | AC | AC | AC |
| JESD-30 code | R-PDSO-G28 | R-PDIP-T28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 | R-PDIP-T28 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 9 | 9 | 9 | 9 | 9 | 9 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
