LGX2D122MERAHA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LGX2D122MERAHA

LGX2D122MERAHA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 1200uF,; CategoryPassive components capacitor; File Size47KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

LGX2D122MERAHA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 200V, 20% +Tol, 20% -Tol, 1200uF,

LGX2D122MERAHA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM
length	50 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	Snap-in
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	2400 mA
series	GX
Terminal pitch	8.5 mm

Preview

Download Datasheet

View All

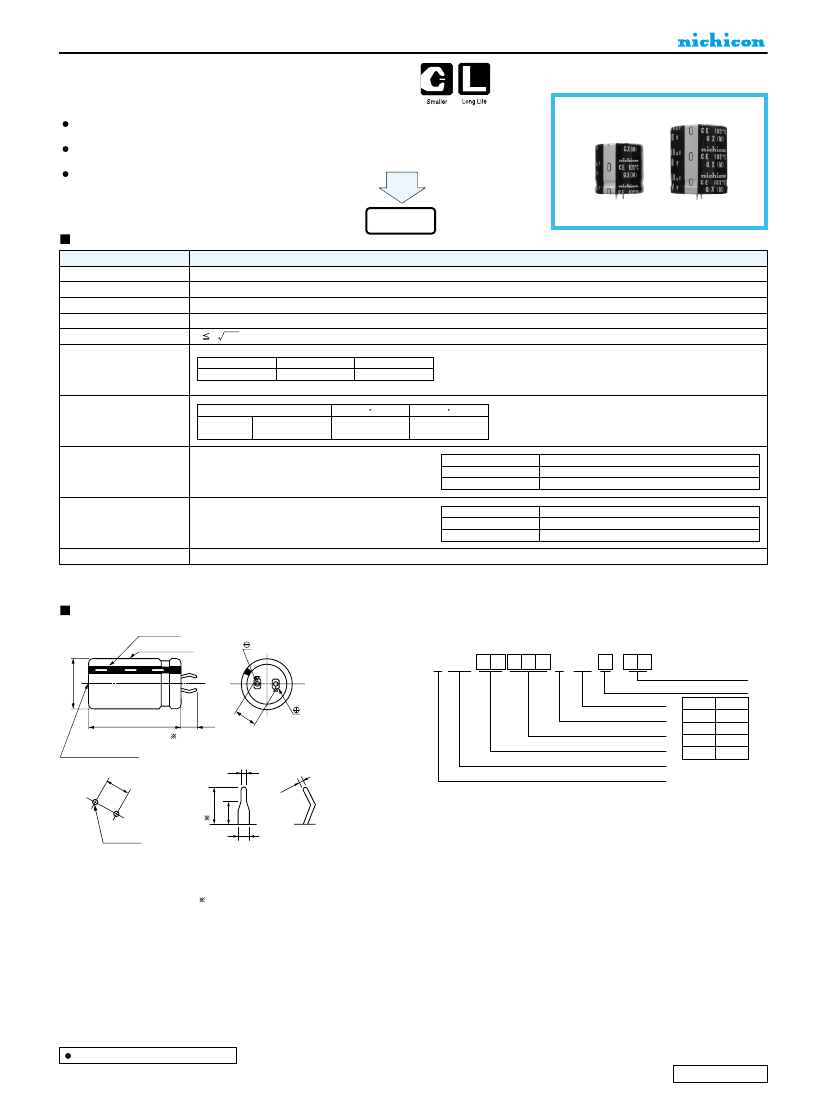

ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type,

105°C Long Life Assurannce, Smaller-Sized

series

Long life assurance series withstanding 5000 hours

application of rated ripple current at 105°C.

Suited for rectifier circuit of general inverter,

switching power supply.

Compliant to the RoHS directive (2002/95/EC).

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

–

25 to +105°C

Performance Characteristics

200 to 450V

82 to 2200µF

± 20% at 120Hz, 20°C

3 CV

(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) V : Voltage (V)]

Rated voltage(V)

tan

(MAX.)

Tangent of loss angle (tan

δ)

200 to 400

0.15

450

0.20

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage(V)

200

250

400

450

Measurement frequency : 120Hz

Stability at Low Temperature

Impedance

ratio (MAX.)

–

25°C/ Z+20°C

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus rated

ripple current is applied for 5000 hours at 105°C, the peak

voltage shall not exceed the rated voltage.

After storing the capacitors under no load at 105°C

for 1000 hours and then performing voltage treatment

based on JIS C 5101-4 clause 4.1 at 20°C,

they shall meet the requirements listed at right.

Printed with white color letter on black sleeve.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Capacitance change

tan

Leakage current

Within ±15% of the initial capacitance value

150% or less than the initial specified value

Less than or equal to the initial specified value

Marking

Drawing

Polarity bar

Sleeve (P.E.T.)

φD

+1.5 MAX.

Type numbering system (Example : 400V 120

10 11

13 14

L G X 2 G 1 2 1 M E L Z

3 0

Case length code

Case dia. code

Configuration

φD

Code

Capacitance tolerance (±20%)

Rated capacitance (120µF)

Rated voltage (400V)

4.0±0.5

Pressure relief vent

0.8

+0.2

-0.1

0.1

4.0±0.5

+0 .1

-0

Series name

Type

2- 2

φ ±

0.1

(PC board hole dimensions)

1.5

-0.1

(Terminal dimensions)

+0.2

The other terminal is also available upon request.

Please refer page 272 for schematic of dimensions.

Minimum order quantity : 50pcs.

Dimension table in next page.

2.5

CAT.8100Z
