Datasheet> All Categories > Discrete semiconductor> diode> BYQ28-200

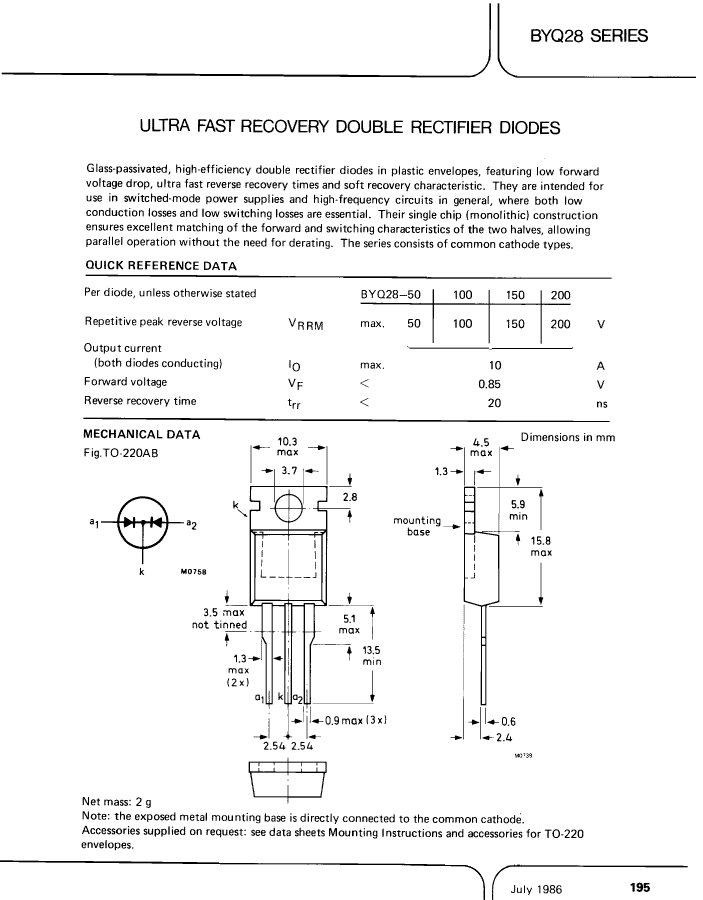

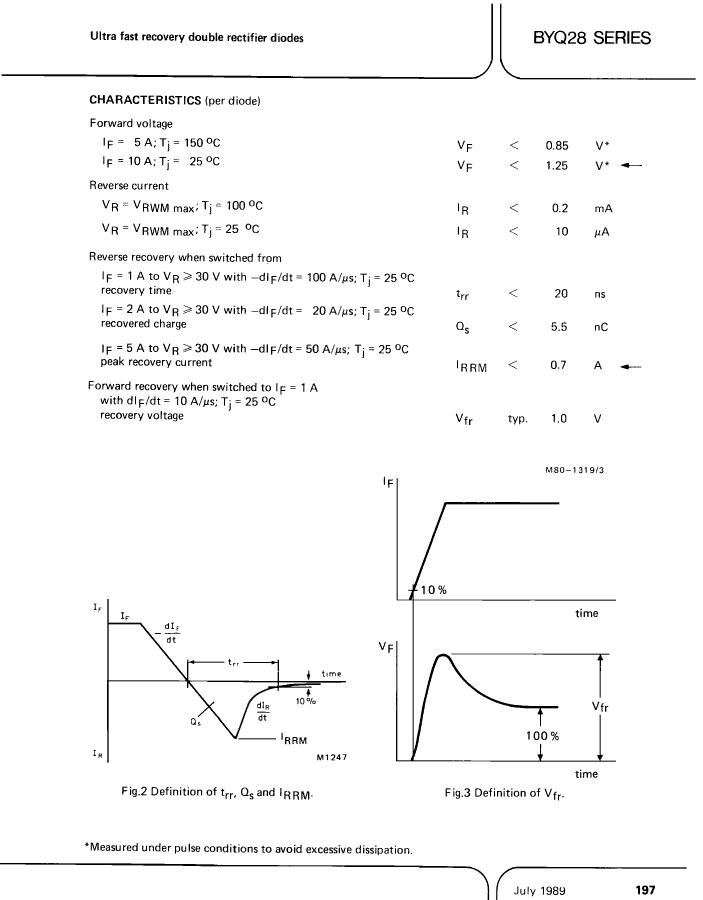

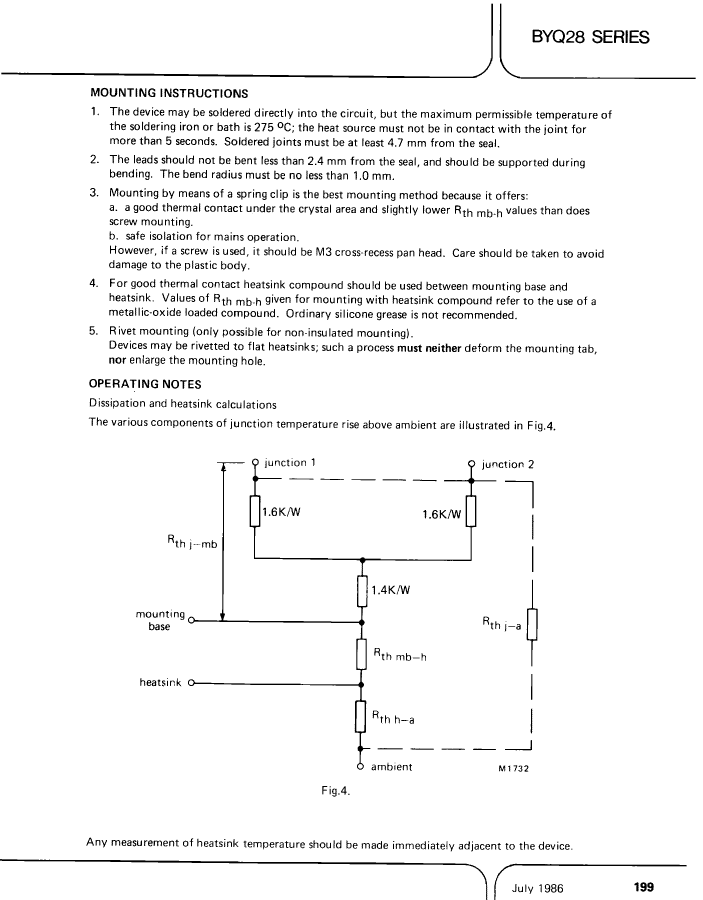

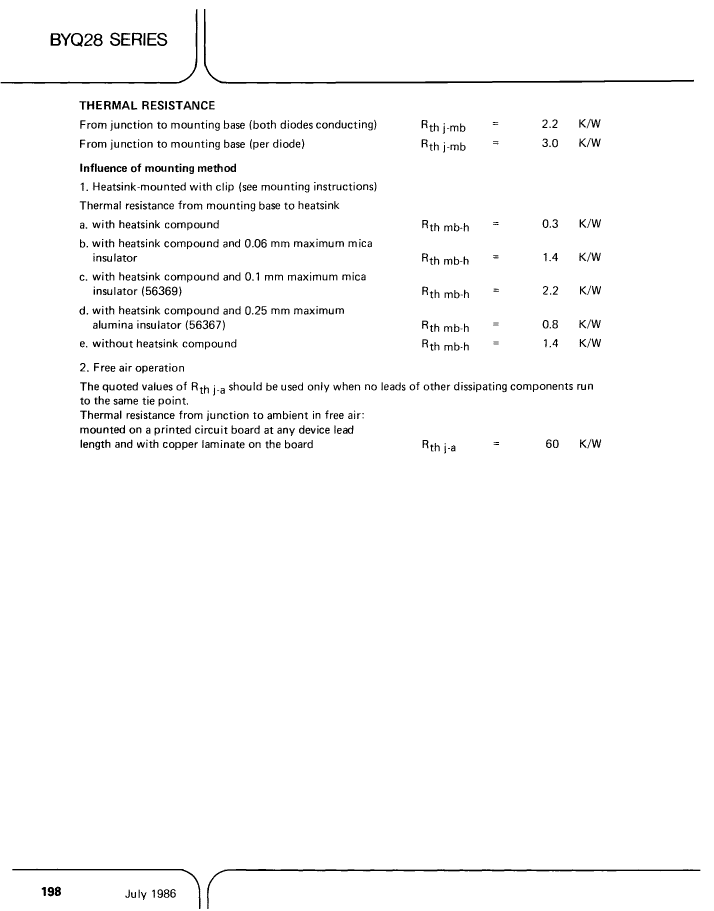

Preview

BYQ28-200: DescriptionRectifier Diode, 1 Phase, 2 Element, 5A, 200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size246KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYQ28-200 Overview

Rectifier Diode, 1 Phase, 2 Element, 5A, 200V V(RRM), Silicon,

BYQ28-200 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	60 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.02 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

BYQ28-200 Related Products

	BYQ28-200	BYQ28-150	BYQ28-100	BYQ28-50
Description	Rectifier Diode, 1 Phase, 2 Element, 5A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 5A, 150V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 5A, 50V V(RRM), Silicon,
Maker	YAGEO	YAGEO	YAGEO	YAGEO
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	150 V	100 V	50 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.02 µs	0.02 µs	0.02 µs	0.02 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
