NDA0715T-3R6N-N: DescriptionGeneral Purpose Inductor, 3.6uH, 30%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size109KB，1 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

NDA0715T-3R6N-N Overview

General Purpose Inductor, 3.6uH, 30%, 1 Element, SMD, ROHS COMPLIANT

NDA0715T-3R6N-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.11 Ω
Nominal inductance(L)	3.6 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	NDA
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

YAGEO CORPORATION

SMD INDUCTOR / BEADS

Mini Power Inductors

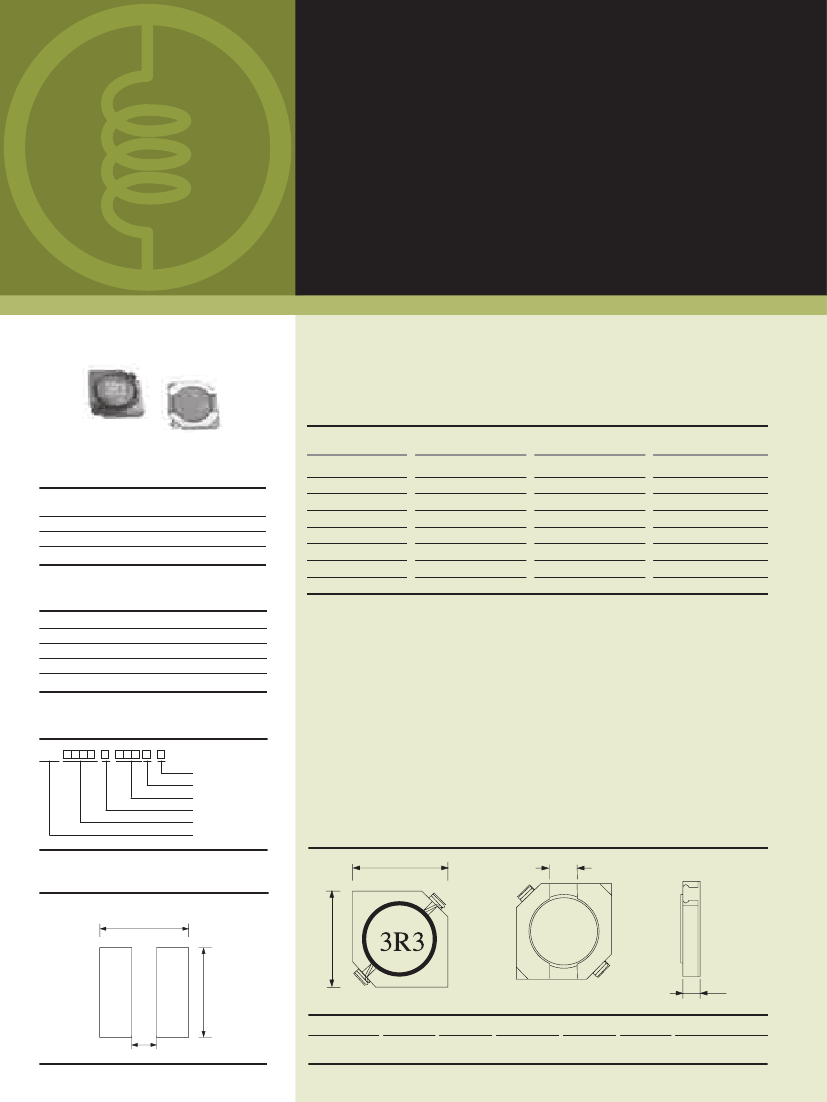

NDA Series

electrical characteristics : lead-free & rOhs cOmpliance

(NDA0715)

p/n

NDA0715T-1R6

NDA0715T-2R2

NDA0715T-2R6

NDA0715T-3R0

NDA0715T-3R3

NDA0715T-3R6

-N

inductance l(µh)±20

1

1.60

2.20

2.60

3.00

3.30

3.60

4.70

47.0

dcr (Ω)

MAX.

0.045

0.065

0.075

0.085

0.096

0.110

0.130

0.650

IDC (A) MAX.

2

2.50

2.00

1.80

1.70

1.60

1.50

1.30

0.45

features

Excellent property with high saturation for surface

mounting

Magnetically shielded & low radiation.

Large rated current 2.5A max.

Iow profile less than 1.5mm.

applicatiOns

DC-DC converter

LCD monitor

Digital video and still cameras.

Digital camera.

Harddisk drivers and others.

NDA0715T-4R7 -N

NDA0715T-470 -N

1. Test Frequency 100KHZ / 0.1Vrms.

2. DC current at which the Inductance drops 20%(typ) from its value without current.

3. Operating Temperature Range -40°C to 85°C

4. Tolerance : M : 20% , N : 30%

5. Packaging : Clear Tape and Reel (Standard)

prOduct identificatiOn

NDA

-

International No.

Tolerance

Inductance

Packaging(Tape & Reel)

Dimensions

Product Symbol

shape and dimensiOns

B

2.0

Dimensions : mm

land patterns pcB

Dimensions : mm

D

A

C

TYPE

A

7.0±0.2

B

7.0±0.2

C

1.5MAX

D

7.3

E

7.3

F

2.0

F

E

NDA0715
