2-1376439-3 Overview

POWER CONNECTOR

Preview

Download Datasheet

View All

Soft Shell

Pin and Socket Connectors

AMP

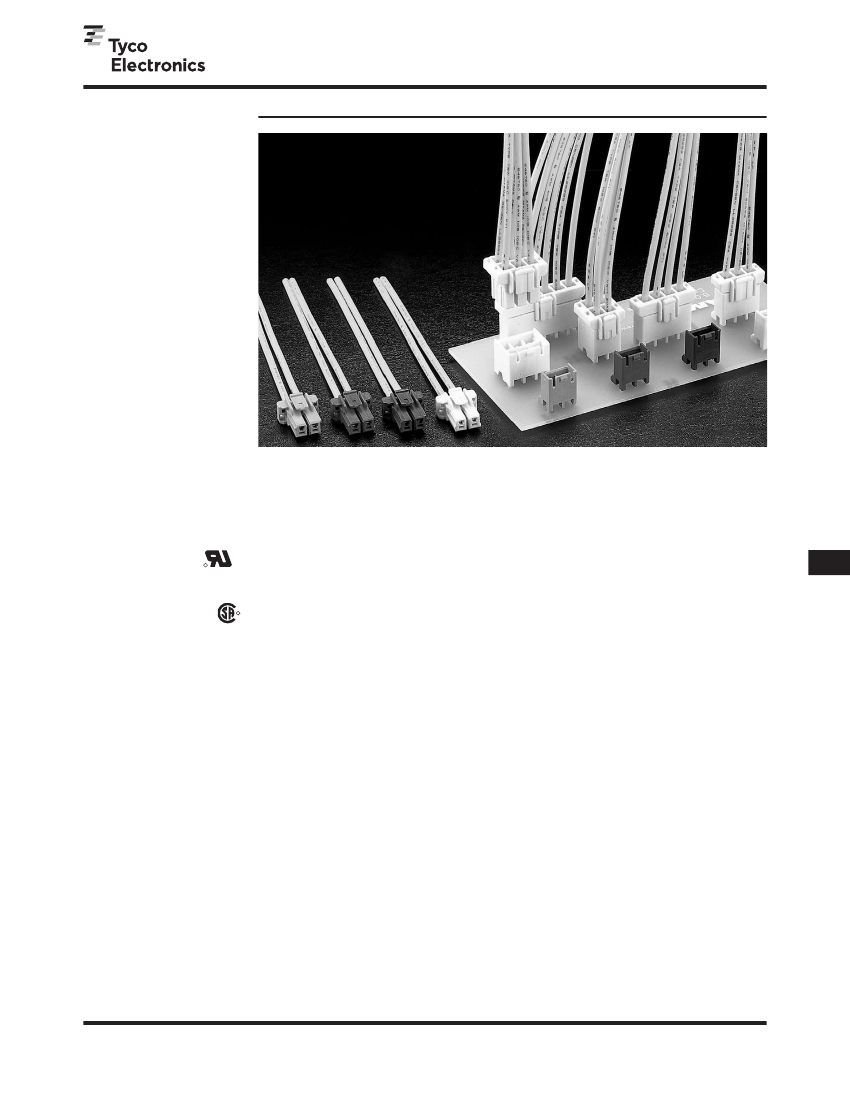

5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)

Product Facts

Compact design with

19.4 mm mated height

Power circuit connector with

5.0 mm contact centerline

Wire-to-board connectors

consisting of plug housings

for wires and PCB header

assemblies

With a clear clicking sound,

contact insertions can be

made easier. The double

lock plate provides for

complete loading of contacts

Locking levers are

surrounded by walls, which

protect levers and prevent

tangling with wires

Connector is designed to

release bubbles created

by the process of potting

(PC board coating)

Housing lances also help

prevent tangling of wired

contacts

Recognized under the

Component Program

of Underwriters

Laboratories Inc.,

File No. E28476

Standard Density

5.0 mm Power Key

Connectors are for power

circuits of home appliances,

especially targeting gas

appliances. The connector

features four kinds of keying

per housing.

Only color-coding of hous-

ings limited the efficiency

of blind mating where you

could not see connectors.

However, the new keying

mechanism not only

improves assembly

efficiency but also helps

prevent mismating.

Part numbers involved

can be reduced so that

purchasing and stock

level control can be

made simpler.

Performance Characteristics

Voltage Rating—300

Current Rating—10A

max.

Operating Temperature—

-30°C ~ +105˚C

Applicable Wire—24-16

AWG

Applicable PC Board Thickness—

1.6 mm

VAC

Technical Documents

Product Specification

108-5699

Application Specification

114-5292

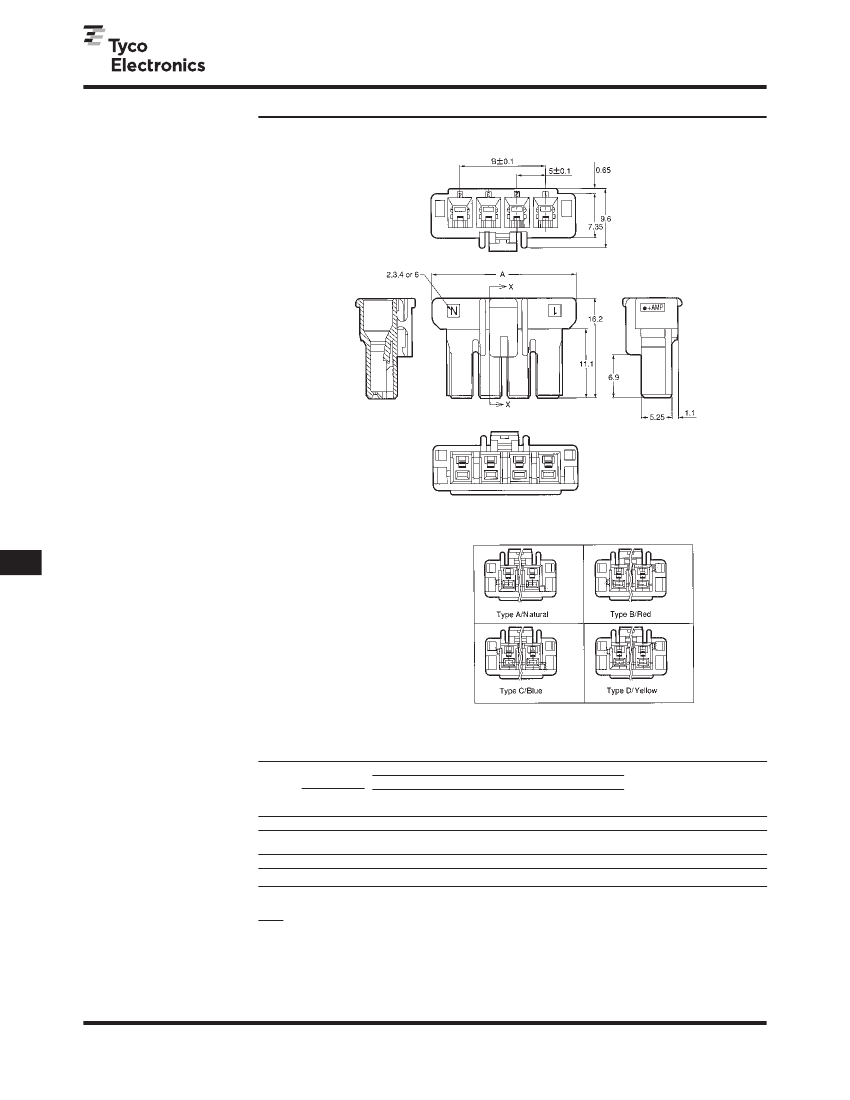

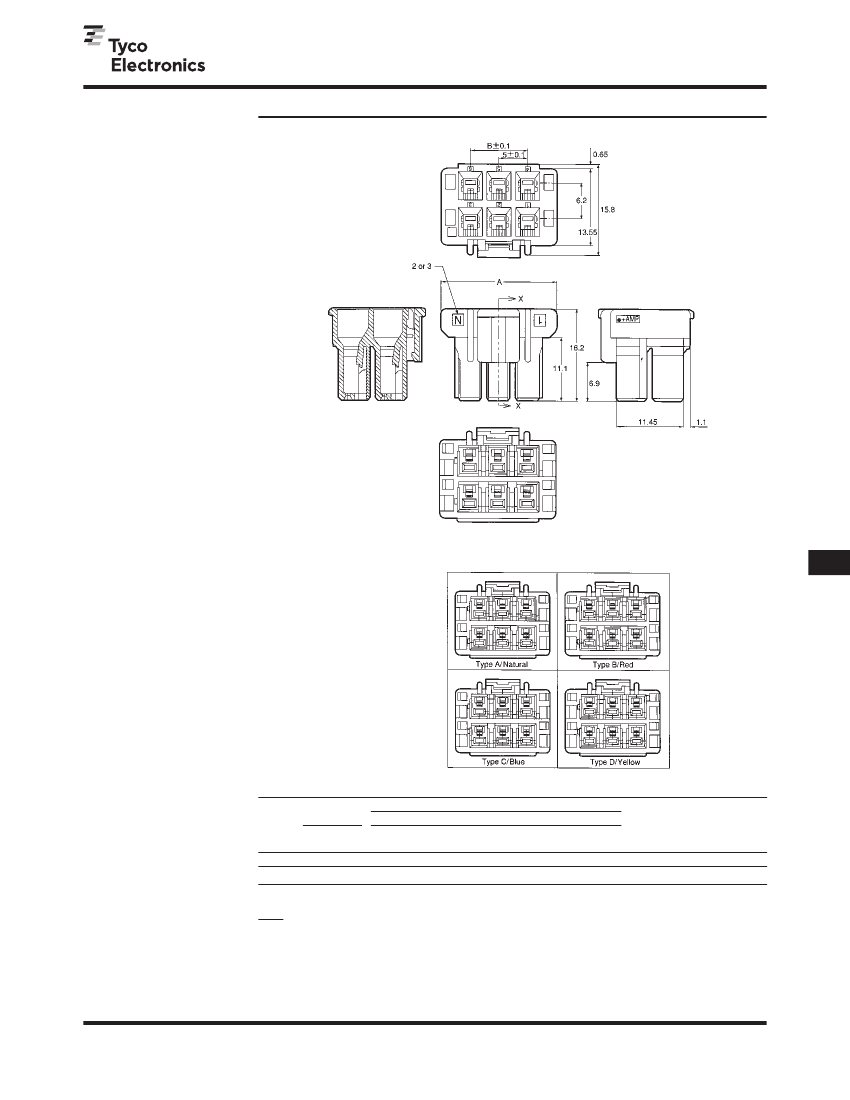

5.0 mm Power Key Connectors

.197

[5.00]

Centerline

Certified by Canadian

Standards Association,

File No. LR7189

1 Excludes header tyne round

space. Usable for 150 VAC

applications when the round

dimensions are 3 mm or less.

2 Specified values vary according to

the number of contacts and the

wire used. The 10 A maximum

value applies to 16 AWG wire

used with 2 contacts.

135

Catalog 82181

Revised 4-08

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-8706-080-208
